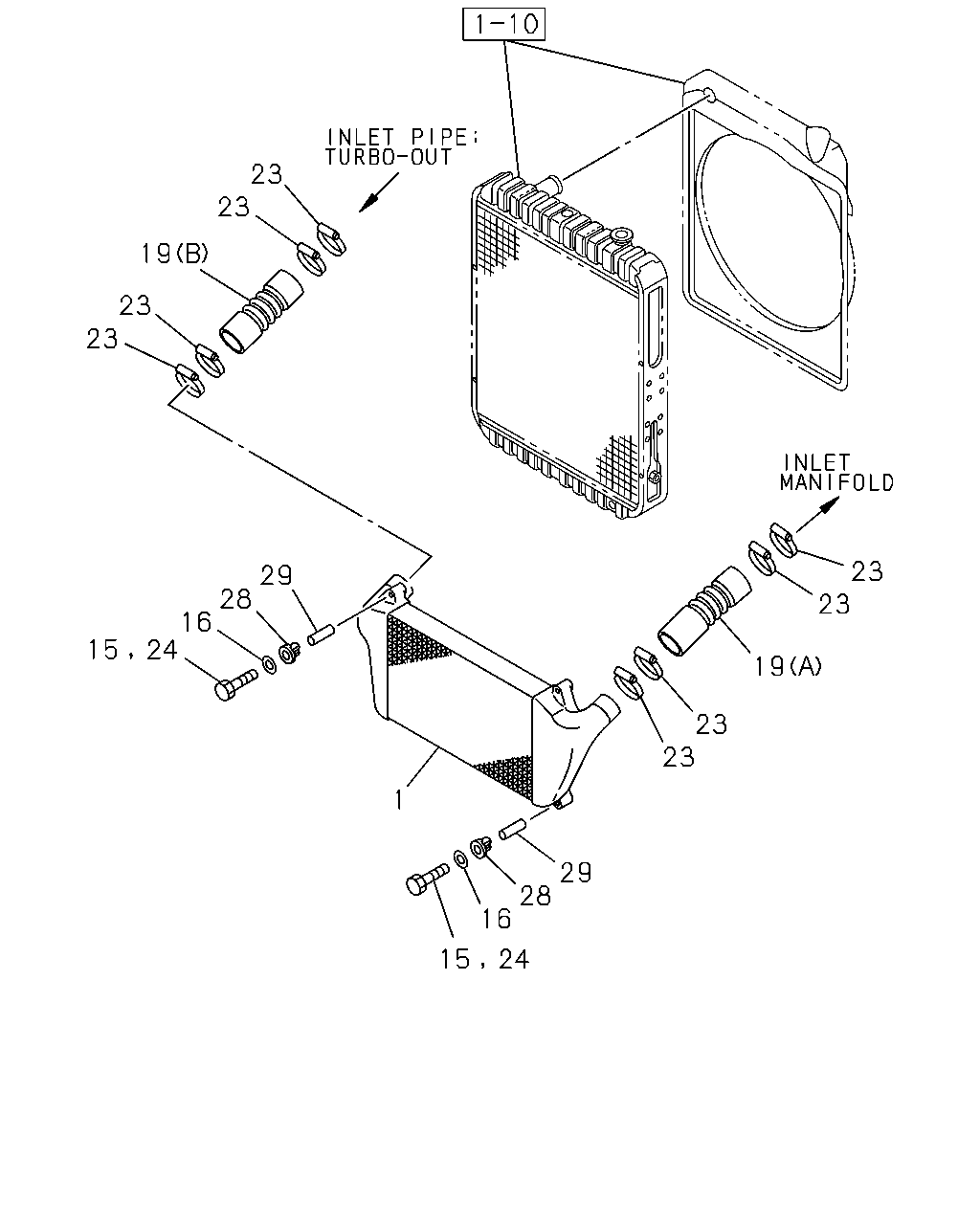

1-35 — CHARGE AIR COOLER (#3740) — 49 parça

23 23 19 23 23 23 23 29 28 16 24 15 19 23 23 1 29 28 16 15 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COOLER; CHARGE AIR	8-94392-923-2	01	1	0608-	●
1	COOLER; CHARGE AIR	1-14431-041-1	01	1	9601-9806		●
1	COOLER; CHARGE AIR	1-14431-041-1	01	1	9807-0004		●
1	COOLER; CHARGE AIR EXC. EURO2 SPECIFICATION<THN>	1-14431-041-1	01	1	9807-0004			●
1	COOLER; CHARGE AIR	1-14431-041-1	01	1	0005-0511		●
1	COOLER; CHARGE AIR	8-98033-144-0	01	1	0512-		●
1	COOLER; CHARGE AIR	1-14431-044-0	01	1	9601-				●
15	BOLT; CHARGE AIR COOLER M8X35 FLANGE	0-28080-835-0	04	1	9601-9803		●		●
15	BOLT; CHARGE AIR COOLER M8X35 FLANGE	0-28080-835-0	04	1	9807-0004		●		●
15	BOLT; CHARGE AIR COOLER EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28080-835-0	04	1	9807-0004			●
15	BOLT; CHARGE AIR COOLER M8X35 FLANGE	0-28080-835-0	04	1	0005-		●		●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	9601-9806		●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	9807-0004		●
16	WASHER; PL,CHARGE AIR COOLER EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32	9-09164-810-0	04	1	9807-0004			●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0005-0607		●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0608-	●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-94395-022-0	01	1	0608-	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-94390-035-0	01	1	9601-9806		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-94390-035-0	01	1	9807-0004		●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-94390-035-0	01	1	0005-1408		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-98245-238-0	01	1	1409-		●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-94390-043-0	01	1	9601-9806		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-94390-043-0	01	1	9807-0004		●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-94390-043-0	01	1	0005-		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09360-911-0	01	1	9601-0212				●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-118-0	01	1	0301-				●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-94395-023-1	01	1	9601-0607				●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-94395-023-1	01	1	0608-	●			●
23	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1002-	●	●		●
23	CLIP; HOSE ID=58-79	8-94126-771-0	08	1	9601-9806		●		●
23	CLIP; HOSE ID=58-79	8-94126-771-0	08	1	9807-0004		●		●	●	●
23	CLIP; HOSE ID=58-79	8-94126-771-0	08	1	0005-0306		●		●
23	CLIP; HOSE ID=58-76	1-09707-203-0	08	1	0307-0607		●		●
23	CLIP; HOSE ID=58-76	1-09707-203-0	08	1	0608-0811	●	●		●
23	CLIP; HOSE ID=55-75	8-98133-349-0	08	1	0812-1001	●	●		●
23	CLIP; HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1002-	●	●		●
24	BOLT; COOLER TO RAD ALLISON MD3060P A/T(Y4G) M8X35 FLANGE	0-28080-835-0	04	1	0005-0607				●
24	BOLT; COOLER TO RAD ALLISON MD3060P A/T(Y4G) M8X35 FLANGE	0-28080-835-0	04	1	0608-				●
24	BOLT; COOLER TO RAD M8X35 FLANGE	0-28080-835-0	04	1	0608-	●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-015-1	04	1	9601-9806		●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-015-1	04	1	9807-0004		●
28	RUBBER; MTG,CHARGE AIR COOLER EXC. EURO2 SPECIFICATION<THN>	1-21467-015-1	04	1	9807-0004			●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-015-1	04	1	0005-0607		●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-015-1	04	1	0608-	●	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	9601-9806		●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	9807-0004		●
29	COLLAR; MTG RUBBER,CAC BRKT EXC. EURO2 SPECIFICATION<THN>	1-21469-100-0	04	1	9807-0004			●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0005-0607		●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0608-	●	●
