3-75 — BRAKE PIPING; AIR,FRONT (#374) — 74 parça

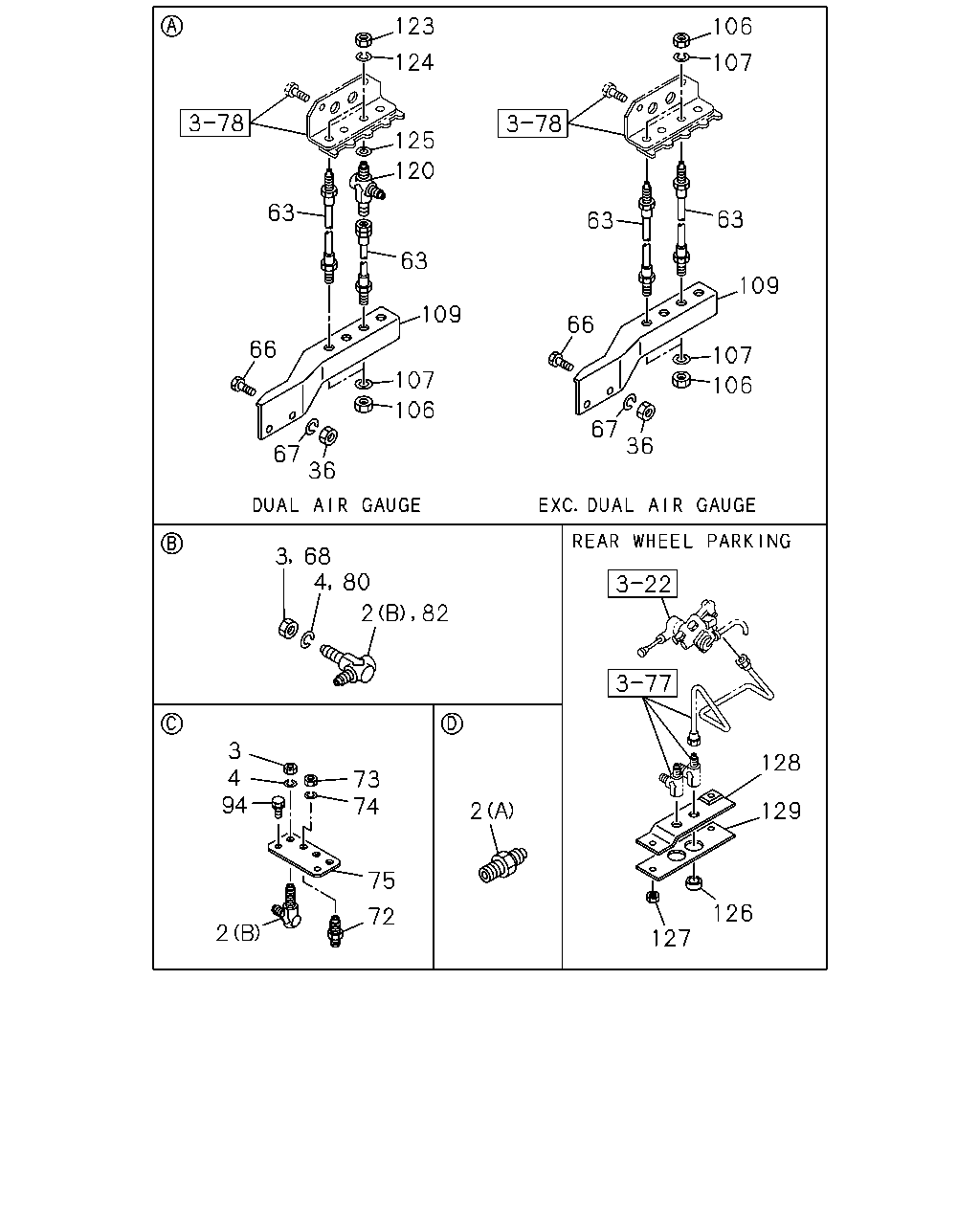

çizim 27263
123 106 124 107 125 120 63 63 63 63 109 109 66 66 107 107 106 106 67 36 67 36 3 68 4 80 82 3 4 94 128 73 74 2 129 75 126 72 2 127 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(A) M16 L=42 		9-09233-010-1 02 1 9202- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		9-09235-210-1 02 1 9202- ● ●
3 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 9202- ● ●
4 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 02 1 9202-9312 ● ●
36 NUT; HOSE BRKT
M10 		9-09110-510-0 02 1 9202- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> L=520 		0-07474-520-1 01 1 9202-9307 ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=520 		0-07474-520-1 01 1 9308-9408 ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> L=520 		0-07474-520-1 01 1 9409- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> L=630 		0-07424-630-0 01 1 9202- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=630 		0-07424-630-0 01 1 9202- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=630 		0-07424-630-0 01 1 9202- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=590 		0-07424-590-0 01 1 9308- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> L=480 		0-07474-480-1 01 1 9308-9408 ●
66 BOLT; HOSE BRKT
M10X25 L=40 		9-04411-025-0 02 1 9202- ● ●
67 WASHER; LK,HOSE BRKT
ID=10.2 		9-09150-510-0 02 1 9202- ● ●
68 NUT; UNION
M16 		9-99111-416-0 01 1 9202- ● ●
72 UNION; AIR PIPE
M16 L=74 		9-09233-310-1 01 1 9202- ● ●
73 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9202- ● ●
74 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
75 BRACKET; UNION 1-47475-613-2 01 1 9202- ● ●
80 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
82 UNION; AIR PIPE
M16 ELBOW 		9-09235-210-1 01 1 9202- ● ●
94 BOLT; BRKT
M8X20 FLANGE 		0-28010-820-0 02 1 9202-9204 ● ●
94 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
106 NUT; FLEX HOSE
DUAL AIR GAUGE<UG2> M16 		9-99111-416-0 01 1 9202- ● ●
106 NUT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M16 		9-99111-416-0 02 1 9202- ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9202- ● ●
107 WASHER; LK,FLEX HOSE
DUAL AIR GAUGE<UG2> ID=16.2 		9-09150-516-0 01 1 9202- ● ●
107 WASHER; LK,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> ID=16.2 		9-09150-516-0 02 1 9202- ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9202- ● ●
109 BRACKET; FLEX HOSE
FRONT AXLE F063(FS7) POWER STEERING(N40) 		1-47475-680-2 01 1 9202- ● ●
109 BRACKET; FLEX HOSE
POWER STEERING(N40) FRONT AXLE F049(FS4) 		1-47476-294-0 01 1 9202- ● ●
109 BRACKET; FLEX HOSE
EXC. POWER STEERING(N40) 		1-47475-777-1 01 1 9202- ● ●
120 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-09656-451-1 01 1 9202- ● ●
123 NUT; HOSE CONNECTOR
DUAL AIR GAUGE<UG2> M16 		9-99111-416-0 01 1 9202- ● ●
124 WASHER; LK,CONNECTOR
DUAL AIR GAUGE<UG2> ID=16.2 		9-09150-516-0 01 1 9202- ● ●
125 GASKET; FLEX HOSE
DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9202- ● ●
126 SPACER; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09503-191-0 02 1 9202- ● ●
127 NUT; UNION PLATE,ENG HOOD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 FLANGE 		1-09984-141-0 01 1 9202- ● ●
128 PLATE; 2 WAY UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-372-0 01 1 9202- ● ●
129 SEAL; UNION PLATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-224-0 01 1 9202- ● ●
çizim 92684
76 81 1 87 5 5 62 5 76 63 63 70 118 62 118 63 63 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=359 		1-47492-413-0 01 1 9202-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=359 		1-47499-696-0 01 1 9301- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=1236 SERVICED BY L=1250 		1-47437-968-0 01 1 9202-9212 ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=1236 SERVICED BY L=1250 		1-47426-416-0 01 1 9301- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=1695 SERVICED BY L=1900 		1-47437-971-0 01 1 9202-9212 ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=1695 SERVICED BY L=1700 		1-47426-420-0 01 1 9301- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
FRONT AXLE F049(FS4) L=876 SERVICED BY L=1000 		1-47434-476-0 01 1 9202-9212 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
FRONT AXLE F049(FS4) L=876 SERVICED BY L=1000 		1-47426-414-0 01 1 9301- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
FRONT AXLE F063(FS7) L=865 SERVICED BY L=900 		1-47437-966-0 01 1 9202-9212 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
FRONT AXLE F063(FS7) L=865 SERVICED BY L=900 		1-47426-413-0 01 1 9301- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> L=520 		0-07474-520-1 01 1 9202-9307 ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=520 		0-07474-520-1 01 1 9308-9408 ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> L=520 		0-07474-520-1 01 1 9409- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> L=630 		0-07424-630-0 01 1 9202- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=630 		0-07424-630-0 01 1 9202- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=630 		0-07424-630-0 01 1 9202- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=590 		0-07424-590-0 01 1 9308- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> L=480 		0-07474-480-1 01 1 9308-9408 ●
70 PIPE; AIR,FLEX HOSE TO UNION
FRONT AXLE F049(FS4) L=868 SERVICED BY L=900 		1-47437-966-0 01 1 9202-9212 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
FRONT AXLE F049(FS4) L=869 SERVICED BY L=900 		1-47426-413-0 01 1 9301- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
FRONT AXLE F063(FS7) L=863 SERVICED BY L=900 		1-47437-966-0 01 1 9202-9212 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
FRONT AXLE F063(FS7) L=863 SERVICED BY L=900 		1-47426-413-0 01 1 9301- ● ●
76 PIPE; AIR,UNION TO UNION
L=1663 SERVICED BY L=1700 		1-47434-478-0 01 1 9202-9212 ● ●
76 PIPE; AIR,UNION TO UNION
L=1663 SERVICED BY L=1700 		1-47426-420-0 01 1 9301- ● ●
81 PIPE; AIR,UNION TO UNION
L=1904 SERVICED BY L=2100 		1-47437-972-0 01 1 9202-9212 ● ●
81 PIPE; AIR,UNION TO UNION
L=1903 SERVICED BY L=2100 		1-47426-422-0 01 1 9301- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=422 		1-47492-418-0 01 1 9202-9205 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=431 SERVICED BY L=450 		1-47426-405-0 01 1 9206- ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=361 		1-47482-334-0 01 1 9202-9212 ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=361 		1-47497-112-0 01 1 9301-9307 ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=361 		1-47497-112-0 01 1 9308- ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=361 		1-47497-112-0 01 1 9308- ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=403 		1-47497-151-0 01 1 9308- ●
