6-32 — FRONT DOOR LOCK AND HANDLE (#37399) — 36 parça

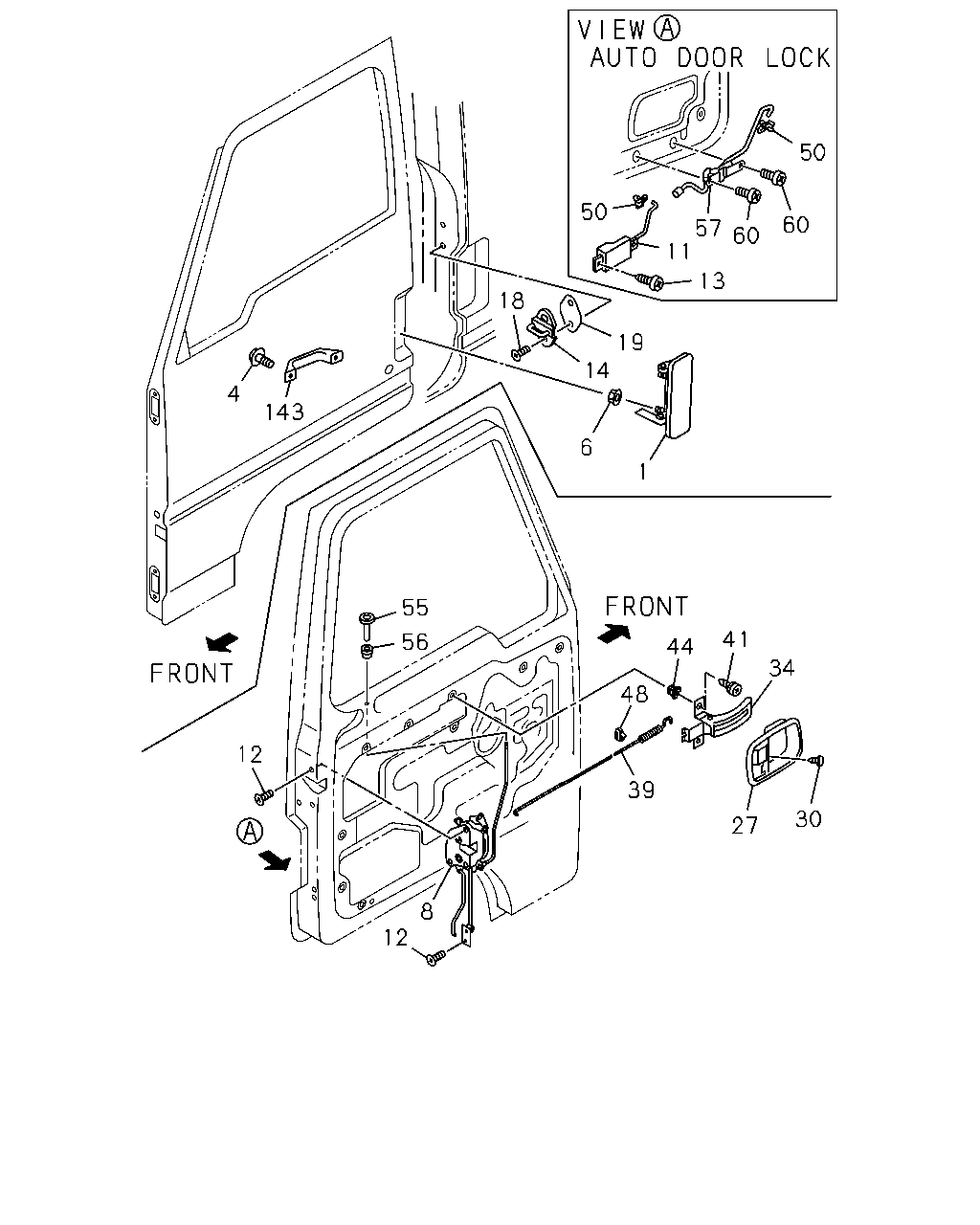

çizim 70648
50 57 11 60 13 60 50 1 6 14 19 18 143 4 55 56 44 41 34 48 39 27 30 12 8 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR 8-94275-041-3 01 1 9307- ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-94275-040-3 01 1 9307- ● ●
4 SCREW; OUTSIDE HANDLE,DOOR
EXC. ARM REST FRT DOOR<D14> M6X20 W/LK&PL WASHER 		1-09981-073-0 04 1 9307- ● ●
6 NUT; OUTSIDE HANDLE
M6 FLANGE 		5-09440-004-0 04 1 9307- ● ●
8 LOCK; DOOR,FRT DOOR 8-94278-628-0 01 1 9307- ● ●
8 LOCK; DOOR,FRT DOOR 8-94278-627-0 01 1 9307- ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-94284-779-1 01 1 9307-9406 ● ●
12 SCREW; DOOR LK
M6X12 W/LK&PL WASHER 		8-94279-329-0 04 1 9307- ● ●
12 SCREW; DOOR LK
M6X16 		8-94279-385-0 06 1 9307- ● ●
13 SCREW; ACTUATOR
AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		9-03920-612-0 02 1 9307-9406 ● ●
14 STRIKER; FRT DOOR 8-94345-210-0 02 1 9307- ● ●
18 SCREW; DOOR STRIKER
M8X26 W/LK WASHER 		8-94279-359-0 04 1 9307- ● ●
19 SHEET; ADJ,DOOR STRIKER 8-94345-211-0 02 1 9307- ● ●
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
INTERIOR COLOR MED SAND(129) BEIGE 		8-94345-846-2 01 1 9307- ● ●
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
INTERIOR COLOR MED SAND(129) BEIGE 		8-94345-843-2 01 1 9307- ● ●
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94345-845-2 01 1 9307- ● ●
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94345-842-2 01 1 9307- ● ●
30 SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 02 1 9307- ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR MED SAND(129) BEIGE 		8-94345-840-3 01 1 9307- ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR MED SAND(129) BEIGE 		8-94345-837-3 01 1 9307- ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94345-839-3 01 1 9307- ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-94345-836-3 01 1 9307- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 8-94291-962-1 01 1 9307- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 8-94291-961-1 01 1 9307- ● ●
41 SCREW; INSIDE HANDLE
M5X20 		5-09981-058-0 04 1 9307- ● ●
44 GROMMET; SCREW,INSIDE HANDLE 5-09983-006-0 04 1 9307- ● ●
48 ANTIRATTLER; DOOR LINK
ID=3.8 WHITE 		8-94217-699-0 02 1 9307- ● ●
50 CLIP; DOOR INSIDE LINK
AUTO DOOR LOCK<AU4> 		8-94292-890-0 02 1 9307-9406 ● ●
55 BUTTON; FRT DOOR LK 8-94269-497-0 02 1 9307- ● ●
56 ESCUTCHEON; LOCK KNOB
GRADE BASIC(RBA) ACCESSORY PACK<ET6> BLACK 		8-94289-538-1 02 1 9307- ● ●
56 ESCUTCHEON; LOCK KNOB
GRADE LT(RBC) BLACK 		8-94289-538-1 02 1 9307- ●
56 ESCUTCHEON; LOCK KNOB
GRADE BASIC(RBA) EXC. ACCESSORY PACK<ET6> BLACK 		9-67521-226-1 02 1 9307- ● ●
57 SWITCH; DOOR LK
AUTO DOOR LOCK<AU4> 		8-94288-151-1 01 1 9307-9406 ● ●
60 SCREW; DOOR LK SW
AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		9-03920-612-0 02 1 9307-9406 ● ●
143 GRIP; ASSIST,FRT DOOR
INTERIOR COLOR MED SAND(129) EXC. ARM REST FRT DOOR<D14> BEIGE 		8-94345-851-2 02 1 9307- ● ●
143 GRIP; ASSIST,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. ARM REST FRT DOOR<D14> GRAY 		8-94345-850-2 02 1 9307- ● ●
