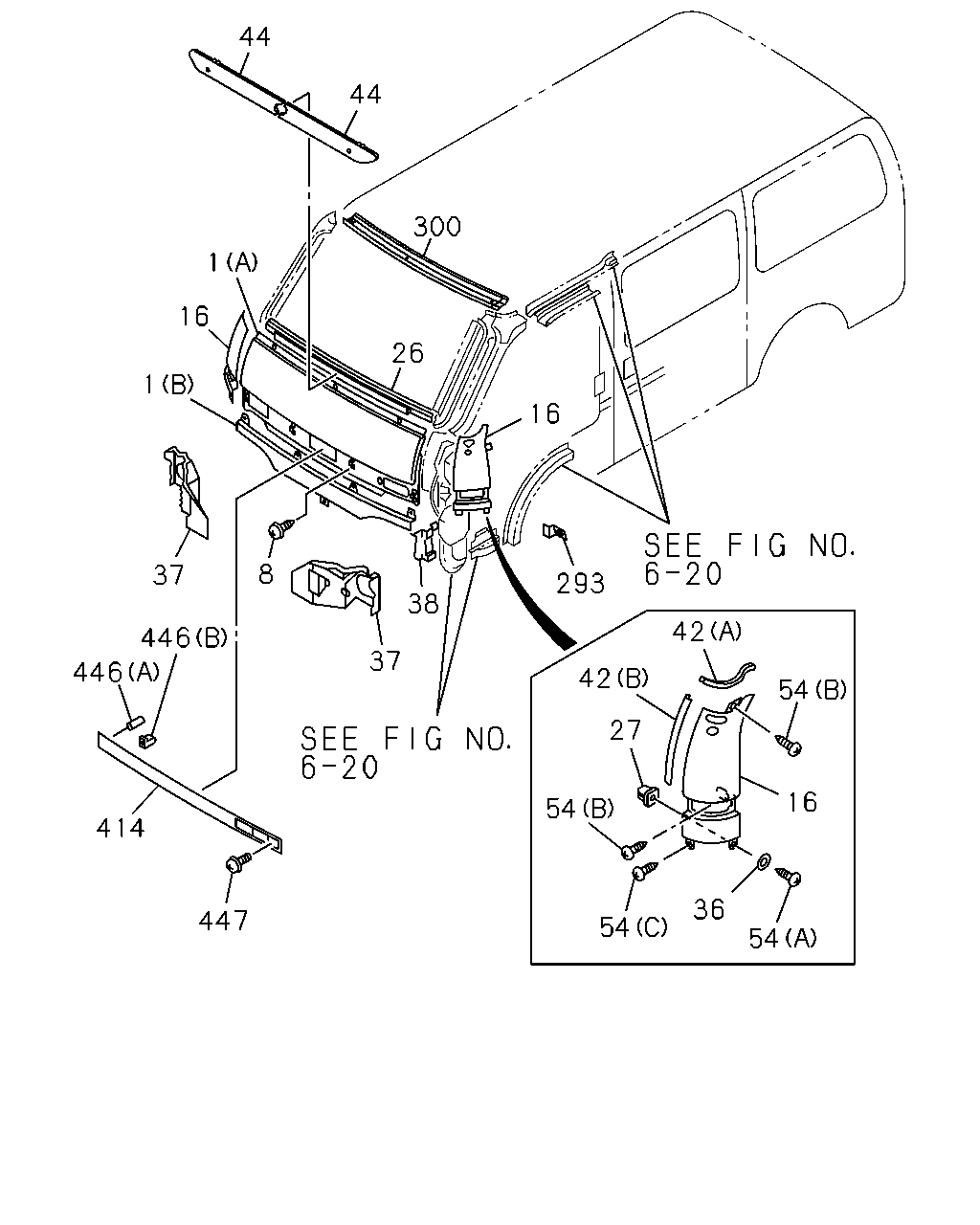

6-05 — FRONT PANEL
(#37394) — 30 parça
Tümü
A - WFB5VC
B - WFB5VF
44
44
300
26
1
16
1
37
8
446
446
414
447
37
38
293
16
42
42
27
54
54
36
54
16
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL ASM; FRT
(B)
8-94348-523-0
01
1
9307-
●
●
1
PANEL ASM; FRT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)
8-94348-219-2
01
1
9307-
●
●
1
PANEL ASM; FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)
8-94348-217-1
01
1
9307-
●
●
8
SCREW; FRT PANEL
8-94279-369-1
04
1
9307-
●
●
16
PANEL; FRONT,SIDE
SINGAPORE EQUIPMENT(6JA)
8-94348-526-0
01
1
9307-
●
16
PANEL; FRONT,SIDE
EXC. SINGAPORE EQUIPMENT(6JA)
8-94348-525-0
01
1
9307-
●
16
PANEL; FRONT,SIDE
8-94348-525-0
01
1
9307-
●
16
PANEL; FRONT,SIDE
8-94348-524-0
01
1
9307-
●
●
26
PANEL; REINF,FRT PANEL CENTER,INNER
8-94348-570-0
01
1
9307-
●
●
27
GROMMET; SCREW,FRT PANEL SIDE
5-09983-006-0
02
1
9307-
●
●
36
WASHER; PL
ID=5
8-94279-129-0
02
1
9307-
●
●
36
WASHER; PL
ID=4.3 OD=14
9-09160-704-0
04
1
9307-
●
●
37
PANEL ASM; HEADLAMP RIM
8-94348-152-0
01
1
9307-
●
●
37
PANEL ASM; HEADLAMP RIM
8-94348-149-0
01
1
9307-
●
●
38
BRACKET; HEADLAMP RIM
8-94277-629-3
01
1
9307-
●
●
38
BRACKET; HEADLAMP RIM
8-94277-628-3
01
1
9307-
●
●
42
FINISHER; FRT PANEL,SIDE
(B)
8-94293-857-1
02
1
9307-
●
●
42
FINISHER; FRT PANEL,SIDE
(A)
8-94293-858-1
02
1
9307-
●
●
44
DECAL; FRT,CENTER
DECAL BLACK STRIPE(D98) BLACK
8-94353-688-0
01
1
9307-
●
●
44
DECAL; FRT,CENTER
DECAL BLACK STRIPE(D98) BLACK
8-94353-687-0
01
1
9307-
●
●
54
SCREW; DECAL TO PANEL
(A) M5X20
5-09981-102-0
02
1
9307-
●
●
54
SCREW; DECAL TO PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-329-0
04
1
9307-
●
●
54
SCREW; DECAL TO PANEL
(C) M6X16
8-94279-348-0
02
1
9307-
●
●
293
BRACKET; PANEL
8-94285-501-0
01
1
9307-
●
●
293
BRACKET; PANEL
8-94285-500-0
01
1
9307-
●
●
300
HEADER; FRT PANEL
8-94285-633-0
01
1
9307-
●
●
414
GRILLE; VENTILATOR,FRT PNL
DARK GRAY
8-94350-078-3
01
1
9307-
●
●
446
CUSHION; GRILLE,VENTILATOR
(A)
8-94350-982-0
03
1
9307-
●
●
446
CUSHION; GRILLE,VENTILATOR
(B)
8-94352-107-0
03
1
9307-
●
●
447
SCREW; GRILLE TO PANEL
8-94279-369-1
01
1
9307-
●
●
