6-01 — FRONT BUMPER (#37392) — 30 parça

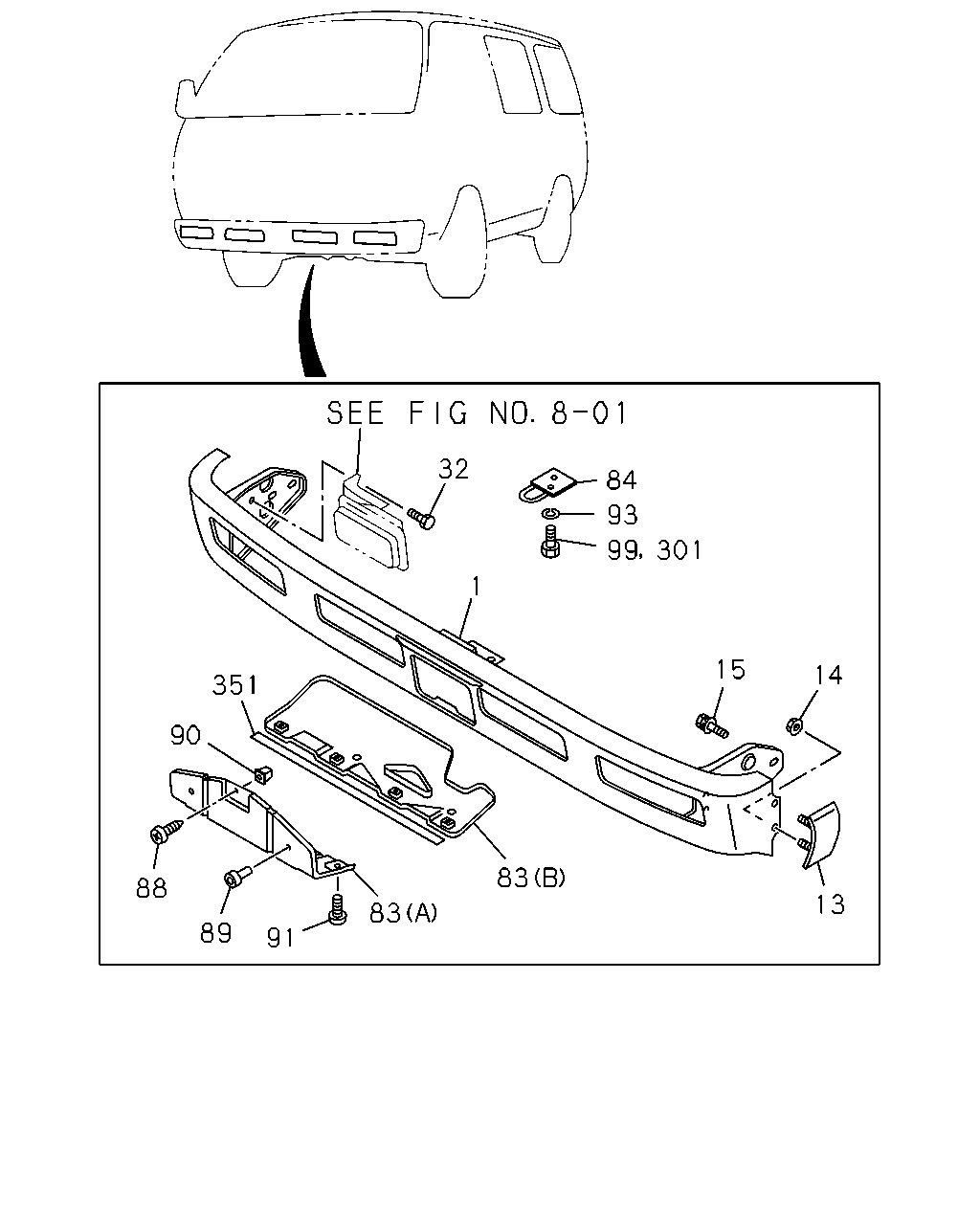

çizim 66260
32 84 93 99 301 15 14 13 83 83 91 89 88 90 351 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
FASHION PACK EXTERIOR<YN3> PLATED 		8-94268-406-2 01 1 9307- ● ●
1 BUMPER ASM; FRT
EXC. FASHION PACK EXTERIOR<YN3> PRIMER 		8-94268-402-2 01 1 9307- ● ●
13 NOZZLE; AIR BUMPER 8-94278-779-1 01 1 9307- ● ●
13 NOZZLE; AIR BUMPER 8-94278-778-1 01 1 9307- ● ●
14 NUT; NOZZLE TO BUMPER 8-94279-524-0 04 1 9307- ● ●
15 BOLT; FRT BODY TO BUMPER
M8X16 W/LK&PL WASHER 		1-09980-498-0 06 1 9307- ● ●
32 BOLT; BRKT,BUMPER
FOG LAMP<T96> M6X14 W/LK WASHER 		0-50040-614-0 04 1 9307- ● ●
83 GUIDE; AIR,FRT BUMPER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) FAN FLUID DRIVE<KA3> EXC. TORRID ZONE<S6C> (A) 		8-94269-540-1 01 1 9307- ● ●
83 GUIDE; AIR,FRT BUMPER
TORRID ZONE<S6C> (A) 		8-94269-540-1 01 1 9307- ● ●
83 GUIDE; AIR,FRT BUMPER
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) FAN FLUID DRIVE<KA3> EXC. TORRID ZONE<S6C> (B) 		8-94352-123-0 01 1 9307- ● ●
83 GUIDE; AIR,FRT BUMPER
4FG1 ENG(RLL) TORRID ZONE<S6C> (B) 		8-94352-123-0 01 1 9307- ● ●
84 HOOK 8-94280-815-1 01 1 9307- ● ●
84 HOOK 8-94287-943-0 01 1 9307- ● ●
88 SCREW; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) FAN FLUID DRIVE<KA3> EXC. TORRID ZONE<S6C> M5X16 		1-09981-465-0 01 1 9307- ● ●
88 SCREW; AIR GUIDE
TORRID ZONE<S6C> M5X16 		1-09981-465-0 01 1 9307- ● ●
88 SCREW; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) M5X16 		1-09981-465-0 01 1 9307- ●
89 GROMMET; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) FAN FLUID DRIVE<KA3> EXC. TORRID ZONE<S6C> OD=13 		9-09756-019-0 02 1 9307- ● ●
89 GROMMET; AIR GUIDE
TORRID ZONE<S6C> OD=13 		9-09756-019-0 02 1 9307- ● ●
89 GROMMET; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) OD=13 		9-09756-019-0 02 1 9307- ●
90 GROMMET; SCREW,AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) FAN FLUID DRIVE<KA3> EXC. TORRID ZONE<S6C> D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 9307- ● ●
90 GROMMET; SCREW,AIR GUIDE
TORRID ZONE<S6C> D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 9307- ● ●
90 GROMMET; SCREW,AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 9307- ●
91 SCREW; AIR GUIDE
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) FAN FLUID DRIVE<KA3> EXC. TORRID ZONE<S6C> 		1-09981-443-0 04 1 9307- ● ●
91 SCREW; AIR GUIDE
TORRID ZONE<S6C> 		1-09981-443-0 04 1 9307- ● ●
91 SCREW; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) 		1-09981-443-0 04 1 9307- ●
93 WASHER; LK,HOOK
ID=10.2 		9-09150-510-0 02 1 9307- ● ●
99 BOLT; HOOK
M10X25 		9-02061-025-0 02 1 9307- ● ●
301 BOLT; HOOK TO FRAME
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9307- ● ●
351 SEAL; AIR GUIDE
4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) FAN FLUID DRIVE<KA3> EXC. TORRID ZONE<S6C> 10X470X3 		8-94352-139-0 01 1 9307- ● ●
351 SEAL; AIR GUIDE
4FG1 ENG(RLL) TORRID ZONE<S6C> 10X470X3 		8-94352-139-0 01 1 9307- ● ●
