◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#37391) — 14 parça

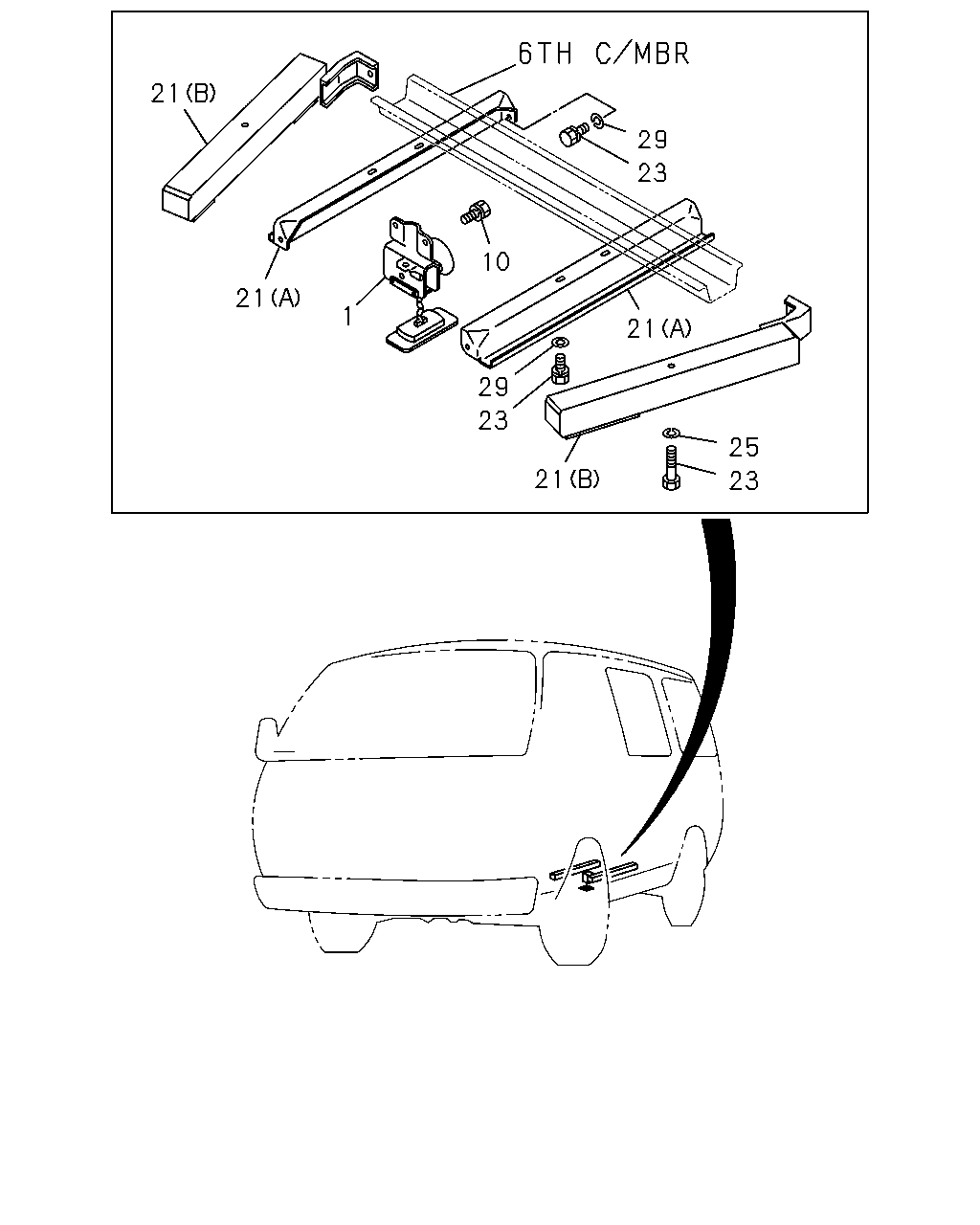

çizim 68416
21 29 23 10 1 21 29 23 21 25 23 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
REAR 		8-94419-220-3 01 1 9307- ● ●
10 BOLT; TIRE HANGER
M8X22 		1-09980-055-0 03 1 9307- ● ●
21 BRACKET; SPARE TIRE HANGER
(A) 		8-94365-132-0 02 1 9307- ●
21 BRACKET; SPARE TIRE HANGER
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR BUS(V4Z) (A) 		8-94365-132-0 02 1 9307- ●
21 BRACKET; SPARE TIRE HANGER
EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94365-132-0 02 1 9307- ●
21 BRACKET; SPARE TIRE HANGER
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) (B) 		8-94408-705-2 01 1 9307- ●
21 BRACKET; SPARE TIRE HANGER
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) (B) 		8-94430-343-1 01 1 9307- ●
23 BOLT; BRKT,SPARE TIRE
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9307- ●
23 BOLT; BRKT,SPARE TIRE
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR BUS(V4Z) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9307- ●
23 BOLT; BRKT,SPARE TIRE
EXC. SOUTH AFRICA EQUIPMENT(SW2) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9307- ●
23 BOLT; BRKT,SPARE TIRE
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) M8X70 		0-10805-870-0 02 1 9307- ●
23 BOLT; BRKT,SPARE TIRE
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9307- ●
25 WASHER; LK,BRKT,SPARE TIRE
SOUTH AFRICA EQUIPMENT(SW2) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) ID=8.2 		9-09150-508-0 02 1 9307- ●
29 WASHER; PL,BRKT,HANGER
ID=8.4 OD=22 		9-09164-708-0 04 1 9307- ● ●
