5-01 — FRAME AND OTHER PARTS (#37389) — 35 parça

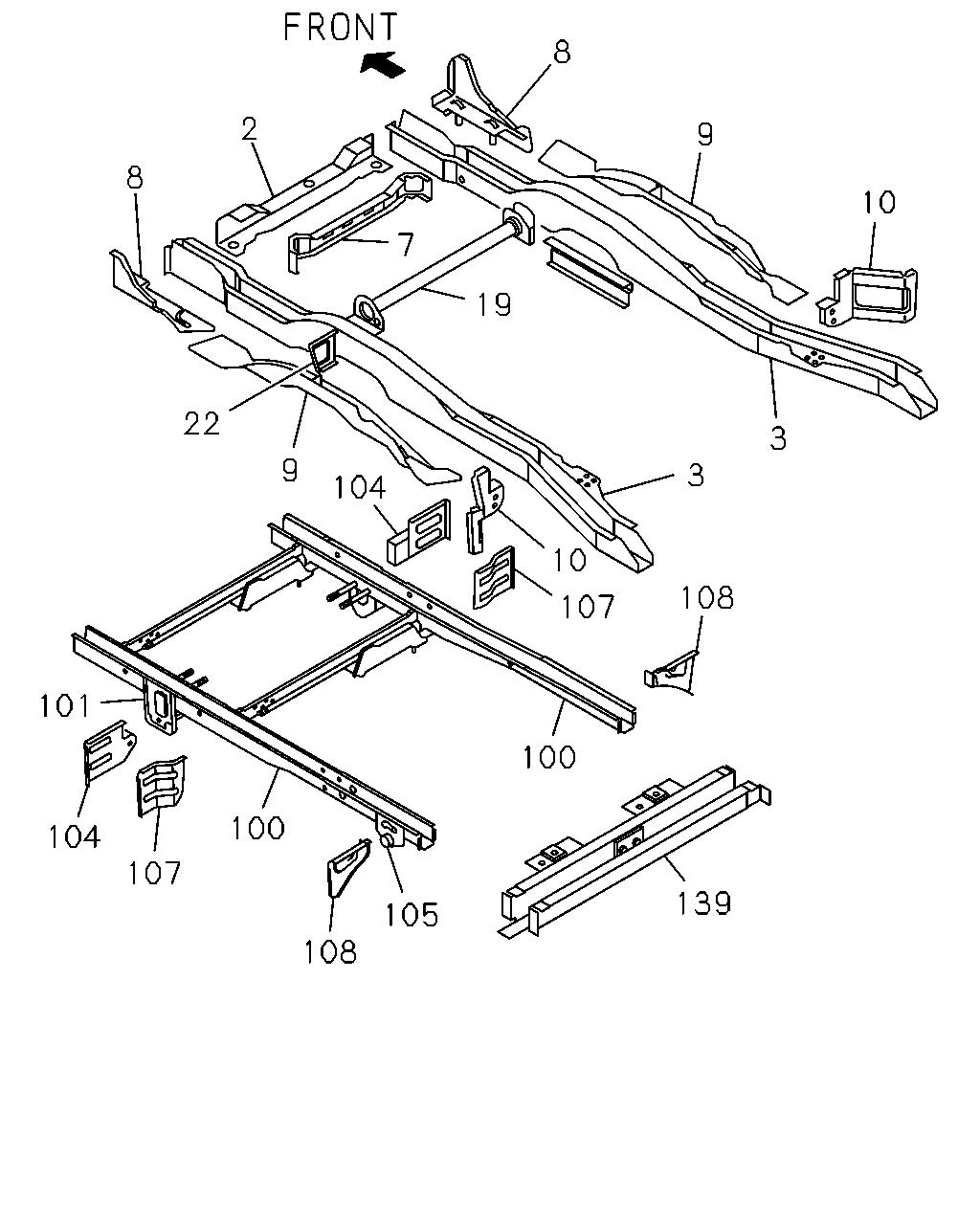

çizim 67111
8 2 9 8 10 7 19 22 3 9 3 104 10 107 108 101 100 100 104 107 139 105 108
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-94268-316-0 01 1 9307- ● ●
3 MEMBER; SIDE,FRT 8-94346-360-2 01 1 9307- ● ●
3 MEMBER; SIDE,FRT 8-94277-253-3 01 1 9307- ● ●
7 REINFORCEMENT; 1ST C/MBR 8-94268-321-1 01 1 9307- ●
7 REINFORCEMENT; 1ST C/MBR
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94268-321-1 01 1 9307- ●
7 REINFORCEMENT; 1ST C/MBR
5 DOOR VAN(V4X) EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94268-321-1 01 1 9307- ●
7 REINFORCEMENT; 1ST C/MBR
5 DOOR VAN(V4X) SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94287-385-0 01 1 9307- ●
8 GUSSET; 1ST C/MBR 8-94291-228-1 01 1 9307- ● ●
8 GUSSET; 1ST C/MBR 8-94277-700-0 01 1 9307- ● ●
9 CLOSING ASM; S/MBR 8-94277-942-4 01 1 9307- ● ●
9 CLOSING ASM; S/MBR 8-94277-754-4 01 1 9307- ● ●
10 CLOSING; STEP,RR 8-94277-339-0 01 1 9307-9309 ●
10 CLOSING; STEP,RR 8-94353-644-0 01 1 9310- ●
10 CLOSING; STEP,RR 8-94277-338-0 01 1 9307-9309 ●
10 CLOSING; STEP,RR 8-94353-643-0 01 1 9310- ●
10 CLOSING; STEP,RR 8-94353-667-0 01 1 9307- ●
10 CLOSING; STEP,RR 8-94353-666-0 01 1 9307- ●
19 MEMBER; CROSS,2ND 8-94277-910-2 01 1 9307- ● ●
22 OUTRIGGER; 2ND C/MBR
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94353-759-0 01 1 9307- ● ●
100 MEMBER; SIDE,RR 8-94353-655-0 01 1 9307- ●
100 MEMBER; SIDE,RR 8-94353-654-0 01 1 9307- ●
100 MEMBER; SIDE,RR 8-94353-664-0 01 1 9307- ●
100 MEMBER; SIDE,RR 8-94353-660-0 01 1 9307- ●
101 BRACKET; RR SPR,FRT 8-94274-721-0 01 1 9307- ● ●
104 OUTRIGGER; 3RD C/MBR 8-94292-558-0 01 1 9307- ●
104 OUTRIGGER; 3RD C/MBR 8-94292-557-0 01 1 9307- ●
105 BRACKET; RR SPR,RR 8-94291-164-0 01 1 9307- ● ●
107 OUTRIGGER; 4TH C/MBR 8-94274-714-1 01 1 9307- ●
107 OUTRIGGER; 4TH C/MBR
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) 		8-94274-714-1 01 1 9307- ●
107 OUTRIGGER; 4TH C/MBR
4 DOOR BUS(V4Z) SOUTH AFRICA EQUIPMENT(SW2) EXC. FLOOR REMOTE SHIFT<M11> 		8-94274-714-1 01 1 9307- ●
107 OUTRIGGER; 4TH C/MBR 8-94274-715-0 01 1 9307- ● ●
107 OUTRIGGER; 4TH C/MBR
4 DOOR BUS(V4Z) FLOOR REMOTE SHIFT<M11> EXC. SOUTH AFRICA EQUIPMENT(SW2) W/CLIP & NUT 		8-94293-813-0 01 1 9307- ●
108 OUTRIGGER; 5TH C/MBR 8-94274-717-1 01 1 9307- ● ●
108 OUTRIGGER; 5TH C/MBR 8-94274-716-0 01 1 9307- ● ●
139 MEMBER; CROSS,6TH 8-94268-357-2 01 1 9307- ● ●
