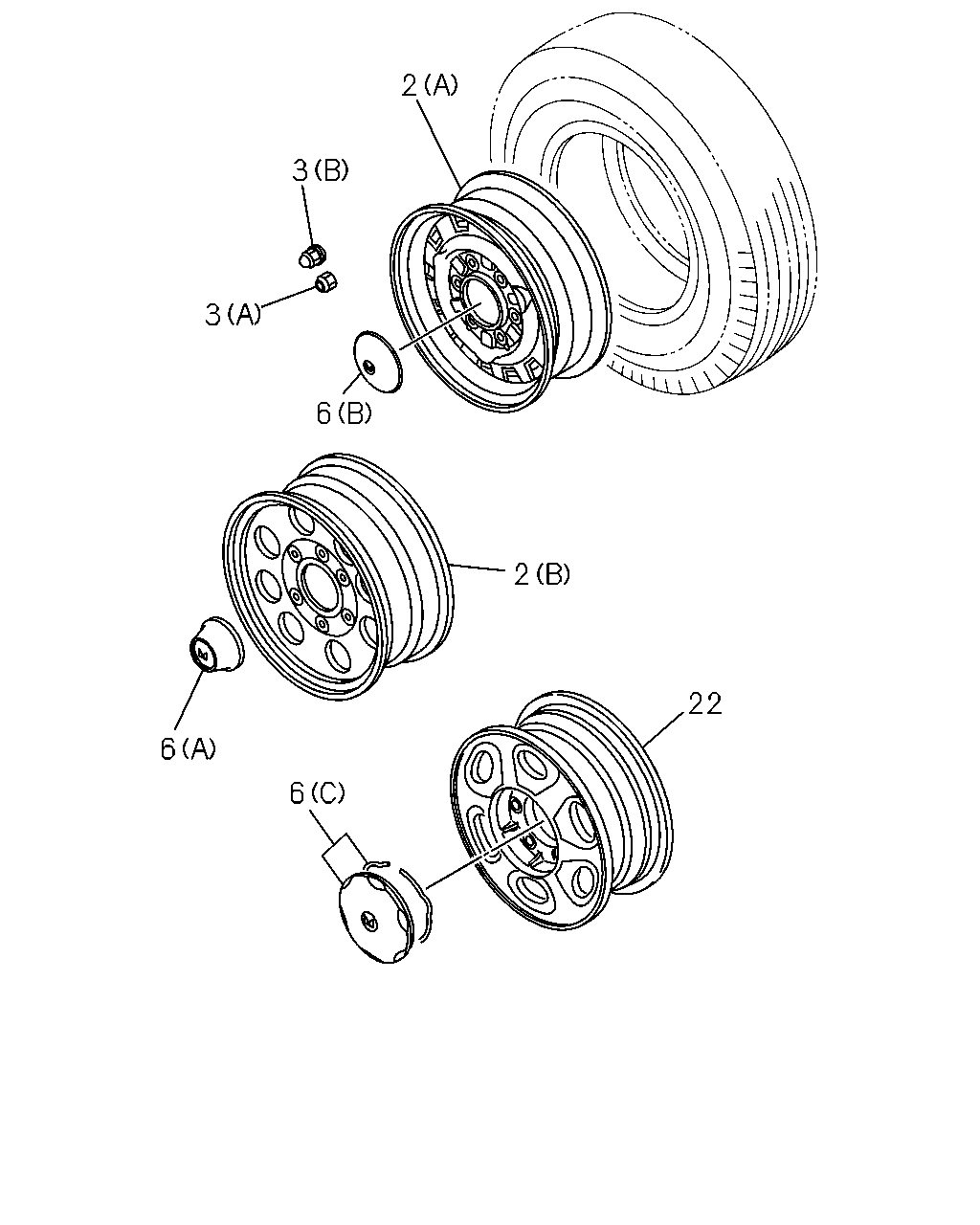

4-80 — ROAD WHEEL (#37388) — 11 parça

2 3 3 6 2 22 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 6.00-14-6 5JX14(54G) (B) WHITE	8-94163-601-2	05	1	9307-	●
2	WHEEL; DISC FRT&RR FT6.0-14-6 RR 6.0-14-8 4.5JX4(08B),FRT&RR FT&RR6.0-14-8 4.5JX14(13B) (A) SILVER	8-94447-342-0	05	1	9307-	●	●
2	WHEEL; DISC FRT&RR 6.0-14-6 5JX14(11B),FRT&RR FT6.0-14-6 RR6.0-14-8 5JX14(12B),FRT&RR 6.0-14-8 5J-14(18B), FRT&RR185R-14-8 5JX14(29B) (A) SILVER	8-94447-343-1	05	1	9307-	●	●
3	NUT; WHEEL,FRT AXLE FRT&RR FT6.0-14-6 RR 6.0-14-8 4.5JX4(08B),FRT&RR 6.0-14-6 5JX14(11B),FRT&RR FT6.0-14-6 RR6.0-14-8 5JX14(12B),FRT&RR FT&RR6.0-14-8 4.5JX14(13B),FRT&RR 6.0-14-8 5J-14(18B),FRT&RR 185R-14-8 5JX14(29B), FRT&RR 185R14-8 5.5JX14 ALUMI(9MJ) (A) M12 H=16	8-94200-216-0	24	1	9307-	●
3	NUT; WHEEL,FRT AXLE (A) M12 H=16	8-94200-216-0	24	1	9307-		●
3	NUT; WHEEL,FRT AXLE FRT&RR 6.00-14-6 5JX14(54G) (B) M12 CAP NUT M12 CAP NUT	8-94222-862-2	24	1	9307-	●
6	CAP; WHEEL FRT&RR FT6.0-14-6 RR 6.0-14-8 4.5JX4(08B),FRT&RR 6.0-14-6 5JX14(11B),FRT&RR FT6.0-14-6 RR6.0-14-8 5JX14(12B),FRT&RR FT&RR6.0-14-8 4.5JX14(13B),FRT&RR 6.0-14-8 5J-14(18B),FRT&RR 185R-14-8 5JX14(29B) (B) SILVER	8-94447-369-0	04	1	9307-	●
6	CAP; WHEEL FRT&RR FT6.0-14-6 RR 6.0-14-8 4.5JX4(08B),FRT&RR FT6.0-14-6 RR6.0-14-8 5JX14(12B),FRT&RR FT&RR6.0-14-8 4.5JX14(13B),FRT&RR 6.0-14-8 5J-14(18B),FRT&RR 185R-14-8 5JX14(29B) (B) SILVER	8-94447-369-0	04	1	9307-		●
6	CAP; WHEEL FRT&RR 6.00-14-6 5JX14(54G) (A) WHITE	8-94233-563-1	04	1	9307-	●
6	CAP; WHEEL FRT&RR 185R14-8 5.5JX14 ALUMI(9MJ) (C) 4X2	8-94411-558-1	04	1	9307-	●	●
22	WHEEL; DISC,AL FRT&RR 185R14-8 5.5JX14 ALUMI(9MJ) OFFSET=20	8-94386-571-0	05	1	9307-	●	●
