◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#37382) — 55 parça

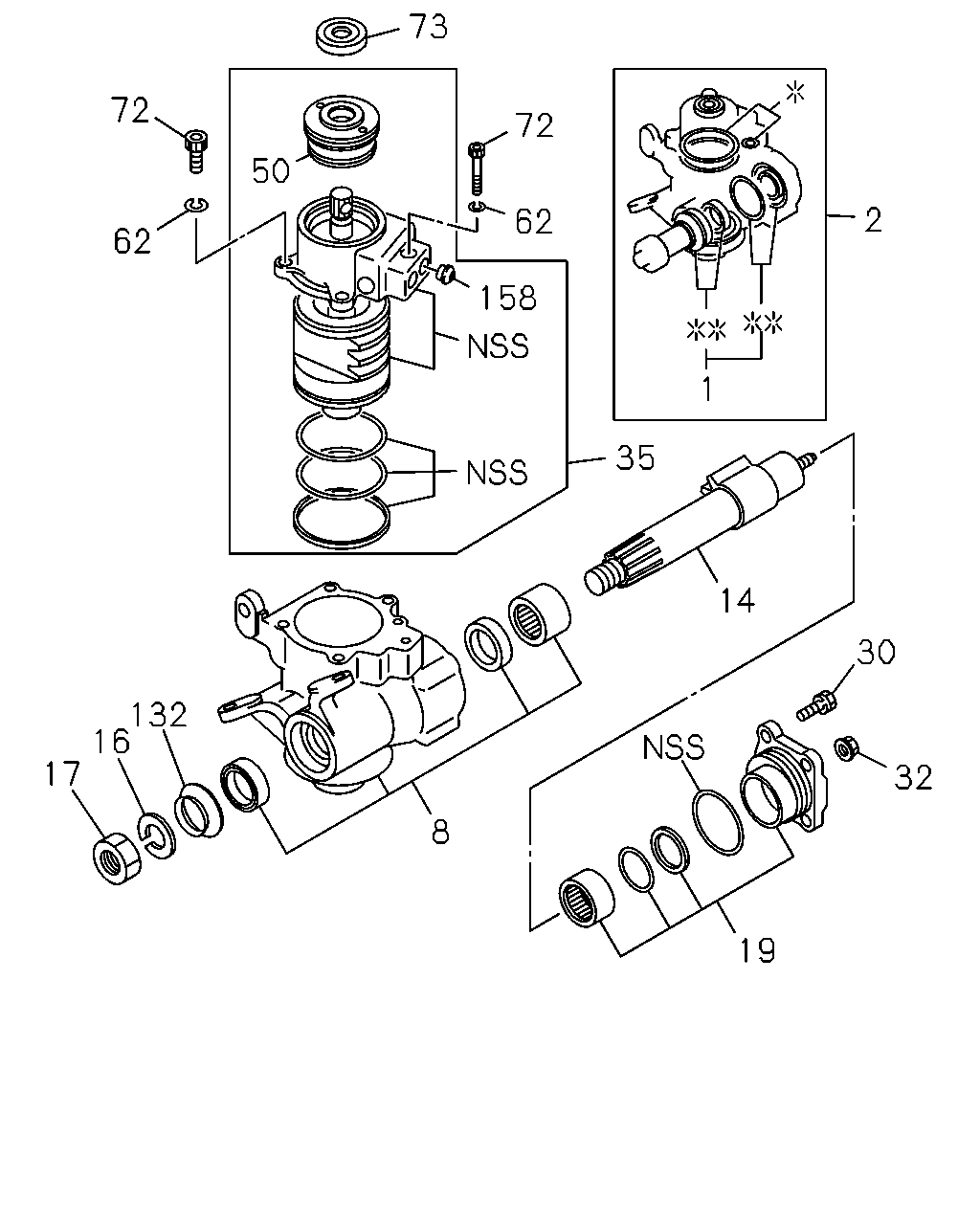

çizim 67148
73 72 72 50 2 62 62 158 1 35 14 30 132 16 17 32 8 19
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-641-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-642-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-625-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94413-967-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-629-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94241-244-0 01 1 -
16 WASHER; LK,SECTOR SHAFT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-640-0 01 1 -
16 WASHER; LK,SECTOR SHAFT
ID=22.5 ASM PART: A = 8-94120-862-5 		9-09150-522-0 01 1 -
17 NUT; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-638-0 01 1 -
17 NUT; SECTOR SHAFT,STRG UNIT
M22 ASM PART: A = 8-94120-862-5 		9-09111-522-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-628-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94413-973-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-633-0 04 1 -
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-94120-862-5 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-636-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-94120-862-5 		9-09110-410-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97081-747-0 		8-94411-353-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94145-841-0 01 1 -
62 WASHER; HSG BOLT
M10 ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-631-0 04 1 -
62 WASHER; HSG BOLT
M6 ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-634-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
M10X28 ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-632-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
M6X40 ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-635-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-639-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-637-0 01 1 -
158 FERRULE; VALVE CASE,P/S
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-627-0 02 1 -

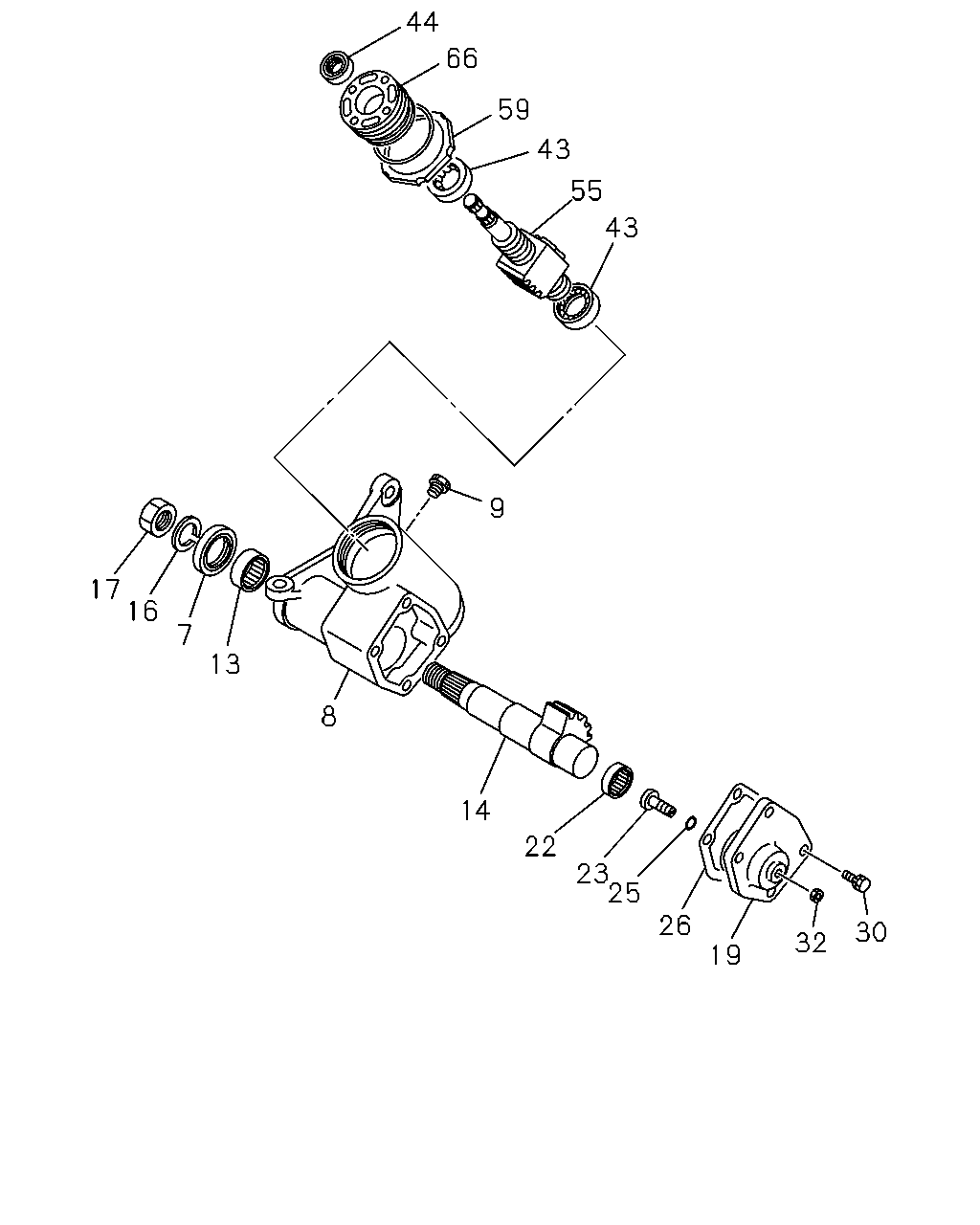

çizim 68358
44 66 59 43 55 43 9 17 16 7 13 8 14 22 23 25 26 30 32 19
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-94120-862-5 		9-09924-261-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-625-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94413-967-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-94120-862-5 		5-09065-010-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-94120-862-5 		5-09811-028-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-629-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94241-244-0 01 1 -
16 WASHER; LK,SECTOR SHAFT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-640-0 01 1 -
16 WASHER; LK,SECTOR SHAFT
ID=22.5 ASM PART: A = 8-94120-862-5 		9-09150-522-0 01 1 -
17 NUT; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-638-0 01 1 -
17 NUT; SECTOR SHAFT,STRG UNIT
M22 ASM PART: A = 8-94120-862-5 		9-09111-522-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-628-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94413-973-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-94120-862-5 		5-09811-028-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-94120-862-5 		9-44277-014-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.515-1.535 ASM PART: A = 8-94120-862-5 		9-44279-008-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.545-1.565 ASM PART: A = 8-94120-862-5 		9-44279-009-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.575-1.595 ASM PART: A = 8-94120-862-5 		9-44279-010-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.605-1.625 ASM PART: A = 8-94120-862-5 		9-44279-011-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.635-1.655 ASM PART: A = 8-94120-862-5 		9-44279-012-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94241-246-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-633-0 04 1 -
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-94120-862-5 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97081-747-0, C = 8-97128-935-0 		8-94115-636-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-94120-862-5 		9-09110-410-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-94120-862-5 		9-00090-084-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94413-975-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94413-969-0 01 1 -
59 NUT; COVER STRG UNIT
ASM PART: A = 8-94120-862-5 		5-44258-001-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 8-94120-862-5 		8-94413-974-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
