◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#37381) — 47 parça

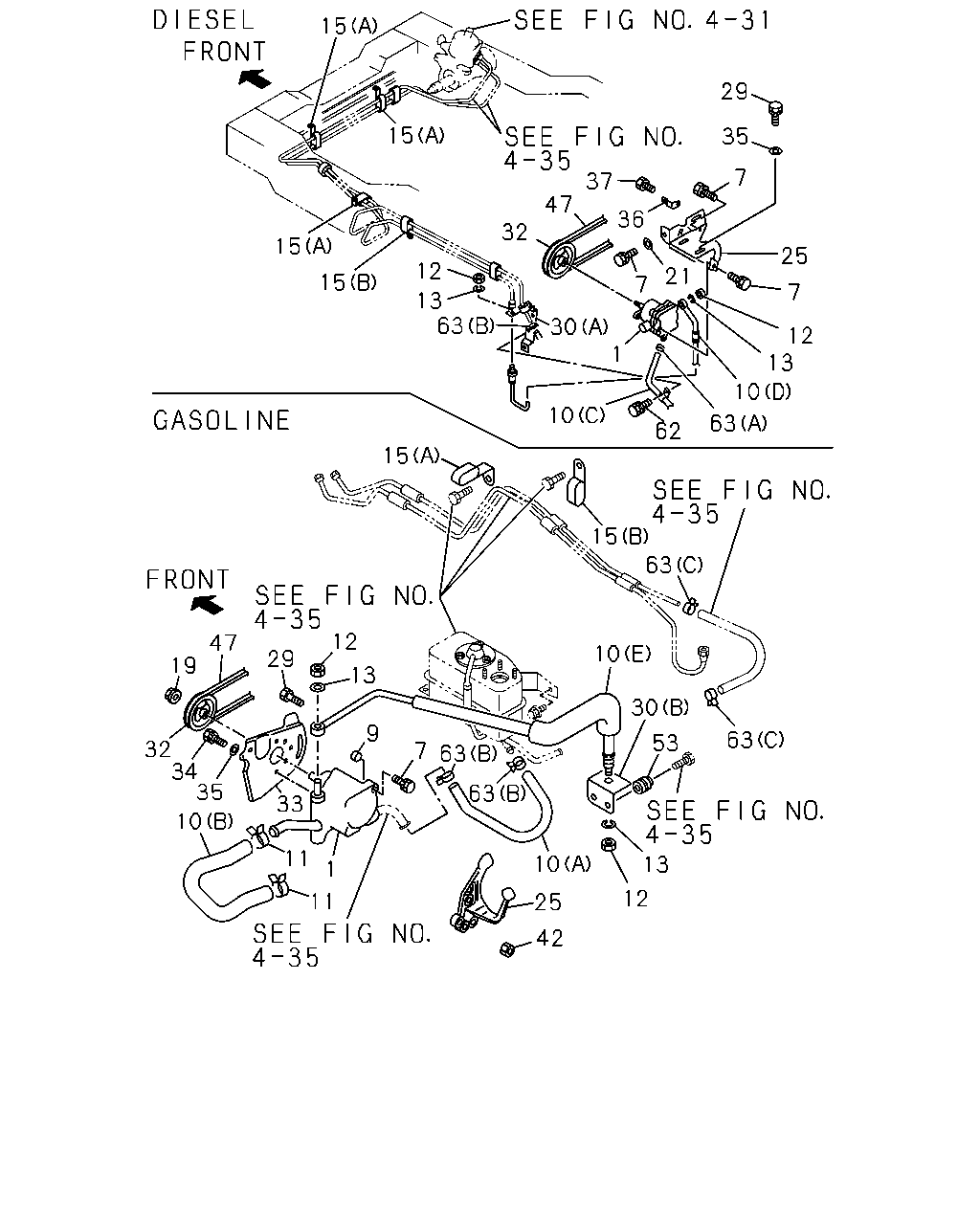

çizim 18770
15 29 37 47 15 35 7 36 21 15 32 25 12 7 13 63 30 1 15 7 12 13 10 63 62 10 15 15 63 12 13 47 19 10 29 7 63 30 33 9 63 53 13 12 32 34 35 10 63 10 11 1 11 25 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4FG1 ENG(RLL) POWER STEERING<N40> 		8-94411-354-3 01 1 9307- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94341-797-4 01 1 9307- ● ●
7 BOLT; OIL PUMP,P/S
4FG1 ENG(RLL) POWER STEERING<N40> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9307- ● ●
7 BOLT; OIL PUMP,P/S
4FG1 ENG(RLL) POWER STEERING<N40> M10X22 W/LK WASHER 		0-50041-022-0 01 1 9307- ● ●
7 BOLT; OIL PUMP,P/S
4FG1 ENG(RLL) POWER STEERING<N40> M10X30 W/LK WASHER 		0-50041-030-0 01 1 9307- ● ●
7 BOLT; OIL PUMP,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> M10X22 W/LK WASHER 		0-50041-022-0 03 1 9307-9407 ● ●
7 BOLT; OIL PUMP,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> M10X20 W/LK WASHER 		0-50041-020-0 03 1 9408- ● ●
9 COLLAR; IDLER
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94146-294-0 01 1 9307- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4FG1 ENG(RLL) POWER STEERING<N40> (C) 		8-94323-941-0 01 1 9307- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4FG1 ENG(RLL) POWER STEERING<N40> (D) 		8-94384-519-0 01 1 9307- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4ZC1 ENG(LR9) POWER STEERING<N40> (E) 		8-94403-155-2 01 1 9307- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4ZC1 ENG(LR9) POWER STEERING<N40> (A) 		8-94418-028-0 01 1 9307- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4ZC1 ENG(LR9) POWER STEERING<N40> (B) 		8-94423-437-0 01 1 9307- ● ●
11 CLIP; FLEX HOSE
4ZC1 ENG(LR9) POWER STEERING<N40> ID=21 		8-94242-034-0 02 1 9307- ● ●
12 NUT; UNION,FLEX HOSE,P/S
POWER STEERING<N40> M12 		9-99111-412-0 01 1 9307- ● ●
12 NUT; UNION,FLEX HOSE,P/S
POWER STEERING<N40> M16 		9-99111-416-0 01 1 9307- ● ●
13 WASHER; LK,FLEX HOSE,P/S
POWER STEERING<N40> ID=12.2 		9-09150-512-0 01 1 9307- ● ●
13 WASHER; LK,FLEX HOSE,P/S
POWER STEERING<N40> ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 9307- ● ●
15 CLIP; OIL PIPE SUCTION
4FG1 ENG(RLL) POWER STEERING<N40> (A) 		8-94107-544-0 03 1 9307- ● ●
15 CLIP; OIL PIPE SUCTION
4FG1 ENG(RLL) POWER STEERING<N40> (B) 		8-94107-545-0 01 1 9307- ● ●
15 CLIP; OIL PIPE SUCTION
4ZC1 ENG(LR9) POWER STEERING<N40> (A) 		8-94107-544-0 01 1 9307- ● ●
15 CLIP; OIL PIPE SUCTION
4ZC1 ENG(LR9) POWER STEERING<N40> (B) 		8-94107-545-0 02 1 9307- ● ●
19 NUT; PULLEY,OIL PUMP
4ZC1 ENG(LR9) POWER STEERING<N40> M12 		8-94139-015-0 01 1 9307- ● ●
21 WASHER; PL,P/S OIL PUMP
4FG1 ENG(RLL) POWER STEERING<N40> ID=10.5 OD=26 		9-09164-710-0 01 1 9307- ● ●
25 BRACKET; P/S PUMP
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94315-442-0 01 1 9307- ● ●
25 BRACKET; P/S PUMP
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94420-004-0 01 1 9307- ● ●
29 BOLT; BRKT,POWER STRG
4FG1 ENG(RLL) POWER STEERING<N40> M8X22 W/LK WASHER 		0-50040-822-0 02 1 9307- ● ●
29 BOLT; BRKT,POWER STRG
4ZC1 ENG(LR9) POWER STEERING<N40> M10X40 W/LK WASHER 		0-50041-040-0 02 1 9307- ● ●
30 BRACKET; FLEX HOSE
4FG1 ENG(RLL) POWER STEERING<N40> (A) 		8-94111-273-1 01 1 9307- ● ●
30 BRACKET; FLEX HOSE
4ZC1 ENG(LR9) POWER STEERING<N40> (B) 		8-94434-028-0 01 1 9307- ● ●
32 PULLEY; IDLER,P/S
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94121-080-1 01 1 9307- ● ●
32 PULLEY; IDLER,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94341-864-0 01 1 9307- ● ●
33 PLATE; ADJ,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94472-342-0 01 1 9307- ● ●
34 BOLT; ADJ PLATE
4ZC1 ENG(LR9) POWER STEERING<N40> M10X22 W/LK WASHER 		0-50041-022-0 02 1 9307-9403 ● ●
34 BOLT; ADJ PLATE
4ZC1 ENG(LR9) POWER STEERING<N40> M10X25 W/LK WASHER 		0-50041-025-0 02 1 9404- ● ●
35 WASHER; PL,ADJ PLATE
4FG1 ENG(RLL) POWER STEERING<N40> ID=8.4 OD=22 		9-09164-708-0 02 1 9307- ● ●
35 WASHER; PL,ADJ PLATE
4ZC1 ENG(LR9) POWER STEERING<N40> ID=10.5 OD=26 		9-09164-710-0 02 1 9307- ● ●
36 BRACKET; PLATE,P/S PUMP
4FG1 ENG(RLL) POWER STEERING<N40> 		8-94256-940-1 01 1 9307- ● ●
37 BOLT; P/S PUMP
4FG1 ENG(RLL) POWER STEERING<N40> M10X45 		0-20801-045-0 01 1 9307- ● ●
42 NUT; ADJ PLATE
4ZC1 ENG(LR9) POWER STEERING<N40> M8 FLANGE 		5-09440-005-0 01 1 9307- ● ●
47 BELT; P/S PUMP
4FG1 ENG(RLL) POWER STEERING<N40> L=666 		8-97062-085-0 01 1 9307- ● ●
47 BELT; P/S PUMP
4ZC1 ENG(LR9) POWER STEERING<N40> L=1029 		8-94141-721-0 01 1 9307- ● ●
53 INSULATOR
4ZC1 ENG(LR9) POWER STEERING<N40> 		8-94338-739-0 02 1 9307- ● ●
62 BOLT; CLIP
4FG1 ENG(RLL) POWER STEERING<N40> M6X16 FLANGE 		0-28280-616-0 01 1 9307- ● ●
63 CLIP; HOSE,P/S
POWER STEERING<N40> (B) ID=16 		8-94238-568-0 02 1 9307- ● ●
63 CLIP; HOSE,P/S
4FG1 ENG(RLL) POWER STEERING<N40> (A) ID=19 		8-94238-569-0 02 1 9307- ● ●
63 CLIP; HOSE,P/S
4ZC1 ENG(LR9) POWER STEERING<N40> (C) ID=21 		8-94242-034-0 02 1 9307- ● ●
