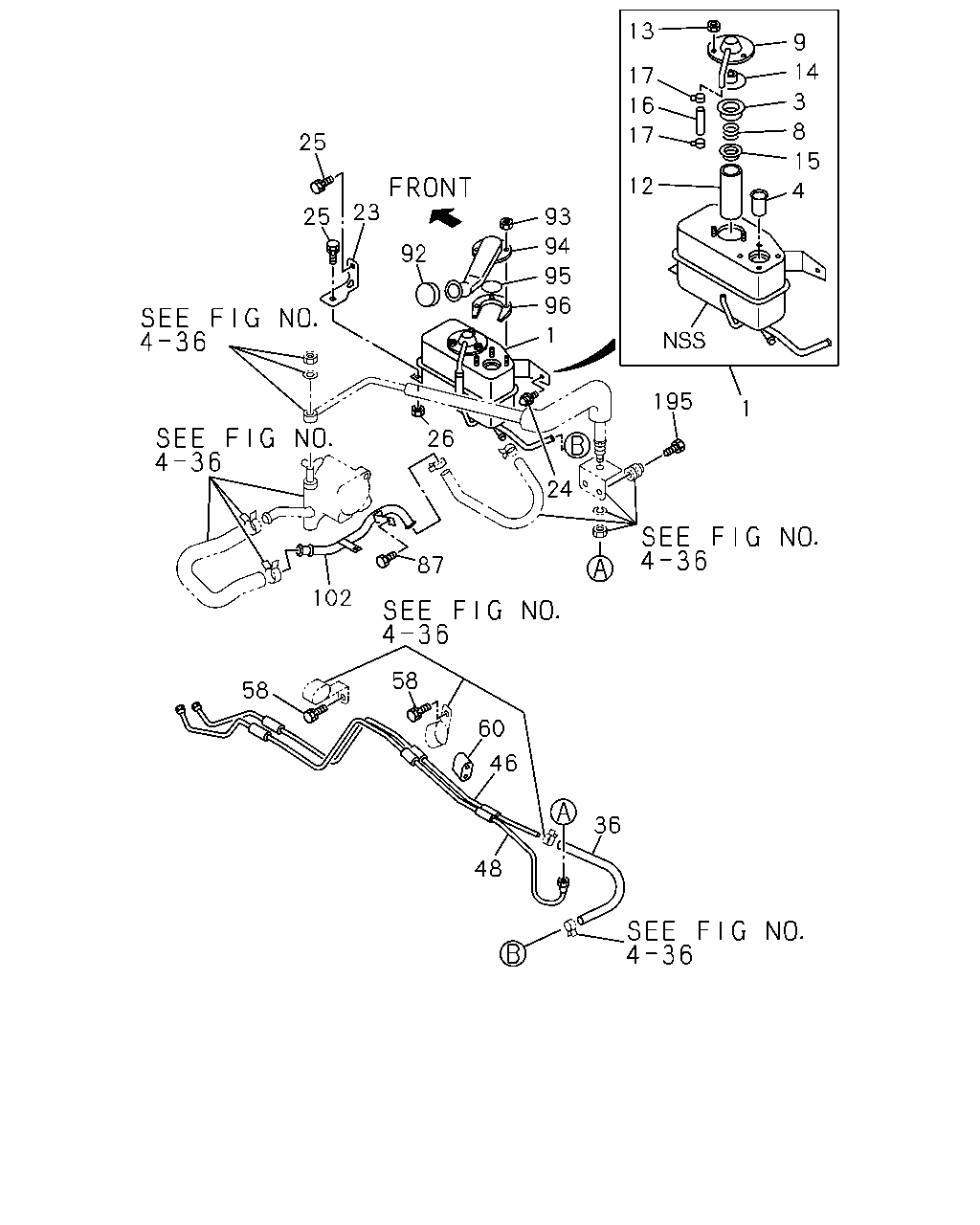

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#37380) — 68 parça

13 9 14 3 8 15 4 17 16 17 25 12 23 93 94 95 96 1 25 92 195 1 26 24 87 102 58 58 60 46 36 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S 4FG1 ENG(RLL) POWER STEERING<N40>	8-94251-577-8	01	1	9307-	●	●
1	TANK ASM; OIL,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94436-038-4	01	1	9307-	●	●
3	GASKET; OIL TANK,P/S 4FG1 ENG(RLL) POWER STEERING<N40>	8-94120-766-0	01	1	9307-	●	●
3	GASKET; OIL TANK,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94455-247-0	01	1	9307-	●	●
4	FILTER; OIL TANK,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94436-047-1	01	1	9307-	●	●
8	SPRING; OIL TANK,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94436-045-0	01	1	9307-	●	●
9	COVER; SPR,OIL TANK,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94436-040-0	01	1	9307-	●	●
12	FILTER; MICROBON,OIL TANK,P/S 4FG1 ENG(RLL) POWER STEERING<N40>	8-94251-581-2	01	1	9307-	●	●
12	FILTER; MICROBON,OIL TANK,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94436-046-0	01	1	9307-	●	●
13	NUT; OIL TANK TO FILTER 4FG1 ENG(RLL) POWER STEERING<N40> M5	9-99111-405-0	01	1	9307-	●	●
13	NUT; OIL TANK TO FILTER 4ZC1 ENG(LR9) POWER STEERING<N40> M5	9-99110-405-0	03	1	9307-	●	●
14	BAFFLE; OIL TANK 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94455-706-0	01	1	9307-	●	●
15	PLATE; FILTER,OIL TANK 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94436-044-0	01	1	9307-	●	●
16	HOSE; PIPE,OIL TANK 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94436-048-0	01	1	9307-	●	●
17	CLIP; HOSE,OIL TANK 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94437-069-0	02	1	9307-	●	●
23	BRACKET; OIL TANK,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94438-099-0	01	1	9307-	●	●
24	BOLT; BRKT TO BODY 4ZC1 ENG(LR9) POWER STEERING<N40> M8X20 FLANGE	0-28280-820-0	01	1	9307-	●	●
25	BOLT; OIL TANK BRKT 4FG1 ENG(RLL) POWER STEERING<N40> M6X20	0-28280-620-0	03	1	9307-	●	●
25	BOLT; OIL TANK BRKT 4ZC1 ENG(LR9) POWER STEERING<N40> M8X20 FLANGE	0-28280-820-0	03	1	9307-	●	●
26	NUT; OIL TANK TO BRKT 4ZC1 ENG(LR9) POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9307-	●	●
36	HOSE; P/S TANK TO PIPE 4FG1 ENG(RLL) POWER STEERING<N40> W/WHITE POINT MARK	8-94252-381-1	01	1	9307-	●	●
36	HOSE; P/S TANK TO PIPE 4ZC1 ENG(LR9) POWER STEERING<N40> W/WHITE ARROW MARK	8-94438-163-0	01	1	9307-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4FG1 ENG(RLL) POWER STEERING<N40>	8-94449-137-1	01	1	9307-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94314-240-0	01	1	9307-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4FG1 ENG(RLL) POWER STEERING<N40>	8-94479-471-0	01	1	9307-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94314-239-0	01	1	9307-	●	●
58	BOLT; CLIP 4FG1 ENG(RLL) POWER STEERING<N40> M6X16 FLANGE	0-28280-616-0	05	1	9307-	●	●
58	BOLT; CLIP 4ZC1 ENG(LR9) POWER STEERING<N40> M6X16 FLANGE	0-28280-616-0	03	1	9307-	●	●
60	CLAMP; PIPE,RETURN 4FG1 ENG(RLL) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	04	1	9307-	●	●
60	CLAMP; PIPE,RETURN 4ZC1 ENG(LR9) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	02	1	9307-	●	●
87	BOLT; POWER STRG PIPE 4ZC1 ENG(LR9) POWER STEERING<N40> M8X16 FLANGE	0-28280-816-0	02	1	9307-	●	●
92	CAP; INL TUBE 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94418-027-0	01	1	9307-	●	●
93	NUT; INL TUBE TO TANK 4ZC1 ENG(LR9) POWER STEERING<N40> M5	9-99110-405-0	03	1	9307-	●	●
94	TUBE; OIL TANK 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94438-117-0	01	1	9307-	●	●
95	GASKET; INL TUBE SEAL 4ZC1 ENG(LR9) POWER STEERING<N40>	9-09561-328-0	01	1	9307-	●	●
96	RETAINER; INL TUBE 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94430-022-1	01	1	9307-	●	●
102	PIPE; SUCTION,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94178-990-1	01	1	9307-	●	●
195	BOLT; BRKT 4ZC1 ENG(LR9) POWER STEERING<N40> M8X35	8-94152-039-0	02	1	9307-	●	●

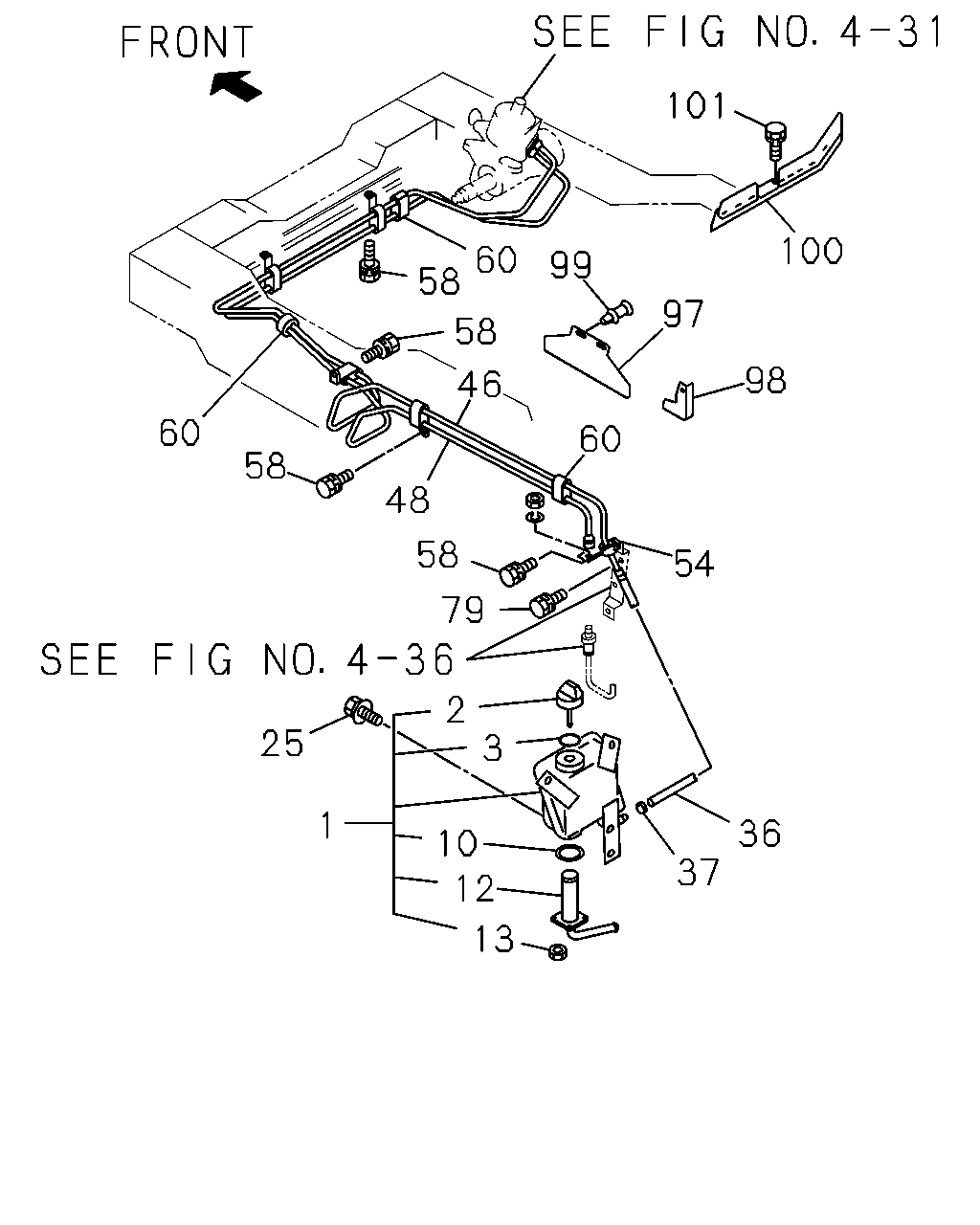

3 101 100 60 58 58 46 99 97 98 60 60 58 48 58 54 79 2 3 25 1 36 37 10 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S 4FG1 ENG(RLL) POWER STEERING<N40>	8-94251-577-8	01	1	9307-	●	●
1	TANK ASM; OIL,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94436-038-4	01	1	9307-	●	●
2	CAP; OIL TANK,P/S 4FG1 ENG(RLL) POWER STEERING<N40>	8-94251-583-1	01	1	9307-	●	●
3	GASKET; OIL TANK,P/S 4FG1 ENG(RLL) POWER STEERING<N40>	8-94120-766-0	01	1	9307-	●	●
3	GASKET; OIL TANK,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94455-247-0	01	1	9307-	●	●
10	SEAL; OIL TANK,P/S 4FG1 ENG(RLL) POWER STEERING<N40>	8-94251-582-0	01	1	9307-	●	●
12	FILTER; MICROBON,OIL TANK,P/S 4FG1 ENG(RLL) POWER STEERING<N40>	8-94251-581-2	01	1	9307-	●	●
12	FILTER; MICROBON,OIL TANK,P/S 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94436-046-0	01	1	9307-	●	●
13	NUT; OIL TANK TO FILTER 4FG1 ENG(RLL) POWER STEERING<N40> M5	9-99111-405-0	01	1	9307-	●	●
13	NUT; OIL TANK TO FILTER 4ZC1 ENG(LR9) POWER STEERING<N40> M5	9-99110-405-0	03	1	9307-	●	●
25	BOLT; OIL TANK BRKT 4FG1 ENG(RLL) POWER STEERING<N40> M6X20	0-28280-620-0	03	1	9307-	●	●
25	BOLT; OIL TANK BRKT 4ZC1 ENG(LR9) POWER STEERING<N40> M8X20 FLANGE	0-28280-820-0	03	1	9307-	●	●
36	HOSE; P/S TANK TO PIPE 4FG1 ENG(RLL) POWER STEERING<N40> W/WHITE POINT MARK	8-94252-381-1	01	1	9307-	●	●
36	HOSE; P/S TANK TO PIPE 4ZC1 ENG(LR9) POWER STEERING<N40> W/WHITE ARROW MARK	8-94438-163-0	01	1	9307-	●	●
37	CLIP; HOSE,P/S 4FG1 ENG(RLL) POWER STEERING<N40> ID=20 L=25	9-09916-078-0	01	1	9307-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4FG1 ENG(RLL) POWER STEERING<N40>	8-94449-137-1	01	1	9307-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94314-240-0	01	1	9307-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4FG1 ENG(RLL) POWER STEERING<N40>	8-94479-471-0	01	1	9307-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZC1 ENG(LR9) POWER STEERING<N40>	8-94314-239-0	01	1	9307-	●	●
54	CLIP; OIL PIPE 4FG1 ENG(RLL) POWER STEERING<N40> ID=18 L=25	8-94121-004-1	01	1	9307-	●	●
58	BOLT; CLIP 4FG1 ENG(RLL) POWER STEERING<N40> M6X16 FLANGE	0-28280-616-0	05	1	9307-	●	●
58	BOLT; CLIP 4ZC1 ENG(LR9) POWER STEERING<N40> M6X16 FLANGE	0-28280-616-0	03	1	9307-	●	●
60	CLAMP; PIPE,RETURN 4FG1 ENG(RLL) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	04	1	9307-	●	●
60	CLAMP; PIPE,RETURN 4ZC1 ENG(LR9) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	02	1	9307-	●	●
79	BOLT; BRKT 4FG1 ENG(RLL) POWER STEERING<N40> M8X20 FLANGE	0-28280-820-0	02	1	9307-	●	●
97	RUBBER; INSULATION,P/S 4FG1 ENG(RLL) POWER STEERING<N40>	8-94352-135-1	01	1	9307-	●	●
98	STAY; SEAL RUBBER,POWER STRG 4FG1 ENG(RLL) POWER STEERING<N40>	8-94352-136-1	01	1	9307-	●	●
99	CLIP; SEAL RUBBER,POWER STRG 4FG1 ENG(RLL) POWER STEERING<N40> D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9307-	●	●
100	SEAL; C/MBR 4FG1 ENG(RLL) POWER STEERING<N40>	8-94482-198-1	01	1	9307-	●	●
101	BOLT; MEMBER SEAL 4FG1 ENG(RLL) POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●
