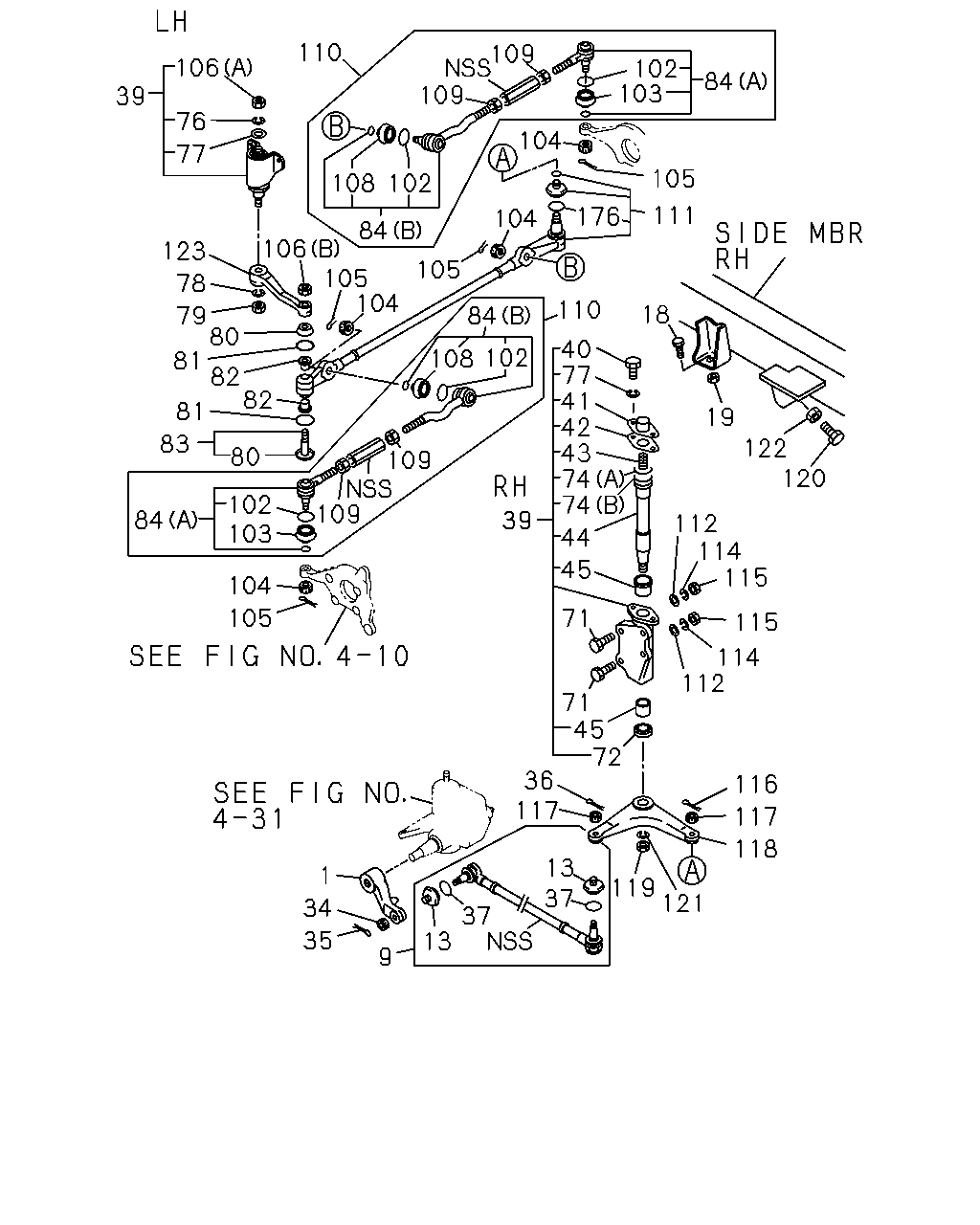

4-33 — STEERING LINKAGE (#37379) — 60 parça

110 109 109 106 102 103 84 39 76 77 104 105 111 176 106 105 104 104 84 123 78 79 80 81 82 82 81 83 105 110 18 84 40 77 41 42 43 74 74 44 45 19 122 120 19 109 80 39 102 103 84 112 114 115 104 105 71 115 114 112 71 45 72 36 117 116 117 118 13 37 119 121 1 34 35 37 13 9 108 102 108 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; PITMAN,STRG POWER STEERING<N40>	8-94248-401-3	01	1	9307-	●	●
1	ARM; PITMAN,STRG EXC. POWER STEERING<N40>	8-94225-487-3	01	1	9307-	●	●
9	LINK; DRAG	8-94367-857-0	01	1	9307-	●	●
13	BOOT; DRAG LINK ID=10	8-94124-518-0	02	1	9307-	●	●
18	BOLT; PITMAN ARM,STOPPER	5-09000-011-0	01	1	9307-	●	●
19	NUT; PITMAN ARM,STOPPER	5-09400-033-0	01	1	9307-	●	●
34	NUT; DRAG LINK TO PITMAN ARM M12 SLOTTED	9-99117-512-0	01	1	9307-	●	●
35	PIN; SPLIT,DRAG LINK TO PITMAN ARM OD=2.8 L=20	9-08113-020-0	01	1	9307-	●	●
36	PIN; SPLIT,DRAG LINK OD=2.8 L=20	9-08113-020-0	01	1	9307-	●	●
37	RING SET; BOOT,DRAG LINK	8-94233-471-1	02	1	9307-	●	●
39	LEVER ASM; RELAY,STRG LINKAGE	8-94257-396-1	01	1	9307-	●	●
39	LEVER ASM; RELAY,STRG LINKAGE	8-94437-835-1	01	1	9307-	●	●
40	BOLT; RELAY LEVER M8X14	0-20800-814-0	02	1	9307-	●	●
41	CAP; RELAY LEVER	8-94227-037-0	01	1	9307-	●	●
42	GASKET; RELIEF VALVE	8-94227-036-0	01	1	9307-	●	●
43	SPRING; RELAY LEVER	9-09940-480-0	01	1	9307-	●	●
44	SHAFT; RELAY LEVER L=229.5	8-94437-839-1	01	1	9307-	●	●
45	BUSHING; RELAY LEVER	8-94227-039-1	02	1	9307-	●	●
71	BOLT; RELAY LEVER BRKT M12X85	0-10806-285-0	02	1	9307-	●	●
71	BOLT; RELAY LEVER BRKT M10X80	9-01061-080-0	05	1	9307-	●	●
72	SEAL; OIL,RELAY LEVER	8-94227-141-0	01	1	9307-	●	●
74	SEAT; SPRING,RELAY LEVER SHAFT,STRG (A) ID=8 OD=39	8-94437-840-0	01	1	9307-	●	●
74	SEAT; SPRING,RELAY LEVER SHAFT,STRG (B) ID=31	8-94437-841-0	01	1	9307-	●	●
76	WASHER; LK,BUSHING,RELAY LEVER ID=14.2	9-09150-514-0	01	1	9307-	●	●
77	WASHER; LK,RELAY LEVER ID=14.5	8-94223-127-2	01	1	9307-	●	●
77	WASHER; LK,RELAY LEVER ID=8	9-09150-508-0	02	1	9307-	●	●
78	WASHER; LINK,RELAY LEVER ID=16.2	9-09150-516-0	01	1	9307-	●	●
79	NUT; RELAY LEVER M16	9-99111-416-0	01	1	9307-	●	●
80	GUARD; MUD,RELAY LEVER	8-94234-815-0	02	1	9307-	●	●
81	GASKET; RELAY LEVER	9-09562-328-0	02	1	9307-	●	●
82	BUSHING; RELAY LEVER	5-44347-004-0	02	1	9307-	●	●
83	PIN ASM; RELAY LEVER	8-94237-365-1	01	1	9307-	●	●
84	ROD END; TRACK ROD (A)	8-94369-924-0	02	1	9307-	●	●
84	ROD END; TRACK ROD (B)	8-94369-925-0	02	1	9307-	●	●
102	RING SET; BOOT,ROD END INNER	8-94233-471-1	04	1	9307-	●	●
103	BOOT; OUTER,ROD END ID=10	8-94124-518-0	02	1	9307-	●	●
104	NUT; ROD END M12 SLOTTED	9-99117-512-0	04	1	9307-	●	●
105	PIN; SPLIT,ROD END OD=2.8 L=20	9-08113-020-0	04	1	9307-	●	●
106	NUT; RELAY LEVER (B) M12	9-99110-412-0	01	1	9307-	●	●
106	NUT; RELAY LEVER (A) M14	9-99111-414-0	01	1	9307-	●	●
108	BOOT; ROD END,INNER ID=10	8-94124-518-0	02	1	9307-	●	●
109	NUT; ROD M16 LH THREAD	8-94370-039-0	02	1	9307-	●	●
109	NUT; ROD M16 RH THREAD	8-94370-339-0	02	1	9307-	●	●
110	ROD; TRACK,OUTER	8-94367-861-0	02	1	9407-	●	●
111	ROD; TRACK,CENTER L=815	8-94370-366-0	01	1	9307-	●	●
112	WASHER; RELAY LEVER BRKT ID=10.5 OD=26	9-09164-710-0	05	1	9307-	●	●
112	WASHER; RELAY LEVER BRKT ID=12.5 OD=32	9-09164-712-0	02	1	9307-	●	●
114	WASHER; RELAY LEVER BRKT ID=10.2	9-09150-610-0	05	1	9307-	●	●
114	WASHER; RELAY LEVER BRKT ID=12.2	9-09150-612-0	02	1	9307-	●	●
115	NUT; RELAY LEVER BRKT M10	9-09110-510-0	05	1	9307-	●	●
115	NUT; RELAY LEVER BRKT M12	9-99110-512-0	02	1	9307-	●	●
116	PIN; SPLIT,TRACK ROD,CENTER OD=2.8 L=20	9-08113-020-0	01	1	9307-	●	●
117	NUT; DRAG LINK M12 SLOTTED	9-99117-512-0	02	1	9307-	●	●
118	LEVER; RELAY	8-94225-483-1	01	1	9307-	●	●
119	NUT; RELAY LEVER M20	9-99110-420-0	01	1	9307-	●	●
120	BOLT; RELAY LEVER STOPPER M12X40	9-09602-128-0	01	1	9307-	●	●
121	WASHER; LINK,RELAY LEVER ID=20.2	9-09150-520-0	01	1	9307-	●	●
122	NUT; RELAY LEVER STOPPER M12	9-99110-512-0	01	1	9307-	●	●
123	LEVER; RELAY,RH	8-94225-484-1	01	1	9307-	●	●
176	RING SET; BOOT,TRACK ROD,CENTER	8-94233-471-1	01	1	9307-	●	●
