4-30 — STEERING WHEEL AND COWL (#37377) — 16 parça

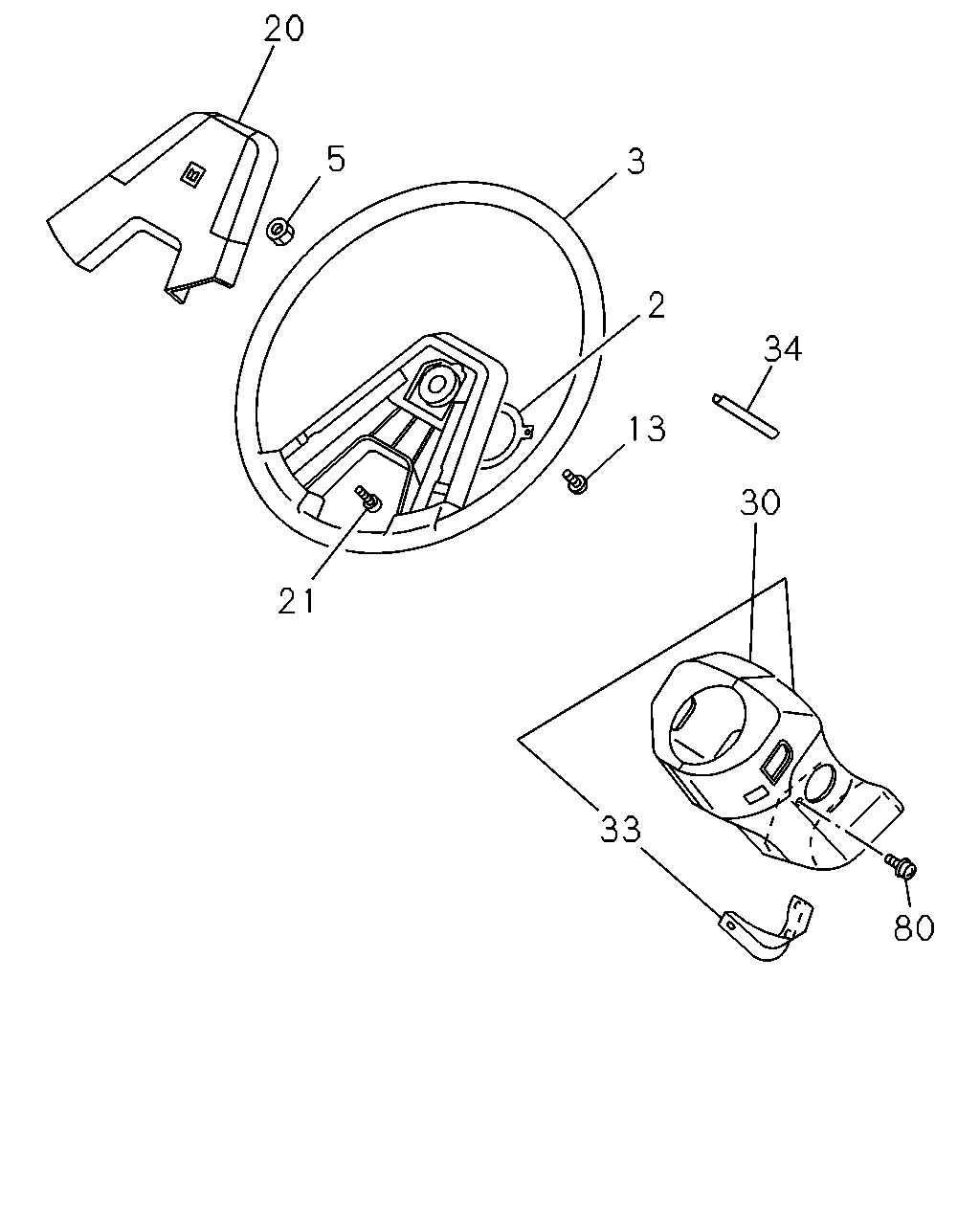

çizim 65933
20 5 3 2 34 13 30 21 33 80
BalonParca AdiParca NoAdetTipApplied Date A B
2 RING; HORN CONTACT 8-94423-773-0 01 1 9307- ● ●
3 WHEEL; STRG
INTERIOR COLOR MED SAND(129) BEIGE 		8-97002-308-3 01 1 9307- ● ●
3 WHEEL; STRG
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-97002-309-3 01 1 9307- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 9307- ● ●
13 SCREW; CONTACT RING
M3X10 		9-93490-310-0 03 1 9307- ● ●
20 SHROUD; PAD,STRG WHEEL
INTERIOR COLOR MED SAND(129) BEIGE 		8-97002-312-3 01 1 9307- ● ●
20 SHROUD; PAD,STRG WHEEL
INTERIOR COLOR MEDIUM GRAY(113) GRAY 		8-97002-313-3 01 1 9307- ● ●
21 SCREW; SHROUD TO STRG WHEEL
M5X14 W/LK&PL WASHER 		9-03920-514-0 02 1 9307- ● ●
30 COWL; STEERING
INTERIOR COLOR MED SAND(129) FLOOR REMOTE SHIFT<M11> BEIGE 		8-94350-880-3 01 1 9307- ● ●
30 COWL; STEERING
INTERIOR COLOR MED SAND(129) EXC. FLOOR REMOTE SHIFT<M11> BEIGE 		8-94350-877-3 01 1 9307- ● ●
30 COWL; STEERING
INTERIOR COLOR MEDIUM GRAY(113) FLOOR REMOTE SHIFT<M11> GRAY 		8-94350-881-3 01 1 9307- ● ●
30 COWL; STEERING
INTERIOR COLOR MEDIUM GRAY(113) EXC. FLOOR REMOTE SHIFT<M11> GRAY 		8-94350-878-3 01 1 9307- ● ●
33 COVER; STRG COWL
INTERIOR COLOR MED SAND(129) EXC. FLOOR REMOTE SHIFT<M11> BEIGE 		8-94350-922-0 01 1 9307- ● ●
33 COVER; STRG COWL
INTERIOR COLOR MEDIUM GRAY(113) EXC. FLOOR REMOTE SHIFT<M11> GRAY 		8-94350-923-0 01 1 9307- ● ●
34 FINISHER; STRG COWL 1-71998-300-0 02 1 9307- ● ●
80 SCREW; STEERING LOCK
M4X20 		8-94279-314-0 02 1 9307- ● ●
