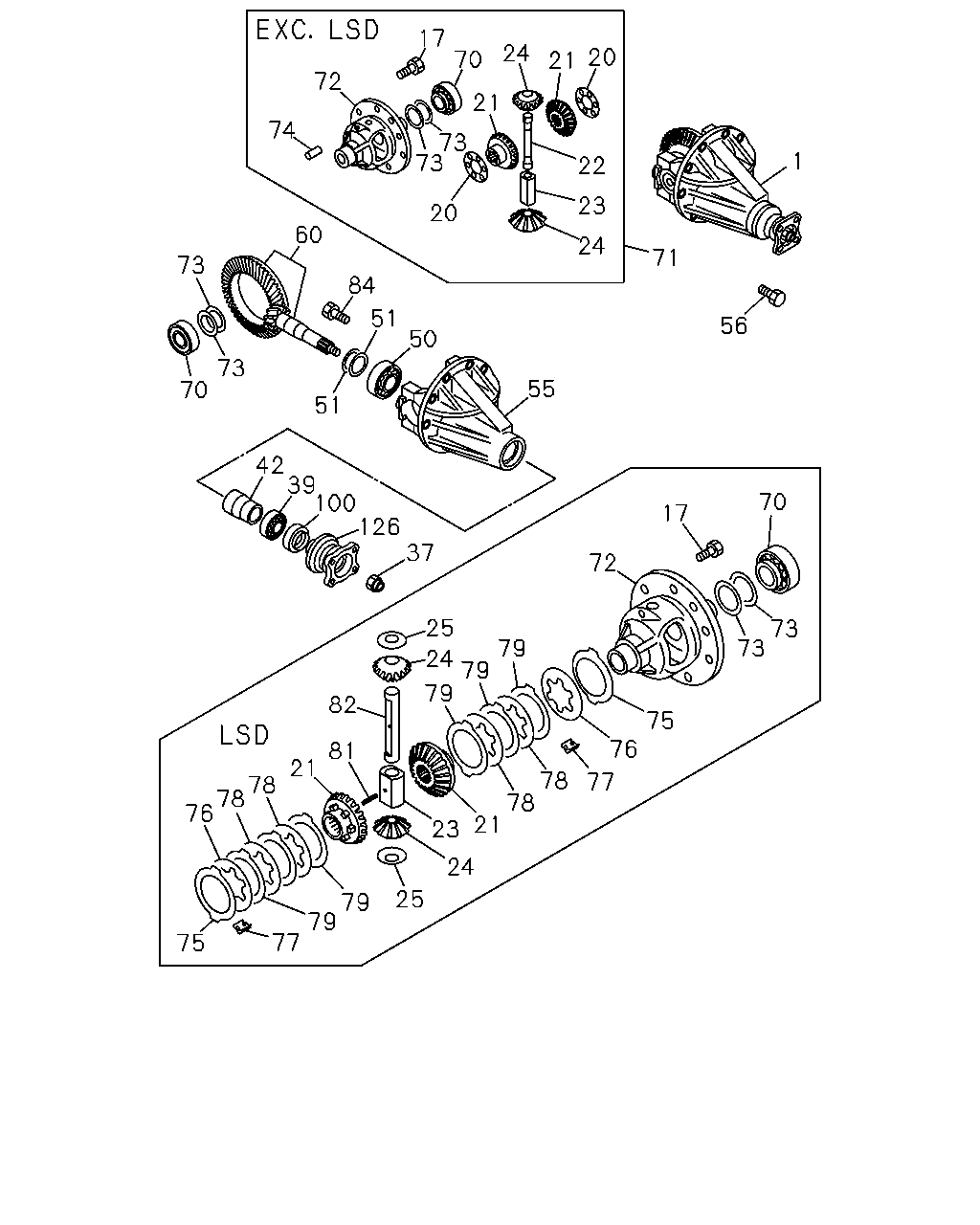

4-25 — REAR FINAL DRIVE (#37376) — 74 parça

17 70 24 21 20 72 21 73 73 74 1 22 23 20 60 24 71 73 84 51 56 50 73 70 55 51 42 39 100 126 37 70 17 72 25 79 24 79 79 73 73 82 75 76 77 81 21 78 78 76 78 78 23 21 24 25 79 79 77 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 4FG1 ENG(RLL) LIMITED SLIP DIFF(G80) 43/9	8-94314-056-3	01	1	9307-9406	●	●
1	DRIVE ASM; FINAL,RR 4FG1 ENG(RLL) LIMITED SLIP DIFF(G80) EXC. IRISH EQUIPMENT(6CU) 43/9	8-94314-056-3	01	1	9407-	●	●
1	DRIVE ASM; FINAL,RR 4FG1 ENG(RLL) EXC. LIMITED SLIP DIFF(G80) 43/9	8-94314-055-3	01	1	9307-9406	●	●
1	DRIVE ASM; FINAL,RR 4FG1 ENG(RLL) EXC. LIMITED SLIP DIFF(G80),IRISH EQUIPMENT(6CU) 43/9	8-94314-055-3	01	1	9407-	●	●
1	DRIVE ASM; FINAL,RR 4ZC1 ENG(LR9) LIMITED SLIP DIFF(G80) 41/9	8-94468-545-3	01	1	9307-	●	●
1	DRIVE ASM; FINAL,RR 4ZC1 ENG(LR9) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94468-544-3	01	1	9307-	●	●
1	DRIVE ASM; FINAL,RR 4FG1 ENG(RLL) IRISH EQUIPMENT(6CU) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94468-546-3	01	1	9407-		●
1	DRIVE ASM; FINAL,RR 4FG1 ENG(RLL) LIMITED SLIP DIFF(G80) IRISH EQUIPMENT(6CU) 41/9	8-94468-547-3	01	1	9407-		●
17	BOLT; DIFF CAGE SETTING M10X17	8-97038-065-0	10	1	9307-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.00	5-41562-005-1	02	1	9307-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.05	5-41562-006-1	02	1	9307-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) T=1.10	5-41562-007-1	02	1	9307-	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF(G80)	8-94118-094-0	02	1	9307-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G80)	8-94474-302-0	02	1	9307-	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G80)	9-41521-044-1	01	1	9307-	●	●
23	BLOCK; THRUST,DIFF BOX LIMITED SLIP DIFF(G80)	8-94118-097-0	01	1	9307-	●	●
23	BLOCK; THRUST,DIFF BOX EXC. LIMITED SLIP DIFF(G80)	9-41525-015-2	01	1	9307-	●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF(G80)	8-94118-095-0	02	1	9307-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G80)	8-94474-301-0	02	1	9307-	●	●
25	WASHER; THRUST,PINION LIMITED SLIP DIFF(G80)	8-94118-099-0	02	1	9307-	●	●
37	NUT; DRIVING PINION M18 LOCK NUT	8-94376-262-0	01	1	9307-	●	●
39	BEARING; FINAL PINION NSK	8-94472-099-0	01	1	9307-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-94472-118-0	01	1	9307-	●	●
50	BEARING; FINAL PINION NSK	9-00093-621-0	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18	9-41519-153-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20	9-41519-154-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22	9-41519-155-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24	9-41519-156-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26	9-41519-157-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28	9-41519-158-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30	9-41519-159-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32	9-41519-160-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34	9-41519-161-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36	9-41519-162-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.38	9-41519-163-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.40	9-41519-164-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.42	9-41519-165-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.44	9-41519-166-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.46	9-41519-167-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.48	9-41519-168-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.50	9-41519-169-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.52	9-41519-170-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.54	9-41519-171-1	01	1	9307-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.56	9-41519-172-1	01	1	9307-	●	●
55	CARRIER; DIFF	5-41110-016-3	01	1	9307-	●	●
56	BOLT; BRG CAP M12X62	8-94376-322-0	04	1	9307-	●	●
60	GEAR SET; FINAL DRIVE,RR 4FG1 ENG(RLL) 43/9	8-97063-576-0	01	1	9307-9406	●	●
60	GEAR SET; FINAL DRIVE,RR 4FG1 ENG(RLL) EXC. IRISH EQUIPMENT(6CU) 43/9	8-97063-576-0	01	1	9407-	●	●
60	GEAR SET; FINAL DRIVE,RR 4ZC1 ENG(LR9) 41/9	8-97065-093-0	01	1	9307-9406	●	●
60	GEAR SET; FINAL DRIVE,RR 4ZC1 ENG(LR9) 41/9	8-97065-093-0	01	1	9407-	●	●
60	GEAR SET; FINAL DRIVE,RR 4FG1 ENG(RLL) IRISH EQUIPMENT(6CU) 41/9	8-97065-093-0	01	1	9407-		●
70	BEARING; DIFF CAGE NSK	9-00093-074-0	02	1	9307-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-94328-477-0	01	1	9307-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF(G80)	8-94313-752-0	01	1	9307-	●	●
72	CAGE; DIFF LIMITED SLIP DIFF(G80)	8-94118-093-0	01	1	9307-	●	●
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-94313-589-0	01	1	9307-9310	●	●
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97038-515-1	01	1	9311-	●	●
73	SHIM; DIFF SIDE BRG T=0.24	9-41519-109-0	AR	1	9307-	●	●
73	SHIM; DIFF SIDE BRG T=0.18	9-41519-110-0	AR	1	9307-	●	●
73	SHIM; DIFF SIDE BRG T=0.15	9-41519-111-0	AR	1	9307-	●	●
73	SHIM; DIFF SIDE BRG T=0.12	9-41519-112-0	AR	1	9307-	●	●
74	PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF(G80) OD=5 L=35	9-09878-096-0	01	1	9307-	●	●
75	PLATE; BEVEL LIMITED SLIP DIFF(G80)	8-94118-103-0	02	1	9307-	●	●
76	DISC; BEVEL LIMITED SLIP DIFF(G80)	8-94118-102-0	02	1	9307-	●	●
77	SLEEVE LIMITED SLIP DIFF(G80)	8-94118-101-0	04	1	9307-	●	●
78	DISC; FRICTION LIMITED SLIP DIFF(G80) T=1.40	8-94118-104-0	04	1	9307-	●	●
78	DISC; FRICTION LIMITED SLIP DIFF(G80) T=1.50	8-94118-105-0	04	1	9307-	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF(G80)	8-94118-106-0	06	1	9307-	●	●
81	PIN; SPR,SLIP LK DIFF LIMITED SLIP DIFF(G80)	8-94118-098-0	01	1	9307-	●	●
82	SPIDER; DIFF PINION LIMITED SLIP DIFF(G80)	8-94118-096-0	01	1	9307-	●	●
84	BOLT; FINAL DRIVE GEAR M10X17	8-97038-065-0	10	1	9307-	●	●
100	SEAL; OIL,FINAL PINION TKK	8-97080-848-1	01	1	9307-	●	●
126	COUPLING; DRIVING PINION 4FG1 ENG(RLL)	8-94426-786-4	01	1	9307-	●	●
126	COUPLING; DRIVING PINION 4ZC1 ENG(LR9)	8-94426-785-3	01	1	9307-	●	●
