Isuzu WW
▶
SUV
▶
WFR
▶
50685 - WFR-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

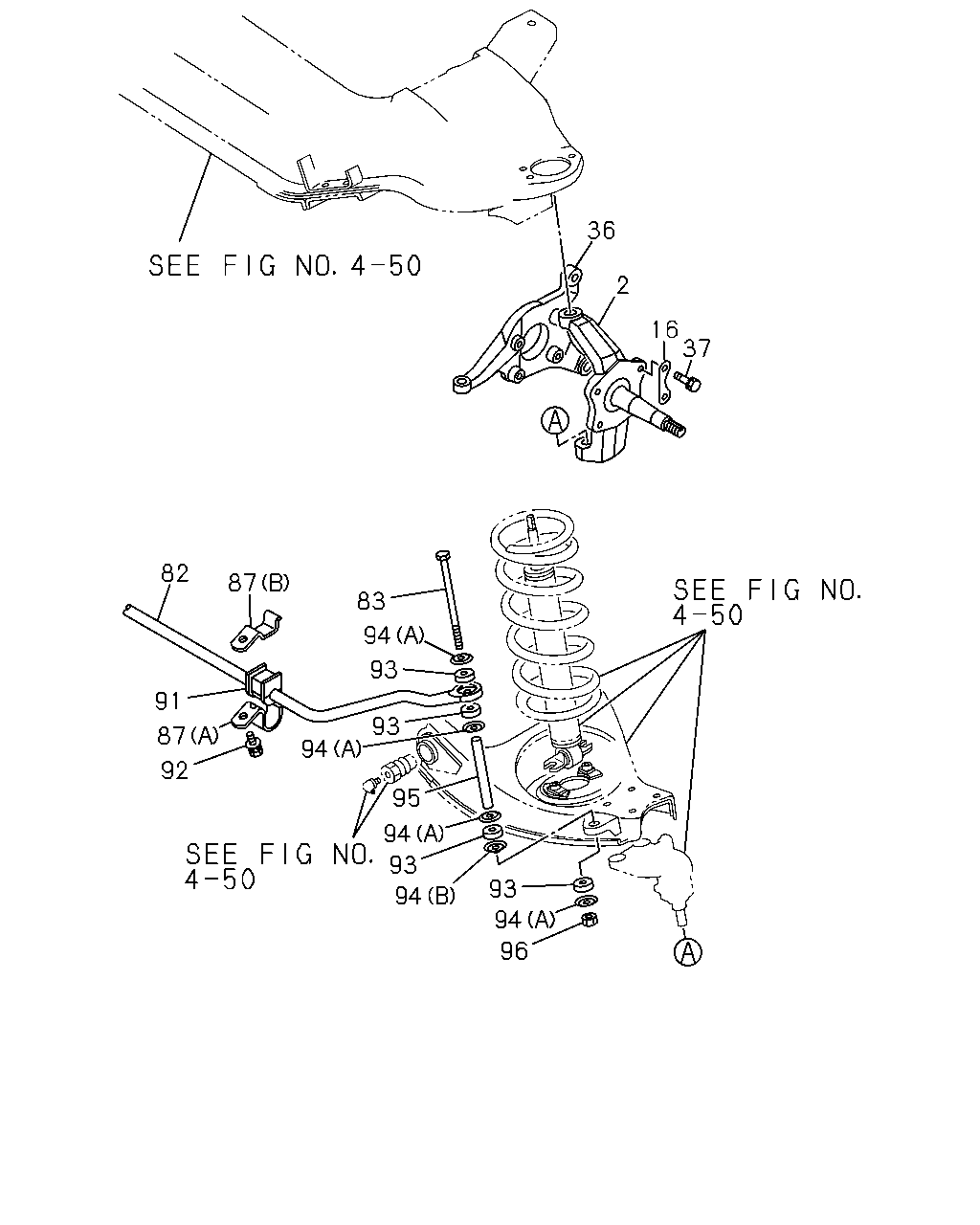

4-10 - FRONT AXLE
▶
4-10 — FRONT AXLE
(#37373) — 19 parça
Tümü
A - WFB5VC
B - WFB5VF
36
2
16
37
82
87
83
94
93
91
87
92
93
94
95
94
93
94
93
94
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
KNUCKLE; FRT AXLE
8-94242-569-1
02
1
9307-
●
●
16
PLATE; KNUCKLE TO ARM
8-94258-842-1
04
1
9307-
●
●
36
ARM; KNUCKLE
8-94225-330-2
01
1
9307-
●
●
36
ARM; KNUCKLE
8-94225-329-2
01
1
9307-
●
●
37
BOLT; KNUCKLE ARM
8-94242-395-1
08
1
9307-
●
●
82
BAR; STAB,FRT SUSP
4 DOOR WAGON(V4W) OD=16 YELLOW
8-94227-128-4
01
1
9307-
●
82
BAR; STAB,FRT SUSP
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) OD=18 WHITE
8-94422-927-2
01
1
9307-
●
●
83
BOLT; STAB BAR TO CONT ARM
8-94239-620-0
02
1
9307-
●
●
87
BRACKET; STABILIZER
(B)
8-94233-423-2
02
1
9307-
●
●
87
BRACKET; STABILIZER
(A)
8-94233-539-1
01
1
9307-
●
●
87
BRACKET; STABILIZER
(A)
8-94233-538-1
01
1
9307-
●
●
91
BUSHING; RUBBER,STAB BAR
4 DOOR WAGON(V4W) ID=16
8-94227-050-1
02
1
9307-
●
91
BUSHING; RUBBER,STAB BAR
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) ID=18
8-94422-928-0
02
1
9307-
●
●
92
BOLT; STAB BAR TO BODY
M10X30 W/LK&PL WASHER
0-50141-030-0
02
1
9307-
●
●
93
BUSHING; STABILIZER
8-94227-138-0
08
1
9307-
●
●
94
RETAINER; BUFFER,STAB BAR
(A) OD=32
8-06231-187-1
08
1
9307-
●
●
94
RETAINER; BUFFER,STAB BAR
(B) ID=18 OD=39
8-94227-049-1
02
1
9307-
●
●
95
COLLAR; DIST,STAB BAR TO LWR LINK
8-94226-976-1
02
1
9307-
●
●
96
NUT; STAB BAR TO CONT ARM
M8 LOCK NUT
9-09131-408-0
02
1
9307-
●
●
