◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#37371) — 15 parça

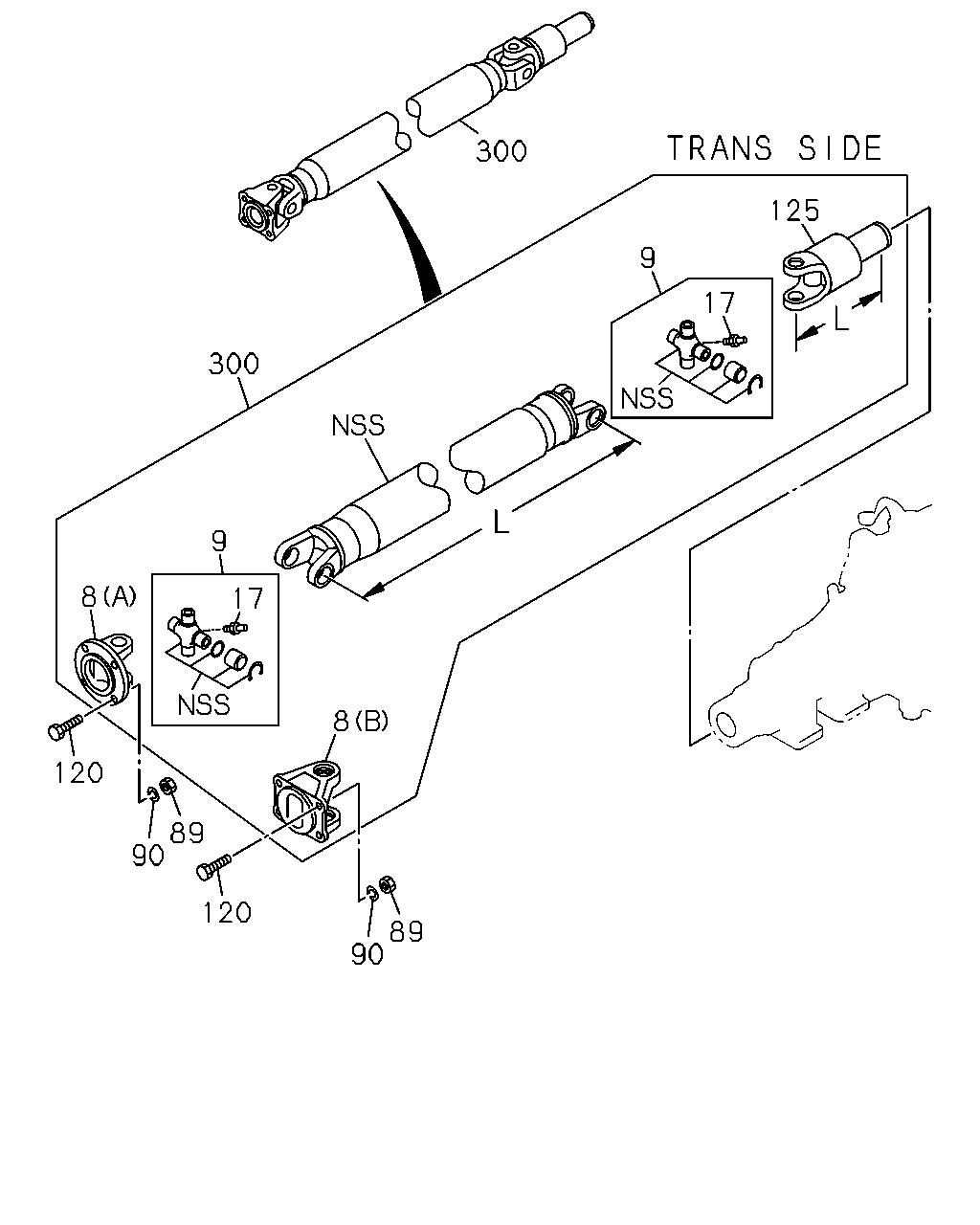

çizim 68518
300 125 9 17 300 9 17 8 8 120 89 90 120 89 90
BalonParca AdiParca NoAdetTipApplied Date A B
8 YOKE; FLANGE,PROP SHAFT
(A) 		5-37211-001-0 01 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		8-94171-858-1 01 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 8-94479-053-0 02 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 8-94332-683-1 02 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT 9-09928-016-0 02 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT 8-94310-818-0 02 1 9307- ●
89 NUT; YOKE TO RR AXLE
M8 		9-09110-508-0 04 1 9307- ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=8.2 		9-09150-608-0 04 1 9307- ● ●
120 BOLT; YOKE TO RR AXLE
M8X26 		8-94437-365-1 04 1 9307- ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
L=148 		8-94460-086-0 01 1 9307- ●
125 YOKE ASM; SPLINED,PROP SHAFT
L=148 		8-94460-089-0 01 1 9307- ●
300 SHAFT ASM; PROP,RR
STANDARD(WFB5VC) L=690 		8-94331-934-0 01 1 9307- ●
300 SHAFT ASM; PROP,RR
LONG(WFB5VF) L=1030 		8-94331-935-0 01 1 9307- ●
300 SHAFT ASM; PROP,RR
STANDARD(WFB5VC) L=643 		8-97029-468-2 01 1 9307- ●
300 SHAFT ASM; PROP,RR
LONG(WFB5VF) L=980 		8-97029-469-2 01 1 9307- ●
