3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶

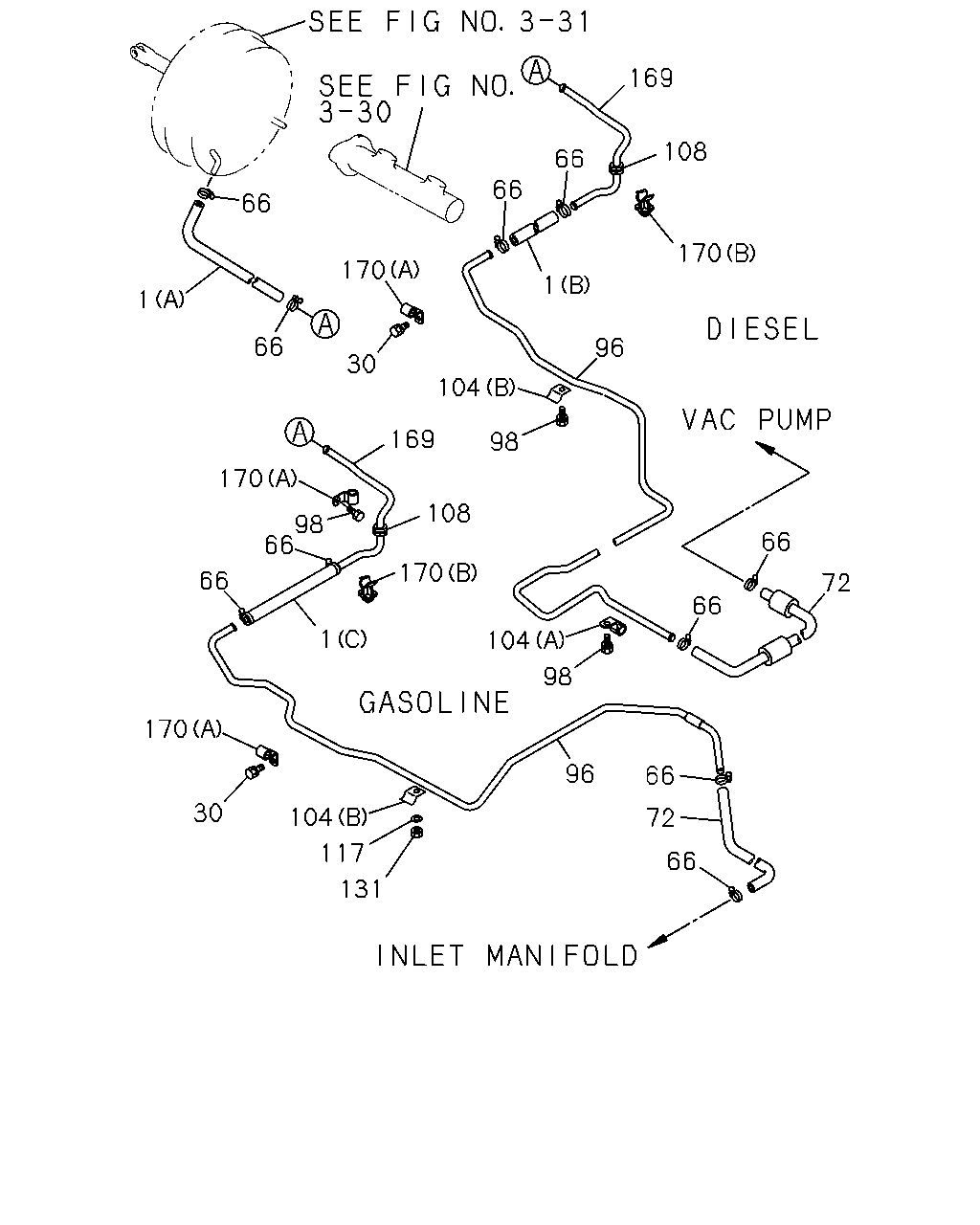

3-60 — BRAKE PIPING; VACUUM
(#37370) — 22 parça
Tümü
A - WFB5VC
B - WFB5VF
169
108
66
66
66
170
170
1
1
66
96
30
104
169
98
170
98
66
108
66
170
66
72
66
1
104
98
170
96
66
30
104
117
131
72
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; VAC,M/VAC TO VAC PIPE
(A) L=250
8-94116-728-1
01
1
9307-
●
●
1
HOSE; VAC,M/VAC TO VAC PIPE
4FG1 ENG(RLL) (B) L=160 SERVICED BY L=3000
0-08158-300-0
01
1
9307-
●
●
1
HOSE; VAC,M/VAC TO VAC PIPE
4ZC1 ENG(LR9) (C) L=160 W/CHECK VALVE
8-94106-553-1
01
1
9307-
●
●
30
BOLT; CLIP,VAC PIPE
M6X16 W/LK WASHER
0-50040-616-0
01
1
9307-
●
●
66
CLIP; VAC HOSE,M/VAC
ID=16
8-94238-568-0
06
1
9307-
●
●
72
HOSE; VAC,VAC PUMP TO PIPE
4FG1 ENG(RLL) L=340 W/INSULATOR:L=200
8-94421-794-0
01
1
9307-
●
●
72
HOSE; VAC,VAC PUMP TO PIPE
4ZC1 ENG(LR9) POWER STEERING<N40> W/INSULATOR L=210
8-97026-265-0
01
1
9307-
●
●
72
HOSE; VAC,VAC PUMP TO PIPE
4ZC1 ENG(LR9) EXC. POWER STEERING<N40> W/INSULATOR L=80
8-97026-266-0
01
1
9307-
●
●
96
PIPE; VAC,M/VAC TO VAC PUMP
4FG1 ENG(RLL)
8-94404-065-3
01
1
9307-
●
●
96
PIPE; VAC,M/VAC TO VAC PUMP
4ZC1 ENG(LR9)
8-97017-141-0
01
1
9307-
●
●
98
BOLT; VAC PIPE FIX
4FG1 ENG(RLL) M6X16 W/LK WASHER
0-50040-616-0
02
1
9307-
●
●
98
BOLT; VAC PIPE FIX
4ZC1 ENG(LR9) M6X16 W/LK WASHER
0-50040-616-0
01
1
9307-
●
●
104
CLIP; VAC PIPE TO DEFLECTOR
4FG1 ENG(RLL) (A) ID=11 L=16 H=15.5
5-09700-073-0
01
1
9307-
●
●
104
CLIP; VAC PIPE TO DEFLECTOR
4FG1 ENG(RLL) (B)
9-09716-061-0
01
1
9307-
●
●
104
CLIP; VAC PIPE TO DEFLECTOR
4ZC1 ENG(LR9) (B)
9-09716-061-0
02
1
9307-
●
●
108
GROMMET; PIPE
5-09983-001-0
01
1
9307-
●
●
117
WASHER; LK,VAC PIPE
4ZC1 ENG(LR9) ID=6.1
9-09150-506-0
01
1
9307-
●
●
131
NUT; VAC PIPE FIX
4ZC1 ENG(LR9) M6
9-09110-506-0
01
1
9307-9406
●
●
131
NUT; VAC PIPE FIX
4ZC1 ENG(LR9) M6
9-09110-406-0
01
1
9407-
●
●
169
PIPE; VAC,BOOSTER SIDE
8-94226-617-1
01
1
9307-
●
●
170
CLIP; VAC PIPE
(B)
8-94234-808-0
01
1
9307-
●
●
170
CLIP; VAC PIPE
(A) ID=11 H=20 L=20
9-09527-010-0
01
1
9307-
●
●
