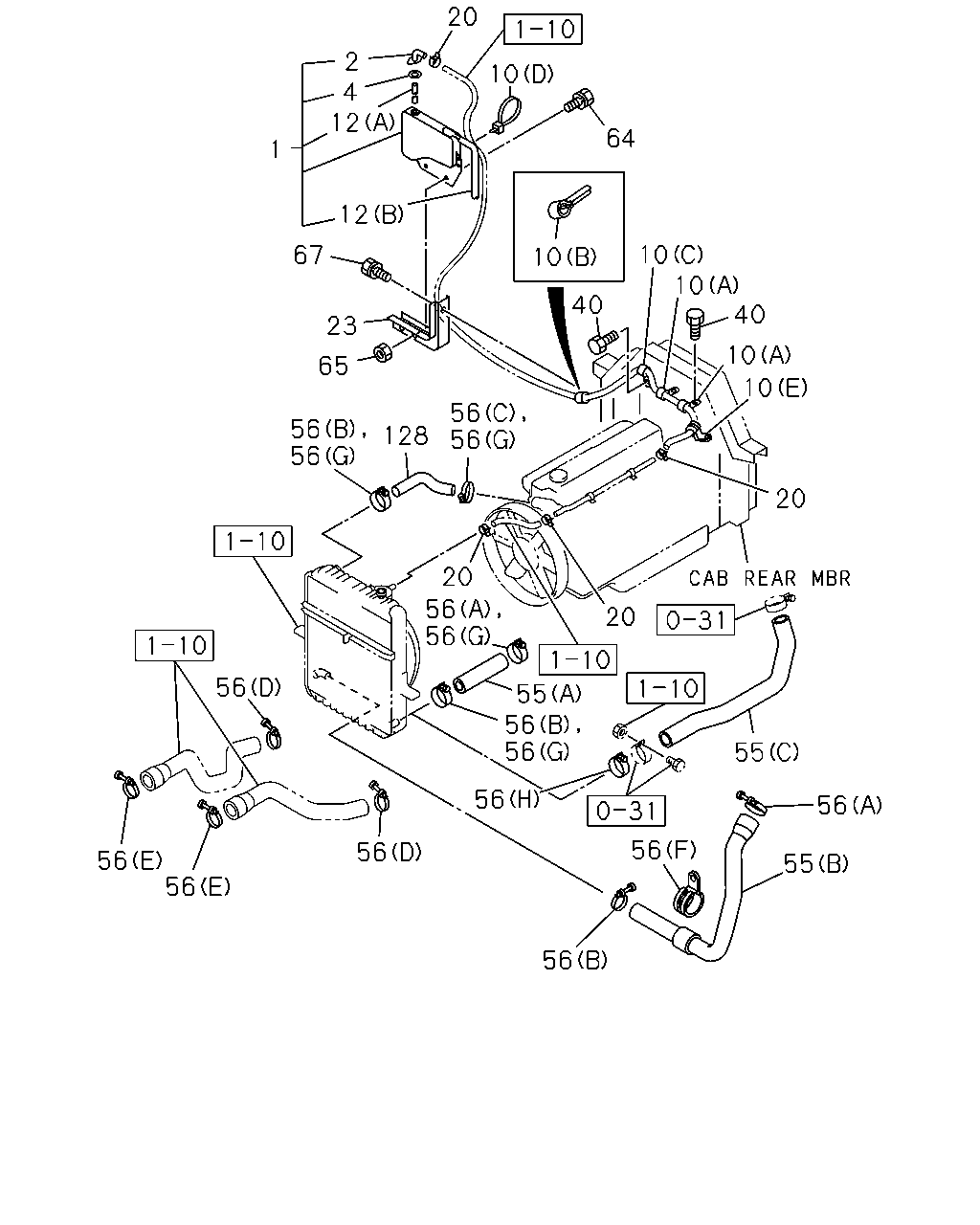

1-11 — RADIATOR HOSE AND SUB TANK (#3737) — 120 parça

20 2 4 12 10 64 1 12 10 10 67 10 40 40 23 10 65 10 56 56 56 56 128 20 20 56 56 20 56 55 56 56 55 56 56 56 56 56 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9601-9803	●	●	●	●
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9804-9812	●	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9901-0004	●	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0005-0607	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0608-	●	●	●	●		●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9601-9803	●	●	●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9804-9812	●	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9901-0004	●	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0607	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0608-	●	●	●	●		●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9601-9803	●	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9804-0004	●	●	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0607	●	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0608-	●	●	●	●		●
10	CLIP; RUBBER HOSE EURO2 SPECIFICATION<THN> (A) ID=14.5 L=40	1-09701-014-0	01	1	9710-0301			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0302-			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	9601-9803	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	9804-0004	●	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0607	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0608-	●	●	●	●		●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-0	01	1	9601-9803	●	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9804-0004	●	●	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-0607	●	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0608-	●	●	●	●		●
10	CLIP; RUBBER HOSE (C) ID=13 L=50	9-09525-286-0	01	1	9601-9803	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=13 L=50	9-09525-286-0	01	1	9804-0004	●	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=12 L=70	1-09700-097-1	01	1	0005-0607			●	●
10	CLIP; RUBBER HOSE (C) ID=12 L=70	1-09700-097-1	01	1	0608-			●	●		●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	9601-9803	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	9804-0004	●	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	9-09525-235-0	01	1	0005-0606	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	0-95235-235-0	01	1	0607-0607	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	0-95235-235-0	01	1	0608-	●	●	●	●		●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	01	1	0201-0607	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=14 L=44	9-09917-427-0	01	1	0608-	●	●	●	●		●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0607	●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0608-	●	●				●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	9901-0607	●	●	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0608-	●	●	●	●		●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9601-9803	●	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9804-0004	●	●	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0607	●	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0608-	●	●	●	●		●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9601-9803	●	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9804-0004	●	●	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0607	●	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0608-	●	●	●	●		●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9601-9803	●	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9804-0004	●	●	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0607	●	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0608-	●	●	●	●		●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0608-						●
40	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	9710-0301			●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0302-0512			●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
40	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9607-9803	●	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9804-0004	●	●	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0512	●	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-0607	●	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0608-	●	●	●	●		●
55	HOSE; WATER,RAD OUTLET (C)	1-21437-870-1	01	1	0608-						●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (A)	1-21437-663-2	01	1	9710-			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9601-9709			●	●
55	HOSE; WATER,RAD OUTLET EXC. EURO2 SPECIFICATION<THN> (A)	1-21437-560-0	01	1	9710-9806			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9710-9806				●
55	HOSE; WATER,RAD OUTLET EXC. EURO2 SPECIFICATION<THN> (A)	1-21437-560-0	01	1	9807-0004			●		●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9807-0004				●
55	HOSE; WATER,RAD OUTLET EXC. EURO2 SPECIFICATION<THN> (A)	1-21437-560-2	01	1	0005-			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-2	01	1	0005-				●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-554-0	01	1	9601-0004		●
55	HOSE; WATER,RAD OUTLET EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-21437-554-0	01	1	0005-0010		●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-554-0	01	1	0011-		●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-543-0	01	1	9601-0004	●
55	HOSE; WATER,RAD OUTLET SAUDI ARABIA EQUIPMENT(WH1) (A)	1-21437-543-0	01	1	0005-0010		●
55	HOSE; WATER,RAD OUTLET ZF 9S109 OD M/T(Y2L) (A)	1-21437-543-0	01	1	0005-0010	●
55	HOSE; WATER,RAD OUTLET ZF 9S109 OD M/T(Y2L) (A)	1-21437-543-0	01	1	0011-0011	●
55	HOSE; WATER,RAD OUTLET MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (A)	1-21437-543-0	01	1	0012-1102	●
55	HOSE; WATER,RAD OUTLET SHORT CHASSIS(FV***C) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) (A)	1-21437-543-0	01	1	1103-	●
55	HOSE; WATER,RAD OUTLET MIDDLE CHASSIS(FV***F) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (A)	1-21437-543-0	01	1	1103-	●
55	HOSE; WATER,RAD OUTLET ALLISON MD3060P A/T(Y4G) (B)	1-21437-701-0	01	1	0005-	●
56	CLIP; WATER HOSE,RAD (H)	1-09700-842-1	01	1	0608-						●
56	CLIP; WATER HOSE,RAD (G) ID=63	1-09704-067-0	04	1	9601-0607			●	●
56	CLIP; WATER HOSE,RAD (G) ID=63	1-09704-067-0	04	1	0608-			●	●		●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	9601-9803	●	●
56	CLIP; WATER HOSE,RAD (C) ID=76	1-09704-069-0	01	1	9601-	●	●
56	CLIP; WATER HOSE,RAD (A) ID=70	1-09704-078-0	01	1	9601-	●	●
56	CLIP; WATER HOSE,RAD ALLISON MD3060P A/T(Y4G) (D) ID=63	1-09704-067-0	02	1	0005-	●
56	CLIP; WATER HOSE,RAD ALLISON MD3060P A/T(Y4G) (E) ID=74	1-09704-101-0	02	1	0005-	●
56	CLIP; WATER HOSE,RAD ALLISON MD3060P A/T(Y4G) (F) ID=68	8-94224-262-0	01	1	0005-	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9601-9803	●	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9804-0004	●	●	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0607	●	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0608-0707	●	●	●	●		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-	●	●	●	●
65	NUT; BRKT,SUB TANK M8	9-09110-408-0	04	1	9601-9606	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9607-9803	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9804-0004	●	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-0607	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0608-	●	●	●	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	02	1	9601-9606	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9607-9803	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9804-0004	●	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0512	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-0607	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0608-	●	●	●	●		●
128	HOSE; WATER,RAD INL	1-21437-757-0	01	1	0608-						●
128	HOSE; WATER,RAD INL EURO2 SPECIFICATION<THN>	1-21437-648-0	01	1	9710-			●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9601-9708			●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9709-9709			●	●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-675-0	01	1	9710-9806			●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9710-9806				●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-675-0	01	1	9807-0004			●		●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9807-0004				●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-675-0	01	1	0005-0707			●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0707				●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-450-0	01	1	0708-			●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	0708-				●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	9601-	●	●
