3-55 — BRAKE PIPING; OIL,REAR (#37368) — 9 parça

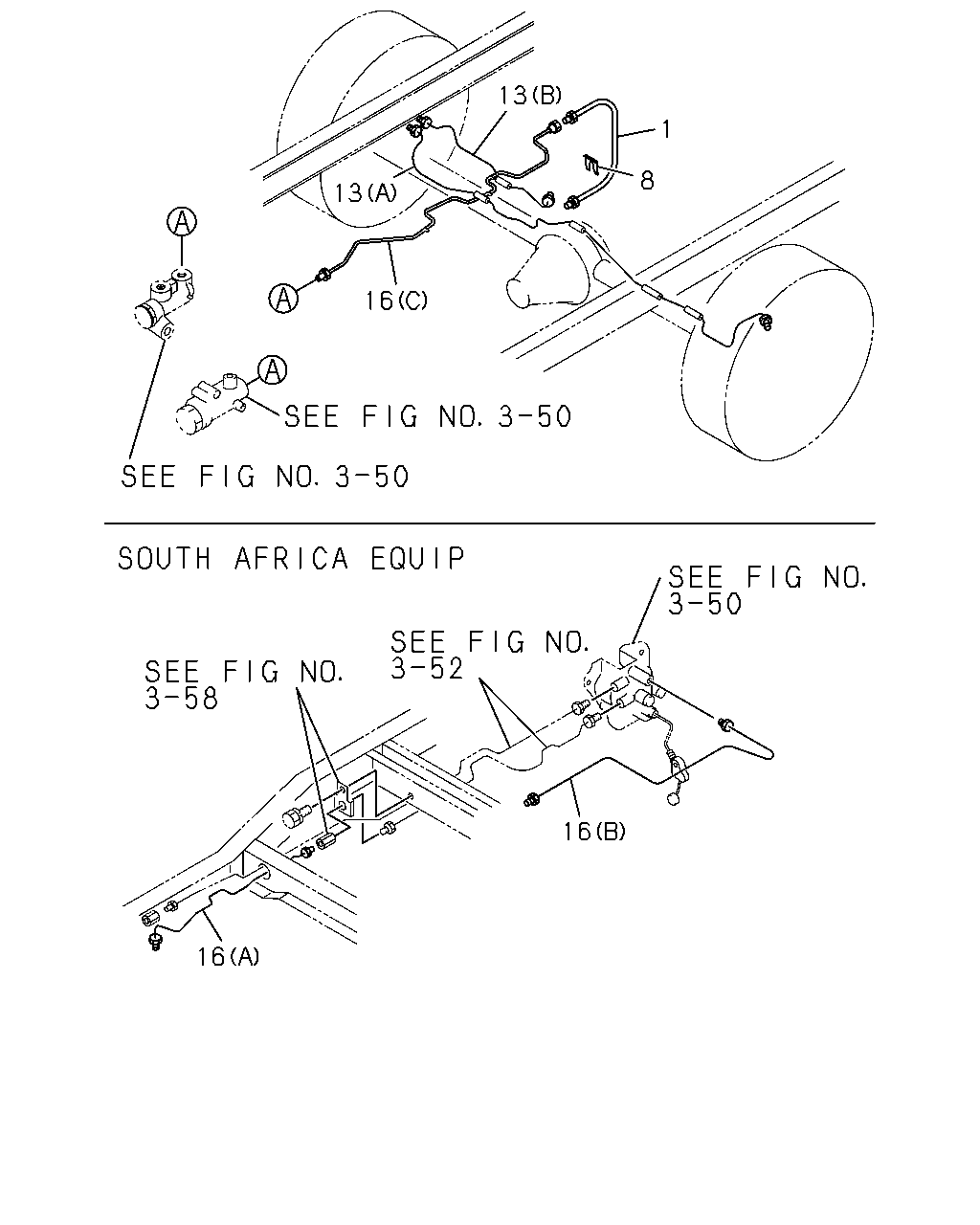

çizim 19026
13 1 8 13 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK 8-94464-643-0 01 1 9307- ● ●
8 CLIP; RR BRK 8-94137-662-0 01 1 9307- ● ●
13 PIPE; BRK,RR AXLE
(A) 		8-94411-567-2 01 1 9307- ● ●
13 PIPE; BRK,RR AXLE
(B) 		8-94425-171-1 01 1 9307- ● ●
16 PIPE; OIL,VLV TO RR FLEX HOSE
4 DOOR WAGON(V4W) (C) 		8-97041-523-0 01 1 9307- ●
16 PIPE; OIL,VLV TO RR FLEX HOSE
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) (C) L=2627 		8-97016-666-0 01 1 9307- ●
16 PIPE; OIL,VLV TO RR FLEX HOSE
SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97036-428-0 01 1 9307- ●
16 PIPE; OIL,VLV TO RR FLEX HOSE
SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97047-479-0 01 1 9307- ●
16 PIPE; OIL,VLV TO RR FLEX HOSE
EXC. SOUTH AFRICA EQUIPMENT(SW2) (C) L=2992 		8-97016-668-0 01 1 9307- ●
