3 - Brakes, Brake System
▶

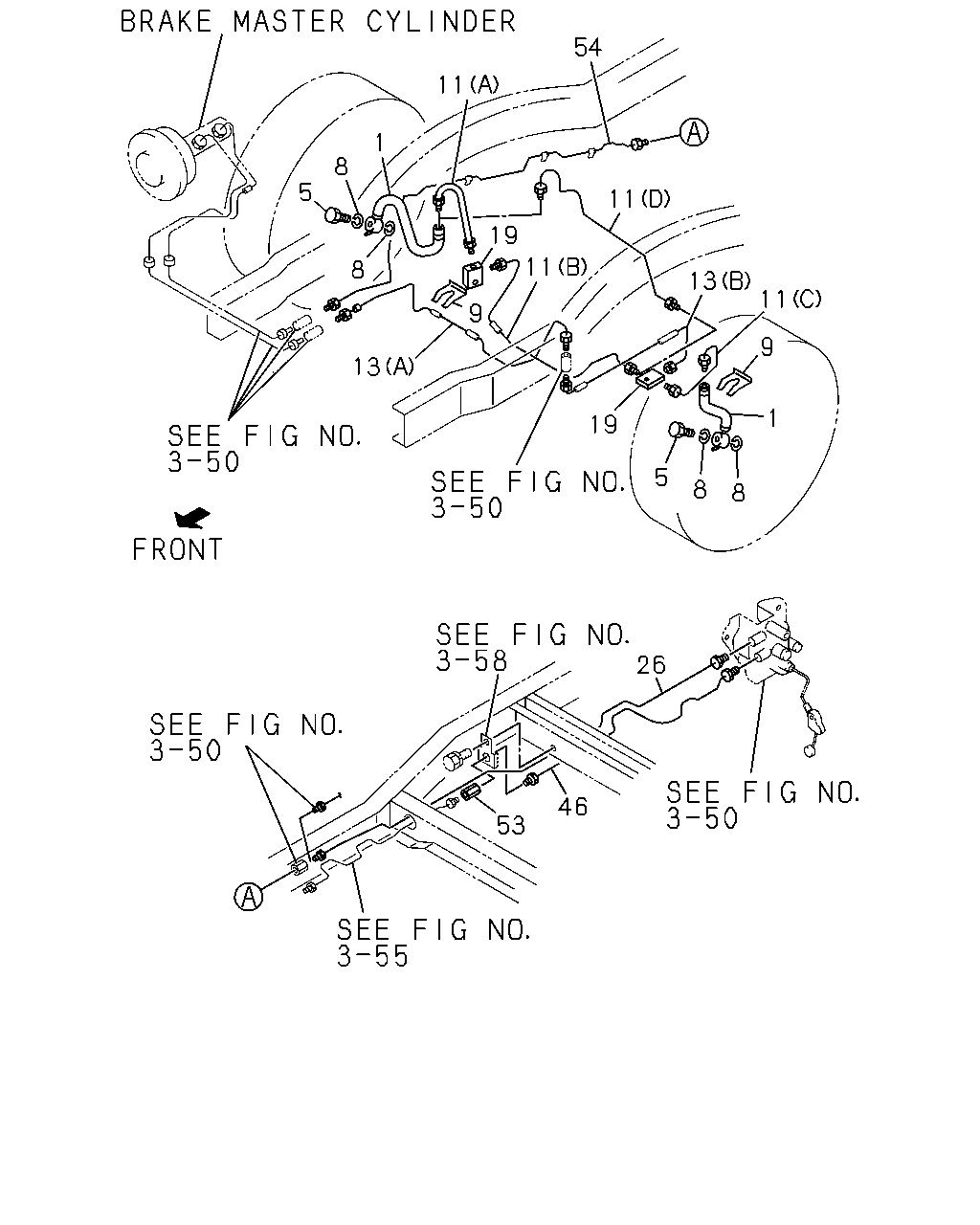

3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#37367) — 17 parça
Tümü
A - WFB5VC
B - WFB5VF
54
11
1
8
5
11
19
11
8
13
11
9
9
13
1
19
5
8
8
26
46
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,FRT BRK
8-94227-189-1
02
1
9307-
●
●
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
5-09675-017-0
02
1
9307-
●
●
8
GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0
9-09571-410-0
04
1
9307-
●
●
9
CLIP; FLEX HOSE,FRT BRK
8-94137-662-0
02
1
9307-
●
●
11
PIPE; BRK,UNION TO FLEX HOSE,FRT
(D)
8-97062-442-0
01
1
9307-
●
11
PIPE; BRK,UNION TO FLEX HOSE,FRT
EXC. SOUTH AFRICA EQUIPMENT(SW2) (D)
8-97062-442-0
01
1
9307-
●
11
PIPE; BRK,UNION TO FLEX HOSE,FRT
(C)
8-97062-445-0
01
1
9307-
●
●
11
PIPE; BRK,UNION TO FLEX HOSE,FRT
SOUTH AFRICA EQUIPMENT(SW2) (B)
8-97062-443-0
01
1
9307-
●
11
PIPE; BRK,UNION TO FLEX HOSE,FRT
SOUTH AFRICA EQUIPMENT(SW2) (A)
8-94122-518-0
01
1
9307-
●
13
PIPE; OIL,UNION TO UNION
(A)
8-97016-656-0
01
1
9307-
●
●
13
PIPE; OIL,UNION TO UNION
(B)
8-97062-444-0
01
1
9307-
●
●
19
UNION; OIL PIPE
8-94406-895-0
01
1
9307-
●
●
19
UNION; OIL PIPE
SOUTH AFRICA EQUIPMENT(SW2)
8-94406-895-0
01
1
9307-
●
26
PIPE; BRK,JOINT TO 2 WAY
SOUTH AFRICA EQUIPMENT(SW2) RR M/CYL
8-97047-478-0
01
1
9307-
●
46
PIPE; BRK,JOINT TO VLV
SOUTH AFRICA EQUIPMENT(SW2) FRT M/CYL
8-97016-670-0
01
1
9307-
●
53
CONNECTOR; OIL PIPE
SOUTH AFRICA EQUIPMENT(SW2) M10 STRAIGHT
9-09227-005-0
01
1
9307-
●
54
PIPE; BRK,UNION TO UNION
8-97023-849-0
01
1
9307-
●
●
