◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#37366) — 18 parça

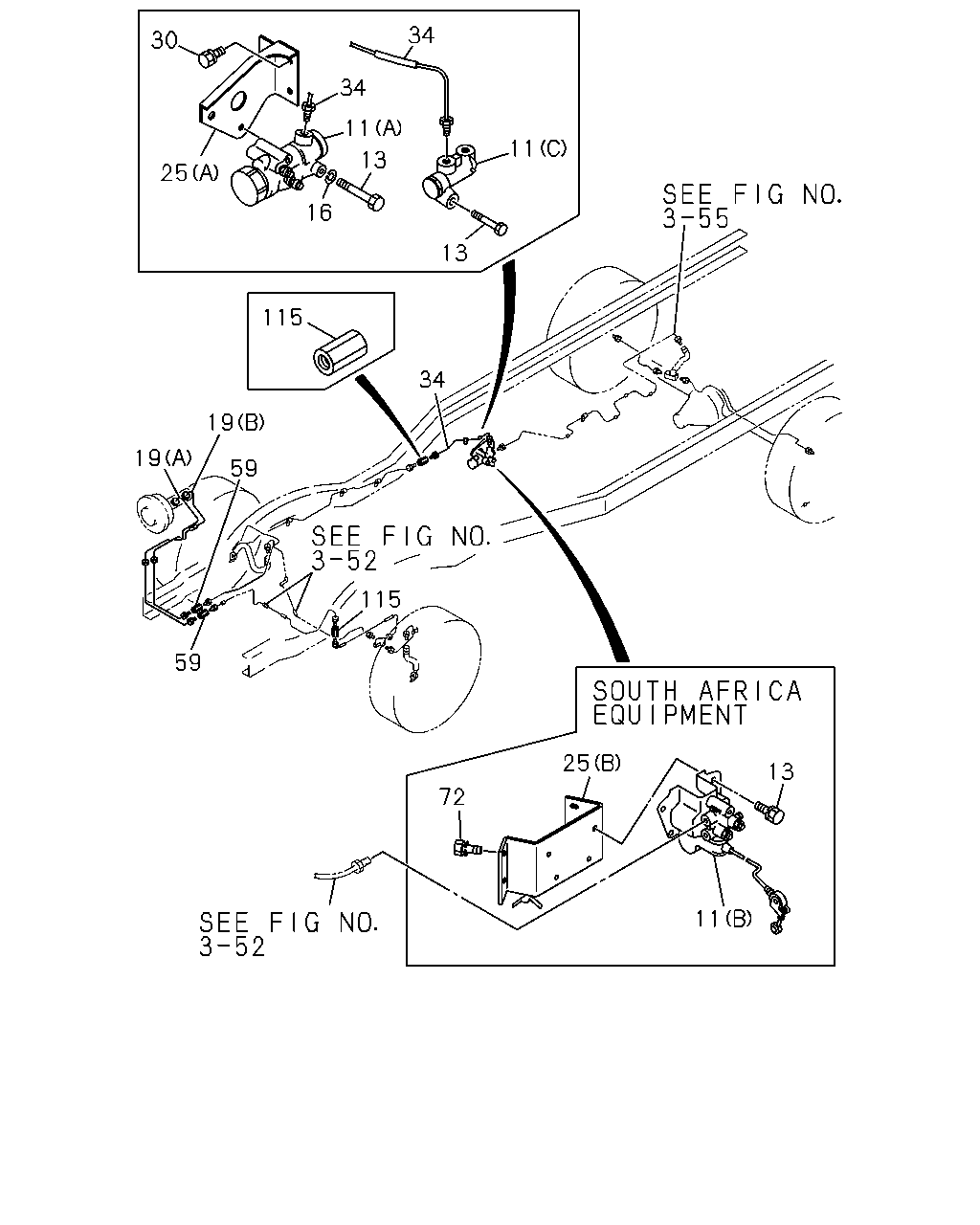

çizim 65932
34 30 34 11 13 11 25 16 13 115 34 19 19 59 115 59 25 13 72 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 VALVE; BRK CONT
4 DOOR WAGON(V4W) (C) 		8-94220-738-0 01 1 9307- ●
11 VALVE; BRK CONT
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		5-47660-026-3 01 1 9307- ● ●
11 VALVE; BRK CONT
SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94364-640-0 01 1 9307- ●
13 BOLT; VLV TO BRKT
4 DOOR WAGON(V4W) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9307- ●
13 BOLT; VLV TO BRKT
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SOUTH AFRICA EQUIPMENT(SW2) M8X65 		0-10805-865-0 02 1 9307- ● ●
13 BOLT; VLV TO BRKT
SOUTH AFRICA EQUIPMENT(SW2) M8X16 W/LK WASHER 		0-50040-816-0 04 1 9307- ●
16 WASHER; LK,VALVE
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SOUTH AFRICA EQUIPMENT(SW2) ID=8.2 		9-09150-508-0 02 1 9307- ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) 		8-97016-653-0 01 1 9307- ● ●
19 PIPE; BRK,M/CYL TO UNION
(B) 		8-97016-654-0 01 1 9307- ● ●
25 BRACKET; BRK CONT VALVE
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94233-496-4 01 1 9307- ● ●
25 BRACKET; BRK CONT VALVE
SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94406-563-1 01 1 9307- ●
30 BOLT; PROPORTIONING BRKT TO BODY
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SOUTH AFRICA EQUIPMENT(SW2) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9307- ● ●
34 PIPE; BRK,UNION TO DSPV
4 DOOR WAGON(V4W) 		8-97047-480-0 01 1 9307- ●
34 PIPE; BRK,UNION TO DSPV
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97016-663-0 01 1 9307- ● ●
59 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 02 1 9307- ● ●
72 BOLT; BRKT TO BODY
SOUTH AFRICA EQUIPMENT(SW2) M8X16 W/LK WASHER 		0-50040-816-0 04 1 9307- ●
72 BOLT; BRKT TO BODY
SOUTH AFRICA EQUIPMENT(SW2) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9307- ●
115 UNION; OIL PIPE
M10 STRAIGHT 		9-09227-005-0 02 1 9307- ● ●
