3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#37365) — 28 parça

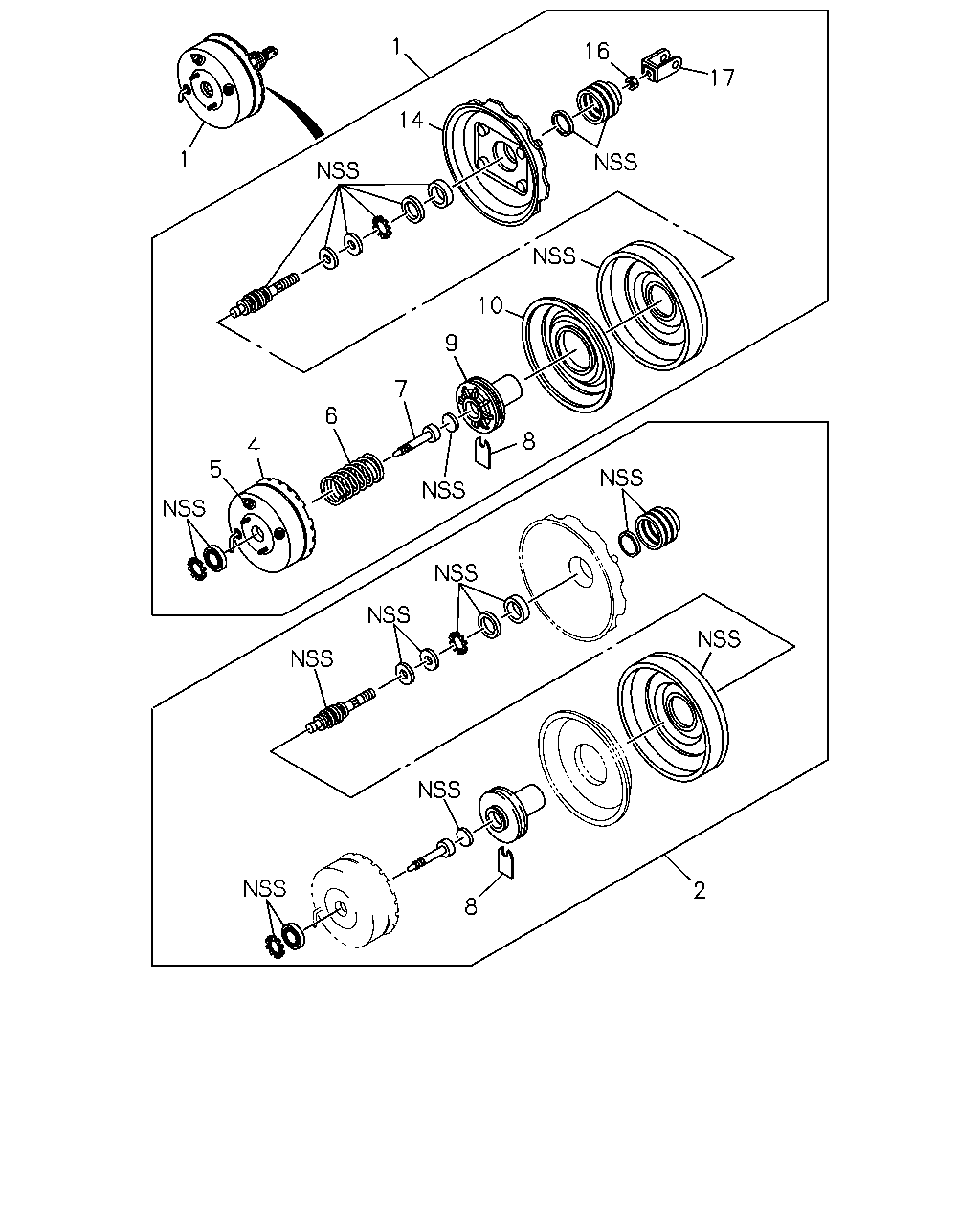

çizim 65970
1 16 17 14 1 10 9 7 6 8 4 5 2 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 MASTER VAC ASM; BRK
4ZC1 ENG(LR9) 		8-94341-711-2 01 1 9307- ●
1 MASTER VAC ASM; BRK
4ZC1 ENG(LR9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94341-711-2 01 1 9307- ●
1 MASTER VAC ASM; BRK
4FG1 ENG(RLL) 		8-94341-710-2 01 1 9307- ● ●
1 MASTER VAC ASM; BRK
SOUTH AFRICA EQUIPMENT(SW2) 		8-94341-713-2 01 1 9307- ●
2 REPAIR KIT; M/VAC 8-94133-072-2 01 1 9307- ●
2 REPAIR KIT; M/VAC
4ZC1 ENG(LR9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94133-072-2 01 1 9307- ●
2 REPAIR KIT; M/VAC
4FG1 ENG(RLL) 		8-94133-072-2 01 1 9307- ●
2 REPAIR KIT; M/VAC
SOUTH AFRICA EQUIPMENT(SW2) 		8-94133-071-2 01 1 9307- ●
4 SHELL; FRT,M/VAC
4ZC1 ENG(LR9) 		8-94133-079-0 01 1 9307- ●
4 SHELL; FRT,M/VAC
4ZC1 ENG(LR9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94133-079-0 01 1 9307- ●
4 SHELL; FRT,M/VAC
4FG1 ENG(RLL) 		8-94418-897-0 01 1 9307- ● ●
4 SHELL; FRT,M/VAC
SOUTH AFRICA EQUIPMENT(SW2) 		8-94133-078-0 01 1 9307- ●
5 SWITCH; VAC,M/VAC
4FG1 ENG(RLL) 		8-94460-517-0 01 1 9307- ● ●
6 SPRING; M/VAC
9" 		8-94123-118-0 01 1 9307- ● ●
7 ROD; PUSH,M/VAC
9" 		8-94122-139-0 01 1 9307- ● ●
8 KEY; STOPPER,M/VAC
SOUTH AFRICA EQUIPMENT(SW2) 		8-94123-120-0 01 1 9307- ●
9 BODY; VALVE,M/VAC
9" 		8-94122-143-1 01 1 9307- ● ●
10 PLATE; DIAPH,M/VAC 8-94122-142-1 01 1 9307- ●
10 PLATE; DIAPH,M/VAC
4ZC1 ENG(LR9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94122-142-1 01 1 9307- ●
10 PLATE; DIAPH,M/VAC
4FG1 ENG(RLL) 		8-94122-142-1 01 1 9307- ●
10 PLATE; DIAPH,M/VAC
SOUTH AFRICA EQUIPMENT(SW2) 9" 		8-94124-129-1 01 1 9307- ●
14 SHELL; RR,M/VAC 8-94361-897-0 01 1 9307- ●
14 SHELL; RR,M/VAC
4ZC1 ENG(LR9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-94361-897-0 01 1 9307- ●
14 SHELL; RR,M/VAC
4FG1 ENG(RLL) 		8-94361-897-0 01 1 9307- ●
14 SHELL; RR,M/VAC
SOUTH AFRICA EQUIPMENT(SW2) 		8-94361-898-0 01 1 9307- ●
16 NUT; VLV ROD,M/VAC
M10 FLANGE 		0-91150-110-0 01 1 9307-9307 ● ●
16 NUT; VLV ROD,M/VAC
'930712- M10 FLANGE 		8-97096-430-0 01 1 9307- ● ●
17 CLEVIS; YOKE,M/VAC 8-94341-787-0 01 1 9307- ● ●
