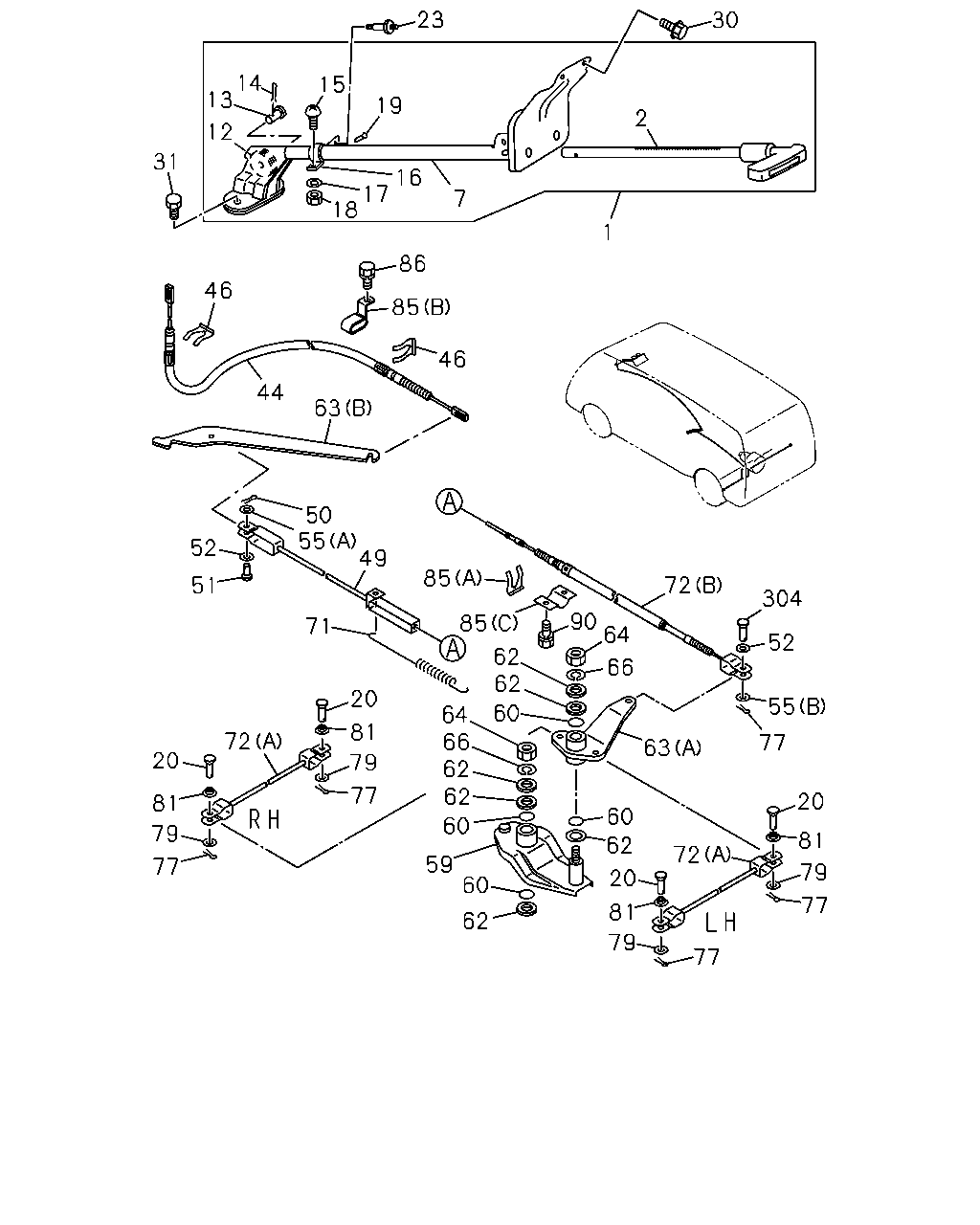

1 |
STEM ASM; PARKING BRK
|
8-94382-781-1 |
01 |
1 |
9307- |
| |
2 |
PLUNGER; PARKING BRK
|
8-94382-784-0 |
01 |
1 |
9307- |
| |
7 |
TUBE; GUIDE
|
8-94382-782-1 |
01 |
1 |
9307- |
| |
12 |
ROLLER; STEM
|
9-46125-071-0 |
01 |
1 |
9307- |
| |
13 |
PIN; ROLLER
|
8-94171-208-0 |
01 |
1 |
9307- |
| |
14 |
PIN; COTTER
L=20
|
9-08112-520-0 |
01 |
1 |
9307- |
| |
15 |
SCREW; STEM
M5X12
|
9-93490-512-0 |
01 |
1 |
9307- |
| |
16 |
BRACKET; PARKING BRK
|
5-46129-021-0 |
01 |
1 |
9307- |
| |
17 |
WASHER; LK,STEM
ID=5.1
|
9-09150-505-0 |
01 |
1 |
9307- |
| |
18 |
NUT; STEM
M5
|
9-99110-405-0 |
01 |
1 |
9307- |
| |
19 |
PIN; GUIDE
|
5-46129-009-0 |
01 |
1 |
9307- |
| |
20 |
PIN; PARKING BRK
OD=8 L=20
|
9-08233-820-0 |
04 |
1 |
9307- |
| |
23 |
SWITCH; PARKING BRK
12V
|
9-82750-367-0 |
01 |
1 |
9307- |
| |
30 |
BOLT; STEM TO FACIA
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
02 |
1 |
9307- |
| |
31 |
BOLT; STEM TO FLOOR
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9307-9412 |
| |
31 |
BOLT; STEM TO FLOOR
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9501- |
| |
44 |
CABLE; PARKING BRK,FRT
L=2637
|
8-94385-300-1 |
01 |
1 |
9307- |
| |
46 |
CLIP; FRT CABLE TO FLOOR
REAR
|
5-09709-039-0 |
01 |
1 |
9307- |
| |
46 |
CLIP; FRT CABLE TO FLOOR
FRONT
|
8-94171-059-0 |
01 |
1 |
9307- |
| |
49 |
CABLE; PARKING BRK
STANDARD(WFB5VC)
L=316
|
8-94322-465-1 |
01 |
1 |
9307- |
| |
49 |
CABLE; PARKING BRK
LONG(WFB5VF)
L=661
|
8-94234-653-3 |
01 |
1 |
9307- |
| |
50 |
PIN; CABLE TO LEVER
L=20
|
9-08112-520-0 |
01 |
1 |
9307- |
| |
51 |
PIN; JOINT,RELAY LEVER
|
8-94240-645-0 |
01 |
1 |
9307- |
| |
52 |
WASHER; CURVED RELAY LEVER
ID=8.5 T=0.3
|
5-09509-001-0 |
02 |
1 |
9307-9406 |
| |
52 |
WASHER; CURVED RELAY LEVER
ID=8.5 T=0.3
|
5-09509-001-0 |
01 |
1 |
9407- |
| |
55 |
WASHER; PL,PARK BRK CABLE
(B)
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9307- |
| |
55 |
WASHER; PL,PARK BRK CABLE
(A)
ID=8.4
|
9-09164-508-0 |
01 |
1 |
9307- |
| |
59 |
BRACKET; RELAY LEVER
|
8-94157-459-0 |
01 |
1 |
9307- |
| |
60 |
GASKET; PARKING BRK
|
9-09561-214-0 |
04 |
1 |
9307- |
| |
62 |
WASHER; PL,PARKING BRK
ID=10.5 OD=26
|
9-09160-710-0 |
02 |
1 |
9307- |
| |
62 |
WASHER; PL,PARKING BRK
ID=14.3 OD=24
|
9-09651-105-0 |
04 |
1 |
9307- |
| |
63 |
LEVER; RELAY,HAND BRK
(A)
|
8-94233-605-0 |
01 |
1 |
9307- |
| |
63 |
LEVER; RELAY,HAND BRK
(B)
|
8-94418-488-1 |
01 |
1 |
9307- |
| |
64 |
NUT; PARKING BRK
M10
|
9-09110-510-0 |
02 |
1 |
9307-9406 |
| |
64 |
NUT; PARKING BRK
M10
|
9-09110-410-0 |
02 |
1 |
9407- |
| |
66 |
WASHER; LK,RELAY LEVER
ID=10.2
|
9-09150-510-0 |
02 |
1 |
9307- |
| |
71 |
SPRING; RETURN,PARKING BRK TO BODY
|
8-94233-602-2 |
01 |
1 |
9307- |
| |
72 |
CABLE; PARKING BRK
(B)
L=917
|
8-94341-982-1 |
01 |
1 |
9307- |
| |
72 |
CABLE; PARKING BRK
(A)
L=312
|
8-94169-878-0 |
01 |
1 |
9307- |
| |
72 |
CABLE; PARKING BRK
(A)
L=907
|
8-94169-877-0 |
01 |
1 |
9307- |
| |
77 |
PIN; SPLIT,PARKING BRK
OD=1.8 L=15
|
9-08112-015-0 |
05 |
1 |
9307- |
| |
79 |
WASHER; PL,PARKING BRK
ID=8.4
|
9-09160-508-0 |
04 |
1 |
9307- |
| |
81 |
WASHER; WAVE,RELAY TO LEVER
ID=8.5 T=0.3
|
5-09509-001-0 |
04 |
1 |
9307- |
| |
85 |
CLIP; BRKT
(A)
|
5-09709-039-0 |
01 |
1 |
9307- |
| |
85 |
CLIP; BRKT
(B)
|
8-94235-791-0 |
01 |
1 |
9307- |
| |
85 |
CLIP; BRKT
(C)
|
9-09716-047-0 |
01 |
1 |
9307- |
| |
86 |
BOLT
M6X16 W/LK WASHER
|
0-50040-616-0 |
01 |
1 |
9307- |
| |
90 |
BOLT; CABLE TO BRKT
M6X14 W/LK WASHER
|
0-50040-614-0 |
02 |
1 |
9307- |
| |
304 |
PIN; PARK BRK CABLE
OD=8 L=20
|
9-08233-820-0 |
01 |
1 |
9307- |
