3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

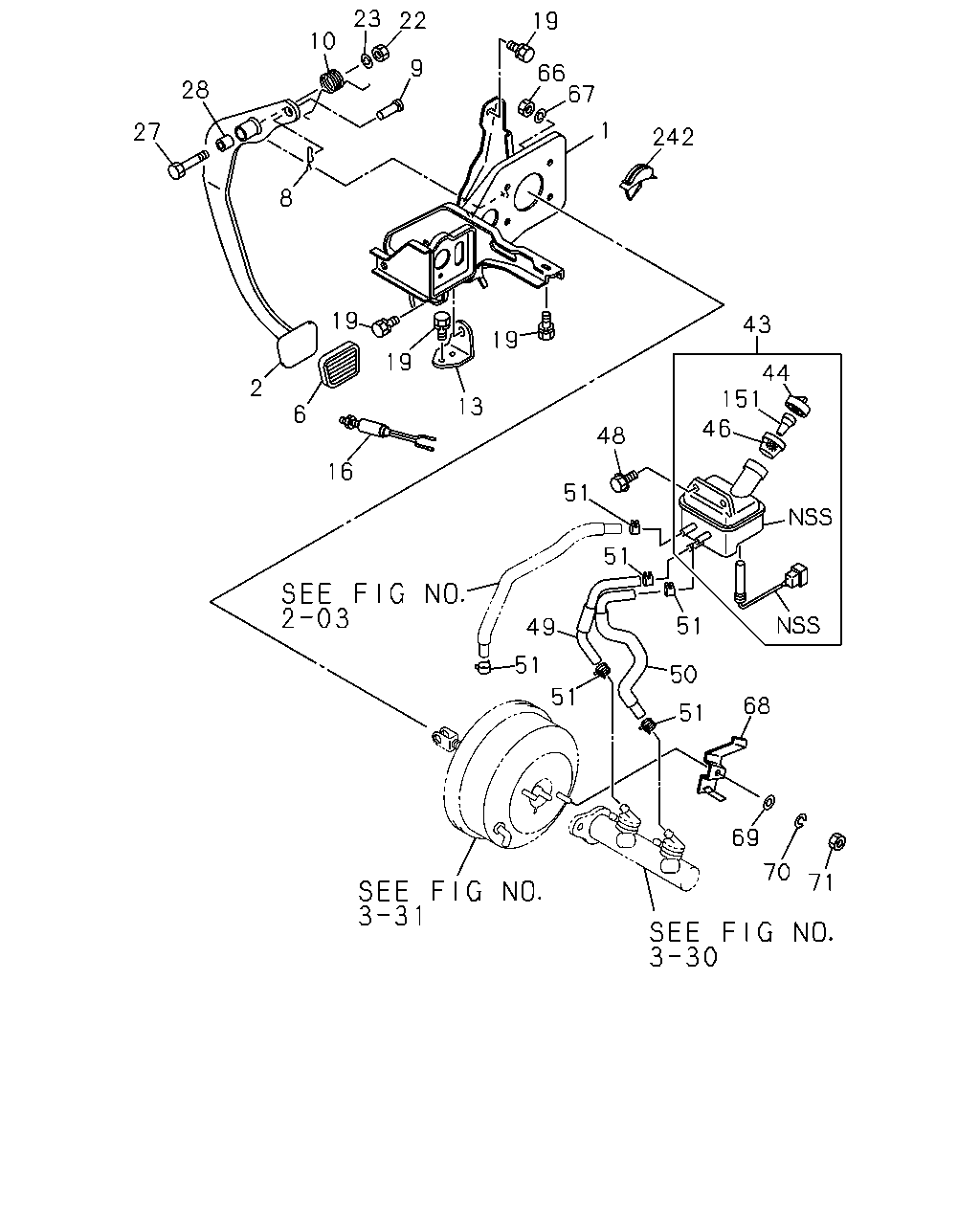

3-10 — BRAKE PEDAL AND CONTROL
(#37362) — 35 parça
Tümü
A - WFB5VC
B - WFB5VF
23
22
19
10
9
66
67
28
1
27
242
8
19
43
19
19
44
151
46
2
13
6
48
16
51
51
51
49
51
51
50
68
51
69
70
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
8-94366-757-0
01
1
9307-
●
●
2
PEDAL; BRK
8-94366-761-0
01
1
9307-
●
●
6
COVER; BRK PEDAL
8-94238-618-1
01
1
9307-
●
●
8
PIN; SPLIT,JAW JOINT
8-94279-912-0
01
1
9307-
●
●
9
PIN; JAW JOINT
8-94410-276-0
01
1
9307-
●
●
10
SPRING; RETURN,BRK PEDAL
8-94367-105-0
01
1
9307-
●
●
13
BRACKET; BRK PEDAL
8-94226-603-0
01
1
9307-
●
●
16
SWITCH; STOP LAMP
8-94362-524-0
01
1
9307-
●
●
19
BOLT; BRKT
M8X16 W/LK WASHER
0-50040-816-0
02
1
9307-
●
●
19
BOLT; BRKT
M8X20 W/LK&PL WASHER
0-50140-820-0
03
1
9307-
●
●
22
NUT; SHAFT
M12
9-99110-412-0
01
1
9307-
●
●
23
WASHER; LK,SHAFT
ID=12.2
9-09150-612-0
01
1
9307-
●
●
27
SHAFT; BRK PEDAL
M12X72
8-94366-844-0
01
1
9307-
●
●
28
SLEEVE; BRK PEDAL
ID=12 OD=16 L=49.7
8-94226-608-1
01
1
9307-
●
●
43
TANK ASM; OIL
8-94171-371-2
01
1
9307-
●
43
TANK ASM; OIL
EXC. SOUTH AFRICA EQUIPMENT(SW2)
8-94171-371-2
01
1
9307-
●
43
TANK ASM; OIL
SOUTH AFRICA EQUIPMENT(SW2)
8-94157-361-3
01
1
9307-
●
44
CAP; OIL TANK
8-94412-784-0
01
1
9307-
●
●
46
FILTER; RESERVOIR,BRK
8-94412-785-0
01
1
9307-
●
●
48
BOLT; OIL TANK TO BRKT
M6X16 W/LK&PL WASHER
8-94279-041-0
02
1
9307-
●
●
49
HOSE; OIL TANK TO BRK M/CYL
8-94157-362-0
01
1
9307-
●
●
50
HOSE; BRK OIL TANK TO M/CYL,FRT
8-94157-363-0
01
1
9307-
●
●
51
CLIP; HOSE,OIL TANK
5-09707-052-0
03
1
9307-
●
●
51
CLIP; HOSE,OIL TANK
5-09707-052-0
03
1
9307-
●
●
66
NUT; SERVO TO BRKT
M8
9-09110-508-0
04
1
9307-9406
●
●
66
NUT; SERVO TO BRKT
M8
9-09110-408-0
04
1
9407-
●
●
67
WASHER; LK,M/CYL TO M/VAC
ID=8.2
9-09150-508-0
04
1
9307-
●
●
68
BRACKET; SERVO TO DASH PANEL
8-94124-482-0
01
1
9307-
●
●
69
WASHER; PL,M/CYL TO BRKT
ID=8.4 OD=18
9-09160-608-0
01
1
9307-
●
●
70
WASHER; LK,BRK M/CYL
ID=8.2
9-09150-508-0
02
1
9307-9411
●
●
71
NUT; BRK M/CYL
M8
9-09110-508-0
02
1
9307-9406
●
●
71
NUT; BRK M/CYL
M8
9-09110-408-0
02
1
9407-9411
●
●
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
9412-
●
●
151
CAP; INNER,OIL RESERVOIR
8-94412-786-0
01
1
9307-
●
●
242
CLIP; SPD CABLE
ID=7
5-09707-053-0
01
1
9307-
●
●
