Sayfa 2-53 - Isuzu EPC

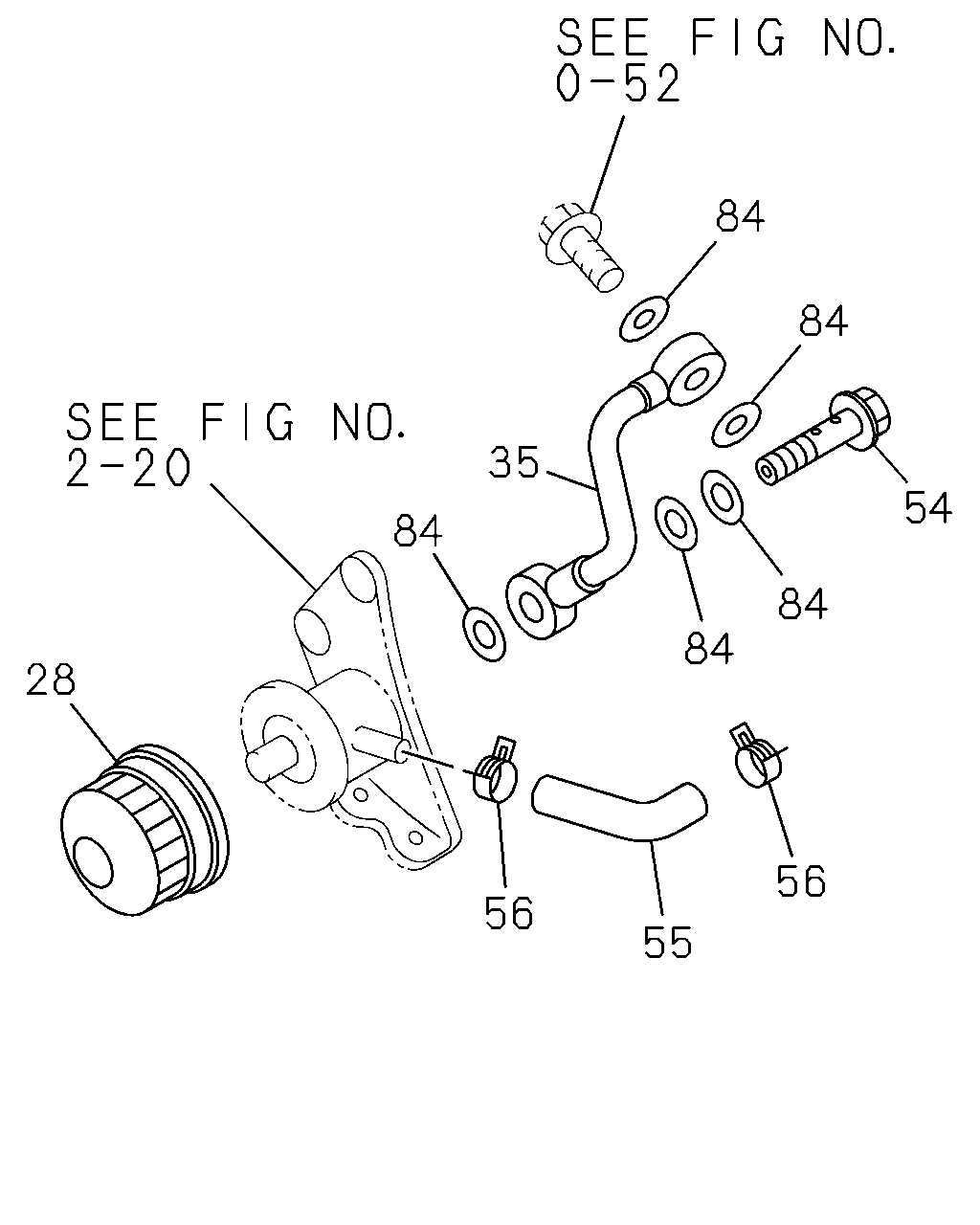

2-53 — TRANSMISSION OIL COOLER SYSTEM (#37359) — 6 parça

84 84 35 54 84 84 84 28 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	CARTRIDGE; OIL FILTER LONG(WFB5VF) 4FG1 ENG(RLL) TURBOCHARGER(K51) FOR ENGINE OIL	8-94360-419-1	01	1	9407-
35	PIPE; OIL,OIL COOLER TO FILTER LONG(WFB5VF) 4FG1 ENG(RLL) TURBOCHARGER(K51)	8-94315-449-1	01	1	9407-
54	BOLT; JOINT,OIL PIPE LONG(WFB5VF) 4FG1 ENG(RLL) TURBOCHARGER(K51) M8X32	8-94460-648-0	01	1	9407-
55	HOSE; RUBBER,OIL DRAIN LONG(WFB5VF) 4FG1 ENG(RLL) TURBOCHARGER(K51)	8-94459-153-0	01	1	9407-
56	CLIP; DRAIN HOSE LONG(WFB5VF) 4FG1 ENG(RLL) TURBOCHARGER(K51) ID=14	5-09707-004-1	02	1	9407-
84	GASKET; OIL PIPE LONG(WFB5VF) 4FG1 ENG(RLL) TURBOCHARGER(K51) ID=8.2 OD=17	9-09572-008-0	05	1	9407-
