Isuzu WW
▶
SUV
▶
WFR
▶
50685 - WFR-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶

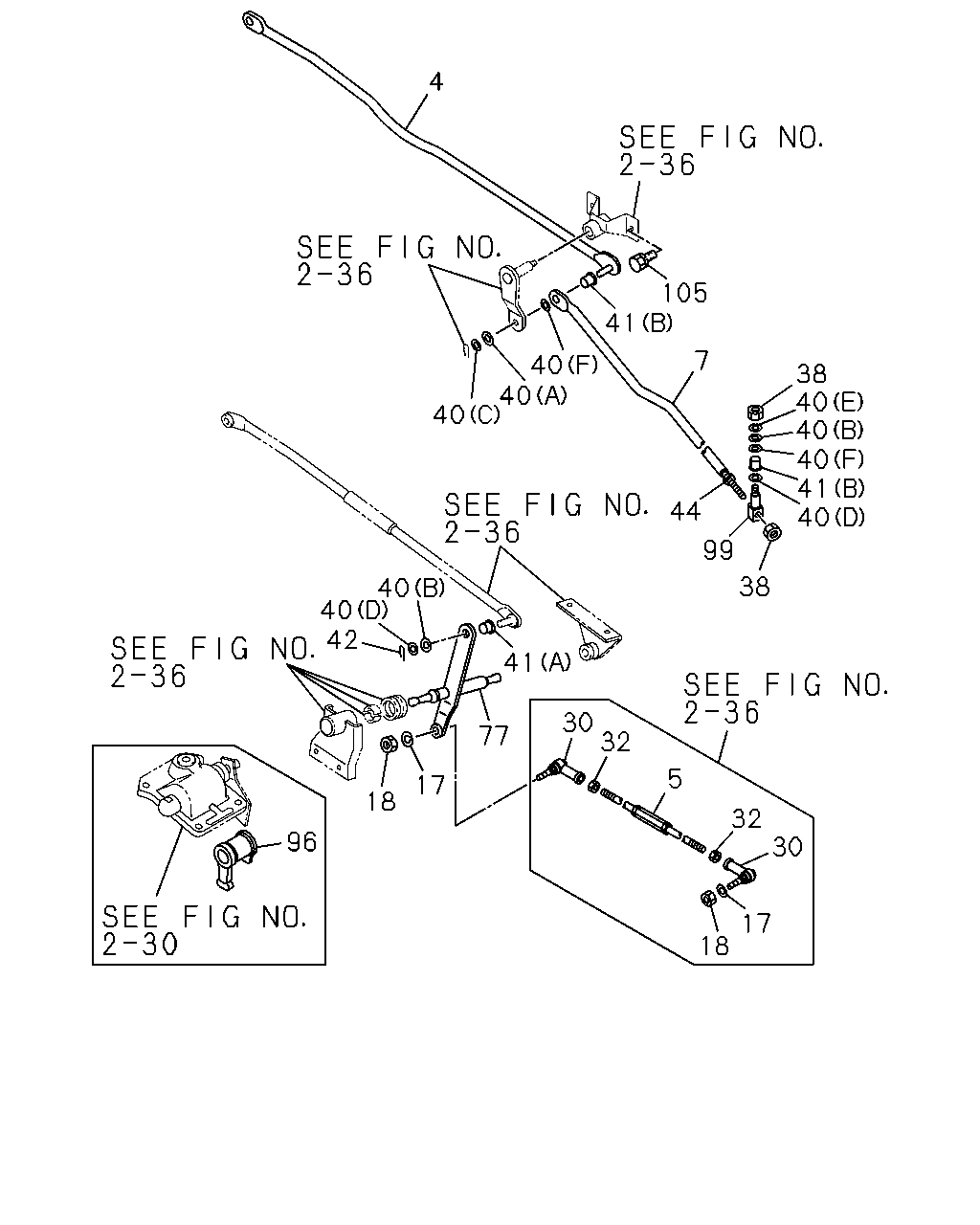

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#37358) — 31 parça
4
105
41
7
40
40
40
38
40
40
40
41
40
40
40
42
44
99
38
41
30
32
77
5
17
18
32
30
96
17
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
ROD; LINK,2ND SELECT
FLOOR REMOTE SHIFT<M11>
8-94318-349-0
01
1
9307-
4
ROD; LINK,2ND SELECT
EXC. FLOOR REMOTE SHIFT<M11>
8-94318-348-0
01
1
9307-
5
ROD; LINK,3RD SHIFT
4FG1 ENG(RLL)
8-94329-961-0
01
1
9307-
5
ROD; LINK,3RD SHIFT
4ZC1 ENG(LR9)
8-94419-601-0
01
1
9307-
7
ROD ASM; CONT,SELECT
8-94226-662-2
01
1
9307-
17
WASHER; LK,1ST LINK ROD
ID=8.2
9-09150-508-0
02
1
9307-
18
NUT; 1ST LINK ROD
M8
9-09110-508-0
02
1
9307-9406
18
NUT; 1ST LINK ROD
M8
9-09110-408-0
02
1
9407-
30
JOINT; BALL,RIGHT SCREW,LINK ROD
RH THREAD NIHON TOMUSON
8-94151-326-0
01
1
9307-
30
JOINT; BALL,RIGHT SCREW,LINK ROD
LH THREAD NIHON TOMUSON
8-94151-327-0
01
1
9307-
32
NUT; 3RD LINK ROD
M10 LH THREAD
8-94252-527-0
01
1
9307-
32
NUT; 3RD LINK ROD
M10 RH THREAD
8-94252-528-0
01
1
9307-
38
NUT; 3RD LINK ROD
M6
9-09110-506-0
01
1
9307-9406
38
NUT; 3RD LINK ROD
M6
9-09110-406-0
01
1
9407-
38
NUT; 3RD LINK ROD
M10
9-09111-510-0
01
1
9307-9406
38
NUT; 3RD LINK ROD
M10
9-09111-410-0
01
1
9407-
40
WASHER; RELAY LEVER
(A) ID=8.5
5-09509-001-0
01
1
9307-
40
WASHER; RELAY LEVER
(E) ID=6
9-09150-506-0
01
1
9307-
40
WASHER; RELAY LEVER
(C) ID=8
9-09160-508-0
01
1
9307-
40
WASHER; RELAY LEVER
(D) ID=8
9-09164-708-0
01
1
9307-
40
WASHER; RELAY LEVER
(B) ID=6
9-09164-806-0
01
1
9307-
40
WASHER; RELAY LEVER
(F) ID=8.5
9-09851-889-0
01
1
9307-
41
BUSHING; CONT ROD,RELAY LEVER
(A)
9-33659-476-0
01
1
9307-
41
BUSHING; CONT ROD,RELAY LEVER
(B)
9-33659-476-0
02
1
9307-
42
PIN; CONT ROD,LEVER
L=27.7
1-09747-005-0
01
1
9307-
44
NUT; LK,RIGHT SCREW,LINK ROD
M10
9-09111-510-0
01
1
9307-9406
44
NUT; LK,RIGHT SCREW,LINK ROD
M10
9-09111-410-0
01
1
9407-
77
LEVER; RELAY,2ND SELECT
8-94171-346-2
01
1
9307-
96
LEVER; SHIFT,INTERNAL
5-33521-042-2
01
1
9307-
99
BOSS; CONT ROD TO RELAY LEVER
9-33659-469-0
01
1
9307-
105
BOLT; BRKT,2ND RELAY LEVER
M8X20 W/LK WASHER
0-50040-820-0
02
1
9307-
