2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#37357) — 124 parça

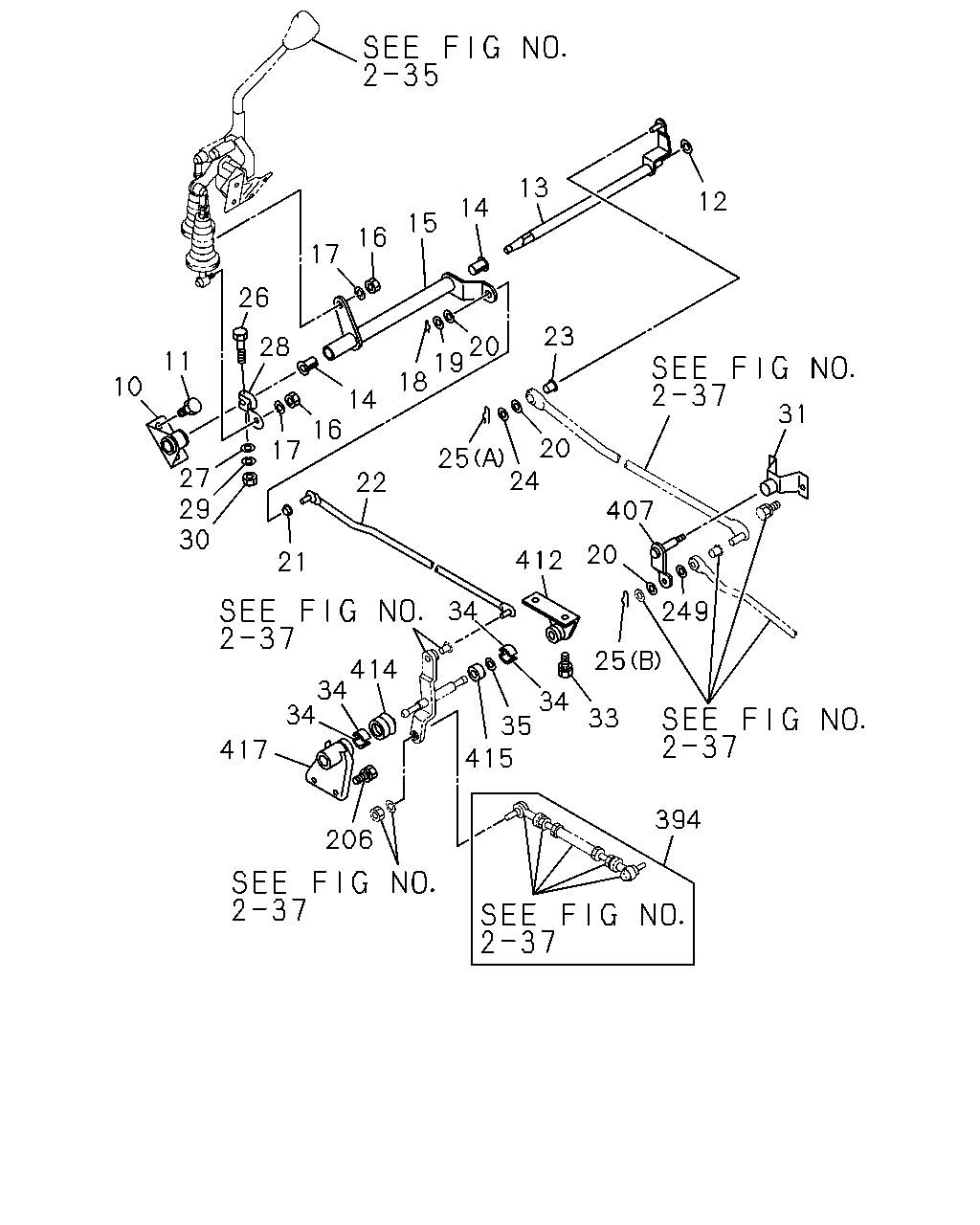

13 12 14 15 16 17 26 20 19 18 23 28 14 16 17 11 10 27 29 30 31 20 25 24 22 407 20 412 21 249 34 25 414 34 34 417 34 35 415 33 206 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BRACKET; SHIFT & SELECT FLOOR REMOTE SHIFT<M11>	8-94248-377-0	01	1	9307-
10	BRACKET; SHIFT & SELECT EXC. FLOOR REMOTE SHIFT<M11>	8-94154-001-0	01	1	9307-
11	BOLT; RELAY LEVER BRKT FLOOR REMOTE SHIFT<M11> M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-
11	BOLT; RELAY LEVER BRKT EXC. FLOOR REMOTE SHIFT<M11> M8X16 W/LK WASHER	0-50040-816-0	04	1	9307-
12	WASHER; LK,RELAY LEVER BRKT FLOOR REMOTE SHIFT<M11> ID=10.2	9-09150-510-0	01	1	9307-
13	LEVER; RELAY,1ST SELECT INNER FLOOR REMOTE SHIFT<M11>	8-94318-370-0	01	1	9307-
13	LEVER; RELAY,1ST SELECT INNER EXC. FLOOR REMOTE SHIFT<M11>	8-94226-648-2	01	1	9307-
14	BUSHING; RELAY LEVER,1ST FLOOR REMOTE SHIFT<M11>	8-94241-182-0	02	1	9307-
14	BUSHING; RELAY LEVER,1ST EXC. FLOOR REMOTE SHIFT<M11>	8-94241-182-0	04	1	9307-
15	LEVER; RELAY,SHIFT,1ST FLOOR REMOTE SHIFT<M11>	8-94248-374-1	01	1	9307-
16	NUT; RELAY LEVER FLOOR REMOTE SHIFT<M11> M8	9-09110-508-0	02	1	9307-9406
16	NUT; RELAY LEVER FLOOR REMOTE SHIFT<M11> M8	9-09110-408-0	02	1	9407-
16	NUT; RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> M8	9-09110-508-0	01	1	9307-9406
16	NUT; RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> M8	9-09110-408-0	01	1	9407-
17	WASHER; LK,SHIFT LEVER FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	02	1	9307-
17	WASHER; LK,SHIFT LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	01	1	9307-
18	PIN; SNAP,RELAY LEVER FLOOR REMOTE SHIFT<M11> L=27.7	8-94157-841-0	01	1	9307-
19	WASHER; PL,CONT ROD,RELAY LEVER ID=8.4	9-09164-508-0	01	1	9307-
20	WASHER; CURVED,CONT ROD,RELAY LEVER FLOOR REMOTE SHIFT<M11> ID=8.5 T=0.3	5-09509-001-0	02	1	9307-9406
20	WASHER; CURVED,CONT ROD,RELAY LEVER FLOOR REMOTE SHIFT<M11> ID=8.5 T=0.3	5-09509-001-0	01	1	9407-
20	WASHER; CURVED,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.5 T=0.3	5-09509-001-0	03	1	9307-
21	BUSHING; CONT ROD TO RELAY LEVER	9-33659-476-0	01	1	9307-
22	ROD; CONT,SHIFT FLOOR REMOTE SHIFT<M11>	8-94318-345-0	01	1	9307-
22	ROD; CONT,SHIFT EXC. FLOOR REMOTE SHIFT<M11>	8-94318-346-1	01	1	9307-
23	BUSHING; RUBBER,ROD TO RELAY LEVER FLOOR REMOTE SHIFT<M11>	9-33659-476-0	01	1	9307-
23	BUSHING; RUBBER,ROD TO RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11>	9-33659-476-0	02	1	9307-
24	WASHER; PL,CONT ROD,RELAY LEVER FLOOR REMOTE SHIFT<M11> ID=8.4	9-09160-508-0	01	1	9307-
24	WASHER; PL,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.4	9-09160-508-0	02	1	9307-
25	PIN; SNAP,CONT ROD,RELAY LEVER (B)	8-94157-841-0	01	1	9307-
25	PIN; SNAP,CONT ROD,RELAY LEVER FLOOR REMOTE SHIFT<M11> (A)	1-09747-005-0	01	1	9307-
25	PIN; SNAP,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> (A)	1-09747-005-0	02	1	9307-
26	BOLT; RELAY LEVER,1ST FLOOR REMOTE SHIFT<M11> M8X45	9-01065-845-0	01	1	9307-
26	BOLT; RELAY LEVER,1ST EXC. FLOOR REMOTE SHIFT<M11> M8X45	9-01065-845-0	02	1	9307-
27	WASHER; PL,RELAY LEVER,1ST FLOOR REMOTE SHIFT<M11>	8-94247-040-0	01	1	9307-
27	WASHER; PL,RELAY LEVER,1ST EXC. FLOOR REMOTE SHIFT<M11>	8-94247-040-0	02	1	9307-
28	LEVER; RELAY,1ST SELECT OUTER FLOOR REMOTE SHIFT<M11>	8-94248-376-0	01	1	9307-
28	LEVER; RELAY,1ST SELECT OUTER EXC. FLOOR REMOTE SHIFT<M11>	8-94226-636-5	01	1	9307-
29	WASHER; LK,RELAY LEVER FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-608-0	01	1	9307-
29	WASHER; LK,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-608-0	02	1	9307-
30	NUT; RELAY LEVER,1ST FLOOR REMOTE SHIFT<M11> M8	9-09110-508-0	01	1	9307-
30	NUT; RELAY LEVER,1ST EXC. FLOOR REMOTE SHIFT<M11> M8	9-09110-508-0	02	1	9307-
31	BRACKET; 2ND RELAY LEVER	8-94226-660-1	01	1	9307-
33	BOLT; BRKT,3RD RELAY LEVER M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-
34	SEAT; BALL,RELAY LEVER	5-33659-032-0	04	1	9307-
35	RING; SNAP,RELAY LEVER OD=21.5	9-09180-120-0	01	1	9307-
206	BOLT; BRKT,3RD RELAY LEVER,ENG M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-
249	WASHER; RUBBER,CONT ROD TO LEVER ID=8.5 T=1.5	9-09851-889-0	01	1	9307-
394	ROD ASM; GEAR CONT 4FG1 ENG(RLL)	8-94329-957-0	01	1	9307-
394	ROD ASM; GEAR CONT 4ZC1 ENG(LR9)	8-94430-293-0	01	1	9307-
407	LEVER; RELAY,SHIFT	8-94226-661-1	01	1	9307-
412	BRACKET; RELAY LEVER,FRAME SIDE	8-94248-871-0	01	1	9307-
414	BOOT; RELAY LEVER,FRAME SIDE	5-33659-031-0	01	1	9307-
415	BOOT; RELAY LEVER,TRANS SIDE	5-33659-030-0	01	1	9307-
417	BRACKET; RELAY LEVER,TRANS SIDE 4FG1 ENG(RLL)	8-94226-654-4	01	1	9307-
417	BRACKET; RELAY LEVER,TRANS SIDE 4ZC1 ENG(LR9)	8-94226-653-4	01	1	9307-

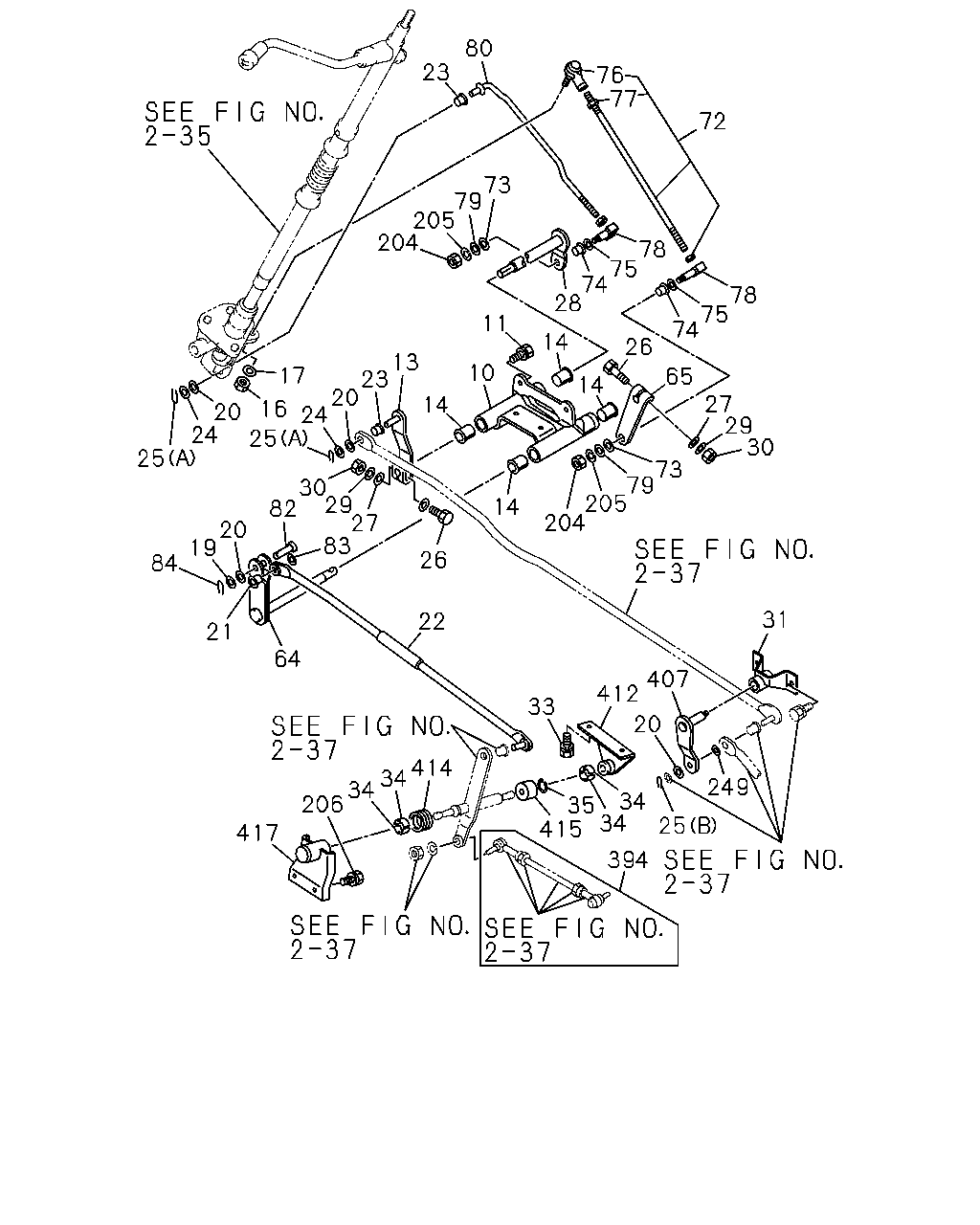

80 23 76 77 72 73 79 205 204 78 75 74 28 78 75 74 26 65 27 29 30 11 13 17 23 20 20 16 24 24 25 25 14 10 14 14 14 73 79 205 204 30 82 29 27 83 20 19 84 26 31 22 21 407 412 20 64 33 249 414 34 34 206 35 34 415 34 25 417 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BRACKET; SHIFT & SELECT FLOOR REMOTE SHIFT<M11>	8-94248-377-0	01	1	9307-
10	BRACKET; SHIFT & SELECT EXC. FLOOR REMOTE SHIFT<M11>	8-94154-001-0	01	1	9307-
11	BOLT; RELAY LEVER BRKT FLOOR REMOTE SHIFT<M11> M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-
11	BOLT; RELAY LEVER BRKT EXC. FLOOR REMOTE SHIFT<M11> M8X16 W/LK WASHER	0-50040-816-0	04	1	9307-
13	LEVER; RELAY,1ST SELECT INNER FLOOR REMOTE SHIFT<M11>	8-94318-370-0	01	1	9307-
13	LEVER; RELAY,1ST SELECT INNER EXC. FLOOR REMOTE SHIFT<M11>	8-94226-648-2	01	1	9307-
14	BUSHING; RELAY LEVER,1ST FLOOR REMOTE SHIFT<M11>	8-94241-182-0	02	1	9307-
14	BUSHING; RELAY LEVER,1ST EXC. FLOOR REMOTE SHIFT<M11>	8-94241-182-0	04	1	9307-
16	NUT; RELAY LEVER FLOOR REMOTE SHIFT<M11> M8	9-09110-508-0	02	1	9307-9406
16	NUT; RELAY LEVER FLOOR REMOTE SHIFT<M11> M8	9-09110-408-0	02	1	9407-
16	NUT; RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> M8	9-09110-508-0	01	1	9307-9406
16	NUT; RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> M8	9-09110-408-0	01	1	9407-
17	WASHER; LK,SHIFT LEVER FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	02	1	9307-
17	WASHER; LK,SHIFT LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	01	1	9307-
19	WASHER; PL,CONT ROD,RELAY LEVER ID=8.4	9-09164-508-0	01	1	9307-
20	WASHER; CURVED,CONT ROD,RELAY LEVER FLOOR REMOTE SHIFT<M11> ID=8.5 T=0.3	5-09509-001-0	02	1	9307-9406
20	WASHER; CURVED,CONT ROD,RELAY LEVER FLOOR REMOTE SHIFT<M11> ID=8.5 T=0.3	5-09509-001-0	01	1	9407-
20	WASHER; CURVED,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.5 T=0.3	5-09509-001-0	03	1	9307-
21	BUSHING; CONT ROD TO RELAY LEVER	9-33659-476-0	01	1	9307-
22	ROD; CONT,SHIFT FLOOR REMOTE SHIFT<M11>	8-94318-345-0	01	1	9307-
22	ROD; CONT,SHIFT EXC. FLOOR REMOTE SHIFT<M11>	8-94318-346-1	01	1	9307-
23	BUSHING; RUBBER,ROD TO RELAY LEVER FLOOR REMOTE SHIFT<M11>	9-33659-476-0	01	1	9307-
23	BUSHING; RUBBER,ROD TO RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11>	9-33659-476-0	02	1	9307-
24	WASHER; PL,CONT ROD,RELAY LEVER FLOOR REMOTE SHIFT<M11> ID=8.4	9-09160-508-0	01	1	9307-
24	WASHER; PL,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.4	9-09160-508-0	02	1	9307-
25	PIN; SNAP,CONT ROD,RELAY LEVER (B)	8-94157-841-0	01	1	9307-
25	PIN; SNAP,CONT ROD,RELAY LEVER FLOOR REMOTE SHIFT<M11> (A)	1-09747-005-0	01	1	9307-
25	PIN; SNAP,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> (A)	1-09747-005-0	02	1	9307-
26	BOLT; RELAY LEVER,1ST FLOOR REMOTE SHIFT<M11> M8X45	9-01065-845-0	01	1	9307-
26	BOLT; RELAY LEVER,1ST EXC. FLOOR REMOTE SHIFT<M11> M8X45	9-01065-845-0	02	1	9307-
27	WASHER; PL,RELAY LEVER,1ST FLOOR REMOTE SHIFT<M11>	8-94247-040-0	01	1	9307-
27	WASHER; PL,RELAY LEVER,1ST EXC. FLOOR REMOTE SHIFT<M11>	8-94247-040-0	02	1	9307-
28	LEVER; RELAY,1ST SELECT OUTER FLOOR REMOTE SHIFT<M11>	8-94248-376-0	01	1	9307-
28	LEVER; RELAY,1ST SELECT OUTER EXC. FLOOR REMOTE SHIFT<M11>	8-94226-636-5	01	1	9307-
29	WASHER; LK,RELAY LEVER FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-608-0	01	1	9307-
29	WASHER; LK,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-608-0	02	1	9307-
30	NUT; RELAY LEVER,1ST FLOOR REMOTE SHIFT<M11> M8	9-09110-508-0	01	1	9307-
30	NUT; RELAY LEVER,1ST EXC. FLOOR REMOTE SHIFT<M11> M8	9-09110-508-0	02	1	9307-
31	BRACKET; 2ND RELAY LEVER	8-94226-660-1	01	1	9307-
33	BOLT; BRKT,3RD RELAY LEVER M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-
34	SEAT; BALL,RELAY LEVER	5-33659-032-0	04	1	9307-
35	RING; SNAP,RELAY LEVER OD=21.5	9-09180-120-0	01	1	9307-
64	LEVER; RELAY,1ST SHIFT INNER EXC. FLOOR REMOTE SHIFT<M11>	8-94226-647-4	01	1	9307-
65	LEVER; RELAY,1ST SHIFT OUTER EXC. FLOOR REMOTE SHIFT<M11>	8-94226-634-3	01	1	9307-
72	ROD ASM; CONT SHIFT EXC. FLOOR REMOTE SHIFT<M11>	8-94226-641-4	01	1	9307-
73	WASHER; CONT ROD TO RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.5 T=1.5	9-09851-889-0	02	1	9307-
74	BUSHING; CONT ROD TO RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11>	9-33659-476-0	02	1	9307-
75	WASHER; PL,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.4 OD=22	9-09164-708-0	02	1	9307-
76	JOINT ASM; BALL,1ST SHIFT ROD EXC. FLOOR REMOTE SHIFT<M11>	5-09760-018-0	01	1	9307-
77	NUT; LK,BALL JOINT,CONT ROD EXC. FLOOR REMOTE SHIFT<M11>	9-09112-308-0	01	1	9307-
78	BOSS; CONT ROD TO RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11>	9-33659-469-0	02	1	9307-
79	WASHER; PL,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=6.4 OD=22	9-09164-806-0	02	1	9307-
80	ROD; LINK,SELECT,1ST EXC. FLOOR REMOTE SHIFT<M11>	8-94318-347-0	01	1	9307-
82	PIN; CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11>	9-09876-059-1	01	1	9307-
83	WASHER; CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=8.5 T=1.5	9-09851-889-0	01	1	9307-
84	PIN; SPLIT,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> OD=1.8 L=15	9-08112-015-0	01	1	9307-
204	NUT; CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> M6	9-09110-506-0	02	1	9307-9406
204	NUT; CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> M6	9-09110-406-0	02	1	9407-
205	WASHER; LK,CONT ROD,RELAY LEVER EXC. FLOOR REMOTE SHIFT<M11> ID=6.1	9-09150-506-0	02	1	9307-
206	BOLT; BRKT,3RD RELAY LEVER,ENG M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-
249	WASHER; RUBBER,CONT ROD TO LEVER ID=8.5 T=1.5	9-09851-889-0	01	1	9307-
394	ROD ASM; GEAR CONT 4FG1 ENG(RLL)	8-94329-957-0	01	1	9307-
394	ROD ASM; GEAR CONT 4ZC1 ENG(LR9)	8-94430-293-0	01	1	9307-
407	LEVER; RELAY,SHIFT	8-94226-661-1	01	1	9307-
412	BRACKET; RELAY LEVER,FRAME SIDE	8-94248-871-0	01	1	9307-
414	BOOT; RELAY LEVER,FRAME SIDE	5-33659-031-0	01	1	9307-
415	BOOT; RELAY LEVER,TRANS SIDE	5-33659-030-0	01	1	9307-
417	BRACKET; RELAY LEVER,TRANS SIDE 4FG1 ENG(RLL)	8-94226-654-4	01	1	9307-
417	BRACKET; RELAY LEVER,TRANS SIDE 4ZC1 ENG(LR9)	8-94226-653-4	01	1	9307-
