2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#37356) — 64 parça

147 75 146 8 148 149 150 68 151 79 152 153 154 88 155 89 85 85 86 103 124 155 164 156 103 155 157 158 63 160 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-94248-369-5	01	1	9307-
8	LEVER; CHANGE EXC. FLOOR REMOTE SHIFT<M11>	8-94436-263-1	01	1	9307-
63	LEVER; RELAY,SELECT EXC. FLOOR REMOTE SHIFT<M11>	8-94248-382-3	01	1	9307-
68	SHAFT; TRANS CONT,OUTER EXC. FLOOR REMOTE SHIFT<M11>	8-94411-562-2	01	1	9307-
75	SPRING; RETURN,3RD,4TH EXC. FLOOR REMOTE SHIFT<M11>	8-94233-527-1	01	1	9307-
79	SPRING; RETURN,REV EXC. FLOOR REMOTE SHIFT<M11>	5-09583-125-1	01	1	9307-
85	BUSHING; LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> (A)	5-33657-070-0	02	1	9307-
85	BUSHING; LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> (B)	9-33657-091-0	01	1	9307-
86	SEAL; LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11>	5-33619-029-1	01	1	9307-
88	BOLT; LWR SUPPORT BRKT EXC. FLOOR REMOTE SHIFT<M11> M8X14	0-20800-814-0	03	1	9307-
89	WASHER; PL,LWR SUPPORT BRKT EXC. FLOOR REMOTE SHIFT<M11> ID=8.4	9-09160-508-0	03	1	9307-
103	BUSHING; RELAY LEVER	8-94238-596-0	02	1	9307-
124	WASHER; PL,RELAY LEVER ID=8.4 OD=22	9-09160-708-0	01	1	9307-
146	PIN; HAND LEVER TO PIVOT EXC. FLOOR REMOTE SHIFT<M11>	5-09744-022-0	01	1	9307-
147	SHAFT; GEAR CONT,SUPPORT BRKT EXC. FLOOR REMOTE SHIFT<M11>	8-94411-563-0	01	1	9307-
148	CAP; DETENT SPR,CONT LEVER EXC. FLOOR REMOTE SHIFT<M11>	8-94424-414-1	01	1	9307-
149	SPRING; DETENT,CONT LEVER EXC. FLOOR REMOTE SHIFT<M11>	8-94235-861-0	01	1	9307-
150	BALL; DETENT,CONT LEVER EXC. FLOOR REMOTE SHIFT<M11>	9-00097-509-0	01	1	9307-
151	RING; SNAP,HAND LEVER EXC. FLOOR REMOTE SHIFT<M11>	5-09588-016-0	01	1	9307-
152	RETAINER; REV SPRING EXC. FLOOR REMOTE SHIFT<M11>	5-33659-049-0	02	1	9307-
153	BOOT; CONT SHAFT,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11>	5-33614-007-1	01	1	9307-
154	RING; SNAP,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> OD=27.9	9-09180-126-0	01	1	9307-
155	WASHER; LK,LWR SUPPORT FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	01	1	9307-
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	03	1	9307-9406
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	02	1	9407-
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	03	1	9407-
156	LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11>	8-94248-370-0	01	1	9307-
156	LEVER; RELAY,SELECT EXC. FLOOR REMOTE SHIFT<M11>	8-94248-385-0	01	1	9307-
157	PIN; OPERATING,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11>	5-33659-046-1	01	1	9307-
158	BRACKET; LWR SUPPORT,CONT ROD EXC. FLOOR REMOTE SHIFT<M11>	8-94248-384-2	01	1	9307-
159	SCREW; LOCKING,SHIFT LEVER EXC. FLOOR REMOTE SHIFT<M11>	8-94240-669-0	01	1	9307-
160	WIRE; LOCKING SCREW,SHIFT LEVER EXC. FLOOR REMOTE SHIFT<M11>	9-08351-240-0	01	1	9307-
164	NUT; LWR SUPPORT M8	9-09110-508-0	02	1	9307-9406
164	NUT; LWR SUPPORT M8	9-09110-408-0	02	1	9407-

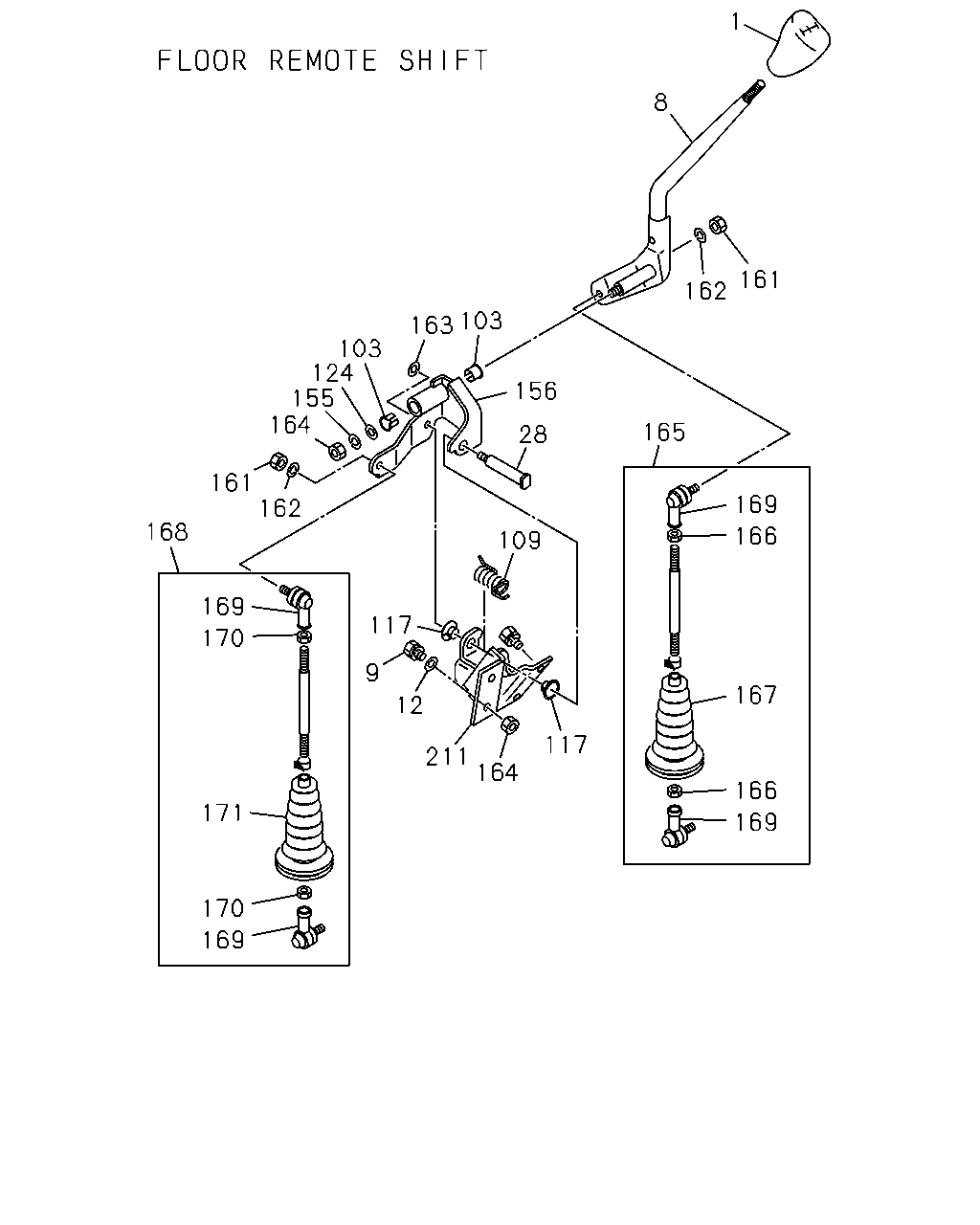

1 8 161 162 163 103 103 124 155 164 156 165 28 161 162 169 166 109 168 169 170 117 9 167 12 117 211 164 166 169 171 170 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-94108-652-0	01	1	9307-
8	LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-94248-369-5	01	1	9307-
8	LEVER; CHANGE EXC. FLOOR REMOTE SHIFT<M11>	8-94436-263-1	01	1	9307-
9	BOLT; CHANGE LEVER FLOOR REMOTE SHIFT<M11> M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9307-
12	WASHER; PL,CHANGE LEVER FLOOR REMOTE SHIFT<M11> ID=10.5 OD=22	9-09164-610-0	02	1	9307-
28	PIN; RELAY LEVER SELECT FLOOR REMOTE SHIFT<M11>	8-94248-648-0	01	1	9307-
103	BUSHING; RELAY LEVER	8-94238-596-0	02	1	9307-
109	SPRING; RETURN,SELECT LEVER FLOOR REMOTE SHIFT<M11>	8-94248-650-0	01	1	9307-
117	BUSHING; RELAY LEVER FLOOR REMOTE SHIFT<M11>	8-94248-652-0	02	1	9307-
124	WASHER; PL,RELAY LEVER ID=8.4 OD=22	9-09160-708-0	01	1	9307-
155	WASHER; LK,LWR SUPPORT FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	01	1	9307-
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	03	1	9307-9406
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	02	1	9407-
155	WASHER; LK,LWR SUPPORT EXC. FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	03	1	9407-
156	LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11>	8-94248-370-0	01	1	9307-
156	LEVER; RELAY,SELECT EXC. FLOOR REMOTE SHIFT<M11>	8-94248-385-0	01	1	9307-
161	NUT; CONT ROD TO RELAY LEVER FLOOR REMOTE SHIFT<M11> M8	9-09110-508-0	02	1	9307-9406
161	NUT; CONT ROD TO RELAY LEVER FLOOR REMOTE SHIFT<M11> M8	9-09110-408-0	02	1	9407-
162	WASHER; LK,CONT ROD FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	02	1	9307-
163	WASHER; LK,OPERATING PIN,LWR SUPPORT FLOOR REMOTE SHIFT<M11> ID=8.2	9-09150-508-0	01	1	9307-
164	NUT; LWR SUPPORT M8	9-09110-508-0	02	1	9307-9406
164	NUT; LWR SUPPORT M8	9-09110-408-0	02	1	9407-
165	ROD ASM; CONT SHIFT FLOOR REMOTE SHIFT<M11>	8-94248-629-2	01	1	9307-
166	NUT; LK,BALL JOINT TO CONT ROD FLOOR REMOTE SHIFT<M11>	9-09112-308-0	02	1	9307-
167	GROMMET; CONT ROD FLOOR REMOTE SHIFT<M11>	8-94254-719-0	01	1	9307-
168	ROD; LINK,SELECT,1ST FLOOR REMOTE SHIFT<M11>	8-94248-628-0	01	1	9307-
169	JOINT ASM; BALL,CONT ROD FLOOR REMOTE SHIFT<M11>	5-09760-018-0	04	1	9307-
170	NUT; LK,BALL JOINT,CONT ROD FLOOR REMOTE SHIFT<M11>	9-09112-308-0	02	1	9307-
171	GROMMET; CONT ROD FLOOR REMOTE SHIFT<M11>	8-94254-719-0	01	1	9307-
211	BRACKET; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-94254-837-1	01	1	9307-
