2-30 — GEAR SHIFTER AND QUADRANT BOX (#37355) — 29 parça

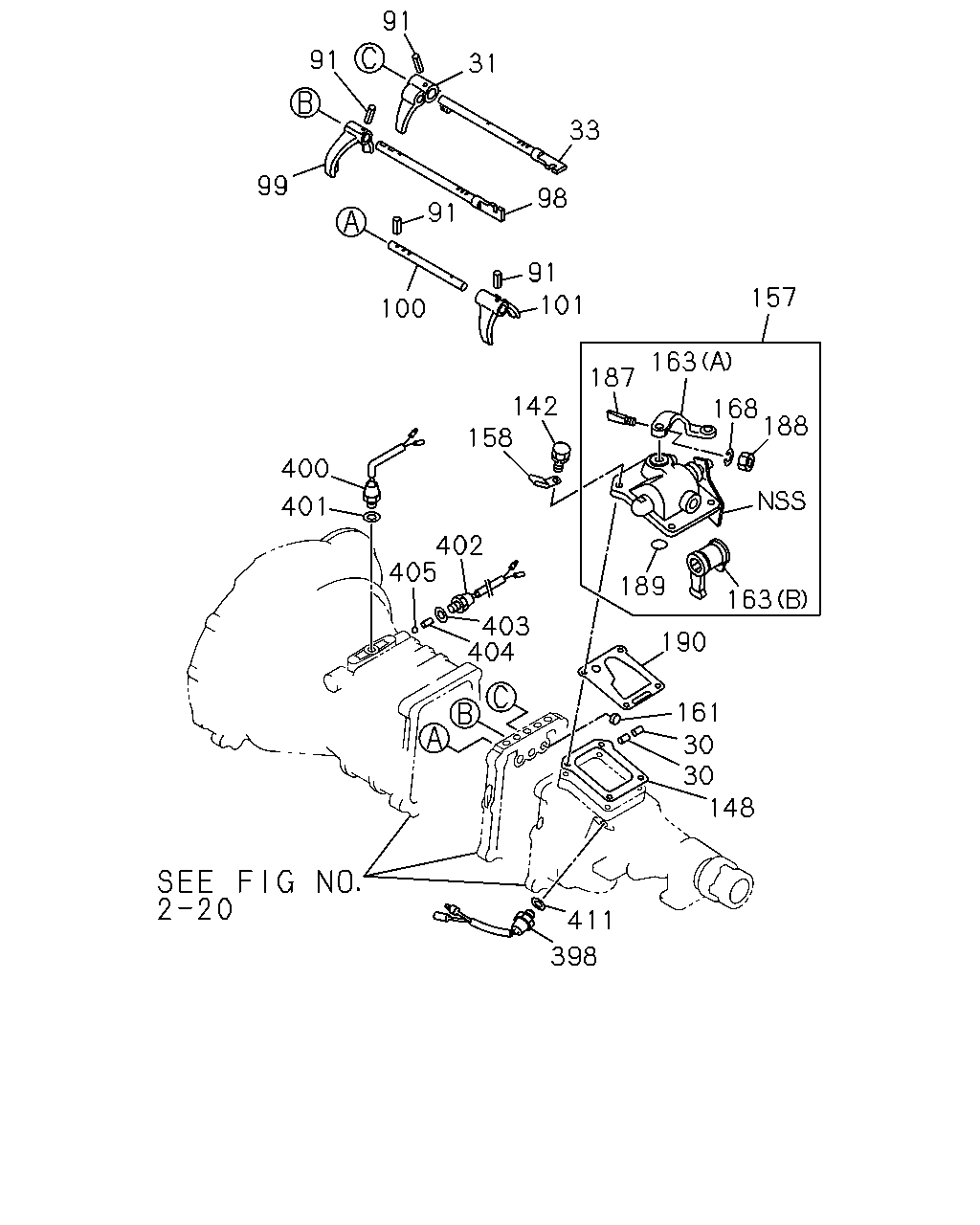

çizim 65959
91 91 31 33 99 98 91 91 101 157 100 163 187 142 158 168 188 400 401 402 405 189 163 403 404 190 161 30 30 148 411 398
BalonParca AdiParca NoAdetTipApplied Date
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 9307-
31 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 9307-
33 ROD; SHIFT,LOW & 2ND 8-94435-156-1 01 1 9307-
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 9307-
98 ROD; SHIFT,TOP & 3RD 8-94372-766-0 01 1 9307-
99 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 9307-
100 ROD; SHIFT,REV & 5TH 8-94474-329-2 01 1 9307-
101 ARM; SHIFT,REV & 5TH 8-94440-061-3 01 1 9307-
142 BOLT; QUAD BOX
M8X20 W/DRY-ROCK 		8-97021-210-0 04 1 9307-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94462-112-0 02 1 9307-
157 BOX; QUAD,TRANS 8-94462-107-1 01 1 9307-
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9307-
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 9307-
163 LEVER; SELECT,INTERNAL
(A) 		5-33521-085-0 01 1 9307-
163 LEVER; SELECT,INTERNAL
(B) 		9-33521-194-1 01 1 9307-
168 WASHER; LK,SELECT LEVER
ID=6.1 		9-09150-506-0 01 1 9307-
187 BOLT; SELECT LEVER 9-09808-572-0 01 1 9307-
188 NUT; SELECT LEVER
M6 		9-09110-506-0 01 1 9307-9406
188 NUT; SELECT LEVER
M6 		9-09110-406-0 01 1 9407-
189 GASKET; SELECT LEVER,CONT BOX 9-09921-196-0 01 1 9307-
190 PLATE; OIL DEFLECTOR,TRANS 8-94343-883-0 01 1 9307-
398 SWITCH; REV LAMP 8-94411-366-1 01 1 9307-
400 SWITCH; SHIFT,TOP 3RD
4ZC1 ENG(LR9) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-94411-366-1 01 1 9307-
401 GASKET; SWITCH,TOP & 3RD
4ZC1 ENG(LR9) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ID=14.2 		8-94462-114-0 01 1 9307-
402 SWITCH; SHIFT,2ND
4ZC1 ENG(LR9) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-94411-366-1 01 1 9307-
403 GASKET; SWITCH,2ND
4ZC1 ENG(LR9) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ID=14.2 		8-94462-114-0 01 1 9307-
404 PLUNGER; SWITCH,2ND
4ZC1 ENG(LR9) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) D=5.5 L=20.7 		8-94225-228-0 01 1 9307-
405 BALL; SWITCH,2ND
4ZC1 ENG(LR9) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		9-00097-517-0 01 1 9307-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9307-
