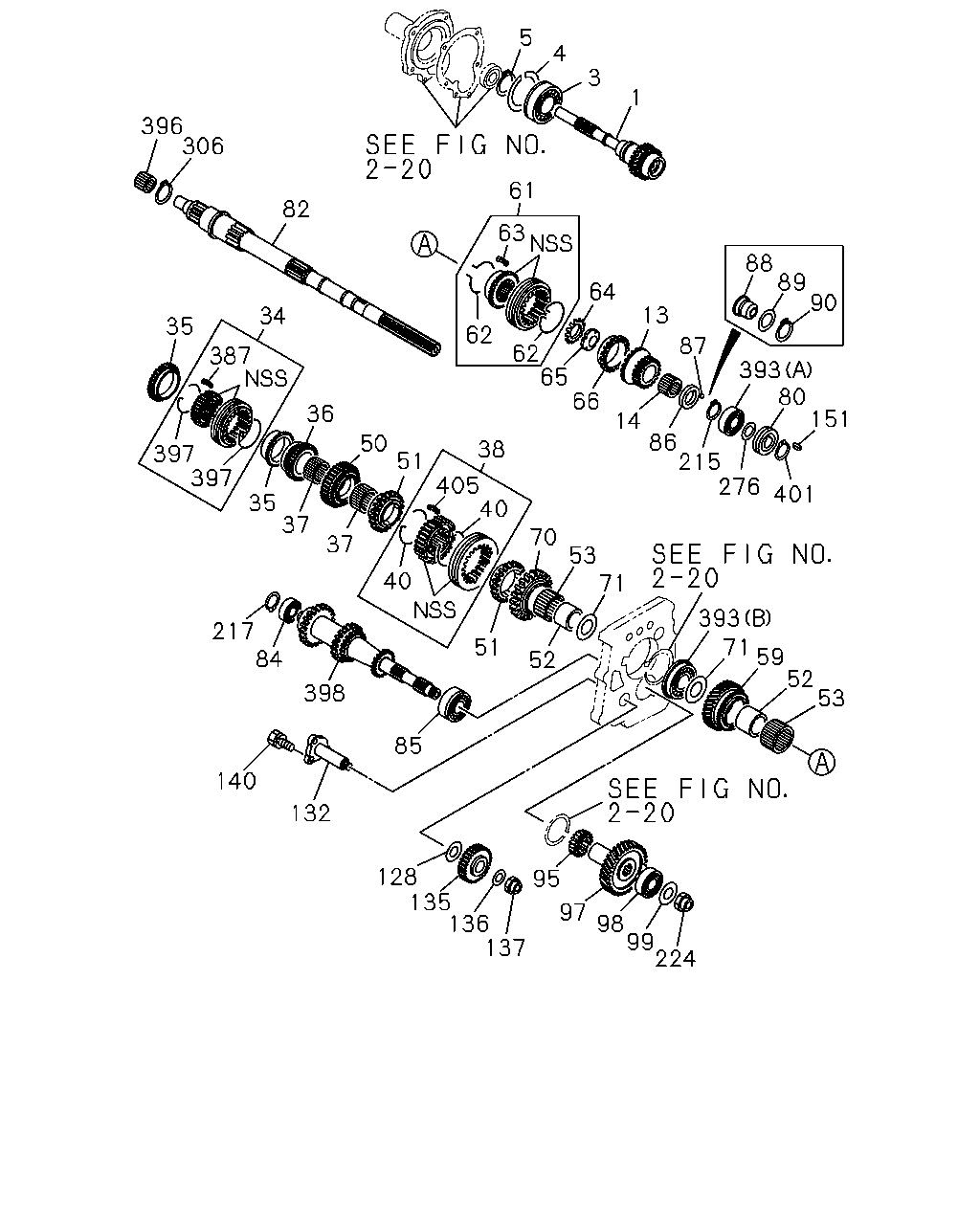

2-26 — MANUAL TRANSMISSION GEAR (#37354) — 72 parça

5 4 3 1 396 306 61 82 63 88 89 90 64 13 87 34 35 62 62 65 66 387 393 80 151 36 14 86 215 276 401 50 51 38 397 397 35 37 405 40 70 53 71 37 40 393 71 59 52 53 217 84 51 52 398 85 140 132 128 135 136 137 95 97 98 99 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	9307-
3	BEARING; TOP GEAR SHAFT NSK	8-94167-637-0	01	1	9307-
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94206-485-0	01	1	9307-
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9307-
6	SPRING; BEVEL,TOP GEAR SHAFT	9-09655-044-0	01	1	9307-
13	GEAR; 5TH,MAINSHAFT 4FG1 ENG(RLL) Z=25	8-94449-232-2	01	1	9307-
13	GEAR; 5TH,MAINSHAFT 4ZC1 ENG(LR9) Z=25	8-94161-912-2	01	1	9307-
14	BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	9307-
34	SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	9307-
35	RING; BLOCK,4TH & 3RD Z=30	8-94463-830-0	02	1	9307-
36	GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	9307-
37	BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	9307-
37	BEARING; NEEDLE,2ND & 3RD NTN	8-94161-988-2	02	1	9503-
38	SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	9307-
40	SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	9307-
50	GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	9307-
51	RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	9307-
52	COLLAR; NEEDLE BRG,LOW	8-94248-620-1	02	1	9307-
53	BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	9307-
53	BEARING; NEEDLE,LOW & REV NTN	8-94161-990-2	02	1	9503-
59	GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	9307-
61	SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	9307-
62	SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	9307-
63	INSERT; SYN,REV & 5TH	5-33263-002-2	03	1	9307-
64	WASHER; LK,LOW	8-94238-095-0	01	1	9307-
65	NUT; MAINSHAFT M32	8-94238-094-1	01	1	9307-
66	RING; BLOCK,SYN Z=30	8-94463-830-0	01	1	9307-
70	GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	9307-
71	WASHER; THRUST,LOW ID=32.0	5-33239-043-2	02	1	9307-
80	GEAR; SPD DRIVE Z=5	8-94322-519-0	01	1	9307-
82	SHAFT; MAIN,TRANS Z=26-24-18-27-20	8-94435-162-2	01	1	9307-
84	BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	9307-
85	BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-94124-766-0	01	1	9307-
86	WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	9307-
86	WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	9307-
86	WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	9307-
86	WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	9307-
86	WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	9307-
86	WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	9307-
87	BALL; THRUST WASHER	8-94201-356-0	01	1	9307-
88	RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	9307-
89	RING; RET,THRUST RING	8-94145-296-0	01	1	9307-
90	RING; SNAP,THRUST RING ID=37.0	9-09180-040-0	01	1	9307-
95	GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	9307-
97	GEAR; 5TH,COUNTER 4FG1 ENG(RLL) Z=49	8-94161-922-1	01	1	9307-
97	GEAR; 5TH,COUNTER 4ZC1 ENG(LR9) Z=47	8-94161-920-1	01	1	9307-
98	BEARING; BALL,COUNTER END NSK	8-97063-366-0	01	1	9307-
99	WASHER; PL,COUNTER 5TH GEAR ID=17	9-09160-516-0	01	1	9307-
128	WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	9307-
132	SHAFT; REV	8-94435-146-0	01	1	9307-
135	GEAR; REV IDLER Z=23	8-94161-118-1	01	1	9307-
136	WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-2	01	1	9307-
137	NUT; REV GEAR M16	9-09844-195-0	01	1	9307-
140	BOLT; LK PIECE M8X20 W/DRY-ROCK	8-97021-210-0	01	1	9307-9407
140	BOLT; LK PIECE M8X20 FLANGE	0-28080-820-0	01	1	9407-
151	KEY; FEATHER,SPD DRIVE GEAR	9-08020-510-0	01	1	9307-
215	RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	9307-
217	RING; SNAP,COUNTER FRT BRG ID=18.5	9-09180-020-0	01	1	9307-
224	NUT; SELF LK,COUNTER M16	9-09844-195-0	01	1	9307-
276	SPACER; BRG TO DRIVE GEAR	8-94161-087-0	01	1	9307-
306	RING; SNAP,MAINSHAFT T=1.50	5-09588-020-1	01	1	9307-
306	RING; SNAP,MAINSHAFT T=1.55	5-09588-021-1	01	1	9307-
306	RING; SNAP,MAINSHAFT T=1.60	5-09588-022-1	01	1	9307-
306	RING; SNAP,MAINSHAFT T=1.65	5-09588-023-1	01	1	9307-
387	INSERT; SYN,4TH & 3RD	9-33263-048-1	03	1	9307-
393	BEARING; MAINSHAFT END (A) NSK	8-94173-863-0	01	1	9307-
393	BEARING; MAINSHAFT END (B) NSK	8-94173-866-0	01	1	9307-
396	BEARING; NEEDLE,MAINSHAFT KOYO	9-00096-100-1	01	1	9307-
397	SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	9307-
398	GEAR; COUNTER Z=37,31,20,16	8-94469-524-1	01	1	9307-
401	RING; SNAP,SPD DRIVE GEAR ID=27.9	9-09180-030-0	01	1	9307-
405	INSERT; SYN,LOW & 2ND	8-94152-557-0	03	1	9307-
