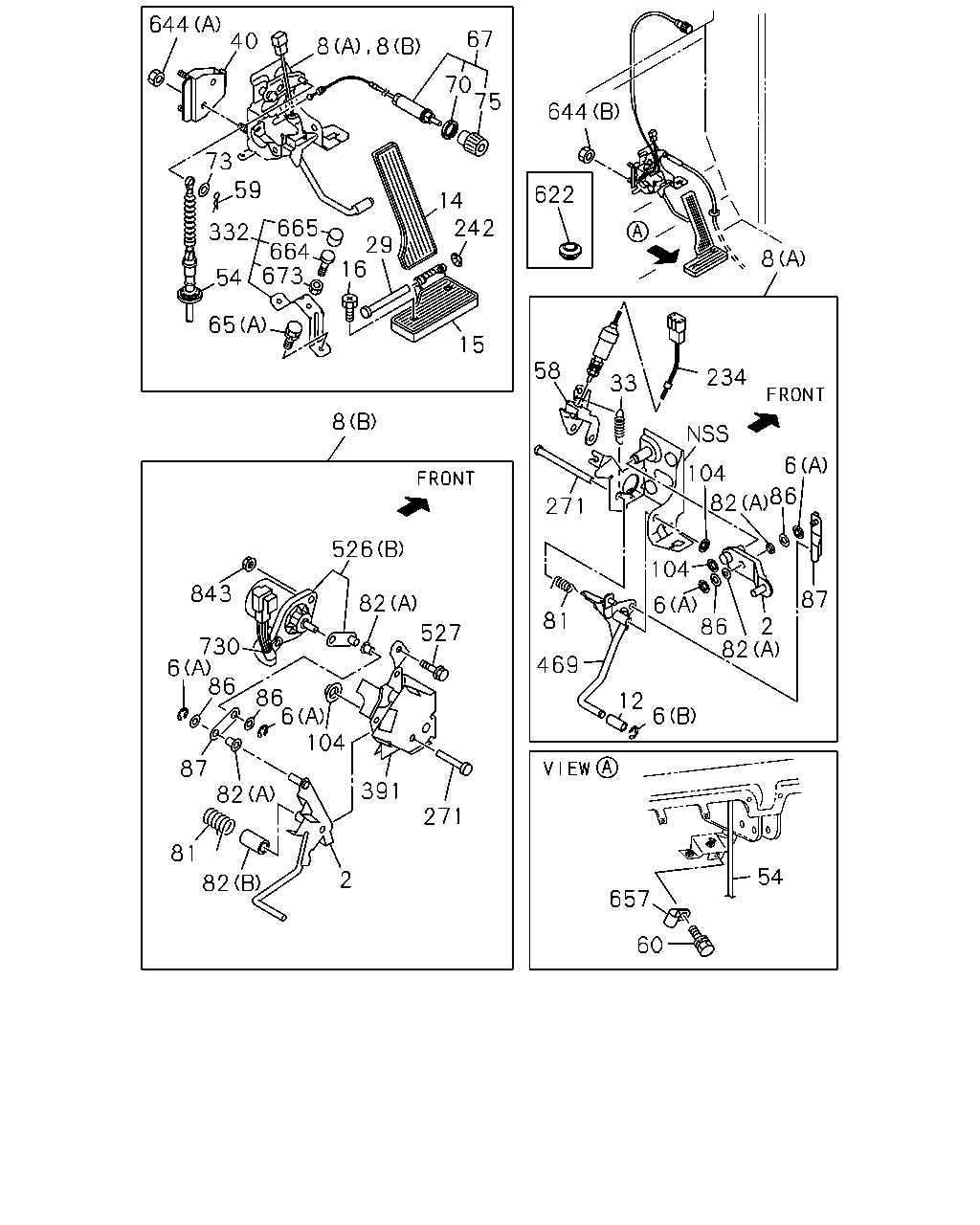

1-01 — ACCELERATOR PEDAL AND CONTROL (#3735) — 381 parça
çizim 8745
644 40 67 8 8 70 75 644 73 59 622 14 242 665 664 673 332 29 16 8 54 65 15 58 234 33 8 6 104 86 82 271 526 104 82 843 87 82 6 81 527 730 6 86 469 86 6 104 12 6 87 82 391 271 81 54 2 82 657 60 86 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 LEVER; ENG CONT 1-71907-535-1 01 1 0608- ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 9601-9803 ● ● ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 9804-0004 ● ● ● ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 0005- ● ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9601-9803 ● ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9804-0004 ● ● ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 0005-0403 ● ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 0404-0604 ● ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		0-91805-504-0 02 1 0605-0607 ● ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		0-91805-504-0 02 1 0608- ● ● ● ● ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 9601-9802 ● ● ● ●
8 LINK ASM; ENG CONT
(B) 		8-97865-105-4 01 1 0608- ●
8 LINK ASM; ENG CONT
(A) 		1-73996-206-6 01 1 9601-9803 ● ● ● ●
8 LINK ASM; ENG CONT
(A) 		1-73996-206-6 01 1 9804-0004 ● ● ● ● ●
8 LINK ASM; ENG CONT
(A) 		1-73996-206-6 01 1 0005- ● ● ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9601-9802 ● ● ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9601-9708 ● ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9709-9803 ● ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9804-0004 ● ● ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0005-0607 ● ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0608- ● ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9601-9803 ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9804-0004 ● ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0005-0607 ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0608- ● ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9601-9803 ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9804-9902 ● ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9903-0004 ● ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0005-0607 ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0608- ● ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9601-9803 ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9804-0004 ● ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0607 ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0608- ● ● ● ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9601-9803 ● ● ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9804-0004 ● ● ● ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 0005- ● ● ● ●
40 BRACKET; ENG CONT CABLE 1-71907-269-0 01 1 9601-9803 ● ● ● ●
40 BRACKET; ENG CONT CABLE 1-71907-269-0 01 1 9804-0607 ● ● ● ● ●
40 BRACKET; ENG CONT CABLE 1-71907-269-0 01 1 0608- ● ● ● ●
54 CABLE; ENG CONT
L=1659 		1-73996-294-5 01 1 9601-9709 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-5 01 1 9710-9806 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-8 01 1 9807-0006 ● ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-9 01 1 0007-0012 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-483-0 01 1 0101- ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=1706.5 		1-73908-297-5 01 1 9710- ●
54 CABLE; ENG CONT
L=1674 		1-73996-293-8 01 1 9601- ●
54 CABLE; ENG CONT
L=2246.5 		1-73996-297-6 01 1 9601- ●
54 CABLE; ENG CONT
L=2256.5 		1-73996-298-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
L=2256.5 		1-73996-298-4 01 1 9804- ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9601-9803 ● ● ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9804-0004 ● ● ● ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 0005- ● ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9601-9803 ● ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9804-0004 ● ● ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 0005- ● ● ● ●
60 BOLT; CABLE
M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512 ● ●
60 BOLT; CABLE
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-0004 ● ● ● ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0904 ● ● ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ●
65 BOLT
(C) M10X60 		0-16811-060-0 01 1 9601-9803 ● ●
65 BOLT
(C) M10X60 		0-16811-060-0 01 1 9804-0006 ● ● ●
65 BOLT
(C) M10X60 		0-16811-060-0 01 1 0007-0512 ● ●
65 BOLT
(C) M10X60 		0-16861-060-0 01 1 0601-0607 ● ●
65 BOLT
(C) M10X60 		0-16861-060-0 01 1 0608- ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9803 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9804-0006 ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0007-0512 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0607 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0608- ● ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0004 ● ● ● ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0607 ● ● ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0608- ● ● ● ● ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9601-9803 ● ● ● ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9804-0004 ● ● ● ● ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 0005-0204 ● ● ● ●
67 CABLE ASM; IDLE CONT
L=315 		1-73908-423-1 01 1 0205- ● ● ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9601-9803 ● ● ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9804-0004 ● ● ● ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 0005- ● ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-9803 ● ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9804-0004 ● ● ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0605 ● ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ● ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9601-9803 ● ● ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9804-0004 ● ● ● ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 0005-0109 ● ● ● ●
75 KNOB ASM; IDLING CONT 8-97137-504-0 01 1 0110-0204 ● ● ● ●
75 KNOB ASM; IDLING CONT 1-73908-409-0 01 1 0205- ● ● ● ●
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 9601-9803 ● ● ● ●
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 9804-0004 ● ● ● ● ●
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 0005-0607 ● ● ● ●
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 0608- ● ● ● ● ●
82 BUSHING; ENG CONT LVR
(B) L=31.5 		1-53459-627-0 01 1 0608- ●
82 BUSHING; ENG CONT LVR
(A) 		1-71907-244-1 02 1 9601-9803 ● ● ● ●
82 BUSHING; ENG CONT LVR
(A) 		1-71907-244-1 02 1 9804-0004 ● ● ● ● ●
82 BUSHING; ENG CONT LVR
(A) 		1-71907-244-1 02 1 0005-0607 ● ● ● ●
82 BUSHING; ENG CONT LVR
(A) 		1-71907-244-1 02 1 0608- ● ● ● ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9601-9803 ● ● ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9804-0004 ● ● ● ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 0005-0607 ● ● ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 0608- ● ● ● ● ●
87 LINK; ENG CONT 8-97865-545-0 01 1 0608- ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9601-9803 ● ● ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9804-0004 ● ● ● ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 0005- ● ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0608- ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9601-9803 ● ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9804-0004 ● ● ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0005- ● ● ● ●
234 SWITCH; ACCEL 1-82380-114-1 01 1 9601-9803 ● ● ● ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 9804-0004 ● ● ● ● ●
234 SWITCH; ACCEL 1-82380-114-3 01 1 0005- ● ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9601-9803 ● ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9804-0004 ● ● ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0005-0607 ● ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0608- ● ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9601-9803 ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9804-0004 ● ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0607 ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0608- ● ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9601-9803 ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9804-0004 ● ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0005-0212 ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0301-0607 ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0608- ● ● ● ● ●
391 BRACKET; ENG CONT 8-97865-118-2 01 1 0608- ●
469 LEVER ASM 1-71907-209-5 01 1 9601-9803 ● ● ● ●
469 LEVER ASM 1-71907-209-5 01 1 9804-0004 ● ● ● ● ●
469 LEVER ASM 1-71907-209-5 01 1 0005- ● ● ● ●
526 SENSOR; ACCEL
(B) 		8-94390-280-0 01 1 0608- ●
526 SENSOR; ACCEL
A/T<X9D> (A) 		1-80250-015-0 01 1 0005- ●
527 BOLT; ACCEL SENSOR
M6X25 FLANGE 		0-28650-625-0 02 1 0608- ●
527 BOLT; ACCEL SENSOR
A/T<X9D> M6X50 FLANGE 		0-28080-650-0 03 1 0005-0512 ●
527 BOLT; ACCEL SENSOR
A/T<X9D> M6X50 FLANGE 		0-28050-650-0 03 1 0601- ●
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 0608- ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 04 1 0608- ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91150-108-0 02 1 9601-9803 ● ● ● ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91150-108-0 02 1 9804-0004 ● ● ● ● ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ●
644 NUT; LINK,ENG CONT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 03 1 9601-9803 ● ● ● ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 03 1 9804-0607 ● ● ● ● ●
644 NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER 		1-09984-176-0 03 1 0608- ● ● ● ●
657 CLIP; ENG CONT CABLE
ID=16 L=20 		9-09525-535-0 01 1 9705-9707 ● ●
657 CLIP; ENG CONT CABLE
ID=7 L=20 		9-09524-635-0 01 1 9708-9712 ● ●
657 CLIP; ENG CONT CABLE
D=18 H=30 		1-09701-028-0 01 1 9801-9803 ● ●
657 CLIP; ENG CONT CABLE
D=18 H=30 		1-09701-028-0 01 1 9804-0004 ● ● ●
657 CLIP; ENG CONT CABLE
D=18 H=30 		1-09701-028-0 01 1 0005- ● ●
657 CLIP; ENG CONT CABLE
ID=11 L=20 		9-09525-035-0 01 1 9601-0606 ● ●
657 CLIP; ENG CONT CABLE
ID=11 L=20 		0-95235-035-0 01 1 0607- ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9601-9803 ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9804-0004 ● ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0005-0607 ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0608- ● ● ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9601-9803 ● ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9804-0004 ● ● ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0005-0212 ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9601-9803 ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9804-0004 ● ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0005-0512 ● ● ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601-0607 ● ● ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0608- ● ● ● ● ●
730 CLIP
ID=11 L=20 		0-95235-032-0 01 1 0608- ●
843 NUT
M6 FLANGE 		0-91180-106-0 02 1 0608- ●

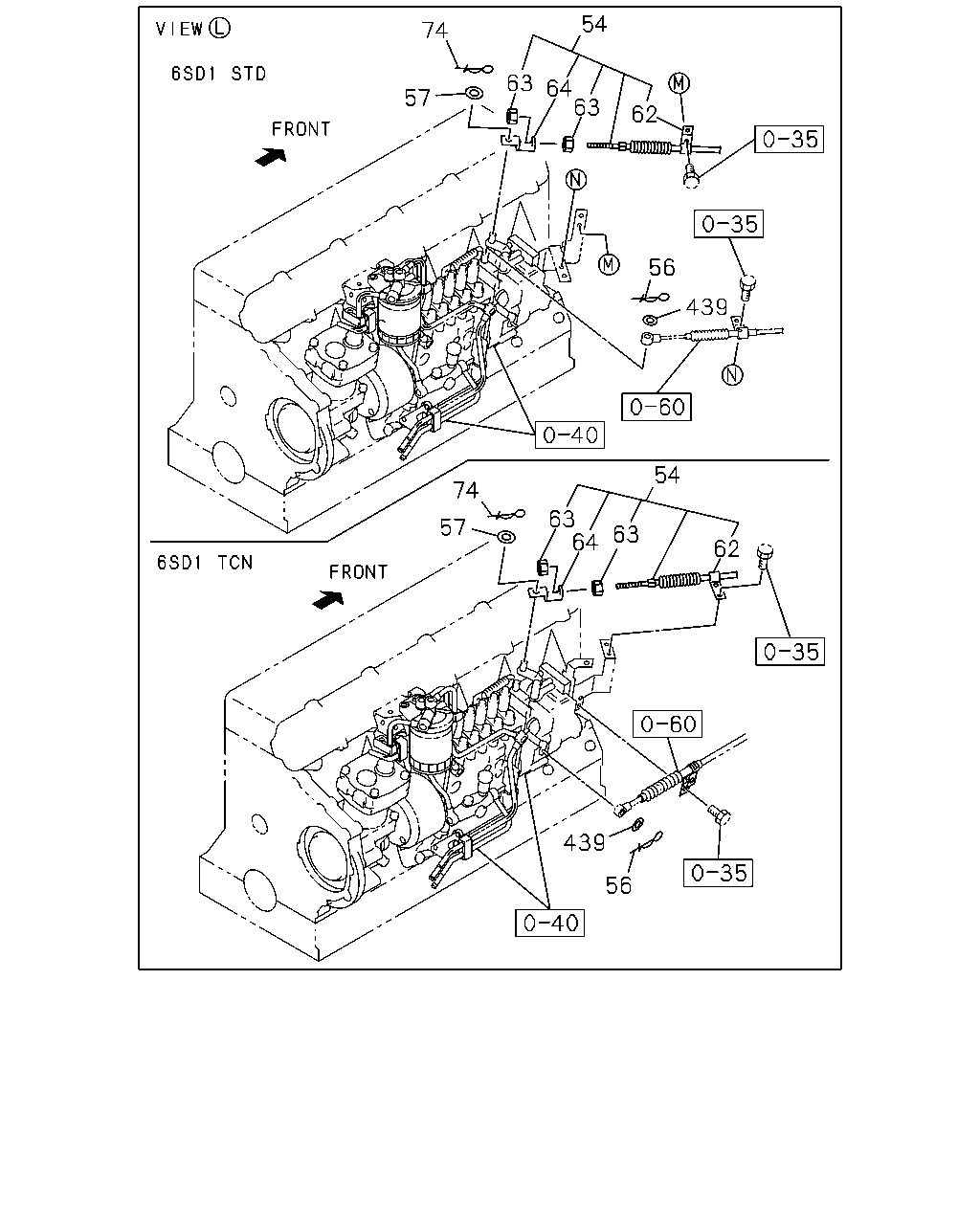

çizim 37567
54 74 63 64 63 57 62 56 439 54 74 63 64 57 63 62 439 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 CABLE; ENG CONT
L=1659 		1-73996-294-5 01 1 9601-9709 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-5 01 1 9710-9806 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-8 01 1 9807-0006 ● ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-9 01 1 0007-0012 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-483-0 01 1 0101- ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=1706.5 		1-73908-297-5 01 1 9710- ●
54 CABLE; ENG CONT
L=1674 		1-73996-293-8 01 1 9601- ●
54 CABLE; ENG CONT
L=2246.5 		1-73996-297-6 01 1 9601- ●
54 CABLE; ENG CONT
L=2256.5 		1-73996-298-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
L=2256.5 		1-73996-298-4 01 1 9804- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-9806 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9807-0607 ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0608- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-9803 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9804-0004 ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0403 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0404-0605 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606-0607 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0608- ● ● ● ●
62 CLIP; ENG CONT CABLE 8-94397-228-0 01 1 9706-9806 ●
62 CLIP; ENG CONT CABLE 8-94397-228-0 01 1 9807-9908 ●
62 CLIP; ENG CONT CABLE
EXC. EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9807-9908 ●
62 CLIP; ENG CONT CABLE
EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0007-0012 ●
62 CLIP; ENG CONT CABLE
EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0101- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09701-104-0 01 1 0101- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9804-9908 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9909-9909 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9909- ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-9806 ● ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9807-0006 ● ● ● ●
63 NUT; LOCK,BRKT
EXC. EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9807-0006 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0007- ● ● ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-9806 ● ● ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9807-0006 ● ● ● ●
64 BRACKET; ENG CONT CABLE
EXC. EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9807-0006 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0007- ● ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-9806 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9807-1509 ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09987-141-0 01 1 1510- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601- ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-9803 ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9804-0004 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0605 ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ● ● ● ●

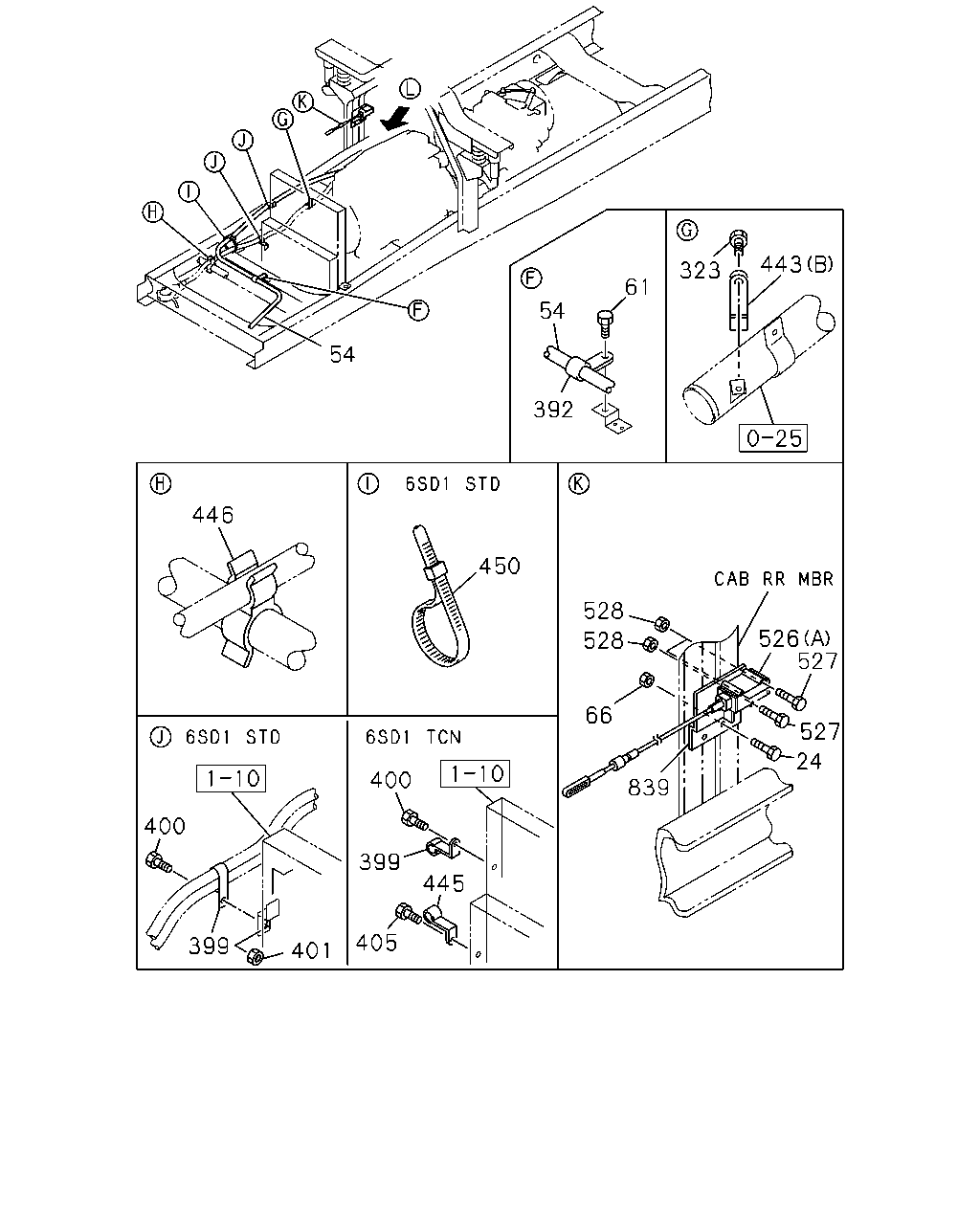

çizim 40502
443 323 61 54 54 392 446 450 528 526 527 528 66 527 24 400 839 400 399 445 405 399 401
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 BOLT; BRKT
A/T<X9D> M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ●
24 BOLT; BRKT
A/T<X9D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
54 CABLE; ENG CONT
L=1659 		1-73996-294-5 01 1 9601-9709 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-5 01 1 9710-9806 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-8 01 1 9807-0006 ● ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-9 01 1 0007-0012 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-483-0 01 1 0101- ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=1706.5 		1-73908-297-5 01 1 9710- ●
54 CABLE; ENG CONT
L=1674 		1-73996-293-8 01 1 9601- ●
54 CABLE; ENG CONT
L=2246.5 		1-73996-297-6 01 1 9601- ●
54 CABLE; ENG CONT
L=2256.5 		1-73996-298-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
L=2256.5 		1-73996-298-4 01 1 9804- ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9908 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9909-0512 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
66 NUT; BRKT
A/T<X9D> M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
66 NUT; BRKT
A/T<X9D> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9806 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9806 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9807-0512 ● ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9807-0512 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
392 CLIP; ACCEL CONT CABLE
ID=11 H=20 L=20 		8-98033-780-0 01 1 0802- ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 01 1 9601-9908 ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 02 1 9909-0606 ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		0-95235-265-0 02 1 0607-0801 ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		0-95235-265-0 01 1 0802- ● ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9601-9704 ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9705-9803 ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9804-0004 ● ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0005- ● ● ●
399 CLIP; CABLE,RAD SIDE
ID=9 L=25 H=45 		1-09700-867-0 01 1 9601- ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0004 ● ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 		9-09110-408-0 01 1 9601-9606 ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9607-9803 ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9804-0602 ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91180-108-0 01 1 0603-0607 ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91180-108-0 01 1 0608- ● ● ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
443 CLIP; CABLE
(A) 		8-94107-647-0 01 1 9601-9803 ● ●
443 CLIP; CABLE
(A) 		8-94107-647-0 01 1 9804-0004 ● ● ●
443 CLIP; CABLE
(A) 		8-94107-647-0 01 1 0005- ● ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 9601-9803 ● ● ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 9804-0004 ● ● ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 0005-0606 ● ●
443 CLIP; CABLE
(B) ID=7 L=20 		0-95234-635-0 01 1 0607- ● ●
443 CLIP; CABLE
(B) ID=7 L=16 		9-09524-625-0 01 1 9804-0606 ●
443 CLIP; CABLE
(B) ID=7 L=16 		0-95234-625-0 01 1 0607- ●
445 CLIP; RAD 1-09700-082-0 01 1 9601- ●
446 CLIP; ENG CONT 8-94433-987-0 01 1 9601- ● ●
450 CLIP; BAND
L=140 		5-09707-031-0 02 1 9601-9803 ● ● ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 9804-0004 ● ● ● ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 0005- ● ● ●
526 SENSOR; ACCEL
(B) 		8-94390-280-0 01 1 0608- ●
526 SENSOR; ACCEL
A/T<X9D> (A) 		1-80250-015-0 01 1 0005- ●
527 BOLT; ACCEL SENSOR
M6X25 FLANGE 		0-28650-625-0 02 1 0608- ●
527 BOLT; ACCEL SENSOR
A/T<X9D> M6X50 FLANGE 		0-28080-650-0 03 1 0005-0512 ●
527 BOLT; ACCEL SENSOR
A/T<X9D> M6X50 FLANGE 		0-28050-650-0 03 1 0601- ●
528 NUT; ACCEL SENSOR
A/T<X9D> M6 FLANGE 		0-91150-106-0 03 1 0005-0602 ●
528 NUT; ACCEL SENSOR
A/T<X9D> M6 FLANGE 		0-91180-106-0 03 1 0603- ●
839 BRACKET; THROTTLE SENSOR
A/T<X9D> 		1-47478-703-0 01 1 0005- ●

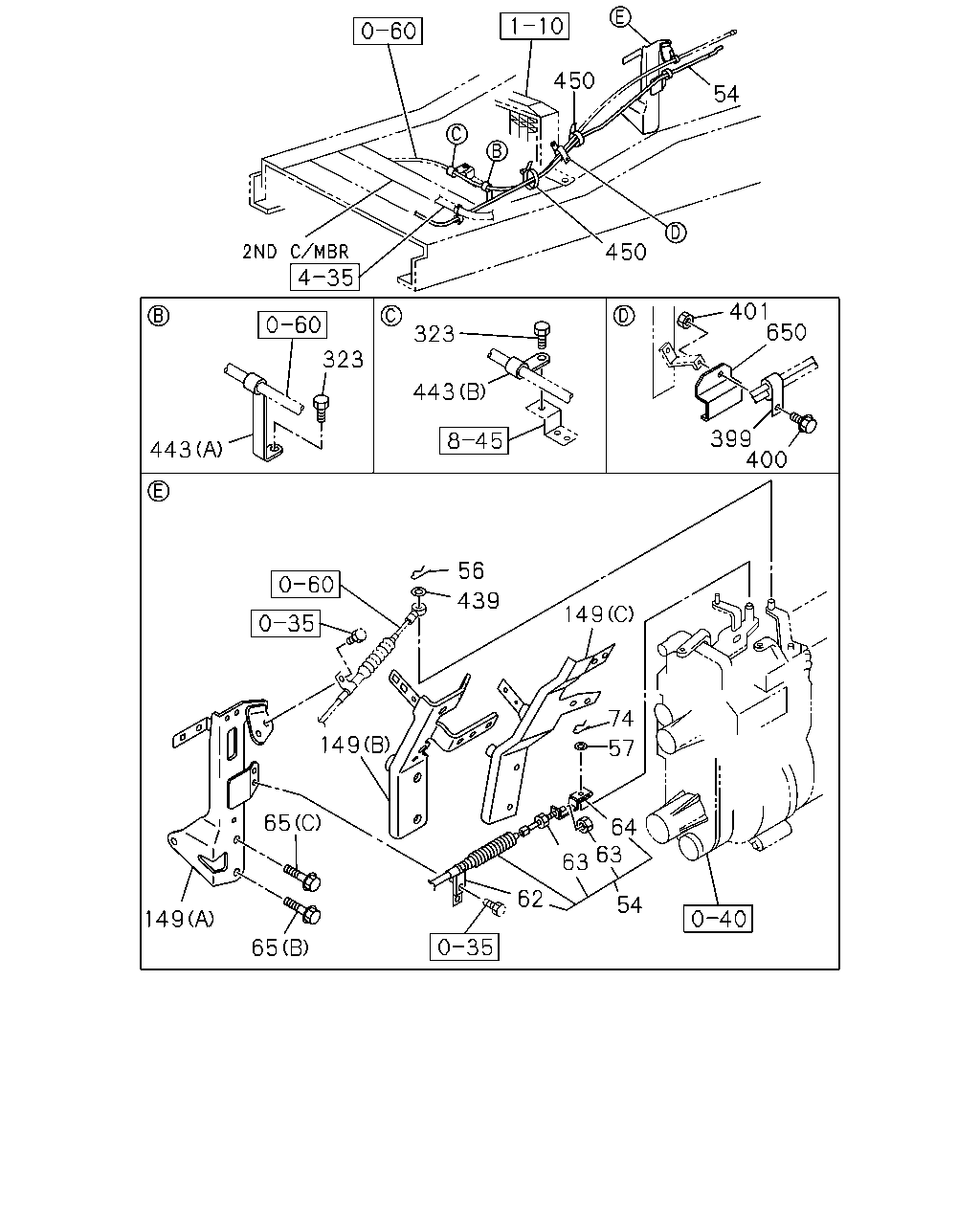

çizim 40533
450 54 450 401 650 323 323 443 399 400 443 56 439 149 74 149 57 65 64 63 63 62 54 149 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 CABLE; ENG CONT
L=1659 		1-73996-294-5 01 1 9601-9709 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-5 01 1 9710-9806 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-8 01 1 9807-0006 ● ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-294-9 01 1 0007-0012 ●
54 CABLE; ENG CONT
EXC. EURO2 SPECIFICATION<THN> L=1659 		1-73996-483-0 01 1 0101- ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=1706.5 		1-73908-297-5 01 1 9710- ●
54 CABLE; ENG CONT
L=1674 		1-73996-293-8 01 1 9601- ●
54 CABLE; ENG CONT
L=2246.5 		1-73996-297-6 01 1 9601- ●
54 CABLE; ENG CONT
L=2256.5 		1-73996-298-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
L=2256.5 		1-73996-298-4 01 1 9804- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-9806 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9807-0607 ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0608- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-9803 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9804-0004 ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0403 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0404-0605 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606-0607 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0608- ● ● ● ●
62 CLIP; ENG CONT CABLE 8-94397-228-0 01 1 9706-9806 ●
62 CLIP; ENG CONT CABLE 8-94397-228-0 01 1 9807-9908 ●
62 CLIP; ENG CONT CABLE
EXC. EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9807-9908 ●
62 CLIP; ENG CONT CABLE
EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0007-0012 ●
62 CLIP; ENG CONT CABLE
EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0101- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09701-104-0 01 1 0101- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9804-9908 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9909-9909 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9909- ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-9806 ● ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9807-0006 ● ● ● ●
63 NUT; LOCK,BRKT
EXC. EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9807-0006 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0007- ● ● ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-9806 ● ● ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9807-0006 ● ● ● ●
64 BRACKET; ENG CONT CABLE
EXC. EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9807-0006 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0007- ● ● ● ●
65 BOLT
(C) M10X60 		0-16811-060-0 01 1 9601-9803 ● ●
65 BOLT
(C) M10X60 		0-16811-060-0 01 1 9804-0006 ● ● ●
65 BOLT
(C) M10X60 		0-16811-060-0 01 1 0007-0512 ● ●
65 BOLT
(C) M10X60 		0-16861-060-0 01 1 0601-0607 ● ●
65 BOLT
(C) M10X60 		0-16861-060-0 01 1 0608- ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9803 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9804-0006 ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0007-0512 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0607 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0608- ● ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0004 ● ● ● ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0607 ● ● ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0608- ● ● ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-9806 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9807-1509 ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09987-141-0 01 1 1510- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601- ● ●
149 BRACKET; ENG CONT
(B) 		8-97600-017-0 01 1 0608- ●
149 BRACKET; ENG CONT
EURO2 SPECIFICATION<THN> (C) 		8-94394-532-1 01 1 9710- ●
149 BRACKET; ENG CONT
(A) 		8-94390-006-1 01 1 9601-9709 ● ●
149 BRACKET; ENG CONT
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94390-006-1 01 1 9710-9806 ●
149 BRACKET; ENG CONT
(A) 		8-94390-006-1 01 1 9710-9806 ●
149 BRACKET; ENG CONT
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94390-006-2 01 1 9807-0006 ●
149 BRACKET; ENG CONT
(A) 		8-94390-006-2 01 1 9807-0006 ● ●
149 BRACKET; ENG CONT
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94390-006-2 01 1 0007-1102 ●
149 BRACKET; ENG CONT
(A) 		8-94390-006-2 01 1 0007-1102 ●
149 BRACKET; ENG CONT
(A) 		8-94390-006-2 01 1 1103- ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9806 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9806 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9807-0512 ● ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9807-0512 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9601-9704 ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9705-9803 ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9804-0004 ● ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0005- ● ● ●
399 CLIP; CABLE,RAD SIDE
ID=9 L=25 H=45 		1-09700-867-0 01 1 9601- ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0004 ● ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 		9-09110-408-0 01 1 9601-9606 ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9607-9803 ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9804-0602 ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91180-108-0 01 1 0603-0607 ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91180-108-0 01 1 0608- ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-9803 ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9804-0004 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0605 ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ● ● ● ●
443 CLIP; CABLE
(A) 		8-94107-647-0 01 1 9601-9803 ● ●
443 CLIP; CABLE
(A) 		8-94107-647-0 01 1 9804-0004 ● ● ●
443 CLIP; CABLE
(A) 		8-94107-647-0 01 1 0005- ● ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 9601-9803 ● ● ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 9804-0004 ● ● ●
443 CLIP; CABLE
(B) ID=7 L=20 		9-09524-635-0 01 1 0005-0606 ● ●
443 CLIP; CABLE
(B) ID=7 L=20 		0-95234-635-0 01 1 0607- ● ●
443 CLIP; CABLE
(B) ID=7 L=16 		9-09524-625-0 01 1 9804-0606 ●
443 CLIP; CABLE
(B) ID=7 L=16 		0-95234-625-0 01 1 0607- ●
450 CLIP; BAND
L=140 		5-09707-031-0 02 1 9601-9803 ● ● ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 9804-0004 ● ● ● ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 0005- ● ● ●
650 PROTECTOR; ACCEL CABLE 1-47478-691-0 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
