2-01 — CLUTCH (#37346) — 18 parça

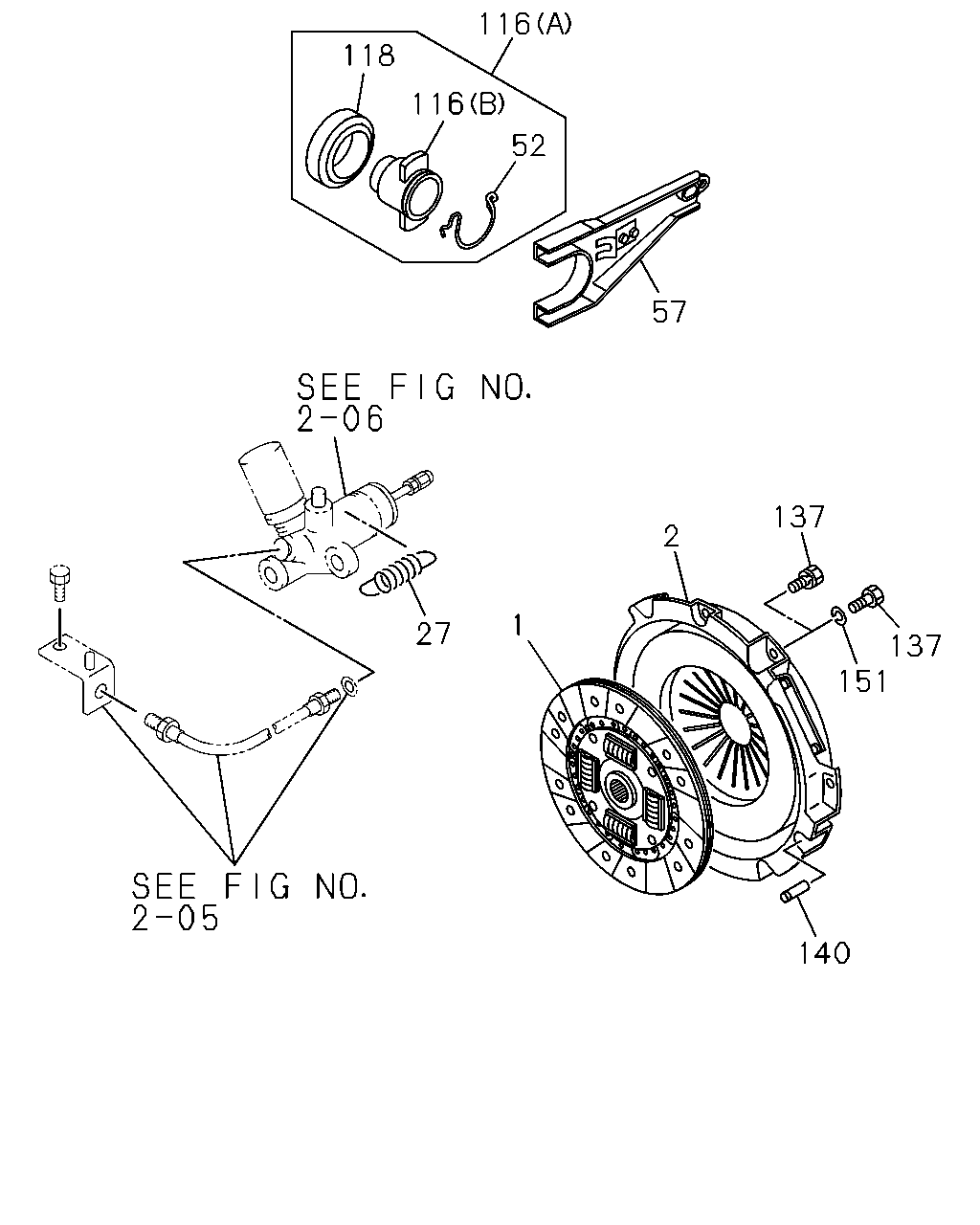

çizim 65967
116 118 116 52 57 137 2 1 27 137 151 140
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
8.5" 		8-94314-676-0 01 1 9307- ●
1 DISC; CLUTCH
8.5" 		8-97029-948-0 01 1 9307-9311 ●
1 DISC; CLUTCH
8.5" 		8-97106-978-0 01 1 9312- ●
2 PLATE ASM; PRESSURE,CLU 8-94105-062-0 01 1 9307- ●
2 PLATE ASM; PRESSURE,CLU 8-94455-474-1 01 1 9307- ●
27 SPRING; RETURN,SHIFT FORK 8-94461-148-0 01 1 9307- ●
52 SPRING; SHIFT BLOCK TO FORK 9-31329-010-0 02 1 9307- ●
52 SPRING; SHIFT BLOCK TO FORK 9-31329-010-0 01 1 9307- ●
57 FORK; SHIFT,CLU 9-31340-029-1 01 1 9307- ●
57 FORK; SHIFT,CLU 8-94411-650-0 01 1 9307- ●
116 BLOCK; SHIFT,CLU
(A) 		9-31320-620-1 01 1 9307- ●
116 BLOCK; SHIFT,CLU
(B) 		9-31321-615-0 01 1 9307- ●
116 BLOCK; SHIFT,CLU
(A) 		8-94438-300-0 01 1 9307- ●
118 BEARING; CLU RELEASE
NSK ID=38 OD=67 		9-00095-040-1 01 1 9307- ●
118 BEARING; CLU RELEASE
NSK ID=43 OD=66.6 		8-94101-243-0 01 1 9307- ●
137 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9307- ● ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9307- ● ●
151 WASHER; LK,CLU SHAFT
ID=6.1 		9-09150-506-0 02 1 9307- ● ●
