1-41 — FUEL PIPING; CHASSIS (#37343) — 153 parça

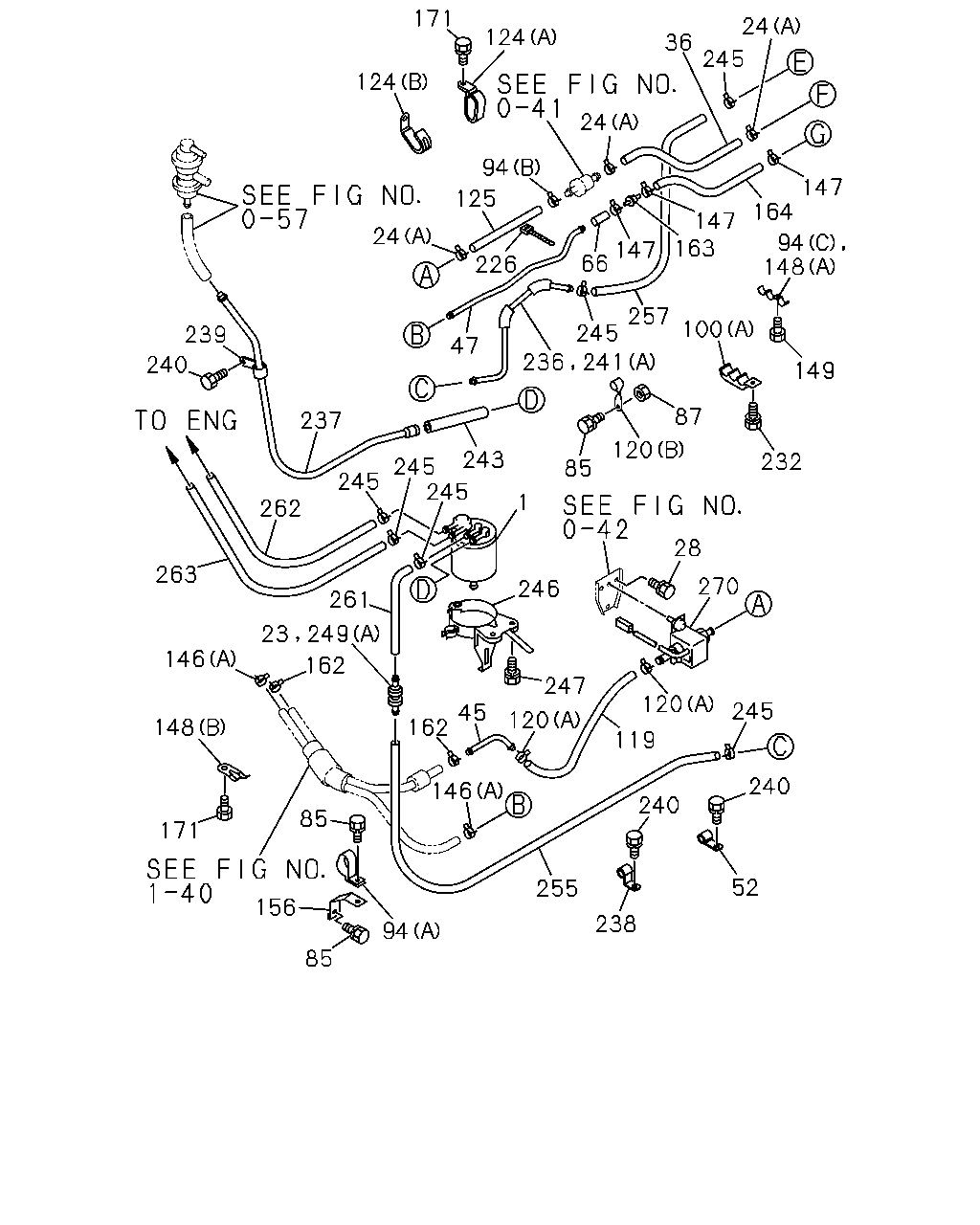

171 24 36 245 124 124 24 94 125 147 164 94 148 147 66 24 226 257 245 100 239 240 47 149 87 120 237 243 245 245 245 232 85 1 262 28 263 270 246 261 249 162 23 146 247 120 120 245 45 162 148 119 240 146 240 85 171 52 255 156 238 94 85 147 163 241 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CANISTER; FUEL HONG KONG EQUIPMENT(PQ1)	8-17090-119-0	01	1	9307-	●
23	VALVE; 2 WAY,EVAP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94151-559-1	01	1	9307-	●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	02	1	9307-9406	●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	02	1	9407-	●
24	CLIP; FUEL HOSE LONG(WFB5VF) IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) (A) ID=14	8-94238-572-0	02	1	9407-		●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	04	1	9307-		●
24	CLIP; FUEL HOSE (B) ID=13 & 15	8-94428-546-0	01	1	9307-		●
28	BOLT; BRKT,FUEL PUMP M6X20 W/LK WASHER	0-50040-620-0	02	1	9307-	●
36	HOSE; FUEL,FILTER TO TANK L=400	8-94364-372-0	01	1	9307-	●
45	PIPE; FUEL,DELIVERY ZINC PLATING	8-94227-116-1	01	1	9307-9406	●
45	PIPE; FUEL,DELIVERY PLASTIC COATING	8-94117-958-0	01	1	9407-	●
45	PIPE; FUEL,DELIVERY	8-94250-147-0	01	1	9307-		●
47	PIPE; FUEL,RETURN ZINC PLATING	8-97016-772-0	01	1	9307-9406	●
47	PIPE; FUEL,RETURN PLASTIC COATING	8-97016-775-0	01	1	9407-	●
47	PIPE; FUEL,RETURN	8-97016-773-0	01	1	9307-9406		●
47	PIPE; FUEL,RETURN	8-97016-774-0	01	1	9407-		●
52	CLIP; EVAP PIPE HONG KONG EQUIPMENT(PQ1) ID=7 L=16	9-09524-622-0	01	1	9307-	●
66	HOSE; FUEL,RETURN PIPE L=70	8-94363-218-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB5VF) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB5VF) M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
85	BOLT; CLIP,FUEL HOSE M8X12 W/LK WASHER	0-50040-812-0	01	1	9307-		●
87	NUT; CLIP,FUEL HOSE LONG(WFB5VF) M8	9-09110-508-0	01	1	9307-9406	●
87	NUT; CLIP,FUEL HOSE LONG(WFB5VF) M8	9-09110-408-0	01	1	9407-	●
94	CLIP; HOSE,FILTER (A) ID=13 & 15	8-94233-594-0	01	1	9307-	●
94	CLIP; HOSE,FILTER (B) ID=16	8-94238-568-0	02	1	9307-	●
94	CLIP; HOSE,FILTER LONG(WFB5VF) (C)	8-94227-880-0	01	1	9307-	●	●
100	CLIP; FUEL PIPE (A) 3WAY	8-94239-646-0	01	1	9307-	●	●
100	CLIP; FUEL PIPE (B) ID=5 & 8	5-09700-165-0	02	1	9307-		●
119	HOSE; FUEL PUMP TO FEED PIPE STANDARD(WFB5VC) L=280 SERVICED BY L=3000	0-01258-300-0	01	1	9307-	●
119	HOSE; FUEL PUMP TO FEED PIPE LONG(WFB5VF) L=770 SERVICED BY L=3000	0-01258-300-0	01	1	9307-9307	●
119	HOSE; FUEL PUMP TO FEED PIPE LONG(WFB5VF) L=780 SERVICED BY L=3000	0-01258-300-0	01	1	9308-	●
120	CLIP; HOSE,FUEL PUMP (A) ID=14	8-94238-572-0	02	1	9307-	●
120	CLIP; HOSE,FUEL PUMP LONG(WFB5VF) (B) ID=16 L=48	9-09916-568-1	01	1	9307-	●
124	CLIP; HOSE HONG KONG EQUIPMENT(PQ1) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9307-	●
124	CLIP; HOSE HONG KONG EQUIPMENT(PQ1) (A) ID=13 & 15	8-94233-594-0	01	1	9307-	●
125	HOSE; FUEL PUMP TO FUEL FILTER	8-94364-373-0	01	1	9307-	●
146	CLIP; HOSE,FUEL RETURN PIPE (A) ID=11	8-94238-570-0	02	1	9307-	●	●
146	CLIP; HOSE,FUEL RETURN PIPE (B) ID=6 H=20 L=20	9-09527-005-0	01	1	9307-		●
147	CLIP; FUEL PIPE TO HOSE ID=12	8-94238-610-0	02	1	9307-	●
147	CLIP; FUEL PIPE TO HOSE ID=11	8-94238-570-0	02	1	9307-	●	●
148	CLIP; HOSE,FUEL (B)	5-09700-163-2	01	1	9307-	●
148	CLIP; HOSE,FUEL (A)	8-94227-880-0	01	1	9307-	●	●
149	BOLT; CLIP,HOSE M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
156	BRACKET; FUEL HOSE	8-94233-591-1	01	1	9307-	●
162	CLIP; HOSE,FUEL PIPE ID=14	8-94238-572-0	02	1	9307-	●
163	VALVE; 1 WAY,FUEL RETURN	8-94321-059-0	01	1	9307-	●
164	HOSE; RUBBER,FUEL RETURN STANDARD(WFB5VC) L=410	8-94363-219-0	01	1	9307-	●
164	HOSE; RUBBER,FUEL RETURN LONG(WFB5VF) L=780	8-94363-220-0	01	1	9307-	●
171	BOLT; CLIP M6X12	0-20800-612-0	01	1	9307-	●
171	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-	●
171	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-		●
226	CLIP; BAND L=140	5-09707-031-0	01	1	9307-	●	●
232	BOLT; CLIP,PIPE M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
232	BOLT; CLIP,PIPE M6X12	0-20800-612-0	02	1	9307-		●
236	PIPE; FUEL,CANISTER HONG KONG EQUIPMENT(PQ1)	8-97016-776-0	01	1	9307-	●
237	PIPE; FUEL,CANISTER,AIR VENT HONG KONG EQUIPMENT(PQ1) OD=8	8-94424-075-1	01	1	9307-	●
238	CLIP; FUEL EVAP PIPE LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) ID=6 H=20 L=20	9-09527-005-0	01	1	9307-	●
239	CLIP; FUEL PIPE HONG KONG EQUIPMENT(PQ1) ID=9 L=16	9-09524-822-0	01	1	9307-	●
240	BOLT; EVAP PIPE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●
241	PIPE; EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (A)ZINC PLATING	8-94233-595-1	01	1	9307-9406	●
241	PIPE; EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (A)PLASTIC COATING	8-94122-943-0	01	1	9407-	●
241	PIPE; EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (B)ZINC PLATING OD=6.35	8-94233-596-1	01	1	9307-9406	●
241	PIPE; EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (B)PLASTIC COATING OD=6.35	8-94122-944-0	01	1	9407-	●
243	HOSE; CANISTER TO FUEL PIPE HONG KONG EQUIPMENT(PQ1) L=400 SERVICED BY L=3000	0-04790-300-0	01	1	9307-	●
245	CLIP; EVAP HOSE HONG KONG EQUIPMENT(PQ1) ID=11	8-94238-570-0	04	1	9307-	●
245	CLIP; EVAP HOSE LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) ID=11	8-94238-570-0	09	1	9307-	●
246	BRACKET; CANISTER HONG KONG EQUIPMENT(PQ1)	8-97100-661-1	01	1	9307-	●
247	BOLT; CANISTER BRKT HONG KONG EQUIPMENT(PQ1) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9307-	●
249	VALVE; CONT,EVAP HONG KONG EQUIPMENT(PQ1) (A)	8-94151-559-1	01	1	9307-9308	●
249	VALVE; CONT,EVAP HONG KONG EQUIPMENT(PQ1) (A)	8-97076-391-0	01	1	9309-	●
249	VALVE; CONT,EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (B)	8-94222-045-0	01	1	9307-	●
255	HOSE; EVAP,2 WAY VALVE HONG KONG EQUIPMENT(PQ1) L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9307-	●
257	HOSE; EVAP,FUEL TANK TO JOINT STANDARD(WFB5VC) HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=3000	0-04750-300-0	01	1	9307-	●
257	HOSE; EVAP,FUEL TANK TO JOINT LONG(WFB5VF) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=840 SERVICED BY L=3000	0-04750-300-0	01	1	9307-	●
261	HOSE; CONT VALVE HONG KONG EQUIPMENT(PQ1) L=100 SERVICED BY L=3000	0-04750-300-0	01	1	9307-9402	●
261	HOSE; CONT VALVE HONG KONG EQUIPMENT(PQ1) L=115 ID=5.4 & 7.0	8-94335-689-1	01	1	9403-	●
262	HOSE; CANISTER PURGE HONG KONG EQUIPMENT(PQ1)	8-97100-675-0	01	1	9307-	●
263	HOSE; CANISTER SIGNAL HONG KONG EQUIPMENT(PQ1) L=780	8-94425-273-1	01	1	9307-9406	●
263	HOSE; CANISTER SIGNAL HONG KONG EQUIPMENT(PQ1) L=780 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
270	PUMP ASM; FUEL	8-94241-179-2	01	1	9307-	●

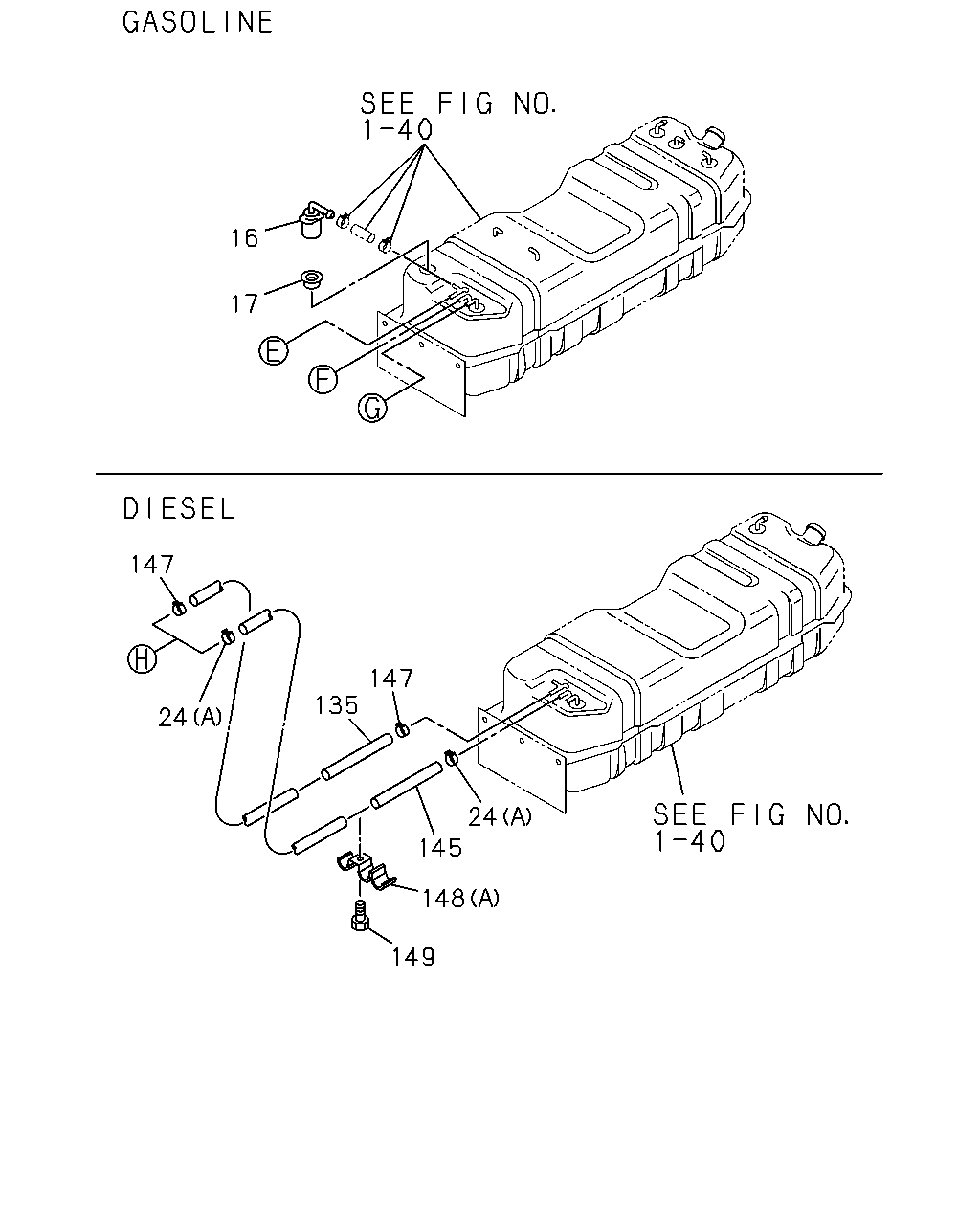

16 17 147 147 135 24 24 145 148 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	VALVE; FLOAT,FUEL TANK HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94173-276-0	02	1	9307-	●
17	SEAL; FLOAT,VALVE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94246-338-2	02	1	9307-	●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	02	1	9307-9406	●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	02	1	9407-	●
24	CLIP; FUEL HOSE LONG(WFB5VF) IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) (A) ID=14	8-94238-572-0	02	1	9407-		●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	04	1	9307-		●
24	CLIP; FUEL HOSE (B) ID=13 & 15	8-94428-546-0	01	1	9307-		●
135	HOSE; FUEL TANK TO FUEL PIPE STANDARD(WFB5VC) L=570 SERVICED BY L=3000	0-01158-300-0	01	1	9307-9307		●
135	HOSE; FUEL TANK TO FUEL PIPE STANDARD(WFB5VC) L=570 SERVICED BY L=3000	0-01258-300-0	01	1	9308-		●
135	HOSE; FUEL TANK TO FUEL PIPE LONG(WFB5VF) L=870 SERVICED BY L=3000	0-01158-300-0	01	1	9307-9307		●
135	HOSE; FUEL TANK TO FUEL PIPE LONG(WFB5VF) L=870 SERVICED BY L=3000	0-01258-300-0	01	1	9308-		●
145	HOSE; FUEL TANK TO RETURN PIPE STANDARD(WFB5VC) L=520 SERVICED BY L=3000	0-01154-300-0	01	1	9307-9307		●
145	HOSE; FUEL TANK TO RETURN PIPE STANDARD(WFB5VC) L=520 SERVICED BY L=3000	0-01254-300-0	01	1	9308-		●
145	HOSE; FUEL TANK TO RETURN PIPE LONG(WFB5VF) L=870 SERVICED BY L=3000	0-01154-300-0	01	1	9307-9307		●
145	HOSE; FUEL TANK TO RETURN PIPE LONG(WFB5VF) L=880 SERVICED BY L=3000	0-01254-300-0	01	1	9308-		●
147	CLIP; FUEL PIPE TO HOSE ID=12	8-94238-610-0	02	1	9307-	●
147	CLIP; FUEL PIPE TO HOSE ID=11	8-94238-570-0	02	1	9307-	●	●
148	CLIP; HOSE,FUEL (B)	5-09700-163-2	01	1	9307-	●
148	CLIP; HOSE,FUEL (A)	8-94227-880-0	01	1	9307-	●	●
149	BOLT; CLIP,HOSE M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●

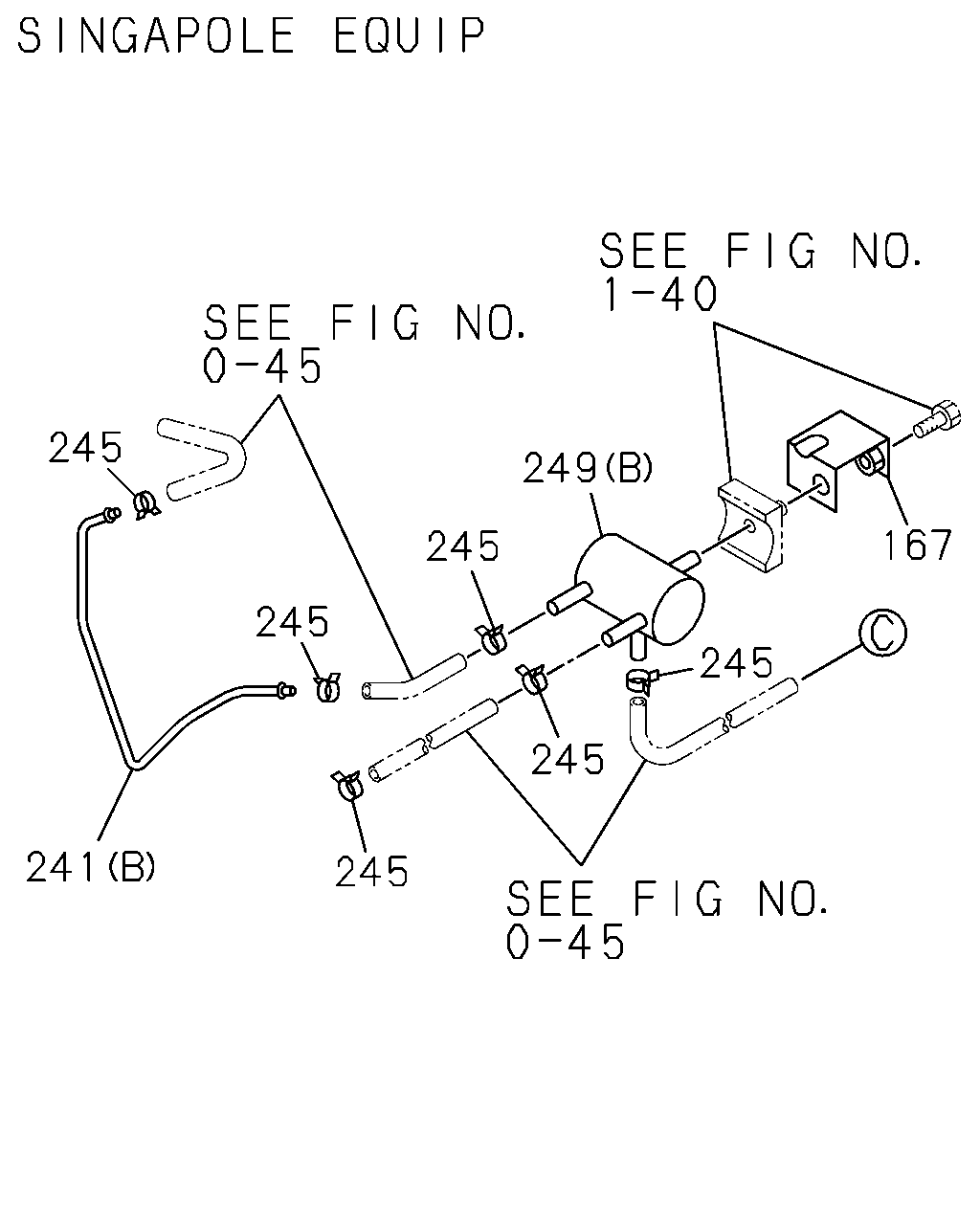

245 249 167 245 245 245 245 241 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
167	BRACKET LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y)	8-94233-590-1	01	1	9307-	●	●
241	PIPE; EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (A)ZINC PLATING	8-94233-595-1	01	1	9307-9406	●
241	PIPE; EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (A)PLASTIC COATING	8-94122-943-0	01	1	9407-	●
241	PIPE; EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (B)ZINC PLATING OD=6.35	8-94233-596-1	01	1	9307-9406	●
241	PIPE; EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (B)PLASTIC COATING OD=6.35	8-94122-944-0	01	1	9407-	●
245	CLIP; EVAP HOSE HONG KONG EQUIPMENT(PQ1) ID=11	8-94238-570-0	04	1	9307-	●
245	CLIP; EVAP HOSE LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) ID=11	8-94238-570-0	09	1	9307-	●
249	VALVE; CONT,EVAP HONG KONG EQUIPMENT(PQ1) (A)	8-94151-559-1	01	1	9307-9308	●
249	VALVE; CONT,EVAP HONG KONG EQUIPMENT(PQ1) (A)	8-97076-391-0	01	1	9309-	●
249	VALVE; CONT,EVAP LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) (B)	8-94222-045-0	01	1	9307-	●

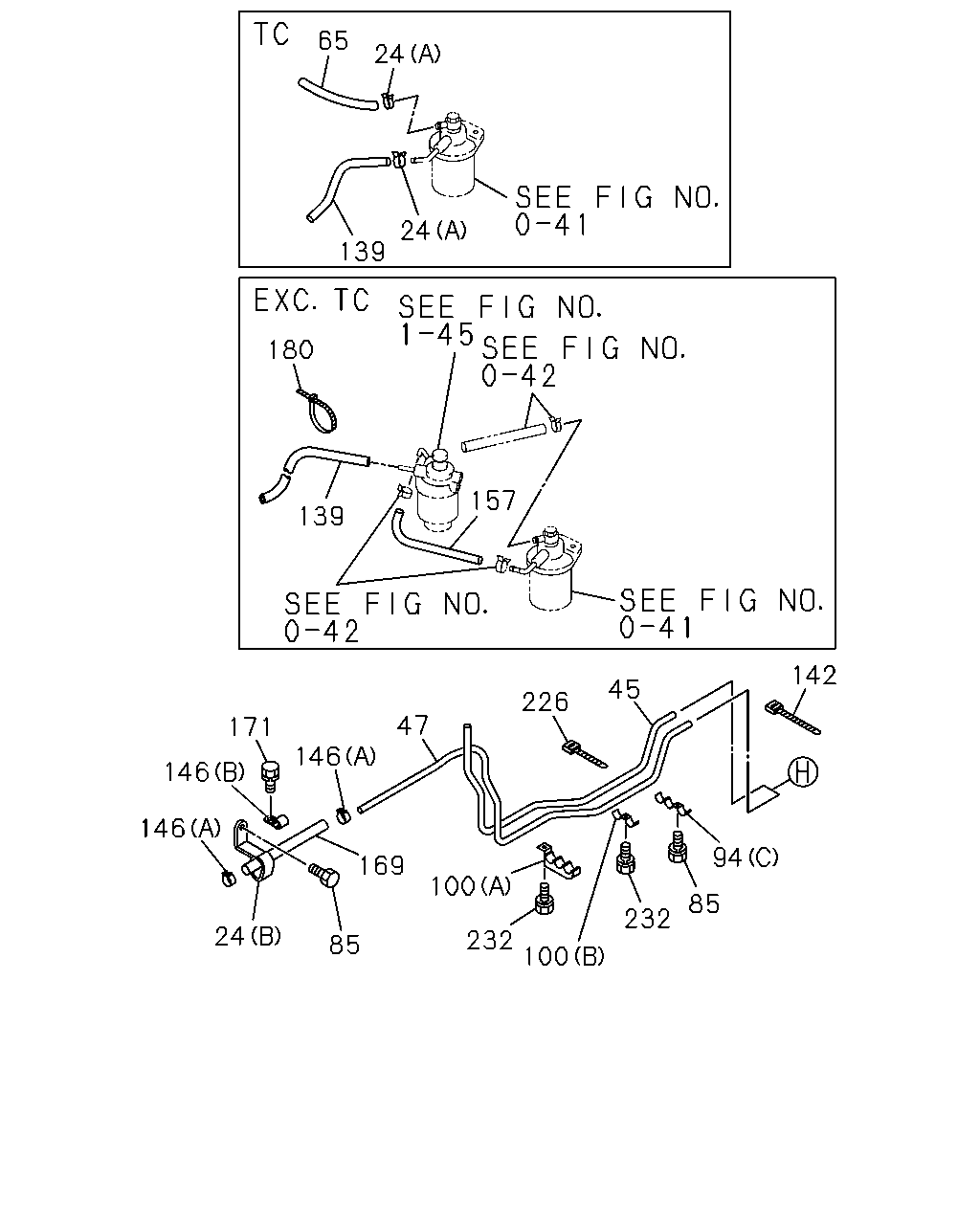

65 24 24 139 180 157 139 142 45 226 47 171 146 146 146 94 169 100 85 232 24 232 100 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	02	1	9307-9406	●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	02	1	9407-	●
24	CLIP; FUEL HOSE LONG(WFB5VF) IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) (A) ID=14	8-94238-572-0	02	1	9407-		●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	04	1	9307-		●
24	CLIP; FUEL HOSE (B) ID=13 & 15	8-94428-546-0	01	1	9307-		●
45	PIPE; FUEL,DELIVERY ZINC PLATING	8-94227-116-1	01	1	9307-9406	●
45	PIPE; FUEL,DELIVERY PLASTIC COATING	8-94117-958-0	01	1	9407-	●
45	PIPE; FUEL,DELIVERY	8-94250-147-0	01	1	9307-		●
47	PIPE; FUEL,RETURN ZINC PLATING	8-97016-772-0	01	1	9307-9406	●
47	PIPE; FUEL,RETURN PLASTIC COATING	8-97016-775-0	01	1	9407-	●
47	PIPE; FUEL,RETURN	8-97016-773-0	01	1	9307-9406		●
47	PIPE; FUEL,RETURN	8-97016-774-0	01	1	9407-		●
65	HOSE; FUEL,DELIVERY PIPE LONG(WFB5VF) TURBOCHARGER(K51) L=520 SERVICED BY L=3000	0-01258-300-0	01	1	9407-		●
85	BOLT; CLIP,FUEL HOSE M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB5VF) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●
85	BOLT; CLIP,FUEL HOSE LONG(WFB5VF) M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
85	BOLT; CLIP,FUEL HOSE M8X12 W/LK WASHER	0-50040-812-0	01	1	9307-		●
94	CLIP; HOSE,FILTER (A) ID=13 & 15	8-94233-594-0	01	1	9307-	●
94	CLIP; HOSE,FILTER (B) ID=16	8-94238-568-0	02	1	9307-	●
94	CLIP; HOSE,FILTER LONG(WFB5VF) (C)	8-94227-880-0	01	1	9307-	●	●
100	CLIP; FUEL PIPE (A) 3WAY	8-94239-646-0	01	1	9307-	●	●
100	CLIP; FUEL PIPE (B) ID=5 & 8	5-09700-165-0	02	1	9307-		●
139	HOSE; OIL TANK DRAIN L=180 SERVICED BY L=3000	0-01258-300-0	01	1	9307-9307		●
139	HOSE; OIL TANK DRAIN L=180 SERVICED BY L=3000	0-01258-300-0	01	1	9308-		●
142	CLIP; BAND,FUEL HOSE LONG(WFB5VF) TURBOCHARGER(K51) L=140	5-09707-031-0	01	1	9407-		●
146	CLIP; HOSE,FUEL RETURN PIPE (A) ID=11	8-94238-570-0	02	1	9307-	●	●
146	CLIP; HOSE,FUEL RETURN PIPE (B) ID=6 H=20 L=20	9-09527-005-0	01	1	9307-		●
157	HOSE; FUEL FILTER TO FEED PIPE L=115 SERVICED BY L=3050	8-94209-301-1	01	1	9307-9307		●
157	HOSE; FUEL FILTER TO FEED PIPE L=120 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9406		●
157	HOSE; FUEL FILTER TO FEED PIPE EXC. TURBOCHARGER(K51) L=120 SERVICED BY L=3000	0-01258-300-0	01	1	9407-		●
169	HOSE; INJ PIPE TO RETURN PIPE L=370 SERVICED BY L=3000	0-01154-300-0	01	1	9307-9307		●
169	HOSE; INJ PIPE TO RETURN PIPE L=370 SERVICED BY L=3000	0-01254-300-0	01	1	9308-9406		●
169	HOSE; INJ PIPE TO RETURN PIPE EXC. TURBOCHARGER(K51) L=370 SERVICED BY L=3000	0-01254-300-0	01	1	9407-		●
169	HOSE; INJ PIPE TO RETURN PIPE LONG(WFB5VF) TURBOCHARGER(K51) L=400 W/PROTECTOR	8-97093-693-0	01	1	9407-		●
171	BOLT; CLIP M6X12	0-20800-612-0	01	1	9307-	●
171	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-	●
171	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-		●
180	CLIP; DELIVERY & RETURN L=100	5-09707-036-0	01	1	9307-9406		●
180	CLIP; DELIVERY & RETURN EXC. TURBOCHARGER(K51) L=100	5-09707-036-0	01	1	9407-		●
226	CLIP; BAND L=140	5-09707-031-0	01	1	9307-	●	●
232	BOLT; CLIP,PIPE M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●	●
232	BOLT; CLIP,PIPE M6X12	0-20800-612-0	02	1	9307-		●
