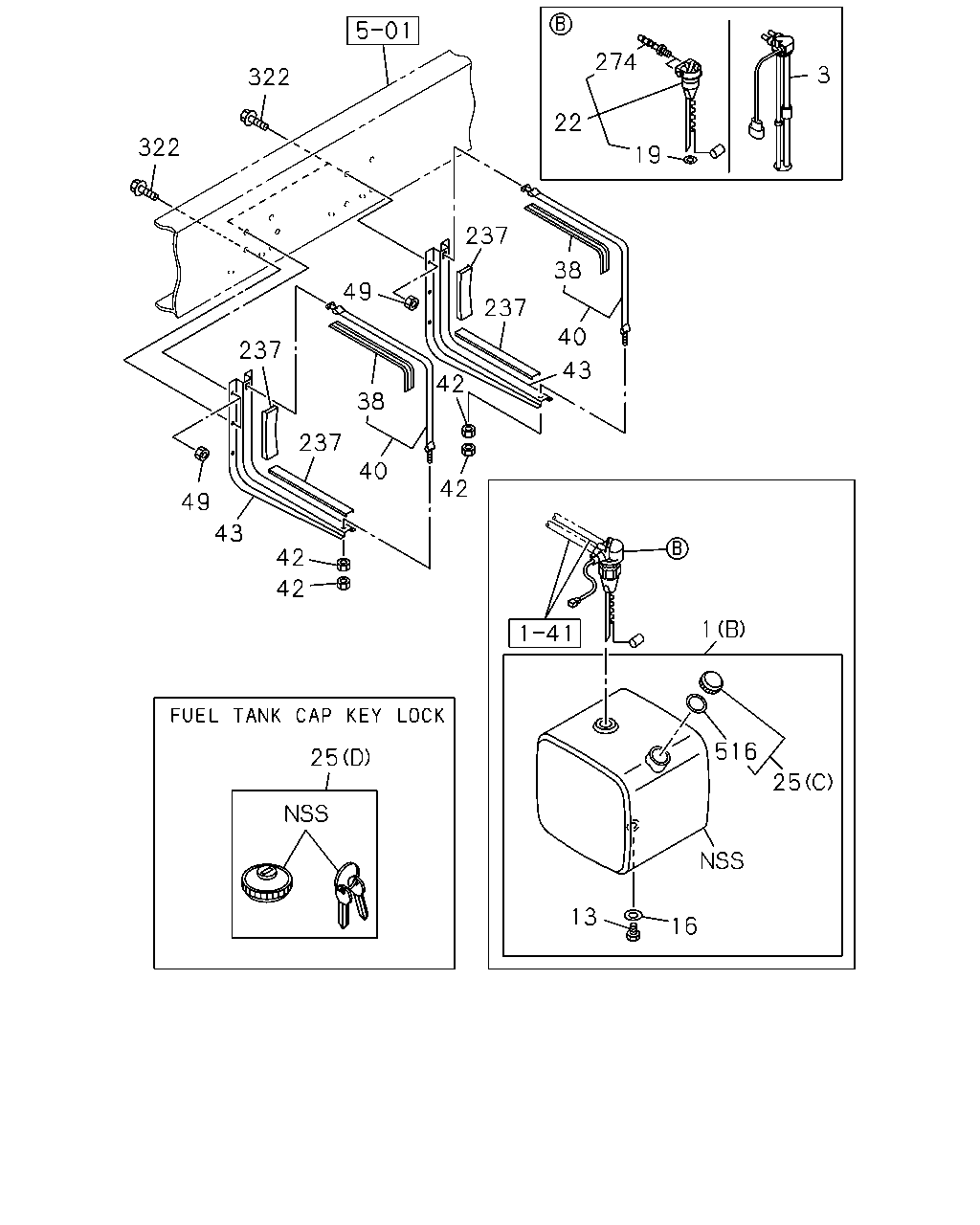

1-40 — FUEL TANK (#37342) — 96 parça

467 329 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
329	JOINT ASM; EYE,FUEL PIPE (A)	8-94409-622-0	01	1	0801-1002	●	●
329	JOINT ASM; EYE,FUEL PIPE (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1003-	●	●
329	JOINT ASM; EYE,FUEL PIPE (B)	8-97358-699-0	01	1	0801-1002	●	●
329	JOINT ASM; EYE,FUEL PIPE (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1003-	●	●
467	BOLT NPTF3/8-18	8-97329-623-0	02	1	0801-	●	●

322 322 237 49 43 237 38 49 42 42 40 42 42 237 237 38 22 274 19 3 40 43 25 1 516 25 16 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-173-1	01	1	0801-0810	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-173-1	01	1	0801-0810		●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-788-3	01	1	1110-	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 514X680X625 200L	1-87411-167-0	01	1	0801-1004		●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 514X685X625 200L	1-87412-051-0	01	1	1005-		●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1211-	●	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	0-92002-418-0	01	1	0801-1210	●	●
16	GASKET; PLUG ID=18.2 T=1.6	8-98030-453-0	01	1	0801-1210	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0801-1210	●	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0801-1210	●	●
25	CAP; FILLER,FUEL TANK (A)	1-22440-063-1	01	1	0801-0810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	1-22440-063-1	01	1	0801-0810		●
25	CAP; FILLER,FUEL TANK (A)	8-98115-780-0	01	1	0811-1109	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	0811-1109		●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1110-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1110-		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	0805-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	0805-		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (D)	1-22440-057-2	01	1	0804-1211		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> FUEL TANK CAP KEY LOCK<N05> (D)	1-22440-057-2	01	1	1212-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0801-		●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	0801-	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	0801-1110	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0801-	●	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	0801-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0801-		●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-529-1	02	1	0801-		●
49	NUT; BRKT M12	0-91110-512-0	08	1	0801-	●	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	0801-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0801-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=450	1-22553-042-1	02	1	0801-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=540	1-22553-064-1	02	1	0801-		●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0801-1210	●	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	0801-	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	0801-		●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X40 FLANGE	0-28051-240-0	08	1	0801-		●
516	GASKET; CAP FUEL TANK 200L AL<THF> ID=78	8-98259-383-0	01	1	0801-		●

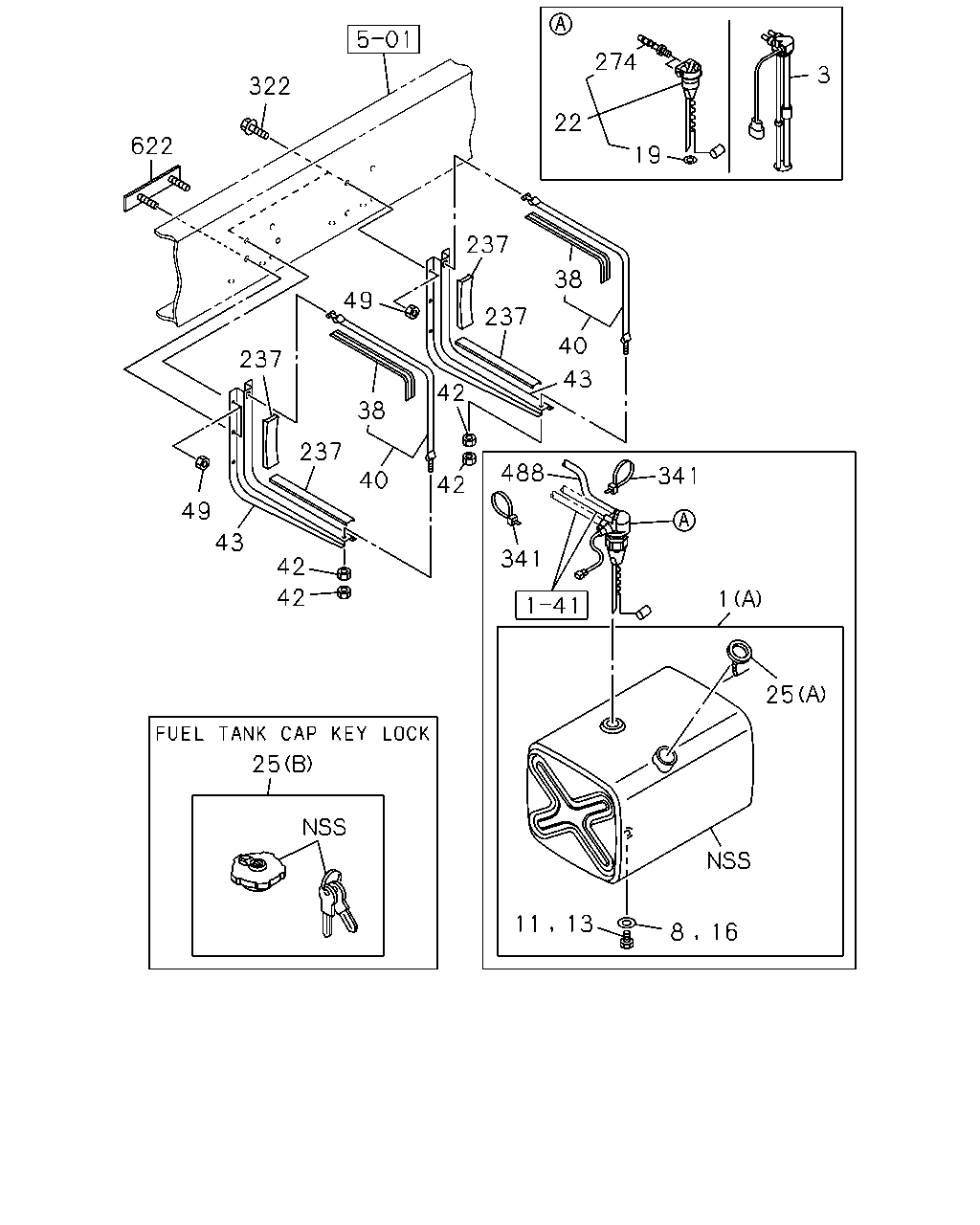

8 16 13 11 25 25 1 341 341 488 43 40 38 237 237 42 42 49 38 40 237 42 42 43 49 237 622 322 22 274 19 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-173-1	01	1	0801-0810	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-173-1	01	1	0801-0810		●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-788-3	01	1	1110-	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 514X680X625 200L	1-87411-167-0	01	1	0801-1004		●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 514X685X625 200L	1-87412-051-0	01	1	1005-		●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1211-	●	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	0-92002-418-0	01	1	0801-1210	●	●
16	GASKET; PLUG ID=18.2 T=1.6	8-98030-453-0	01	1	0801-1210	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0801-1210	●	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0801-1210	●	●
25	CAP; FILLER,FUEL TANK (A)	1-22440-063-1	01	1	0801-0810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	1-22440-063-1	01	1	0801-0810		●
25	CAP; FILLER,FUEL TANK (A)	8-98115-780-0	01	1	0811-1109	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	0811-1109		●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1110-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1110-		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	0805-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	0805-		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (D)	1-22440-057-2	01	1	0804-1211		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> FUEL TANK CAP KEY LOCK<N05> (D)	1-22440-057-2	01	1	1212-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0801-		●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	0801-	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	0801-1110	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0801-	●	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	0801-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0801-		●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-529-1	02	1	0801-		●
49	NUT; BRKT M12	0-91110-512-0	08	1	0801-	●	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	0801-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0801-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=450	1-22553-042-1	02	1	0801-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=540	1-22553-064-1	02	1	0801-		●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0801-1210	●	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	0801-	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	0801-		●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X40 FLANGE	0-28051-240-0	08	1	0801-		●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	0801-	●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 400L<SDH> L=350	1-09707-183-0	02	1	0801-		●
488	HOSE; RUBBER	8-98049-832-0	01	1	0801-0811	●
488	HOSE; RUBBER FUEL TANK 400L<SDH>	8-98049-832-0	01	1	0801-0811		●
488	HOSE; RUBBER	8-98134-936-0	01	1	0812-	●
488	HOSE; RUBBER FUEL TANK 400L<SDH>	8-98134-936-0	01	1	0812-		●
622	STUD; BRACKET	1-53461-534-0	01	1	0801-	●
622	STUD; BRACKET FUEL TANK 400L<SDH>	1-53461-534-0	01	1	0801-		●
