◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶

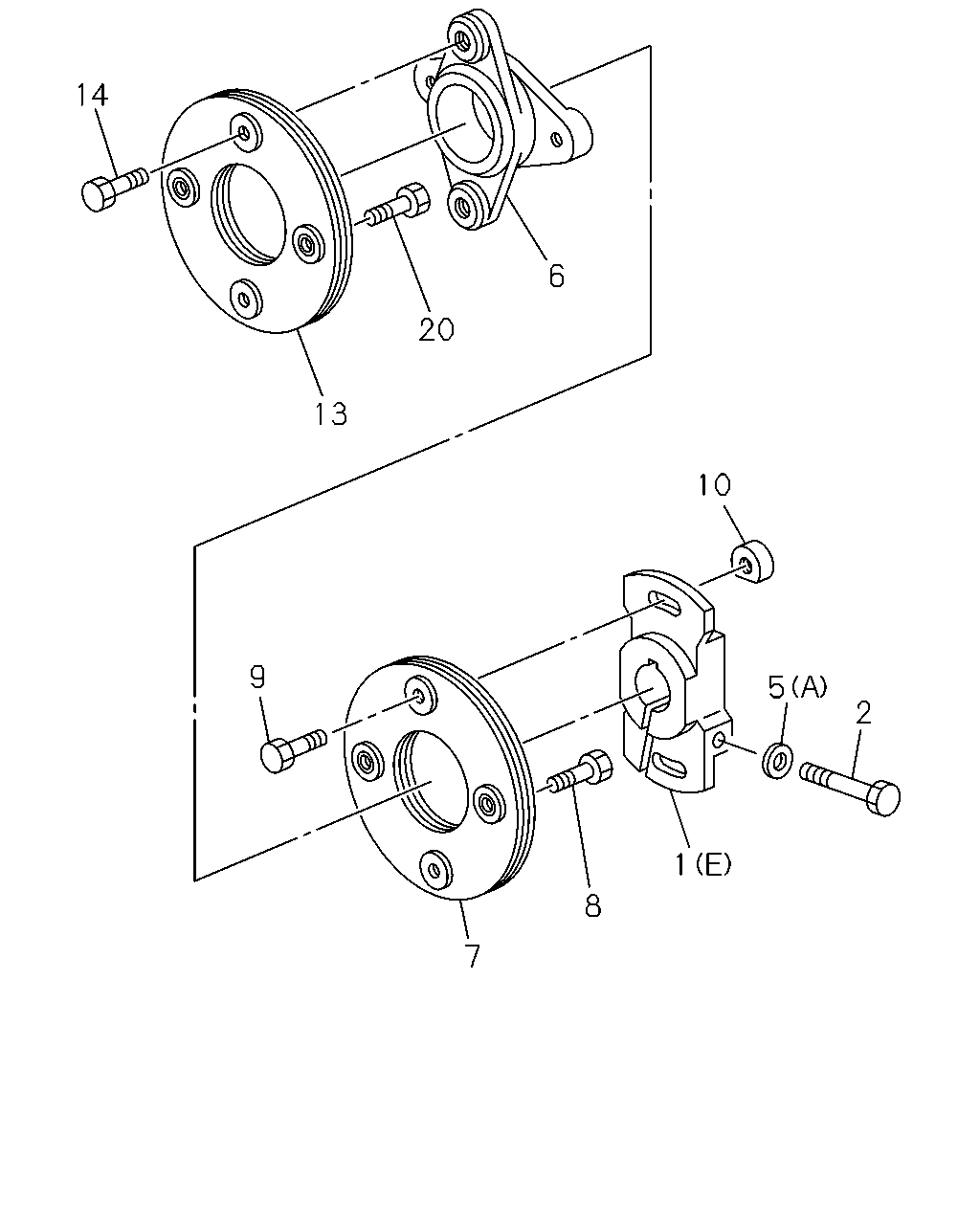

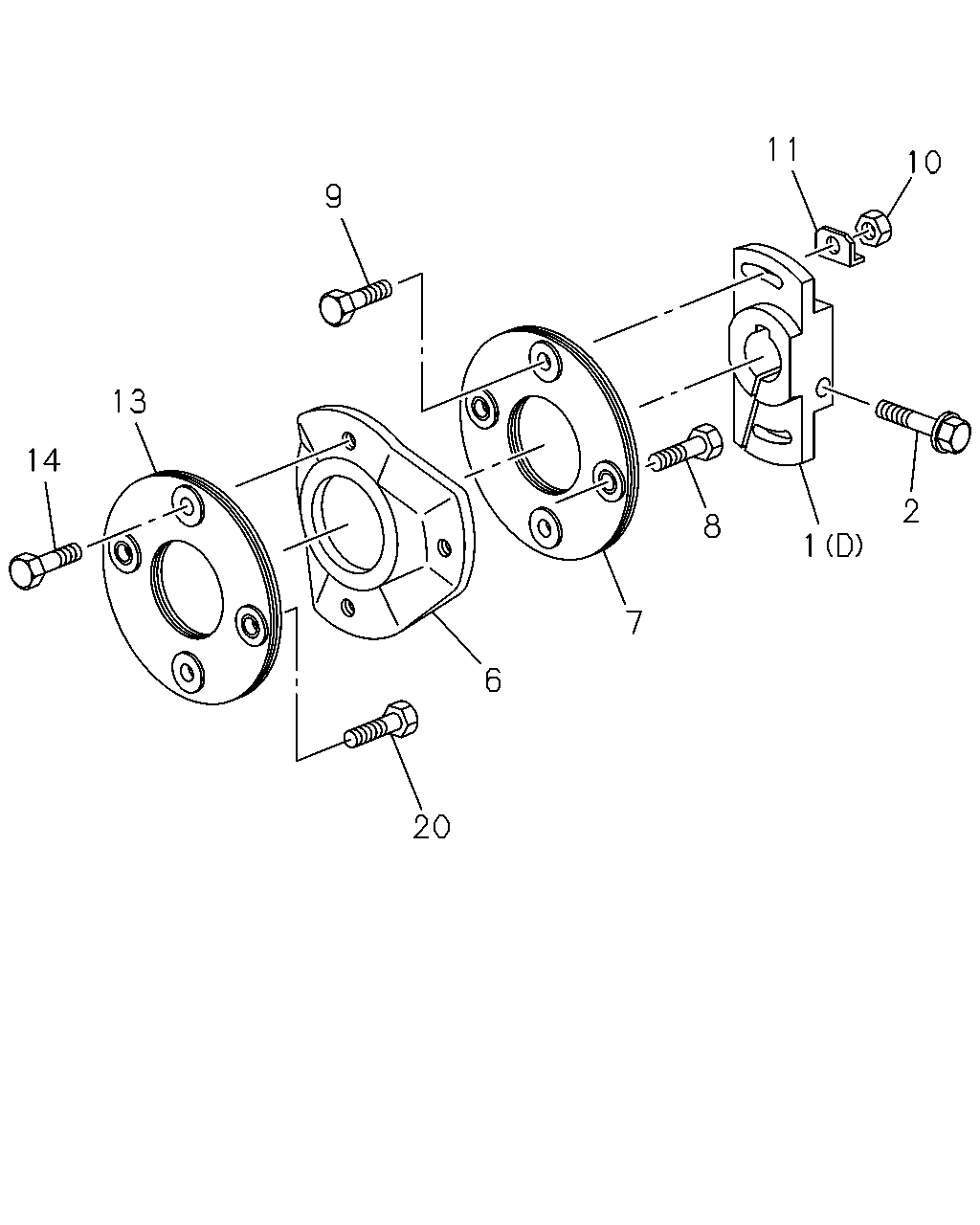

0-87 — COUPLING; INJECTION PUMP (#3734) — 680 parça
çizim 6062
14 6 20 13 9 11 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (E) 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9601-9709 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9710-9806 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (B) 		1-15781-031-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15781-041-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-014-0 01 1 9901-0209 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-15782-014-0 01 1 0210- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-038-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-039-0 01 1 9601-0612 ●
1 COUPLING; INJ PUMP DRIVE
EXC. ANTI NOISE EQUIPMENT ECE<SLK> (E) 		1-15781-039-0 01 1 0701-0702 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (E) 		1-15781-039-0 01 1 0703- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9601-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9710-9806 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9807-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9807-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9601-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-010-0 01 1 9901-0209 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-010-0 01 1 0210- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-135-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-162-0 01 1 9710- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9710- ●
5 WASHER; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> (B) 		1-15619-131-0 01 1 9710- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9601-9709 ●
5 WASHER; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-021-0 01 1 9710- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9710- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9601-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9710-9806 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9807-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9807-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9601-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-155-0 01 1 9901-0209 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-155-0 01 1 0210- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-104-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 9710-0003 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9710-0003 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-221-0 01 1 0004- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9601-9709 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9710-9806 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9807-9812 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9807-9812 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-189-1 01 1 9710- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9601-9812 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9901-0209 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-194-0 01 1 0210- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9601-9709 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9807-9812 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9601-9812 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15749-501-0 02 1 9901-0209 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15749-501-0 02 1 0210- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-120-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-9709 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9710- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9601-9709 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9710-9806 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9807-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9807-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-163-0 02 1 9710- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9601-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-122-0 02 1 9901-0209 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-122-0 02 1 0210- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15749-488-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-188-0 02 1 9710- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15749-432-0 02 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9601-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9710-9806 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9807-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9807-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9601-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9901-0209 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-194-0 01 1 0210- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-181-0 01 1 9710- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9710- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9601-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9807-9812 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9908 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-120-0 02 1 9909- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9909- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9710- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9601-9709 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9807-9812 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9812 ● ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-119-0 02 1 9901- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9901- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-9709 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9710- ●
çizim 7649
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (E) 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9601-9709 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9710-9806 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (B) 		1-15781-031-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15781-041-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-014-0 01 1 9901-0209 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-15782-014-0 01 1 0210- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-038-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-039-0 01 1 9601-0612 ●
1 COUPLING; INJ PUMP DRIVE
EXC. ANTI NOISE EQUIPMENT ECE<SLK> (E) 		1-15781-039-0 01 1 0701-0702 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (E) 		1-15781-039-0 01 1 0703- ●
3 NUT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-132-0 01 1 9710- ●
5 WASHER; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> (B) 		1-15619-131-0 01 1 9710- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9601-9709 ●
5 WASHER; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-021-0 01 1 9710- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9710- ●
çizim 39086
14 6 20 13 10 9 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (E) 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9601-9709 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9710-9806 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (B) 		1-15781-031-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15781-041-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-014-0 01 1 9901-0209 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-15782-014-0 01 1 0210- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-038-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-039-0 01 1 9601-0612 ●
1 COUPLING; INJ PUMP DRIVE
EXC. ANTI NOISE EQUIPMENT ECE<SLK> (E) 		1-15781-039-0 01 1 0701-0702 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (E) 		1-15781-039-0 01 1 0703- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9601-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9710-9806 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9807-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9807-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9601-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-010-0 01 1 9901-0209 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-010-0 01 1 0210- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-135-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-162-0 01 1 9710- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9710- ●
5 WASHER; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> (B) 		1-15619-131-0 01 1 9710- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9601-9709 ●
5 WASHER; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15789-021-0 01 1 9710- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9710- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9601-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9710-9806 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9807-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9807-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9601-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-155-0 01 1 9901-0209 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-155-0 01 1 0210- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-104-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 9710-0003 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9710-0003 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-221-0 01 1 0004- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9601-9709 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9710-9806 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9807-9812 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9807-9812 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-189-1 01 1 9710- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9601-9812 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9901-0209 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-194-0 01 1 0210- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9601-9709 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9807-9812 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9601-9812 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15749-501-0 02 1 9901-0209 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15749-501-0 02 1 0210- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-120-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-9709 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9710- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9601-9709 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9710-9806 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9807-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9807-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-163-0 02 1 9710- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9601-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-122-0 02 1 9901-0209 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-122-0 02 1 0210- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15749-488-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9601-9709 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 9710-9806 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 9807-9812 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9807-9812 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 9901-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-167-0 02 1 9901-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9901-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 0005- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-167-0 02 1 0005- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9601-9812 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-066-0 02 1 9901-0209 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-066-0 02 1 0210- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
M8 		9-09110-508-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9601-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9710-9806 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9807-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9807-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9601-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9901-0209 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-194-0 01 1 0210- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-181-0 01 1 9710- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9710- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9601-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9807-9812 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9908 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-120-0 02 1 9909- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9909- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9710- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9601-9709 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9807-9812 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9812 ● ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-119-0 02 1 9901- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9901- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-9709 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9710- ●

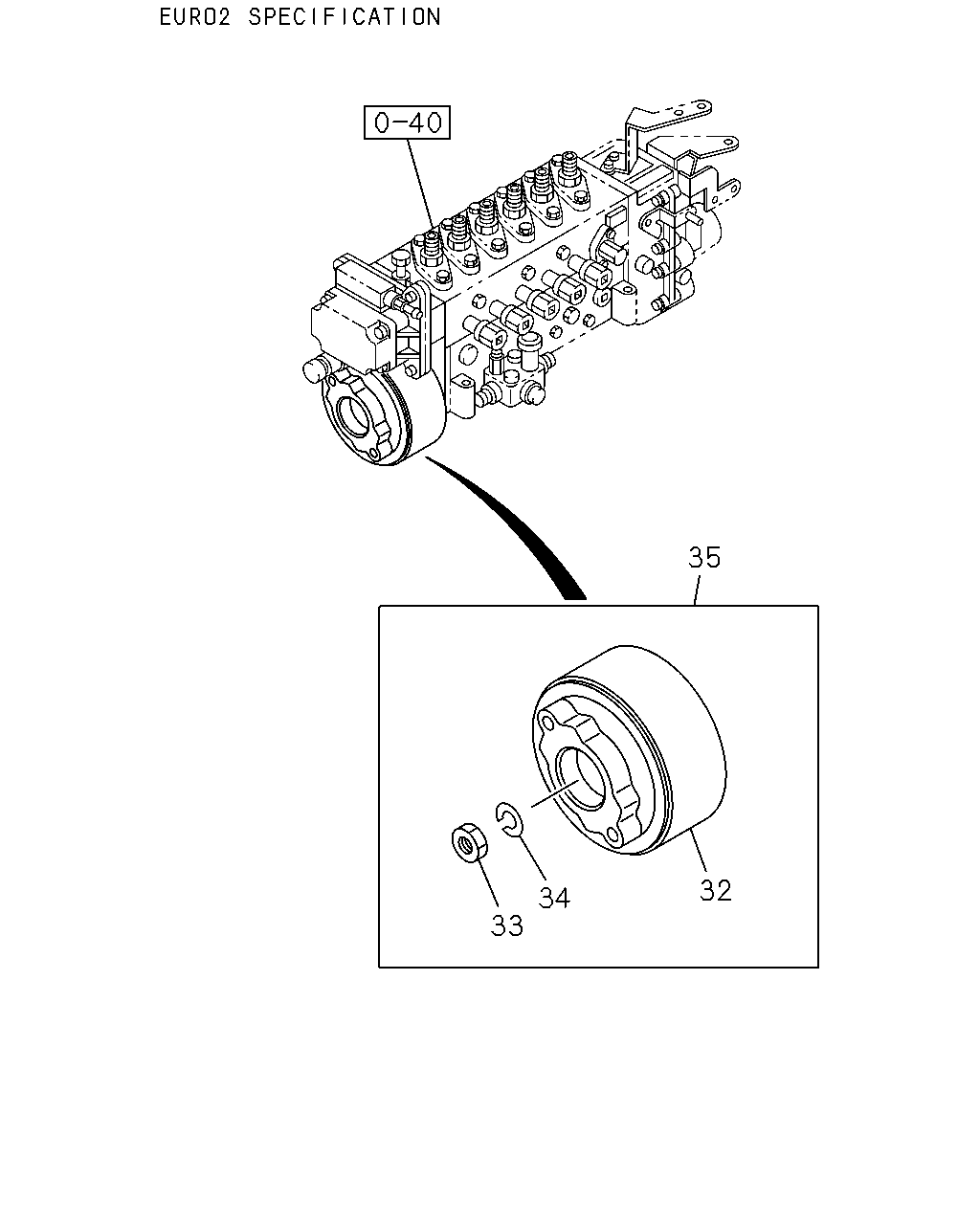

çizim 39114
35 32 34 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-008-1 01 1 9804-0004 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-024-0 01 1 0005- ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-020-0 01 1 9804- ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-002-0 01 1 9804- ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-014-1 01 1 9804-0004 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-026-0 01 1 0005- ●
çizim 40530
14 6 20 13 2 10 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (E) 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9601-9709 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9710-9806 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (B) 		1-15781-031-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15781-041-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-014-0 01 1 9901-0209 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-15782-014-0 01 1 0210- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-038-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-039-0 01 1 9601-0612 ●
1 COUPLING; INJ PUMP DRIVE
EXC. ANTI NOISE EQUIPMENT ECE<SLK> (E) 		1-15781-039-0 01 1 0701-0702 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (E) 		1-15781-039-0 01 1 0703- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9601-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9710-9806 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9807-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9807-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9601-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-010-0 01 1 9901-0209 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-010-0 01 1 0210- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-135-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-162-0 01 1 9710- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9710- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9601-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9710-9806 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9807-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9807-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9601-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-155-0 01 1 9901-0209 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-155-0 01 1 0210- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-104-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 9710-0003 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9710-0003 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-221-0 01 1 0004- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9601-9709 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9710-9806 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9807-9812 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9807-9812 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-189-1 01 1 9710- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9601-9812 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9901-0209 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-194-0 01 1 0210- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9601-9709 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9807-9812 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9601-9812 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15749-501-0 02 1 9901-0209 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15749-501-0 02 1 0210- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-120-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-9709 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9710- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9601-9709 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9710-9806 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9807-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9807-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-163-0 02 1 9710- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9601-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-122-0 02 1 9901-0209 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-122-0 02 1 0210- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15749-488-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9601-9709 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 9710-9806 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 9807-9812 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9807-9812 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 9901-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-167-0 02 1 9901-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9901-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 0005- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-167-0 02 1 0005- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9601-9812 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-066-0 02 1 9901-0209 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-066-0 02 1 0210- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
M8 		9-09110-508-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9601-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9710-9806 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9807-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9807-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9601-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9901-0209 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-194-0 01 1 0210- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-181-0 01 1 9710- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9710- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9601-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9807-9812 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9908 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-120-0 02 1 9909- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9909- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9710- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9601-9709 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9807-9812 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9812 ● ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-119-0 02 1 9901- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9901- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-9709 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9710- ●
çizim 43363
11 10 9 13 14 2 8 1 7 6 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (E) 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9601-9709 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9710-9806 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9807-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-019-0 01 1 9901-0004 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 0005- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (B) 		1-15781-031-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> (C) 		1-15781-041-0 01 1 9710- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9812 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-014-0 01 1 9901-0209 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> (A) 		1-15782-014-0 01 1 0210- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-038-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-039-0 01 1 9601-0612 ●
1 COUPLING; INJ PUMP DRIVE
EXC. ANTI NOISE EQUIPMENT ECE<SLK> (E) 		1-15781-039-0 01 1 0701-0702 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> (E) 		1-15781-039-0 01 1 0703- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9601-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9710-9806 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9807-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9807-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9901-0004 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-170-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 0005- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9601-9812 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-010-0 01 1 9901-0209 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-010-0 01 1 0210- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-135-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-162-0 01 1 9710- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9710- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9601-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9710-9806 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9807-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9807-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9901-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-184-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9601-9812 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-155-0 01 1 9901-0209 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-155-0 01 1 0210- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-104-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 9710-0003 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9710-0003 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) 		1-15789-161-0 01 1 0004-0004 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-161-0 01 1 0005- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION<THN> 		1-15789-221-0 01 1 0004- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9601-9709 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9710-9806 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9807-9812 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9807-9812 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9901-0004 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO2 SPECIFICATION<THN> 		1-15789-189-1 01 1 9710- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9601-9812 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9901-0209 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-194-0 01 1 0210- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9601-9709 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9807-9812 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9901-0004 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9601-9812 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15749-501-0 02 1 9901-0209 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15749-501-0 02 1 0210- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-120-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-9709 ●
8 BOLT; PLATE TO CROSS COUPLING
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9710- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9601-9709 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9710-9806 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9807-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9807-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9901-0004 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-182-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 0005- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-163-0 02 1 9710- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9601-9812 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-122-0 02 1 9901-0209 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-122-0 02 1 0210- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15749-488-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9601-9709 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 9710-9806 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 9807-9812 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9807-9812 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 9901-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-167-0 02 1 9901-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9901-0004 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-167-0 02 1 0005- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-167-0 02 1 0005- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9601-9812 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-066-0 02 1 9901-0209 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-066-0 02 1 0210- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
M8 		9-09110-508-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15789-188-0 02 1 9710- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15749-432-0 02 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9601-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9710-9806 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9807-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9807-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9901-0004 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-199-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 0005- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9601-9812 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9901-0209 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT ECE<SLK> 		1-15789-194-0 01 1 0210- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-181-0 01 1 9710- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9710- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9601-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9807-9812 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9901-0004 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9908 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-120-0 02 1 9909- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9909- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9710- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9601-9709 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9710-9806 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9807-9812 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9807-9812 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9901-0004 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> 		1-15789-183-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 0005- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9812 ● ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-119-0 02 1 9901- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9901- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-9709 ●
20 BOLT; COUPLING TO INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15619-183-0 02 1 9710- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9710- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
