0-85A — AUTO TIMER; INJECTION PUMP (#3732) — 149 parça

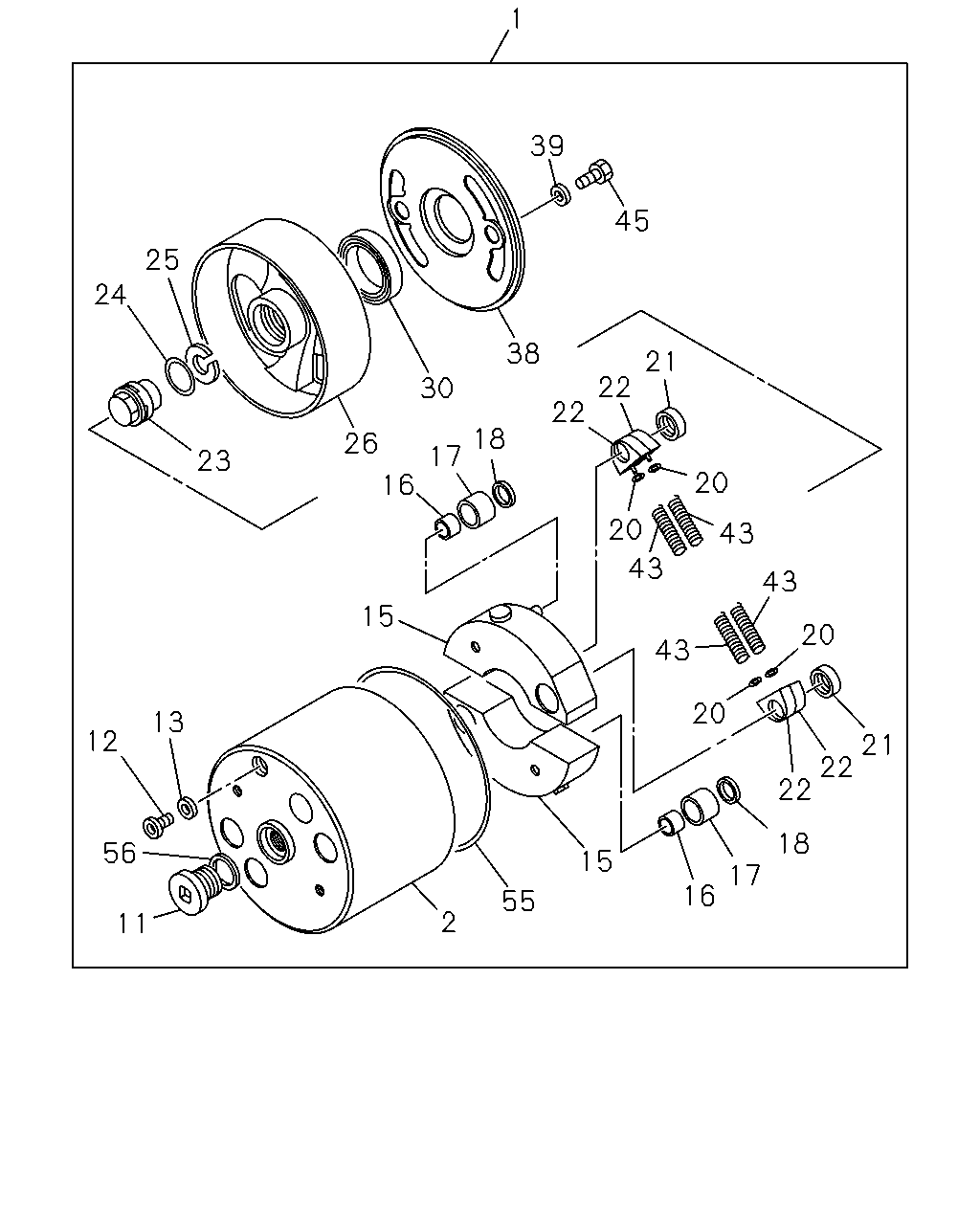

1 39 45 25 24 38 21 22 30 22 18 26 17 23 20 16 20 43 43 43 15 20 43 20 13 12 21 22 22 56 18 15 17 16 55 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15740-364-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: R = 8-94395-919-3	1-15740-416-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1	1-15740-478-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: Q = 8-94395-903-1	1-15740-479-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15740-484-0	01	1	-9801
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0	1-15740-484-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: N = 8-94391-170-1	1-15740-512-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15740-520-0	01	1	9802-
2	HOUSING; TIMER,INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: N = 8-94391-170-1, R = 8-94395-919-3	1-15741-050-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15741-074-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	5-15741-002-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-452-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: N = 8-94391-170-1	1-15743-044-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15743-100-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15743-101-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15743-147-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1	5-15749-043-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1	5-15749-044-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1	5-15749-045-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1	5-15749-046-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-046-0	01	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-870-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-051-1	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15749-036-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-455-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-116-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15742-098-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15742-100-0	01	1	9802-
26	FLANGE; TIMER,INJ PUMP ASM PART: R = 8-94395-919-3	1-15742-124-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1	1-15742-149-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15742-152-0	01	1	-9801
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0	1-15742-152-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: N = 8-94391-170-1	1-15742-160-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15749-073-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-789-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-798-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ID=8.2 OD=13.2 ASM PART: N = 8-94391-170-1	1-09630-082-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15339-010-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15749-028-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15749-489-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1	1-15749-621-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: R = 8-94395-919-3	1-15749-705-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=71.0 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0	1-15749-865-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=71.0 ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-865-0	04	1	-9801
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: N = 8-94391-170-1	1-15749-917-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=66.0 ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-924-0	04	1	9802-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-029-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	5-15749-049-1	01	1	-
56	GASKET; CAP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-453-0	01	1	-
56	GASKET; CAP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-736-0	01	1	-

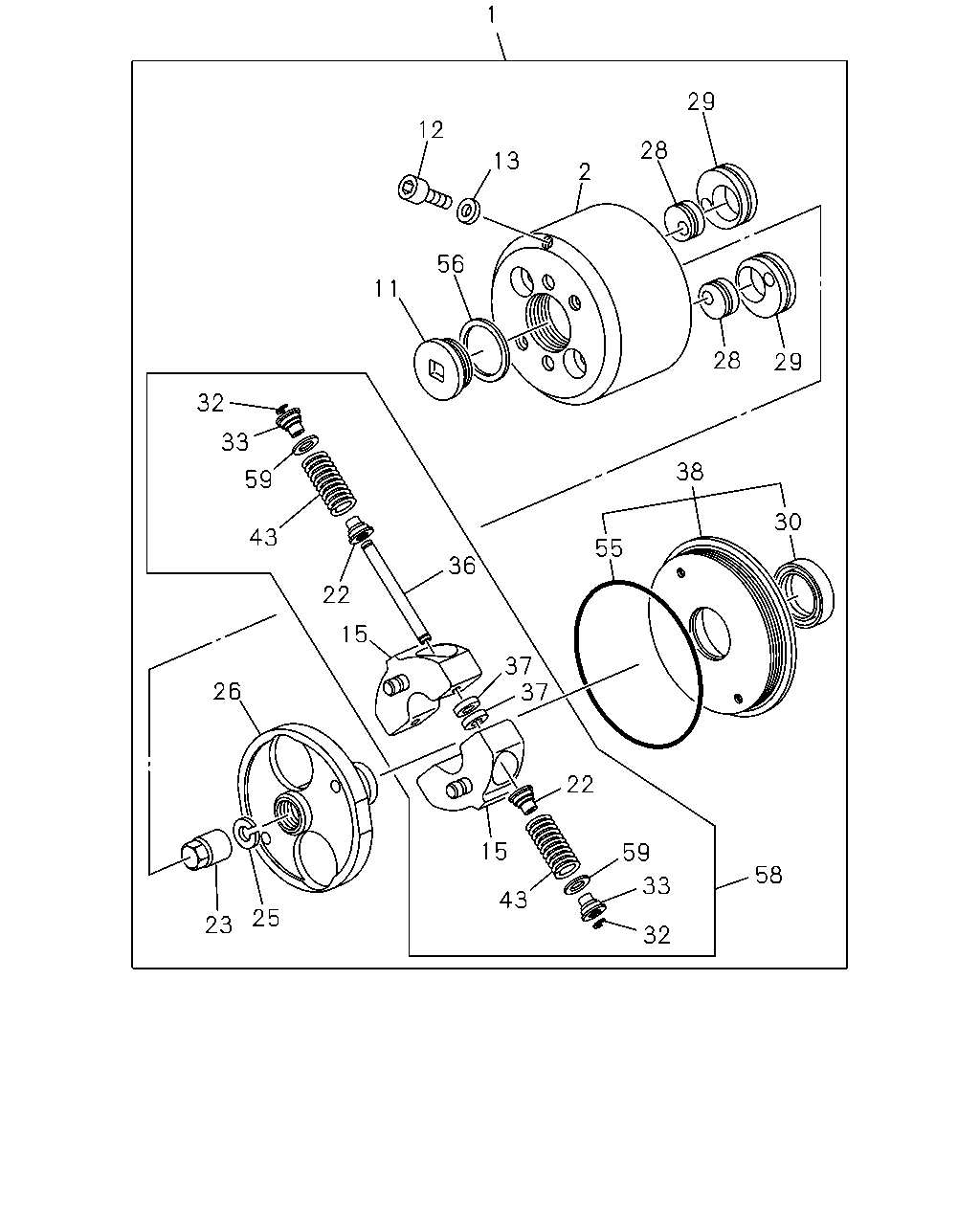

1 29 12 28 13 2 56 11 28 29 32 33 38 59 30 43 55 36 22 15 37 37 26 22 15 59 58 33 43 25 23 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15740-364-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: R = 8-94395-919-3	1-15740-416-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1	1-15740-478-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: Q = 8-94395-903-1	1-15740-479-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15740-484-0	01	1	-9801
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0	1-15740-484-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: N = 8-94391-170-1	1-15740-512-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15740-520-0	01	1	9802-
2	HOUSING; TIMER,INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: N = 8-94391-170-1, R = 8-94395-919-3	1-15741-050-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15741-074-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	5-15741-002-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-452-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: N = 8-94391-170-1	1-15743-044-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15743-100-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15743-101-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15743-147-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-870-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	5-15749-051-1	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-116-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15742-098-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15742-100-0	01	1	9802-
26	FLANGE; TIMER,INJ PUMP ASM PART: R = 8-94395-919-3	1-15742-124-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1	1-15742-149-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15742-152-0	01	1	-9801
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0	1-15742-152-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: N = 8-94391-170-1	1-15742-160-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15749-073-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-789-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-871-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-869-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-402-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-798-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15749-489-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1	1-15749-621-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: R = 8-94395-919-3	1-15749-705-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=71.0 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0	1-15749-865-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=71.0 ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-865-0	04	1	-9801
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: N = 8-94391-170-1	1-15749-917-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=66.0 ASM PART: K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-924-0	04	1	9802-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	5-15749-049-1	01	1	-
56	GASKET; CAP ASM PART: N = 8-94391-170-1, O = 8-94395-813-1, P = 8-94395-901-1, Q = 8-94395-903-1, R = 8-94395-919-3	1-15749-453-0	01	1	-
56	GASKET; CAP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-736-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15743-145-0	01	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.30 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-393-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.70 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15749-494-0	AR	1	-
