Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#37317) — 417 parça

14 48 14 16 102 183 206 208 217 225 48 14 16 1 1 1 538 178 178 503 530 503 14 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

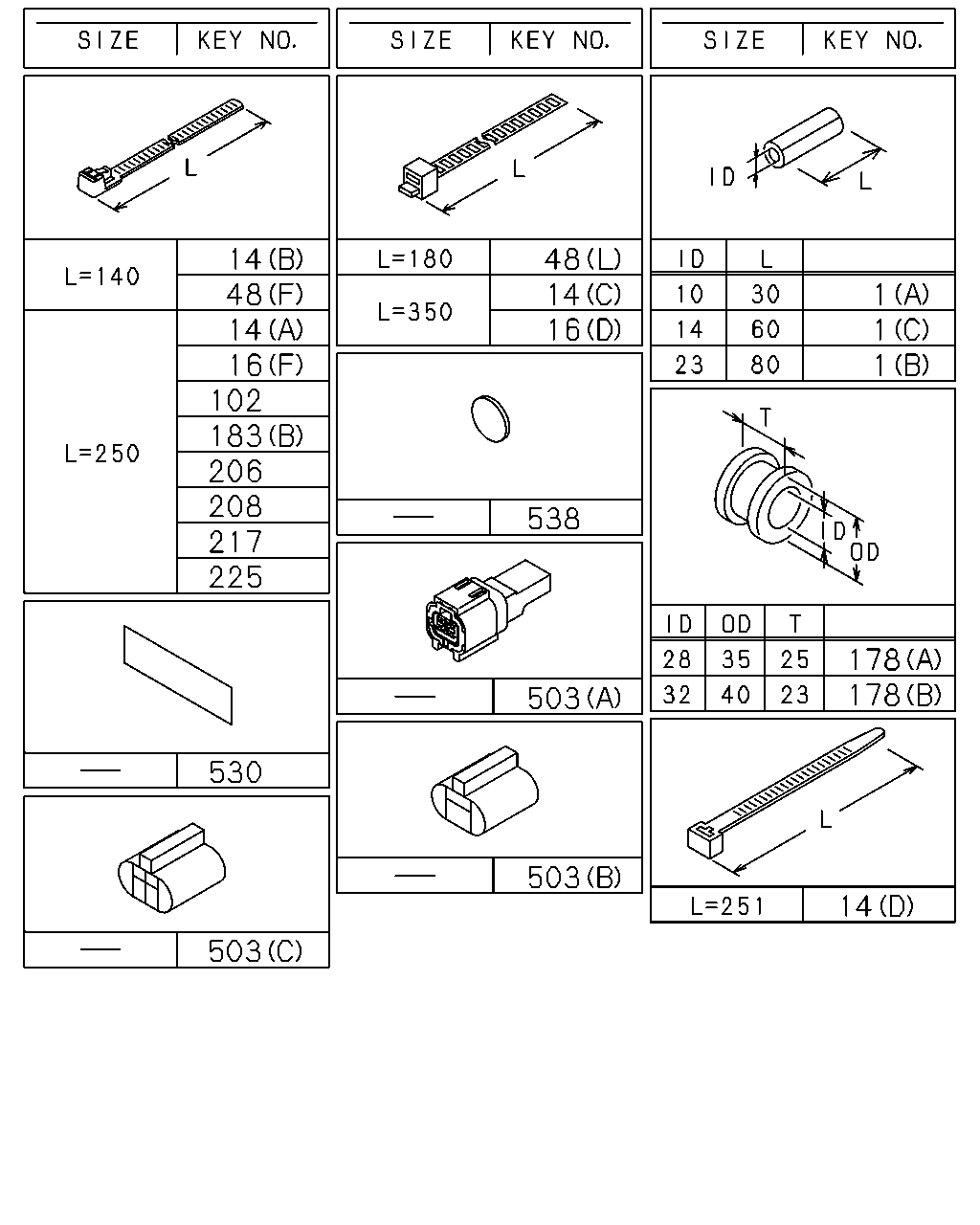

1	SLEEVE; RUBBER (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	0809-1011
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	1012-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-1011
1	SLEEVE; RUBBER EURO3 SPECIFICATION<NT3> (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1012-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1012-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	08	1	0809-1011
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	08	1	1012-1205
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (A) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	0809-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	0809-1109
14	CLIP; BAND,HARNESS FULLER FSO5206B OD M/T(Y4V) (A) L=250	5-09707-030-1	01	1	0911-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	13	1	1012-1101
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	13	1	1102-1104
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (D) L=251	8-97619-917-0	01	1	1012-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	12	1	1102-1104
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	13	1	1105-1205
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (A) L=250	8-98216-430-0	13	1	1206-

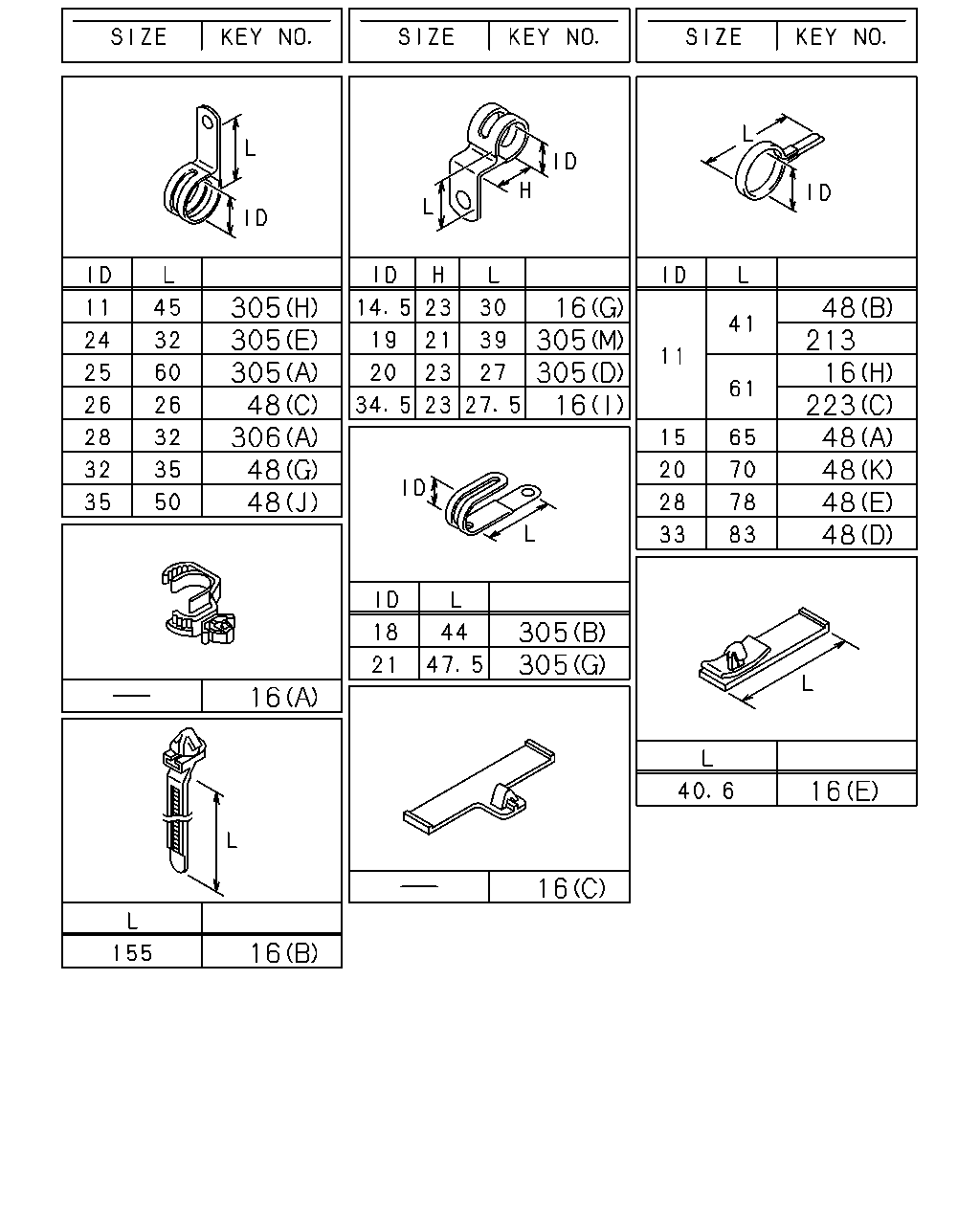

16	CLIP; HARNESS (H) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) L=350	1-09707-183-0	01	1	0903-0907
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-

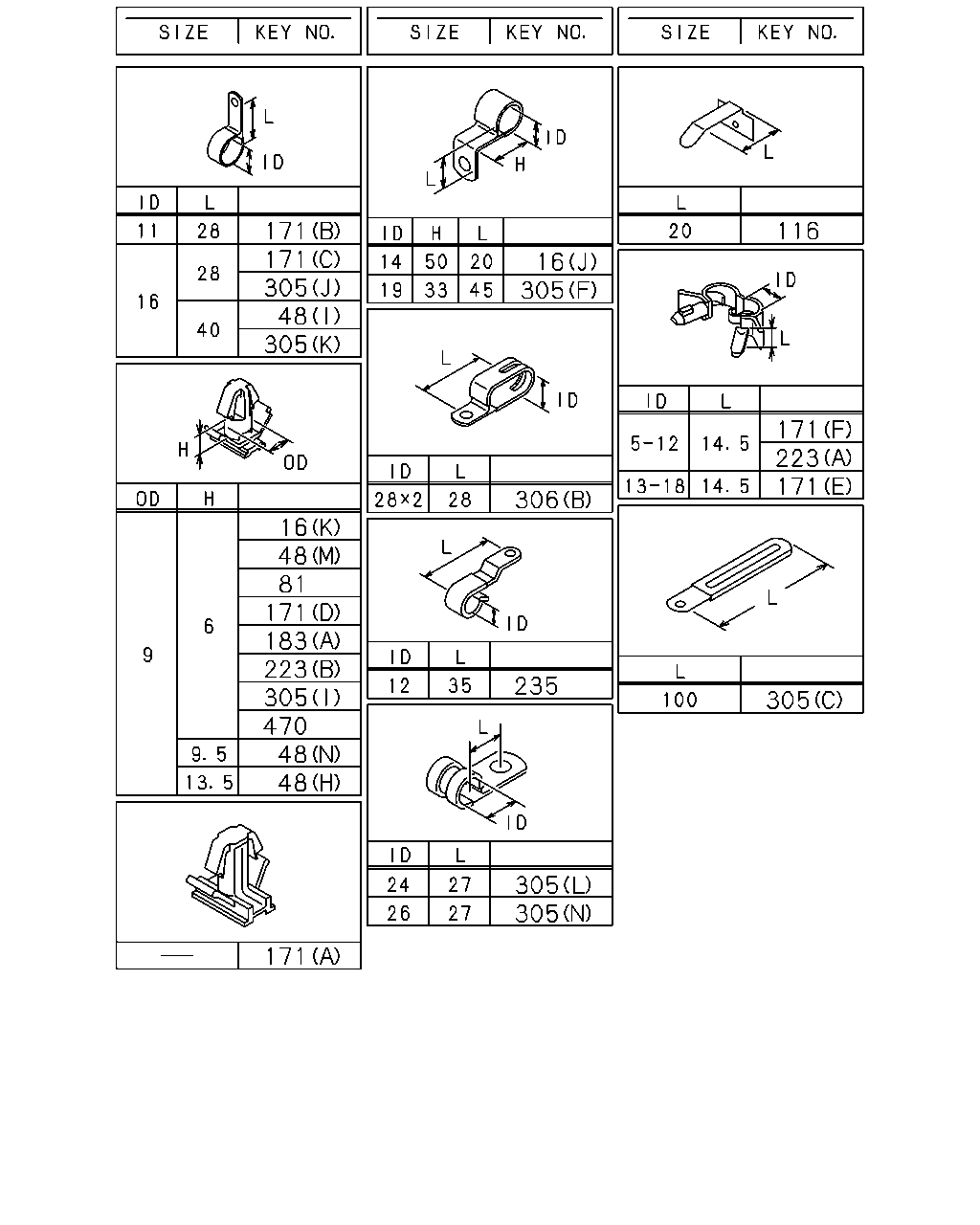

16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	0809-1011
16	CLIP; HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	1012-1405
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) ID=26 L=26	1-09701-236-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) ID=32 L=35	1-09701-244-0	01	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	0811-0902
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0903-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	0903-1011
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	01	1	0903-1011
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70	1-09700-485-0	03	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	13	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	17	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	09	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	19	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	10	1	1008-
48	CLIP; FRAME HARNESS (J) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (I) ID=16 L=40	0-95235-576-0	03	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (L) L=180	1-09707-162-1	01	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (M) OD=9 H=6	1-09709-178-0	01	1	0809-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	0809-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=15 L=65	1-09700-466-0	01	1	0809-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	04	1	0809-1011
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	01	1	1012-1106
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1012-1106
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1107-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) ID=28 L=78	1-09700-858-0	02	1	0809-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) ID=33 L=83	1-09701-291-0	03	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=15 L=65	1-09700-466-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	07	1	1008-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	02	1	1008-1106
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	02	1	1107-1201
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70	1-09700-485-0	04	1	1012-
102	CLIP; BAND H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0809-0901
178	GROMMET; HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	0809-1011
178	GROMMET; HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-
178	GROMMET; HARNESS MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	02	1	0809-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0809-1011
178	GROMMET; HARNESS MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1012-
178	GROMMET; HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1012-
183	CLIP; CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6	1-09709-178-0	01	1	0809-0810
183	CLIP; CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	0809-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0809-
208	CLIP; HARNESS,MAG VLV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=250	5-09707-030-1	01	1	0809-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	01	1	0812-0812
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0809-
225	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0809-0907
225	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=250	5-09707-030-1	03	1	0809-
225	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=250	5-09707-030-1	04	1	0809-1011
225	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=250	5-09707-030-1	04	1	1012-
225	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> L=250	5-09707-030-1	04	1	1012-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0809-0810
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0809-0910
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0911-1104
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1105-
503	CONNECTOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	1-82690-668-0	01	1	1105-
503	CONNECTOR EXC. AIR DRYER<PS7> (C)	1-82690-666-0	01	1	0809-1011
503	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (C)	1-82690-666-0	01	1	1012-1405
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0809-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0809-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0809-

305 305 305 48 306 48 48 16 305 305 16 48 213 16 223 48 48 48 48 305 305 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (H) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) L=350	1-09707-183-0	01	1	0903-0907
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	0809-1011
16	CLIP; HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	1012-1405
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) ID=26 L=26	1-09701-236-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) ID=32 L=35	1-09701-244-0	01	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	0811-0902
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0903-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	0903-1011
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	01	1	0903-1011
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70	1-09700-485-0	03	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	13	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	17	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	09	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	19	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	10	1	1008-
48	CLIP; FRAME HARNESS (J) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (I) ID=16 L=40	0-95235-576-0	03	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (L) L=180	1-09707-162-1	01	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (M) OD=9 H=6	1-09709-178-0	01	1	0809-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	0809-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=15 L=65	1-09700-466-0	01	1	0809-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	04	1	0809-1011
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	01	1	1012-1106
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1012-1106
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1107-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) ID=28 L=78	1-09700-858-0	02	1	0809-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) ID=33 L=83	1-09701-291-0	03	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=15 L=65	1-09700-466-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	07	1	1008-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	02	1	1008-1106
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	02	1	1107-1201
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70	1-09700-485-0	04	1	1012-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0809-
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0902
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-0902
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1011
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-1012
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-1012
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	0809-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=10 & 12	1-09709-278-1	01	1	0809-
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) ID=11 L=61	1-09700-484-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-1012
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (L) ID=24 L=27	1-09700-809-0	03	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	1012-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0809-
305	CLIP; ENG HARNESS (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (N) ID=26 L=27	1-09701-006-0	01	1	1102-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-1101
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (H) ID=11 L=45	8-94296-897-1	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (H) ID=11 L=45	8-94296-897-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (B) ID=18 L=44	8-97367-985-1	01	1	1012-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-1311
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-1311
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1312-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1312-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-

304 139 304 304 304 38 516 313 139 386 516 377 127 38 139 38 150 38 313 139 313 139 38 139 139 139 38 386 139 38 524 294 219 525 294 47 184 304

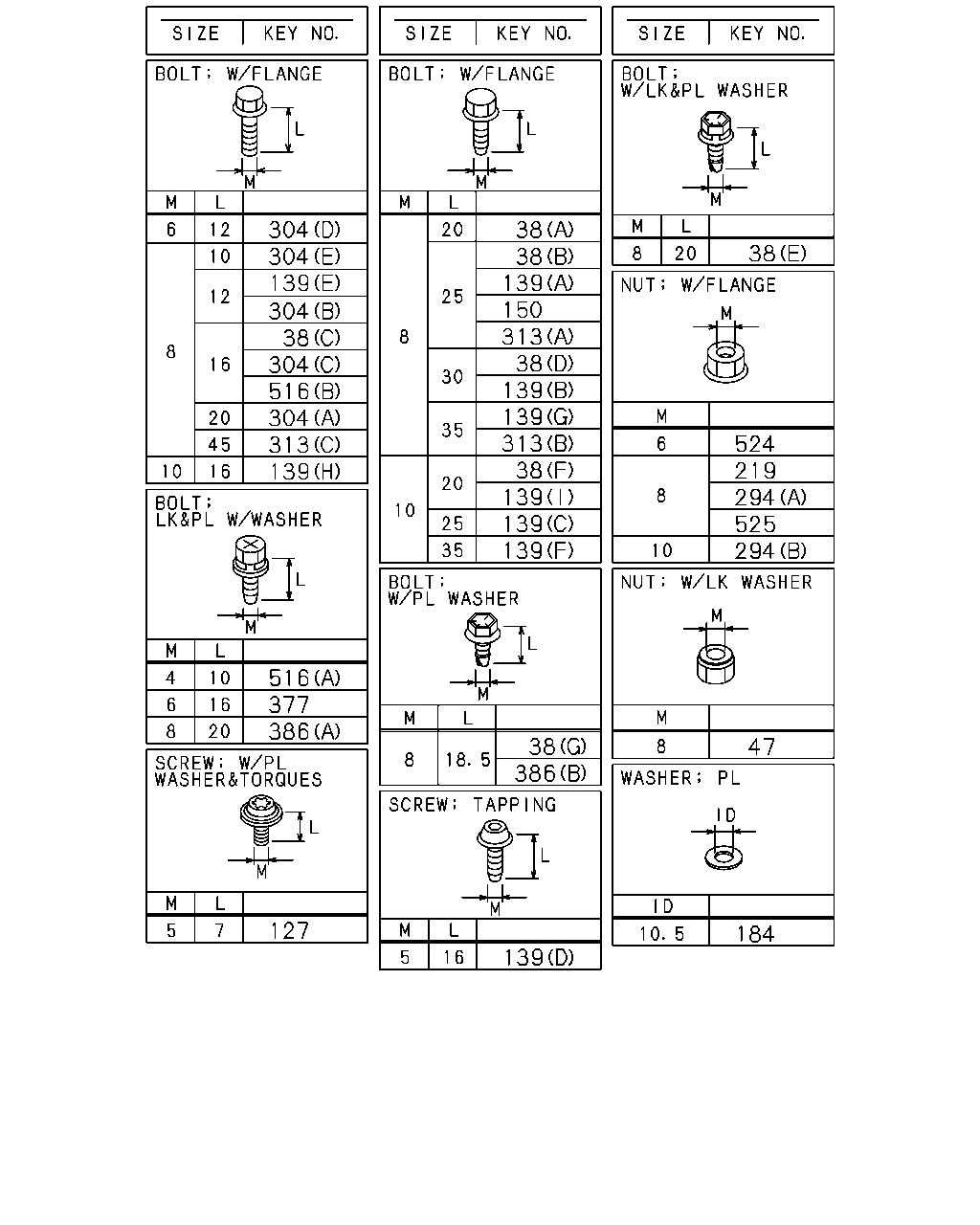

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) (F) M10X20 FLANGE	0-28751-020-0	01	1	0809-
38	BOLT; CLIP,HARNESS FULLER FSO5206B OD M/T(Y4V) (C) M8X16 FLANGE	0-28050-816-0	03	1	0809-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	0809-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0809-
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0809-1201
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0809-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-0810
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0811-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (H) M10X16 FLANGE	0-28051-016-0	03	1	0809-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (I) M10X20 FLANGE	0-28751-020-0	01	1	0809-
139	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	0809-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0809-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0809-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0809-0809
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	0810-1011
184	WASHER; PL,STARTER EARTH EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1012-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1012-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1012-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0809-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0809-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0902-0905
294	NUT FULLER FSO5206B OD M/T(Y4V) (A) M10 FLANGE	0-91180-210-0	01	1	0809-
294	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	0809-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0809-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	0809-1011
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1012-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	05	1	0809-1011
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	05	1	1012-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	0809-1011
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (D) M6X12 FLANGE	0-28050-612-0	01	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (C) M8X16 FLANGE	0-28050-816-0	03	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-1101
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE	0-28050-820-0	01	1	1102-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1102-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) M8X10 FLANGE	0-28050-810-0	01	1	1102-
313	BOLT; BRKT (C) M8X45 FLANGE	0-28050-845-0	01	1	0809-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0809-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0809-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (A) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0809-
516	BOLT; HARNESS MLD6W M/T(Y2C) (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0809-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0809-
525	NUT; CLIP EURO3 SPECIFICATION<NT3> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1012-1101
525	NUT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1102-

116 171 171 305 48 305 16 305 171 223 171 306 16 48 81 171 183 223 305 470 48 48 235 305 305 305 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (H) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) L=350	1-09707-183-0	01	1	0903-0907
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	0809-1011
16	CLIP; HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	1012-1405
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) ID=26 L=26	1-09701-236-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) ID=32 L=35	1-09701-244-0	01	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	0811-0902
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0903-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	0903-1011
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	01	1	0903-1011
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70	1-09700-485-0	03	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	13	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	17	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	09	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	19	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	10	1	1008-
48	CLIP; FRAME HARNESS (J) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (I) ID=16 L=40	0-95235-576-0	03	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (L) L=180	1-09707-162-1	01	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (M) OD=9 H=6	1-09709-178-0	01	1	0809-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	0809-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=15 L=65	1-09700-466-0	01	1	0809-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	04	1	0809-1011
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	01	1	1012-1106
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1012-1106
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1107-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) ID=28 L=78	1-09700-858-0	02	1	0809-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) ID=33 L=83	1-09701-291-0	03	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=15 L=65	1-09700-466-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	07	1	1008-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	02	1	1008-1106
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	02	1	1107-1201
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (K) ID=20 L=70	1-09700-485-0	04	1	1012-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	0809-1010
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1011-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) OD=8.95 H=6.25	8-97375-754-0	01	1	0809-0809
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=11 L=28	0-95235-055-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) ID=16 L=28	0-95235-556-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) OD=9 H=6	1-09709-178-0	02	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=13-18 L=14.5	1-09709-290-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
183	CLIP; CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6	1-09709-178-0	01	1	0809-0810
183	CLIP; CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	0809-
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0902
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-0902
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1011
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-1012
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-1012
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	0809-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-
223	CLIP; AIR TANK HARNESS BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=10 & 12	1-09709-278-1	01	1	0809-
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) ID=11 L=61	1-09700-484-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-1012
223	CLIP; AIR TANK HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) ID=12 L=35	5-09700-206-0	01	1	0809-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (L) ID=24 L=27	1-09700-809-0	03	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	1012-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0809-
305	CLIP; ENG HARNESS (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (N) ID=26 L=27	1-09701-006-0	01	1	1102-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-1101
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (H) ID=11 L=45	8-94296-897-1	01	1	1012-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (H) ID=11 L=45	8-94296-897-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (B) ID=18 L=44	8-97367-985-1	01	1	1012-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-1311
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-1311
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1312-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1312-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0809-

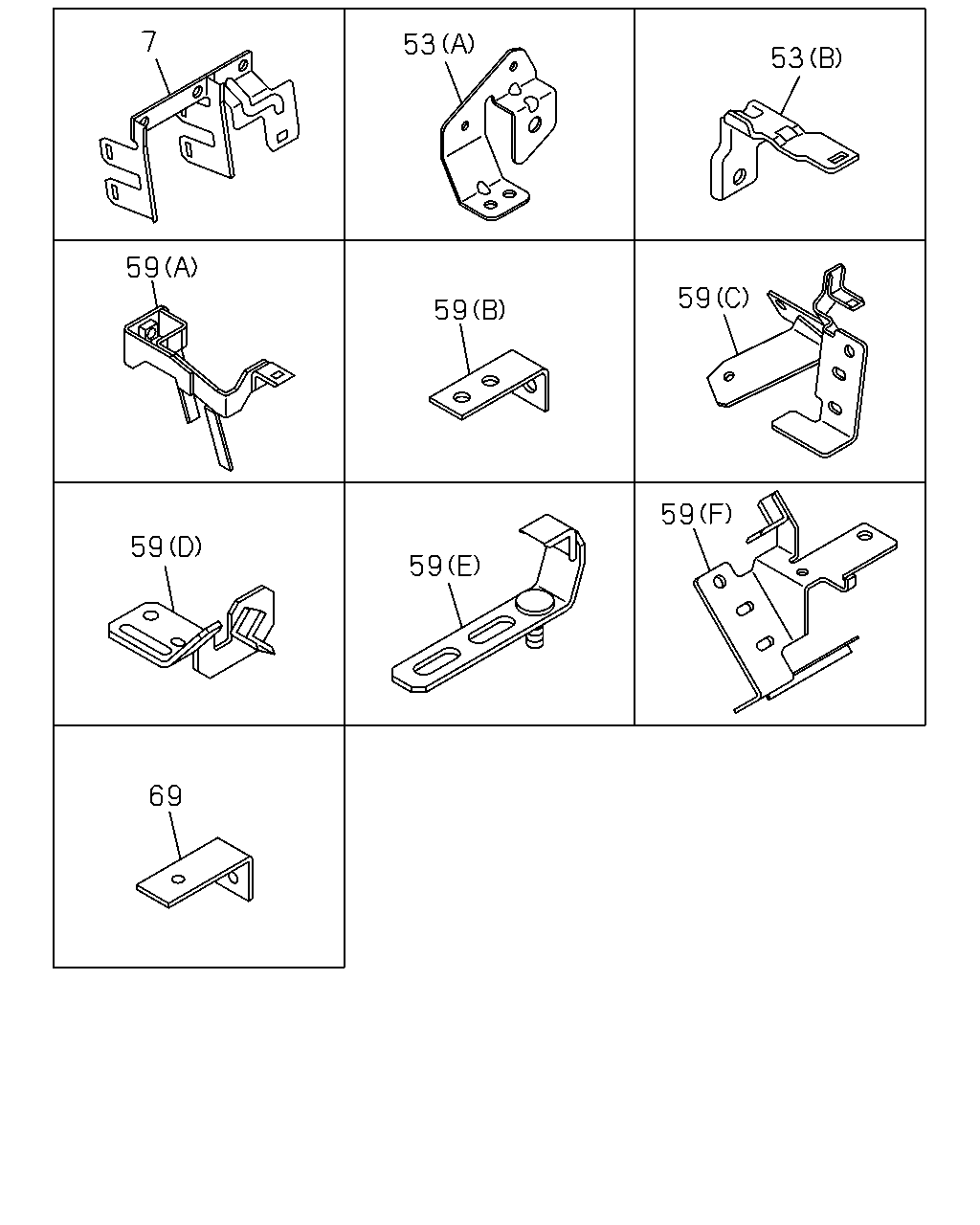

7 53 53 59 59 59 59 59 59 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0809-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0809-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	0809-
59	BRACKET; FRAME HARNESS (F)	8-97620-482-1	01	1	0809-0905
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	0906-
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (A)	8-97609-264-2	01	1	0809-0906
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A)	8-97609-264-2	01	1	0907-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (A)	8-97627-325-0	01	1	0809-
59	BRACKET; FRAME HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=62	1-21464-170-2	01	1	0809-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0809-1502
59	BRACKET; FRAME HARNESS (D)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	0809-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	0809-

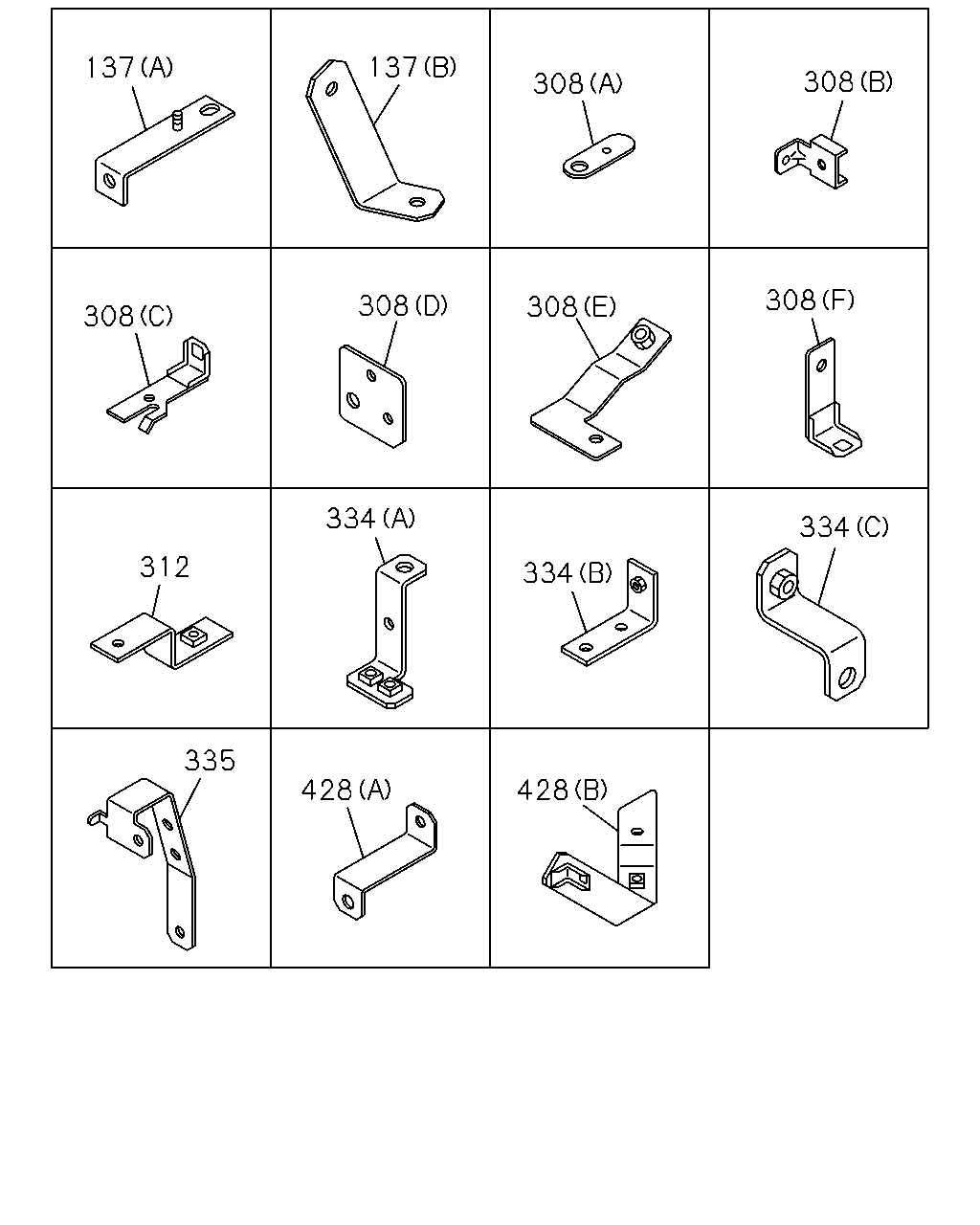

137 137 308 308 308 308 308 308 334 334 312 334 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	0809-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	0809-1101
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-97601-310-0	03	1	1102-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (E)	8-98032-178-0	01	1	0809-1011
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (E)	8-98032-178-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS (F)	8-98075-824-0	01	1	0809-1011
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (F)	8-98075-824-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (B)	8-97614-078-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (C)	8-98021-291-2	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	1102-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97601-310-0	02	1	1102-
312	BRACKET; CLIP HARNESS	8-97609-110-1	01	1	0809-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (C)	1-47475-868-0	02	1	0809-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (B)	1-47477-698-0	02	1	0809-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (A)	1-82699-639-1	01	1	0809-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0809-
428	BRACKET (A)	1-47476-658-0	01	1	0809-
428	BRACKET (B)	8-97620-514-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
