2-56 — AUTO TRANS CONTROL LINK (#37311) — 75 parça

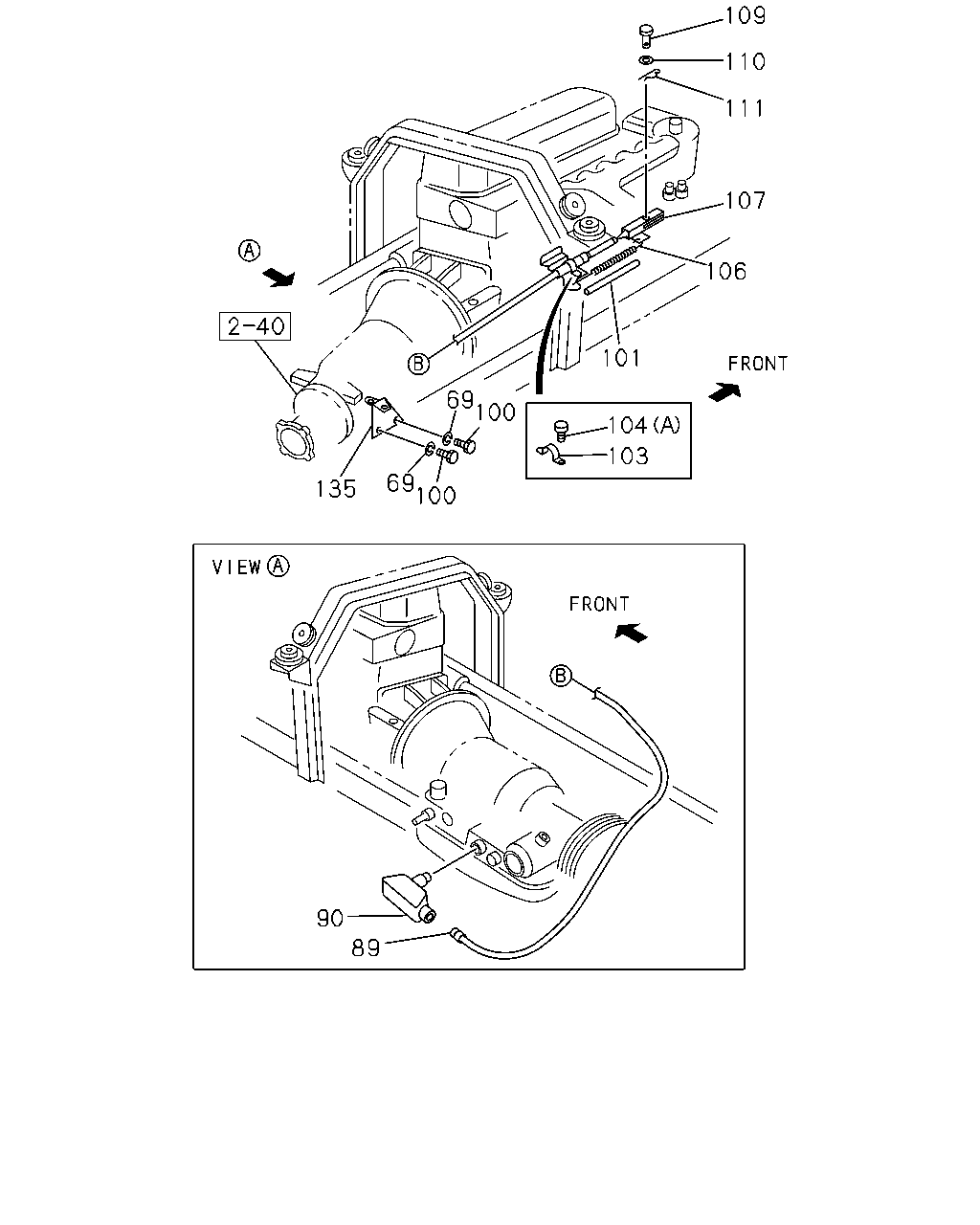

çizim 151298
109 110 111 107 106 101 69 100 104 103 69 100 135 90 89
BalonParca AdiParca NoAdetTipApplied Date A B
69 WASHER; LK,CLIP
ID=12.2 		9-09150-512-0 02 1 9510-9809 ●
69 WASHER; LK,CLIP
ID=12.2 		9-09150-512-0 02 1 9810-0004 ● ●
89 CABLE; CONT
L=1420 		1-34650-080-0 01 1 9510-9809 ●
89 CABLE; CONT
L=1420 		1-34650-080-0 01 1 9810-0004 ● ●
90 ACTUATOR; THROTTLE
WO/CABLE 		1-34511-005-0 01 1 9510-9809 ●
90 ACTUATOR; THROTTLE
WO/CABLE 		1-34511-005-0 01 1 9810-0004 ● ●
100 BOLT; BRKT FIX
7/16"X30 		1-09087-010-0 02 1 9510-9809 ●
100 BOLT; BRKT FIX
7/16"X30 		1-09087-010-0 02 1 9810-0004 ● ●
101 SLEEVE; RUBBER,CONT CABLE 1-09369-012-0 01 1 9510-9809 ●
101 SLEEVE; RUBBER,CONT CABLE 1-09369-012-0 01 1 9810-0004 ● ●
103 CLIP; WIRE END 1-09709-052-0 01 1 9510-9809 ●
103 CLIP; WIRE END 1-09709-052-0 01 1 9810-0004 ● ●
104 BOLT; CLIP
(A) M6X25 FLANGE 		0-28680-625-0 02 1 9510-9802 ●
104 BOLT; CLIP
(A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9803-0004 ● ●
104 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9908-0004 ● ●
106 SPRING; RETURN,CONT CABLE 1-09583-242-0 01 1 9510-9809 ●
106 SPRING; RETURN,CONT CABLE 1-09583-242-0 01 1 9810-0004 ● ●
107 JOINT; JAW,CONT CABLE 1-09768-072-0 01 1 9510-9809 ●
107 JOINT; JAW,CONT CABLE 1-09768-072-0 01 1 9810-0004 ● ●
109 PIN; CONT CABLE
OD=6 L=20 		9-08223-620-0 01 1 9510-9809 ●
109 PIN; CONT CABLE
OD=6 L=20 		9-08223-620-0 01 1 9810-0004 ● ●
110 WASHER; PL,CONT CABLE
ID=6.4 		9-09160-506-0 01 1 9510-9809 ●
110 WASHER; PL,CONT CABLE
ID=6.4 		9-09160-506-0 01 1 9810-0004 ● ●
111 PIN; SNAP,CONT CABLE
L=21.2 		1-09747-003-0 01 1 9510-9809 ●
111 PIN; SNAP,CONT CABLE
L=21.2 		1-09747-003-0 01 1 9810-0004 ● ●
135 BRACKET; CLIP 1-82699-684-0 01 1 9510-9809 ●
135 BRACKET; CLIP 1-82699-684-0 01 1 9810-0004 ● ●

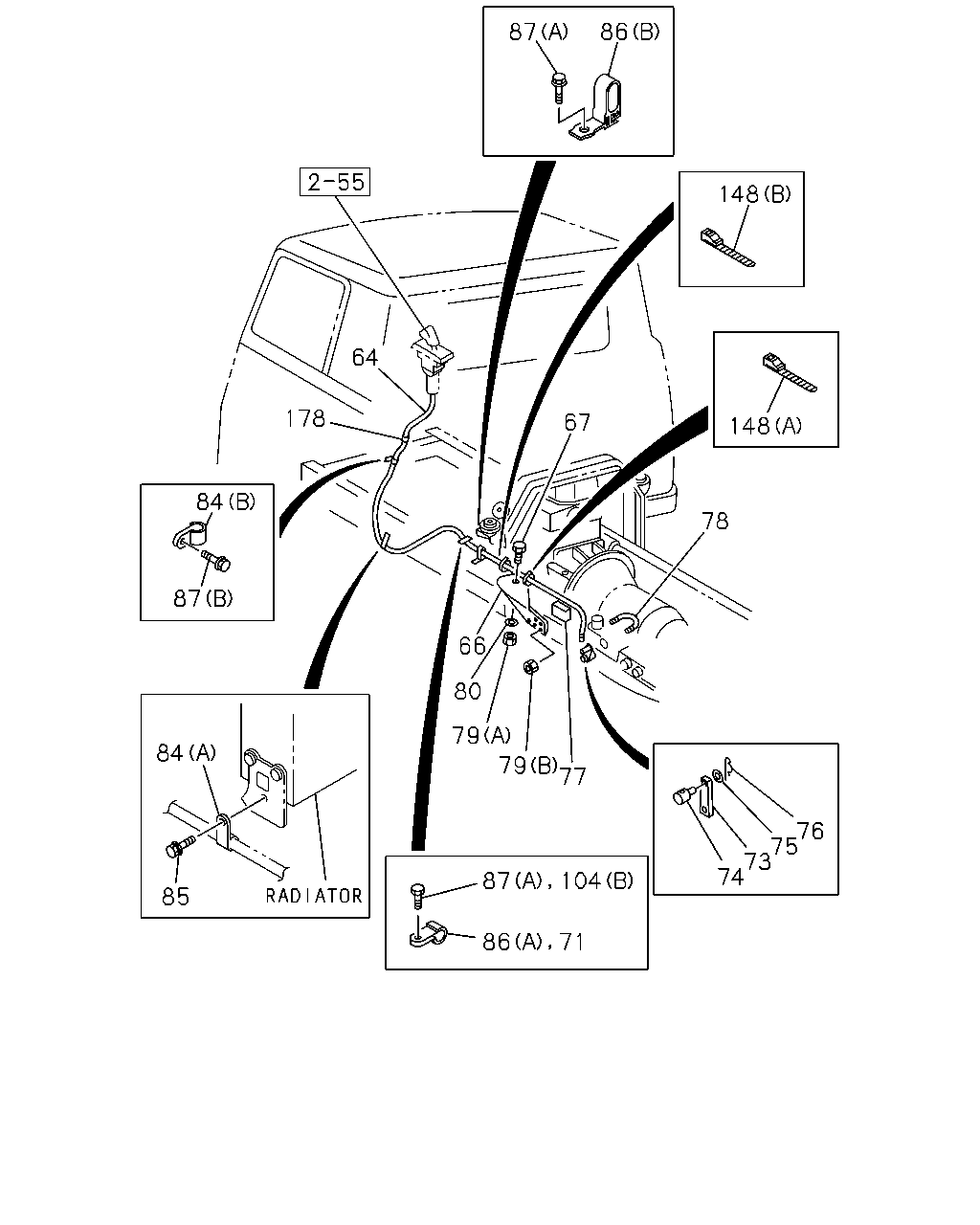

çizim 151304
87 86 148 64 178 67 148 84 78 87 66 80 79 84 79 77 76 75 73 74 87 104 85 86 71
BalonParca AdiParca NoAdetTipApplied Date A B
64 CABLE; A/T CONT 1-34650-117-0 01 1 9510-9809 ●
64 CABLE; A/T CONT 1-34650-117-0 01 1 9810-0004 ● ●
66 BRACKET; MTG,A/T CONT CABLE 1-34656-010-0 01 1 9510-9810 ●
66 BRACKET; MTG,A/T CONT CABLE 1-34656-010-0 01 1 9810-0004 ● ●
67 SCREW; CONT CABLE 1-09087-011-0 01 1 9510-9810 ●
67 SCREW; CONT CABLE 1-09087-011-0 01 1 9810-0004 ● ●
71 CLIP; A/T CONT CABLE
ID=13 L=28 		9-09525-255-0 01 1 9908-0004 ● ●
73 ARM; A/T 1-34651-002-0 01 1 9510-9810 ●
73 ARM; A/T 1-34651-002-0 01 1 9810-0004 ● ●
74 TRUNNION; A/T CONT CABLE 1-34659-002-0 01 1 9510-9810 ●
74 TRUNNION; A/T CONT CABLE 1-34659-002-0 01 1 9810-0004 ● ●
75 WASHER; PL,CONT CABLE TO A/T
ID=8.4 		9-09160-508-0 01 1 9510-9810 ●
75 WASHER; PL,CONT CABLE TO A/T
ID=8.4 		9-09160-508-0 01 1 9810-0004 ● ●
76 PIN; SNAP,A/T CONT
L=27.7 		1-09747-005-0 01 1 9510-9810 ●
76 PIN; SNAP,A/T CONT
L=27.7 		1-09747-005-0 01 1 9810-0004 ● ●
77 SHIM; A/T CONT CABLE 1-34659-008-0 01 1 9510-9810 ●
77 SHIM; A/T CONT CABLE 1-34659-008-0 01 1 9810-0004 ● ●
78 U-BOLT; A/T CONT CABLE 1-34659-001-0 01 1 9510-9810 ●
78 U-BOLT; A/T CONT CABLE 1-34659-001-0 01 1 9810-0004 ● ●
79 NUT; CONT CABLE
(A) 5/8-18UNF 		1-09487-005-0 01 1 9510-9810 ●
79 NUT; CONT CABLE
(A) 5/8-18UNF 		1-09487-005-0 01 1 9810-0004 ● ●
79 NUT; CONT CABLE
(B) NO.10-32 UNF 		1-09487-015-0 02 1 9510-9810 ●
79 NUT; CONT CABLE
(B) NO.10-32 UNF 		1-09487-015-0 02 1 9810-0004 ● ●
80 WASHER; CONT CABLE 1-09500-005-0 01 1 9510-9810 ●
80 WASHER; CONT CABLE 1-09500-005-0 01 1 9810-0004 ● ●
84 CLIP; A/T CONT CABLE
(A) ID=13 L=20 T=0.8 		9-09525-235-0 01 1 9510-9809 ●
84 CLIP; A/T CONT CABLE
(A) ID=13 L=20 T=0.8 		9-09525-235-0 01 1 9810-0004 ● ●
84 CLIP; A/T CONT CABLE
(B) ID=13 L=20 T=1.2 		9-09525-236-0 01 1 9510-9809 ●
84 CLIP; A/T CONT CABLE
(B) ID=13 L=20 T=1.2 		9-09525-236-0 01 1 9810-0004 ● ●
85 BOLT; A/T CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0004 ●
86 CLIP; CONT CABLE,FRAME
(A) ID=13 L=40 		9-09525-276-0 01 1 9510-9809 ●
86 CLIP; CONT CABLE,FRAME
(A) ID=13 L=40 		9-09525-276-0 01 1 9810-9905 ● ●
86 CLIP; CONT CABLE,FRAME
(A) ID=13 L=40 		9-09525-276-0 02 1 9906-0004 ● ●
86 CLIP; CONT CABLE,FRAME
(B) ID=10 & 10 M8 		1-09701-220-0 01 1 9804-0004 ● ●
87 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9803 ●
87 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9804-9905 ● ●
87 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 03 1 9906-0004 ● ●
87 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9510-9809 ●
87 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9810-0004 ● ●
104 BOLT; CLIP
(A) M6X25 FLANGE 		0-28680-625-0 02 1 9510-9802 ●
104 BOLT; CLIP
(A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9803-0004 ● ●
104 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9908-0004 ● ●
148 CLIP; BAND A/T CONT CABLE
(A) L=250 		5-09707-030-0 01 1 9510-9809 ●
148 CLIP; BAND A/T CONT CABLE
(A) L=250 		5-09707-030-1 01 1 9810-9905 ● ●
148 CLIP; BAND A/T CONT CABLE
(B) L=140 		5-09707-031-0 01 1 9510-9809 ●
148 CLIP; BAND A/T CONT CABLE
(B) L=140 		5-09707-031-1 01 1 9810-9905 ● ●
178 GROMMET; CONT CABLE 1-09333-144-0 01 1 9510-9809 ●
178 GROMMET; CONT CABLE 1-09333-144-0 01 1 9810-0004 ● ●
