Isuzu WW
▶
TRUCKS
▶
FRR
▶
10698 - FRR RHD EXC.EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-55 - AUTO TRANS SHIFT CONTROL LEVER
▶

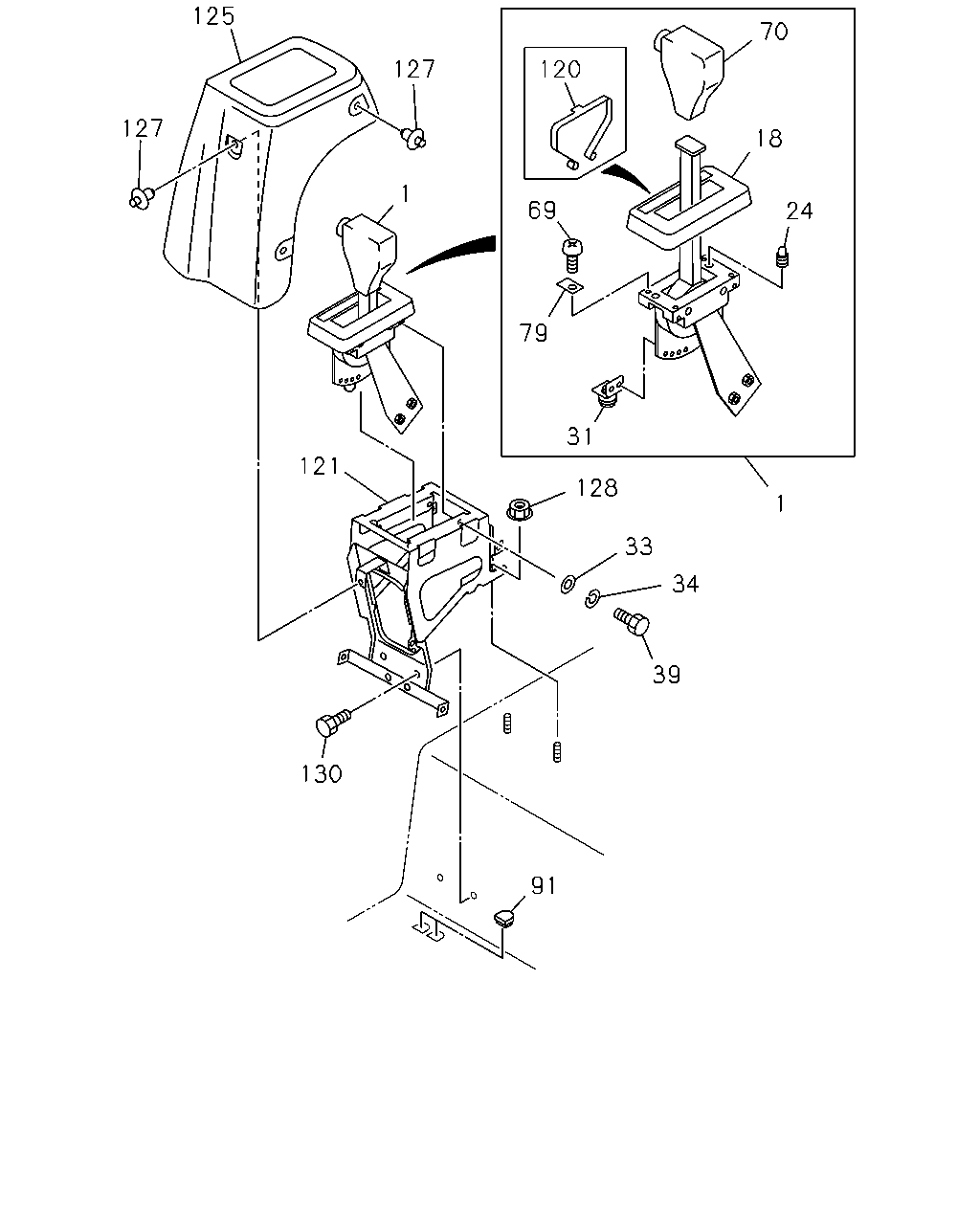

2-55 — AUTO TRANS SHIFT CONTROL LEVER
(#37310) — 35 parça
Tümü
A - AT542 A/T ALLISON
B - AT545 A/T ALLISON
125
70
127
120
127
18
1
69
24
79
31
121
128
1
33
34
39
130
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LEVER; SHIFT,A/T
1-34610-060-1
01
1
9510-9809
●
1
LEVER; SHIFT,A/T
1-34610-060-1
01
1
9810-0004
●
●
18
COVER; INDICATOR,UPR
1-34615-003-0
01
1
9510-9809
●
18
COVER; INDICATOR,UPR
1-34615-003-0
01
1
9810-0004
●
●
24
BULB; SHIFT LEVER,A/T
12V 1.1W
1-34619-026-0
02
1
9510-9809
●
24
BULB; SHIFT LEVER,A/T
12V 1.1W
1-34619-026-0
02
1
9810-0004
●
●
31
SWITCH; SHIFT LEVER,A/T
1-34619-022-0
02
1
9510-9809
●
31
SWITCH; SHIFT LEVER,A/T
1-34619-022-0
02
1
9810-0004
●
●
33
WASHER; PL,CONT LEVER TO BODY
1-09503-061-0
04
1
9510-9809
●
33
WASHER; PL,CONT LEVER TO BODY
1-09503-061-0
04
1
9810-0004
●
●
34
WASHER; LK,SHIFT LEVER
1-09500-043-0
04
1
9510-9809
●
34
WASHER; LK,SHIFT LEVER
1-09500-043-0
04
1
9810-0004
●
●
39
SCREW; SHIFT LEVER
M6X16
1-09981-497-0
04
1
9510-9709
●
39
SCREW; SHIFT LEVER
M6X13
1-09981-540-0
04
1
9710-9809
●
39
SCREW; SHIFT LEVER
M6X13
1-09981-540-0
04
1
9810-0004
●
●
69
SCREW; COVER,SHIFT LEVER
1-34619-056-0
04
1
9510-9809
●
69
SCREW; COVER,SHIFT LEVER
1-34619-056-0
04
1
9810-0004
●
●
70
KNOB; SHIFT LEVER
1-34612-003-0
01
1
9510-9809
●
70
KNOB; SHIFT LEVER
1-34612-003-0
01
1
9810-0004
●
●
79
CLIP; LAMP CABLE,A/T CONT LEVER
1-34619-057-0
01
1
9510-9809
●
79
CLIP; LAMP CABLE,A/T CONT LEVER
1-34619-057-0
01
1
9810-0004
●
●
91
GROMMET
1-09983-098-0
02
1
9510-9809
●
91
GROMMET
1-09983-098-0
02
1
9810-0004
●
●
120
BELT; INDICATOR
1-34619-070-0
01
1
9510-9809
●
120
BELT; INDICATOR
1-34619-070-0
01
1
9810-0004
●
●
121
BRACKET
1-79998-916-1
01
1
9510-9809
●
121
BRACKET
1-79998-916-2
01
1
9810-0004
●
●
125
COVER; SHIFT LEVER
1-79996-203-0
01
1
9510-9809
●
125
COVER; SHIFT LEVER
1-79996-203-0
01
1
9810-0004
●
●
127
FASTENER; COVER
1-09987-245-1
05
1
9510-9809
●
127
FASTENER; COVER
1-09987-245-1
05
1
9810-0004
●
●
128
NUT; BRKT
M8 W/LK WASHER
8-97065-435-0
02
1
9510-9809
●
128
NUT; BRKT
M8 W/LK WASHER
8-97065-435-0
02
1
9810-0004
●
●
130
BOLT; BRKT
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
9510-9809
●
130
BOLT; BRKT
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
9810-0004
●
●
