2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#37307) — 45 parça

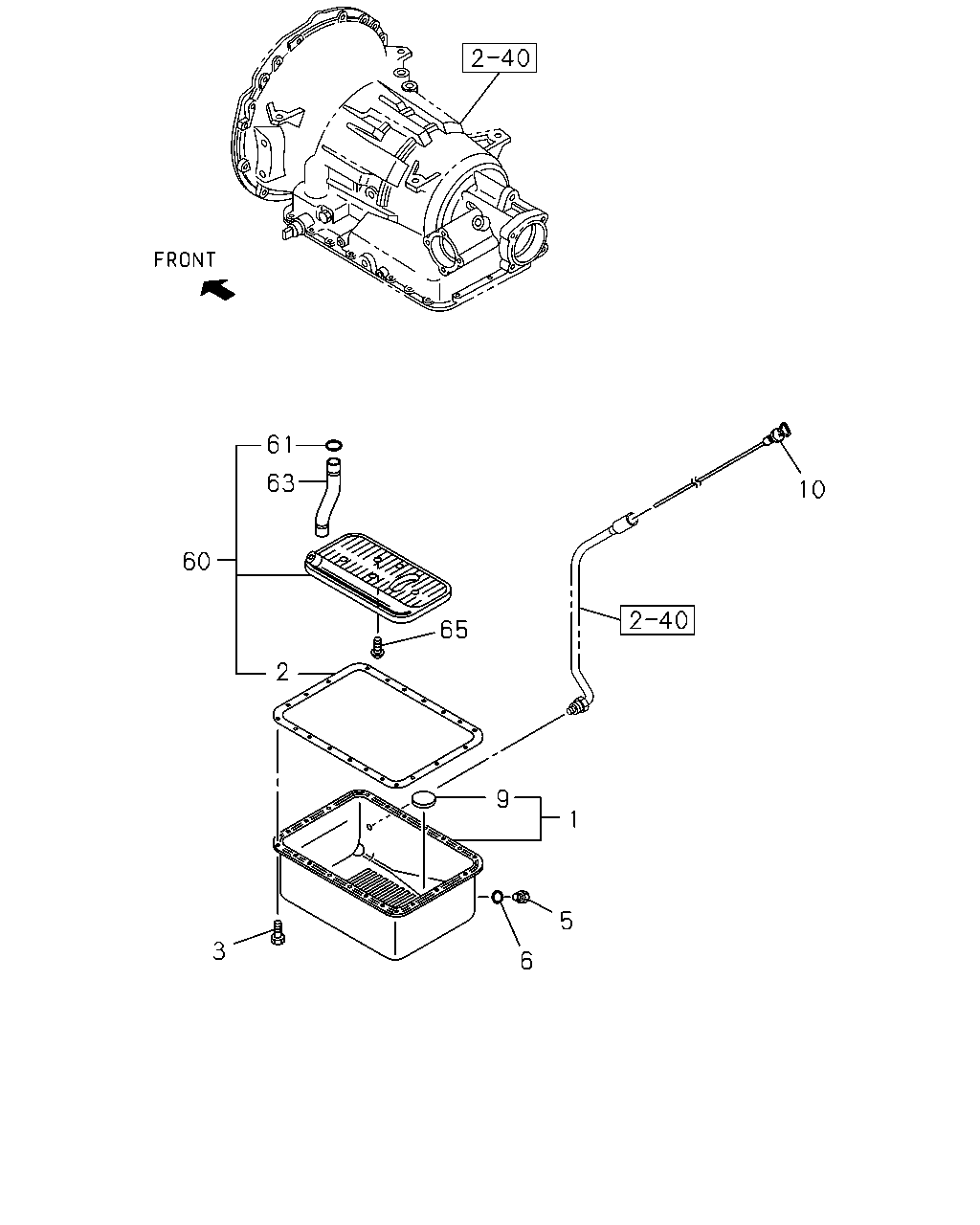

çizim 151272
61 63 10 60 65 2 9 1 5 3 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL,A/T 1-34131-008-0 01 1 9510-0004 ●
1 PAN ASM; OIL,A/T 1-34131-007-0 01 1 9810-0004 ●
2 GASKET; OIL PAN,A/T 1-34132-008-0 01 1 9510-9809 ●
2 GASKET; OIL PAN,A/T 1-34132-008-0 01 1 9810-0004 ● ●
3 BOLT; OIL PAN TO CASE 1-34139-001-0 21 1 9510-9809 ●
3 BOLT; OIL PAN TO CASE 1-34139-001-0 21 1 9810-0004 ● ●
5 PLUG; OIL PAN 1-34139-002-0 01 1 9510-9809 ●
5 PLUG; OIL PAN 1-34139-002-0 01 1 9810-0004 ● ●
6 GASKET; OIL PAN TO PLUG 1-09630-044-0 01 1 9510-9809 ●
6 GASKET; OIL PAN TO PLUG 1-09630-044-0 01 1 9810-0004 ● ●
9 MAGNET; OIL PAN 1-34139-007-0 01 1 9510-9809 ●
9 MAGNET; OIL PAN 1-34139-007-0 01 1 9810-0004 ● ●
10 GAUGE; OIL LEVEL 1-34121-092-0 01 1 9510-9809 ●
10 GAUGE; OIL LEVEL 1-34121-092-0 01 1 9810-0004 ● ●
60 REPAIR KIT; OIL FILTER,A/T 1-87830-186-2 01 1 9510-0004 ●
60 REPAIR KIT; OIL FILTER,A/T 1-87830-427-0 01 1 9810-0004 ●
61 SEAL; OIL FILTER 1-09623-064-0 01 1 9510-9809 ●
61 SEAL; OIL FILTER 1-09623-064-0 01 1 9810-0004 ● ●
63 PIPE; INT,A/T 1-34139-008-0 01 1 9510-0004 ●
63 PIPE; INT,A/T 1-34139-011-0 01 1 9810-0004 ●
65 SCREW; OIL FILTER 1-34139-001-0 01 1 9510-9809 ●
65 SCREW; OIL FILTER 1-34139-001-0 01 1 9810-0004 ● ●

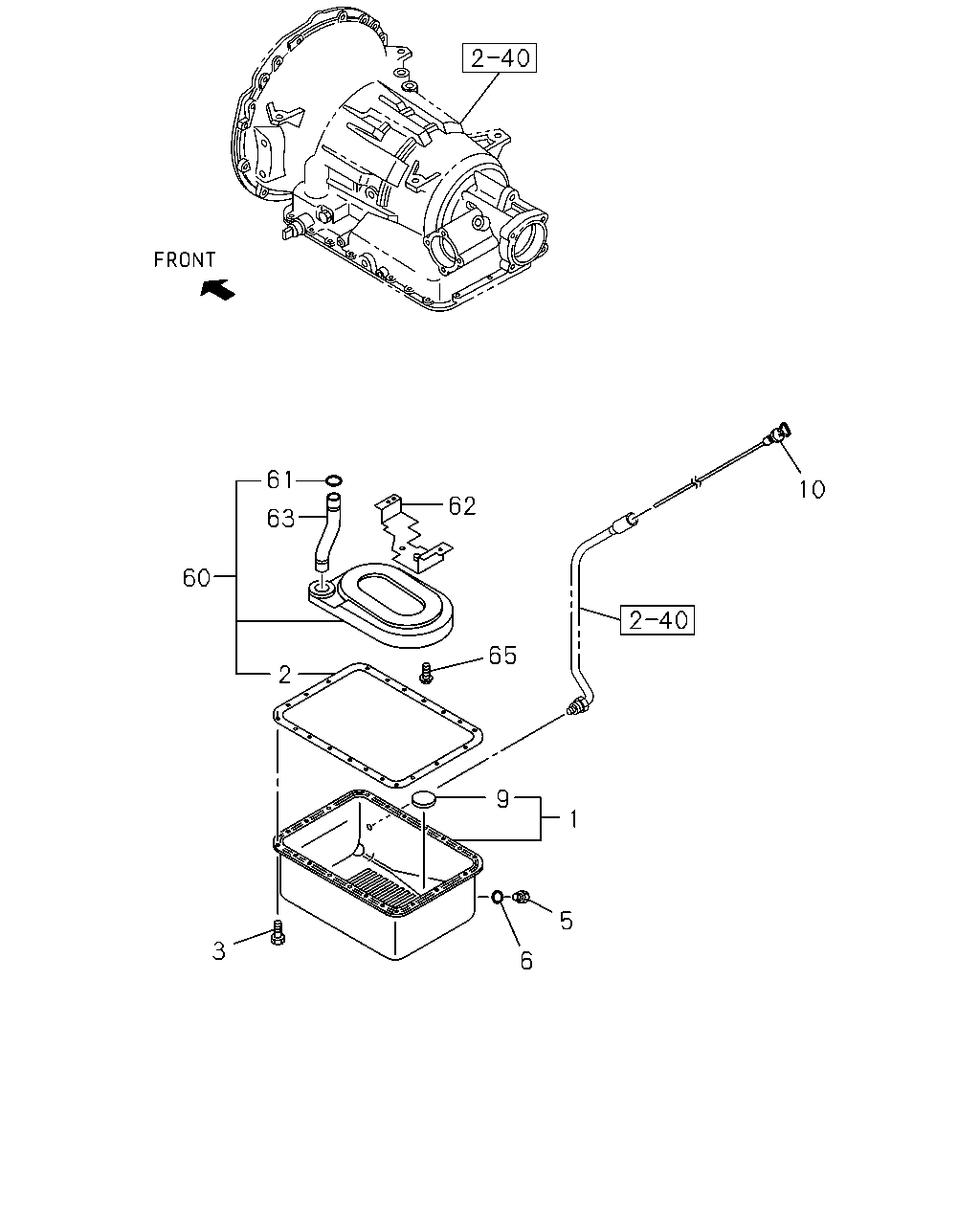

çizim 151290
61 10 62 63 60 65 2 9 1 5 3 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL,A/T 1-34131-008-0 01 1 9510-0004 ●
1 PAN ASM; OIL,A/T 1-34131-007-0 01 1 9810-0004 ●
2 GASKET; OIL PAN,A/T 1-34132-008-0 01 1 9510-9809 ●
2 GASKET; OIL PAN,A/T 1-34132-008-0 01 1 9810-0004 ● ●
3 BOLT; OIL PAN TO CASE 1-34139-001-0 21 1 9510-9809 ●
3 BOLT; OIL PAN TO CASE 1-34139-001-0 21 1 9810-0004 ● ●
5 PLUG; OIL PAN 1-34139-002-0 01 1 9510-9809 ●
5 PLUG; OIL PAN 1-34139-002-0 01 1 9810-0004 ● ●
6 GASKET; OIL PAN TO PLUG 1-09630-044-0 01 1 9510-9809 ●
6 GASKET; OIL PAN TO PLUG 1-09630-044-0 01 1 9810-0004 ● ●
9 MAGNET; OIL PAN 1-34139-007-0 01 1 9510-9809 ●
9 MAGNET; OIL PAN 1-34139-007-0 01 1 9810-0004 ● ●
10 GAUGE; OIL LEVEL 1-34121-092-0 01 1 9510-9809 ●
10 GAUGE; OIL LEVEL 1-34121-092-0 01 1 9810-0004 ● ●
60 REPAIR KIT; OIL FILTER,A/T 1-87830-186-2 01 1 9510-0004 ●
60 REPAIR KIT; OIL FILTER,A/T 1-87830-427-0 01 1 9810-0004 ●
61 SEAL; OIL FILTER 1-09623-064-0 01 1 9510-9809 ●
61 SEAL; OIL FILTER 1-09623-064-0 01 1 9810-0004 ● ●
62 SPACER; A/T 1-34139-010-0 01 1 9810-0004 ●
63 PIPE; INT,A/T 1-34139-008-0 01 1 9510-0004 ●
63 PIPE; INT,A/T 1-34139-011-0 01 1 9810-0004 ●
65 SCREW; OIL FILTER 1-34139-001-0 01 1 9510-9809 ●
65 SCREW; OIL FILTER 1-34139-001-0 01 1 9810-0004 ● ●
