2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#37306) — 28 parça

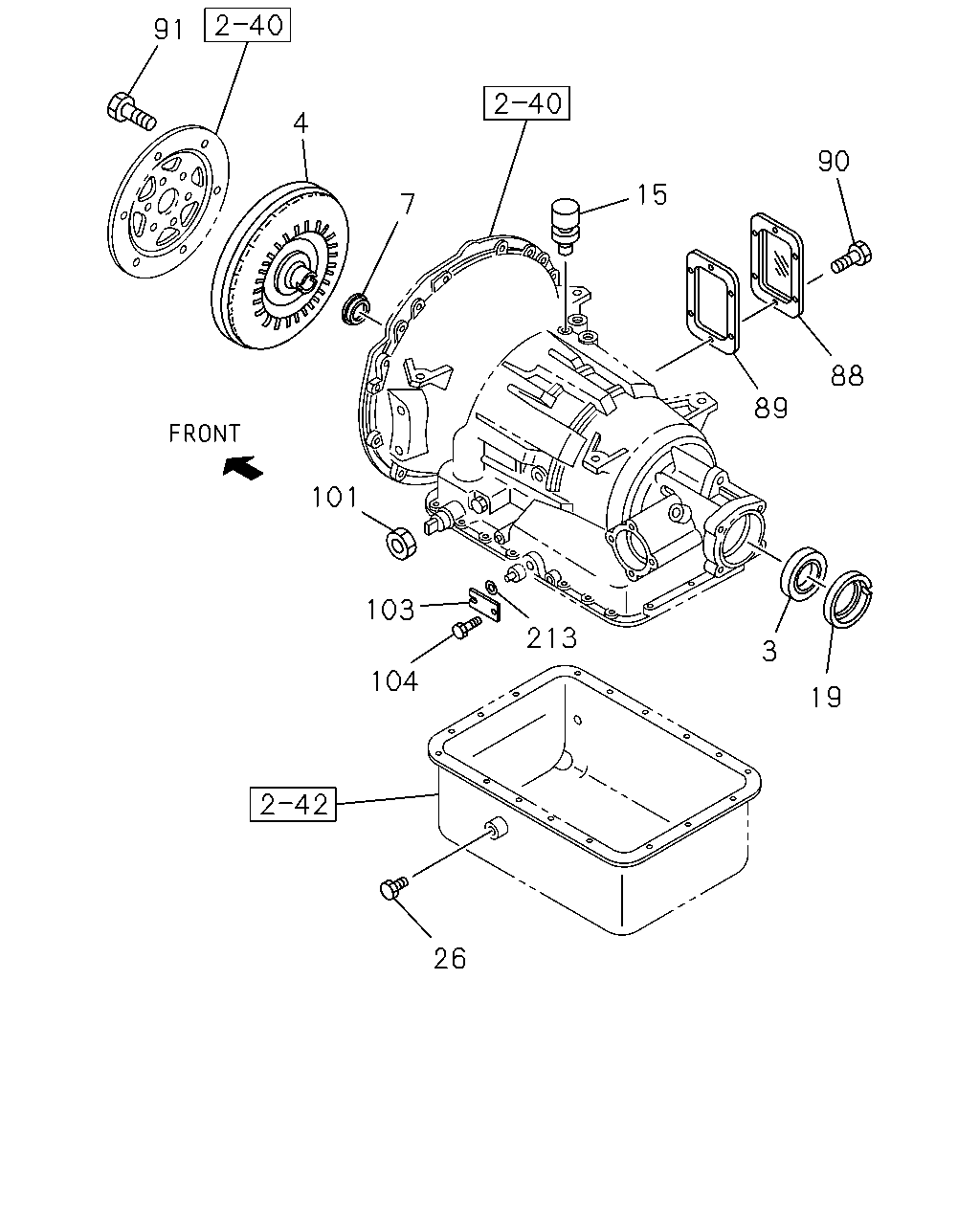

çizim 151283
91 4 90 15 7 88 89 101 103 213 3 104 19 26
BalonParca AdiParca NoAdetTipApplied Date A B
3 SEAL; OIL,RR COVER,A/T 1-09625-052-0 01 1 9510-9809 ●
3 SEAL; OIL,RR COVER,A/T 1-09625-052-0 01 1 9810-0004 ● ●
4 CONVERTER ASM; TORQUE,A/T 1-32100-007-0 01 1 9510-9809 ●
4 CONVERTER ASM; TORQUE,A/T 1-32100-007-0 01 1 9810-0004 ● ●
7 SEAL; OIL,LIP,A/T 1-09625-050-0 01 1 9510-9809 ●
7 SEAL; OIL,LIP,A/T 1-09625-050-0 01 1 9810-0004 ● ●
15 BREATHER; A/T CASE 1-33547-004-2 01 1 9510-9809 ●
15 BREATHER; A/T CASE 1-33547-004-2 01 1 9810-0004 ● ●
19 COVER; DUST,REAR COVER 1-34125-002-0 01 1 9510-9809 ●
19 COVER; DUST,REAR COVER 1-34125-002-0 01 1 9810-0004 ● ●
26 PLUG; TRANS CASE 1-34139-016-0 01 1 9510-9809 ●
26 PLUG; TRANS CASE 1-34139-016-0 01 1 9810-0004 ● ●
88 COVER; SIDE,A/T 1-38131-007-0 01 1 9510-9809 ●
88 COVER; SIDE,A/T 1-38131-007-0 01 1 9810-0004 ● ●
89 GASKET; SIDE COVER 1-38183-007-0 01 1 9510-9809 ●
89 GASKET; SIDE COVER 1-38183-007-0 01 1 9810-0004 ● ●
90 BOLT; SIDE COVER 1-34139-015-0 06 1 9510-9809 ●
90 BOLT; SIDE COVER 1-34139-015-0 06 1 9810-0004 ● ●
91 BOLT; FLEX PLATE
THIS P/N CONSISTS OF 6 BOLTS 		1-09009-078-0 01 1 9510-9809 ●
91 BOLT; FLEX PLATE
THIS P/N CONSISTS OF 6 BOLTS 		1-09009-078-0 01 1 9810-0004 ● ●
101 NUT; CONT ARM 1-09464-003-0 01 1 9510-9809 ●
101 NUT; CONT ARM 1-09464-003-0 01 1 9810-0004 ● ●
103 RETAINER; A/T 1-34559-004-0 01 1 9510-9809 ●
103 RETAINER; A/T 1-34559-004-0 01 1 9810-0004 ● ●
104 BOLT; RET 1-09189-004-0 01 1 9510-9809 ●
104 BOLT; RET 1-09189-004-0 01 1 9810-0004 ● ●
213 GASKET; RET 1-34559-006-0 01 1 9510-9809 ●
213 GASKET; RET 1-34559-006-0 01 1 9810-0004 ● ●
