2-39 — POWER ASSISTOR (#37304) — 125 parça

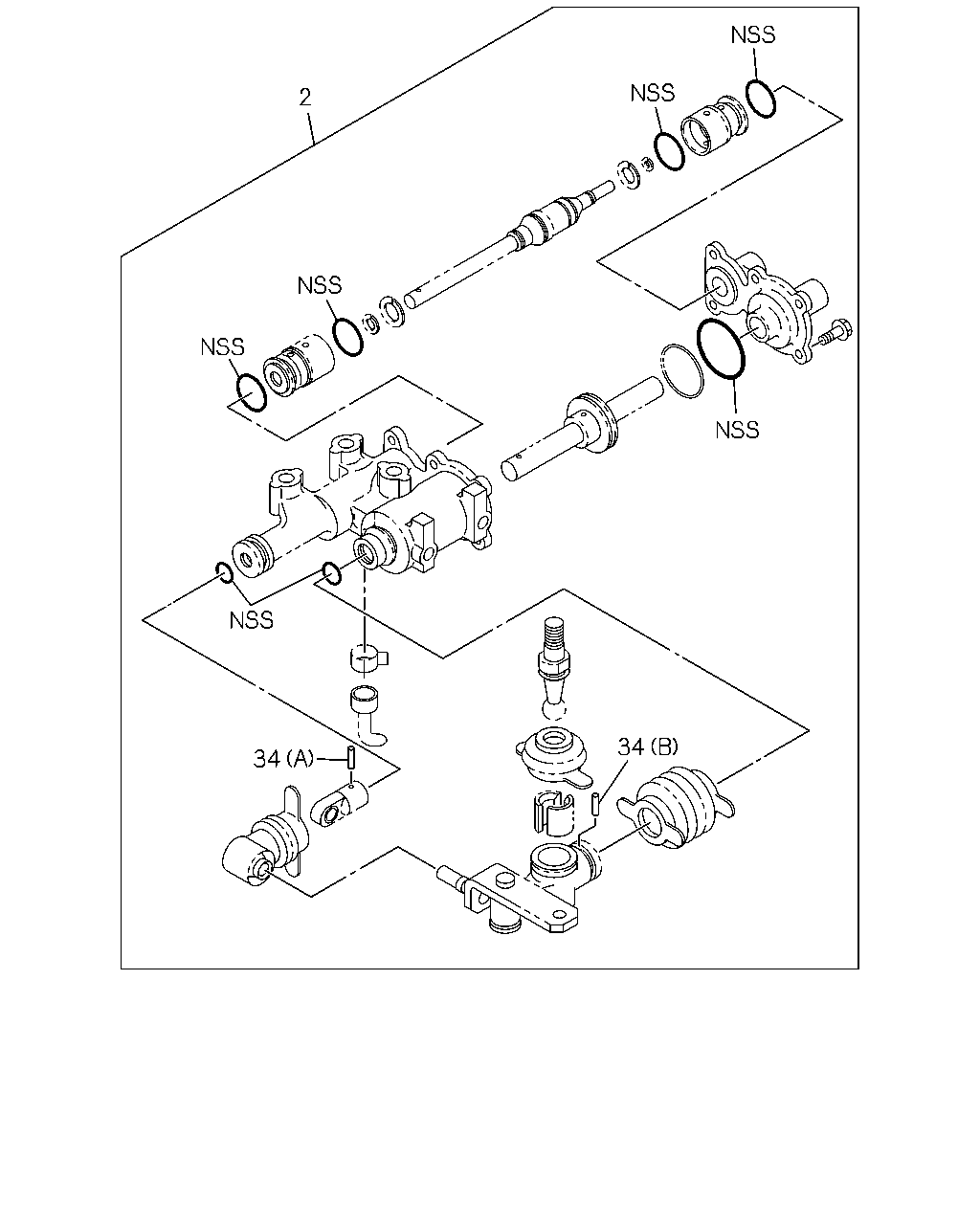

2 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER	1-33738-028-0	01	1	0601-
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-888-0	01	1	9807-9810
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-028-0	01	1	9811-0004
34	PIN; STRAIGHT,POWER SHIFTER (B)	1-33739-885-0	01	1	0601-
34	PIN; STRAIGHT,POWER SHIFTER (A)	1-33739-974-0	01	1	0601-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-845-0	01	1	9807-9810
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	9811-0004
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	9807-0004

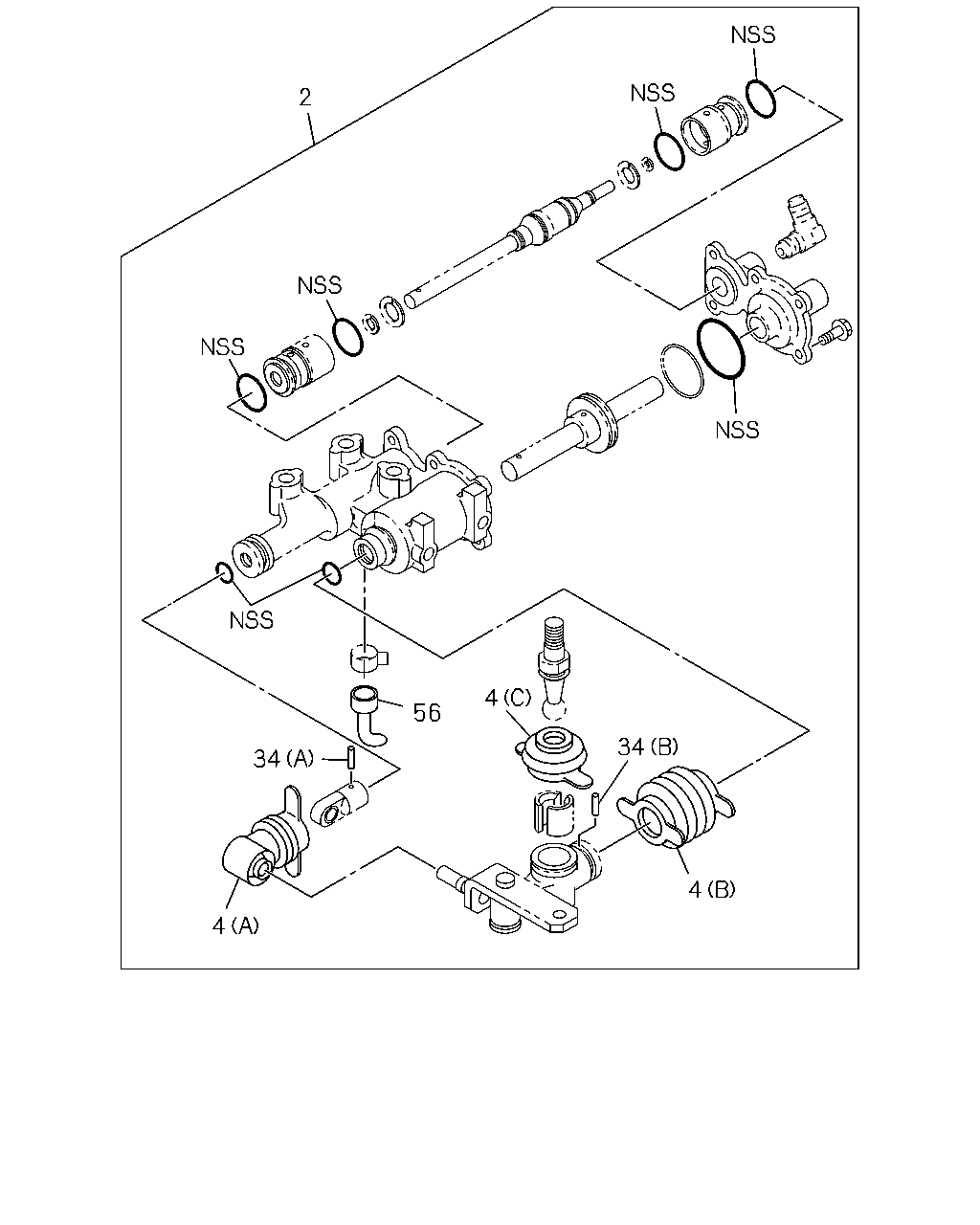

2 4 56 34 34 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER	1-33738-028-0	01	1	0601-
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-888-0	01	1	9807-9810
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-028-0	01	1	9811-0004
4	BOOT; POWER SHIFTER (A)	1-33739-843-0	01	1	0601-
4	BOOT; POWER SHIFTER (B)	1-33739-844-0	01	1	0601-
4	BOOT; POWER SHIFTER (C)	1-33739-847-0	01	1	0601-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	9807-0004
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	9807-0004
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	9807-0004
34	PIN; STRAIGHT,POWER SHIFTER (B)	1-33739-885-0	01	1	0601-
34	PIN; STRAIGHT,POWER SHIFTER (A)	1-33739-974-0	01	1	0601-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-845-0	01	1	9807-9810
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	9811-0004
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	9807-0004
56	HOSE; POWER SHIFTER	1-33739-848-0	01	1	0601-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	9807-0004

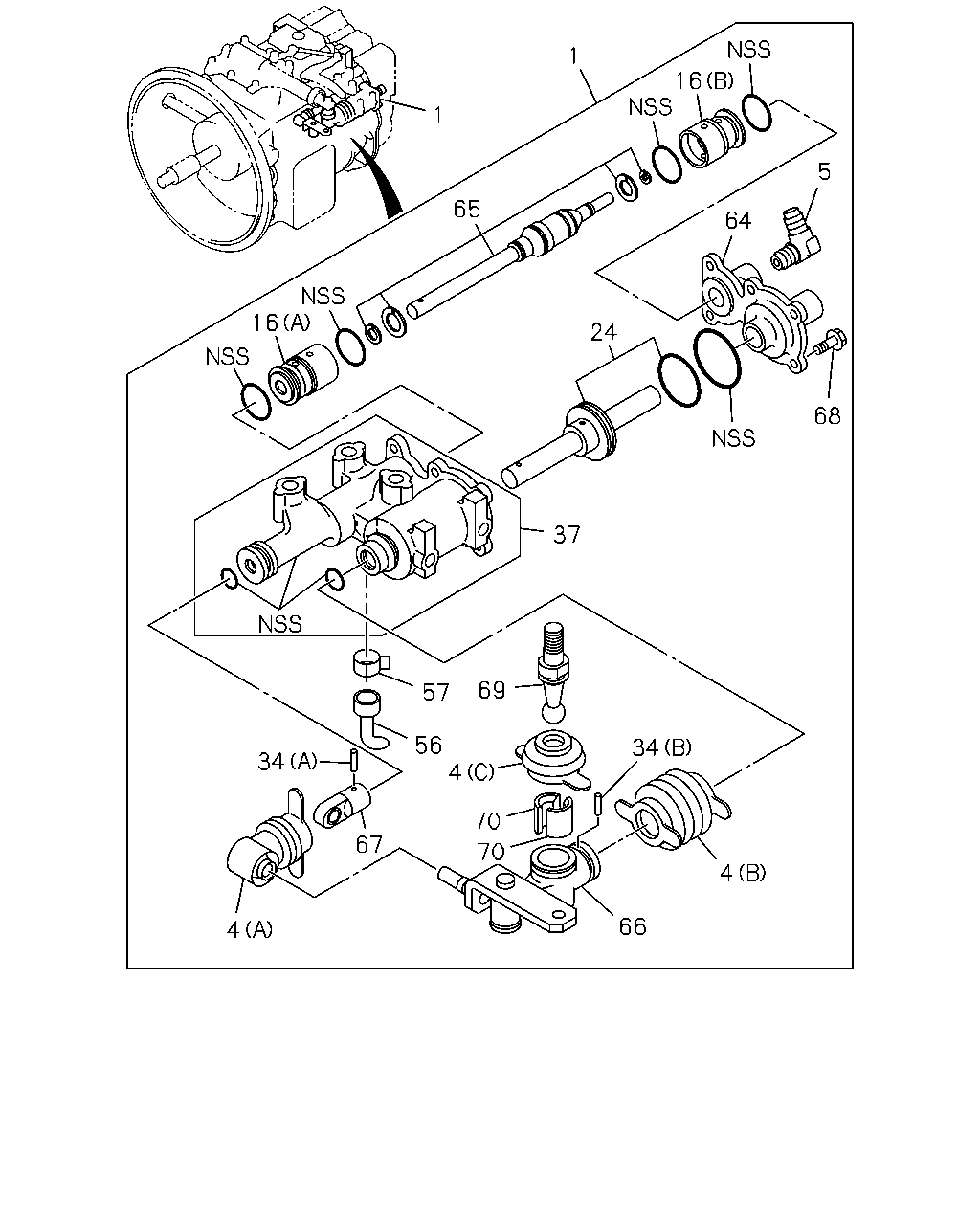

1 16 1 5 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT	1-33730-233-3	01	1	0601-0705
1	ASSISTOR ASM; POWER,SHIFT	8-98022-843-0	01	1	0706-
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-156-2	01	1	9807-9810
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-233-3	01	1	9811-0004
4	BOOT; POWER SHIFTER (A)	1-33739-843-0	01	1	0601-
4	BOOT; POWER SHIFTER (B)	1-33739-844-0	01	1	0601-
4	BOOT; POWER SHIFTER (C)	1-33739-847-0	01	1	0601-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	9807-0004
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	9807-0004
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	9807-0004
5	CONNECTOR; CYL M12 & PT1/8	9-09224-306-2	01	1	0601-0705
5	CONNECTOR; CYL M12 & PT1/8	0-92124-306-0	01	1	0706-
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	9811-0004
16	SEAT; VALVE (A)	1-33739-838-1	01	1	0601-0705
16	SEAT; VALVE (A)	8-97388-032-0	01	1	0706-
16	SEAT; VALVE (B)	1-33739-839-1	01	1	0601-0705
16	SEAT; VALVE (B)	8-97388-033-0	01	1	0706-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-838-1	01	1	9807-0004
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-839-1	01	1	9807-0004
24	PISTON	1-33739-836-1	01	1	0601-
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	9807-0004
34	PIN; STRAIGHT,POWER SHIFTER (B)	1-33739-885-0	01	1	0601-
34	PIN; STRAIGHT,POWER SHIFTER (A)	1-33739-974-0	01	1	0601-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-845-0	01	1	9807-9810
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	9811-0004
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	9807-0004
37	HOUSING; POWER SHIFTER	1-33739-969-0	01	1	0601-
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-831-1	01	1	9807-9810
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	9811-0004
56	HOSE; POWER SHIFTER	1-33739-848-0	01	1	0601-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	9807-0004
57	CLAMP; HOSE	1-33739-849-0	01	1	0601-
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	9807-0004
64	COVER; HOUSING	1-33739-970-0	01	1	0601-
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-832-2	01	1	9807-9810
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	9811-0004
65	VALVE; POWER SHIFTER	1-33739-971-0	01	1	0601-0705
65	VALVE; POWER SHIFTER	8-97388-029-0	01	1	0706-
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-833-2	01	1	9807-9810
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-971-0	01	1	9811-0004
66	JOINT ASM; POWER SHIFTER	1-33739-972-0	01	1	0601-
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-834-0	01	1	9807-9810
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	9811-0004
67	JOINT; BALL,POWER SHIFTER	1-33739-973-0	01	1	0601-
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-835-0	01	1	9807-9810
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	9811-0004
68	BOLT; COVER M6X12 FLANGE	1-33739-842-0	06	1	0601-
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	9807-0004
69	STUD; BALL,POWER SHIFTER	1-33739-846-0	01	1	0601-
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	9807-0004
70	SEAT; BALL STUD	1-33659-118-0	02	1	0601-
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	9807-0004

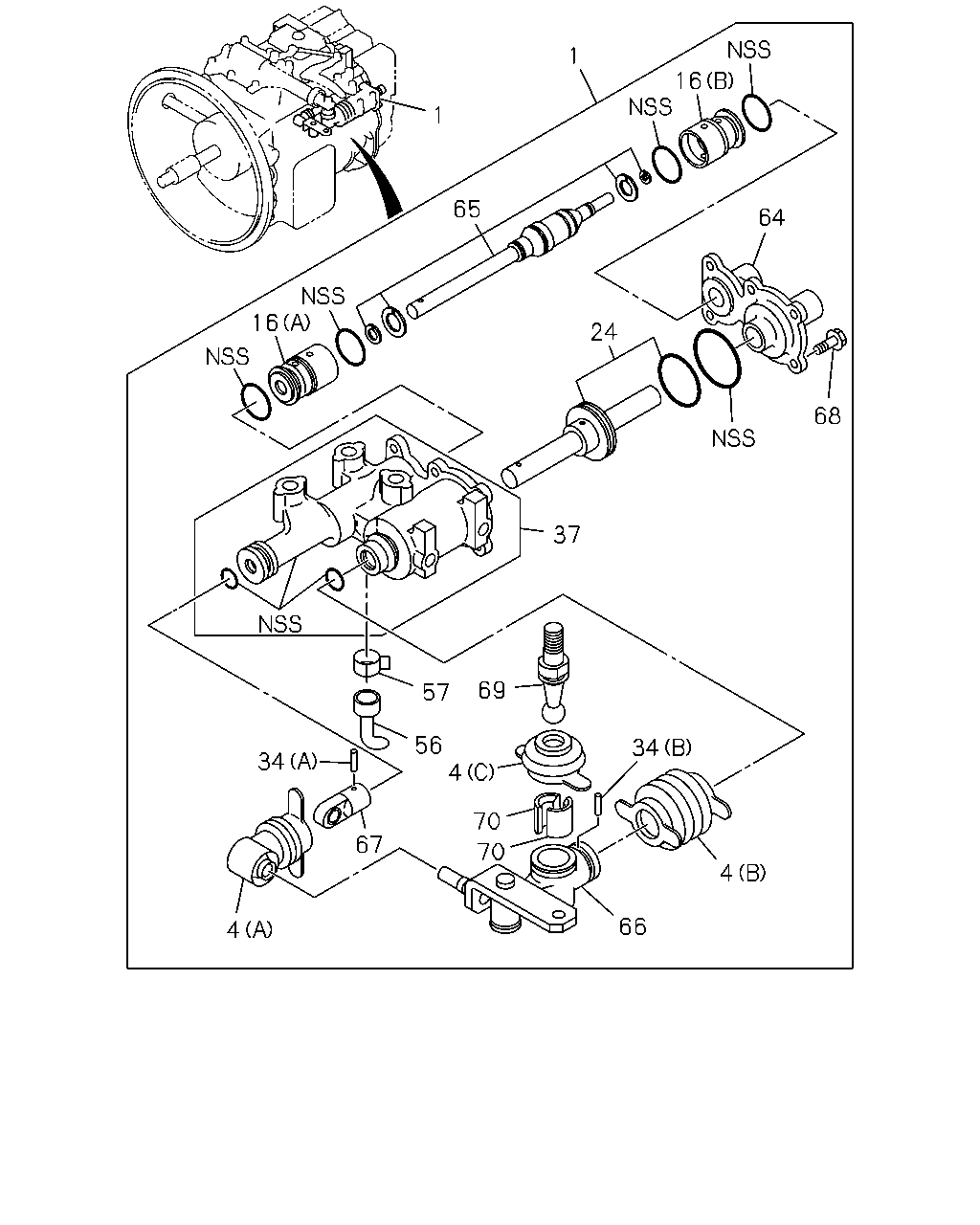

1 16 1 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT	1-33730-233-3	01	1	0601-0705
1	ASSISTOR ASM; POWER,SHIFT	8-98022-843-0	01	1	0706-
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-156-2	01	1	9807-9810
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-233-3	01	1	9811-0004
4	BOOT; POWER SHIFTER (A)	1-33739-843-0	01	1	0601-
4	BOOT; POWER SHIFTER (B)	1-33739-844-0	01	1	0601-
4	BOOT; POWER SHIFTER (C)	1-33739-847-0	01	1	0601-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	9807-0004
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	9807-0004
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	9807-0004
16	SEAT; VALVE (A)	1-33739-838-1	01	1	0601-0705
16	SEAT; VALVE (A)	8-97388-032-0	01	1	0706-
16	SEAT; VALVE (B)	1-33739-839-1	01	1	0601-0705
16	SEAT; VALVE (B)	8-97388-033-0	01	1	0706-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-838-1	01	1	9807-0004
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-839-1	01	1	9807-0004
24	PISTON	1-33739-836-1	01	1	0601-
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	9807-0004
34	PIN; STRAIGHT,POWER SHIFTER (B)	1-33739-885-0	01	1	0601-
34	PIN; STRAIGHT,POWER SHIFTER (A)	1-33739-974-0	01	1	0601-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-845-0	01	1	9807-9810
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	9811-0004
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	9807-0004
37	HOUSING; POWER SHIFTER	1-33739-969-0	01	1	0601-
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-831-1	01	1	9807-9810
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	9811-0004
56	HOSE; POWER SHIFTER	1-33739-848-0	01	1	0601-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	9807-0004
57	CLAMP; HOSE	1-33739-849-0	01	1	0601-
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	9807-0004
64	COVER; HOUSING	1-33739-970-0	01	1	0601-
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-832-2	01	1	9807-9810
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	9811-0004
65	VALVE; POWER SHIFTER	1-33739-971-0	01	1	0601-0705
65	VALVE; POWER SHIFTER	8-97388-029-0	01	1	0706-
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-833-2	01	1	9807-9810
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-971-0	01	1	9811-0004
66	JOINT ASM; POWER SHIFTER	1-33739-972-0	01	1	0601-
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-834-0	01	1	9807-9810
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	9811-0004
67	JOINT; BALL,POWER SHIFTER	1-33739-973-0	01	1	0601-
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-835-0	01	1	9807-9810
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	9811-0004
68	BOLT; COVER M6X12 FLANGE	1-33739-842-0	06	1	0601-
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	9807-0004
69	STUD; BALL,POWER SHIFTER	1-33739-846-0	01	1	0601-
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	9807-0004
70	SEAT; BALL STUD	1-33659-118-0	02	1	0601-
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	9807-0004
