2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#37303) — 153 parça

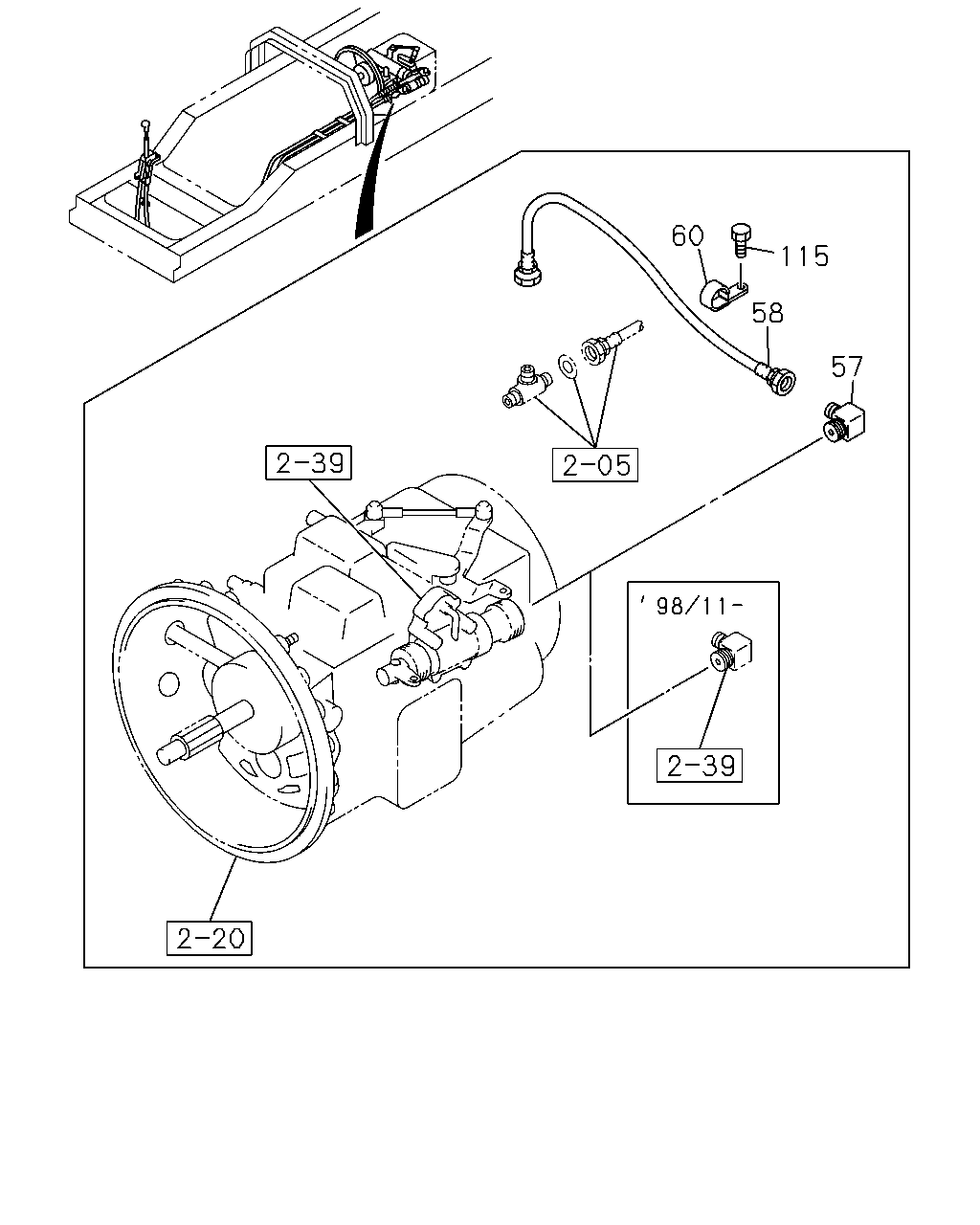

çizim 151265
60 115 58 57
BalonParca AdiParca NoAdetTipApplied Date A B C
57 NIPPLE; POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8 		9-09224-306-2 01 1 9807-9810 ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 0601- ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 9807-0004 ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		9-09525-235-0 02 1 0601-0606 ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		0-95235-235-0 02 1 0607- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		9-09525-235-0 02 1 9807-0004 ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28680-820-0 02 1 9807-9812 ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28080-816-0 02 1 9901-0004 ●

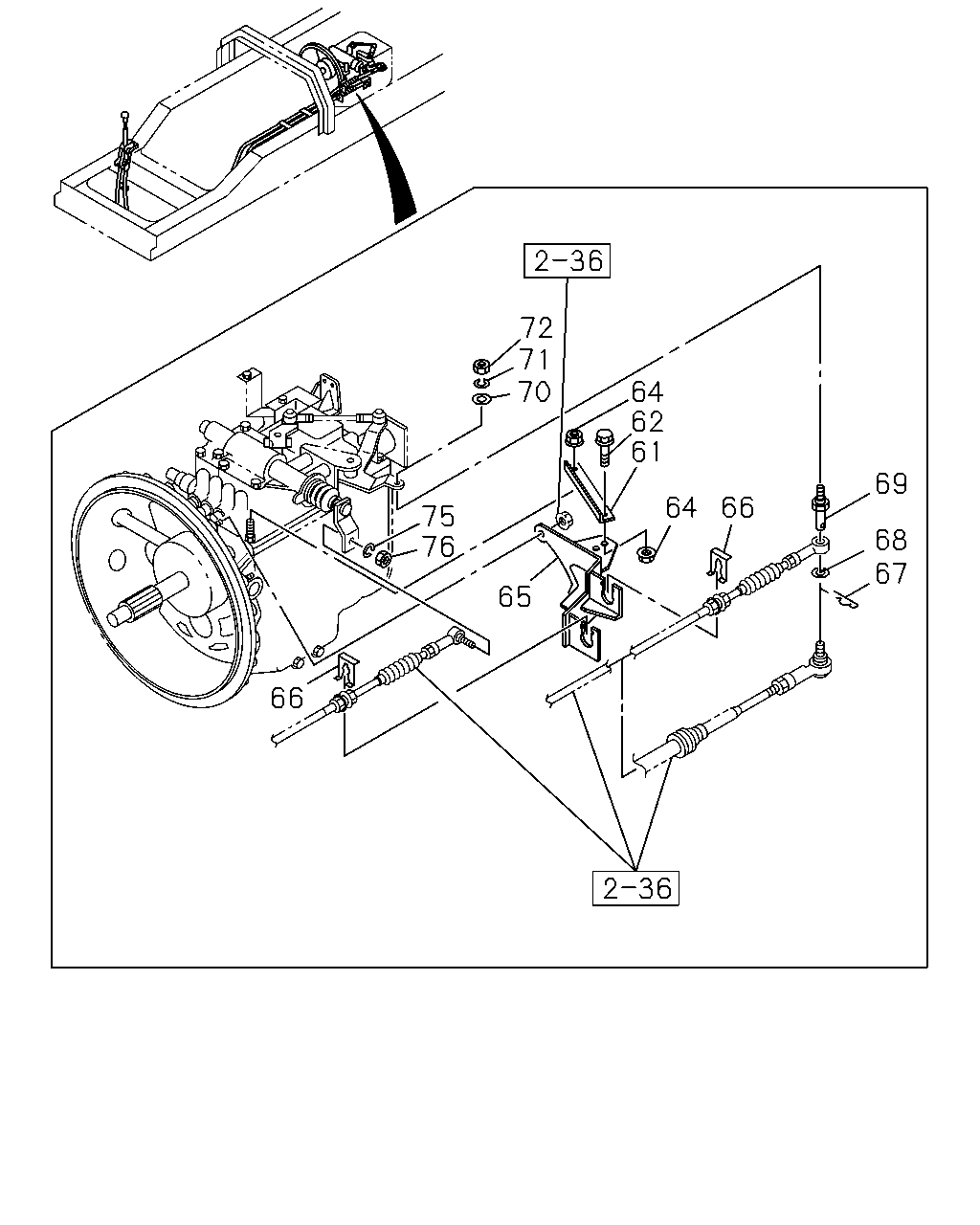

çizim 151266
72 71 70 64 62 61 69 64 66 75 76 68 67 65 66
BalonParca AdiParca NoAdetTipApplied Date A B C
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0601- ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 9510-9806 ● ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 9807-0004 ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9807-0004 ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0005-0512 ● ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0601- ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0601- ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9807-0004 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9510-9605 ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-9806 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9807-0004 ● ●
62 BOLT; STAY
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9807-0004 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0005-0512 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601-0601 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ●
62 BOLT; STAY
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 02 1 9807-0004 ●
64 NUT; STAY
M10 FLANGE 		0-91150-110-0 02 1 9510-9605 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9606-9806 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9807-0004 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0005-0512 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0601-0602 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
STD CAB(FR**M*) 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-691-1 01 1 0602- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-691-1 01 1 0602- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 0601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		8-97377-974-1 01 1 0601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-619-0 01 1 9510- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-691-1 01 1 9807-0004 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9807-0004 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9510-9806 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9807-0004 ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0005-0512 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0601- ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9510-9802 ● ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9510-9702 ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 9510-9802 ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9510-9802 ● ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 01 1 9510-9702 ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9510-9609 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9806 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9807-0004 ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0005-0512 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0601- ● ● ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2 		9-09150-510-0 01 1 9510-9802 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9510-9802 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9803-9806 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9807-0004 ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0005-0512 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0601- ● ● ●

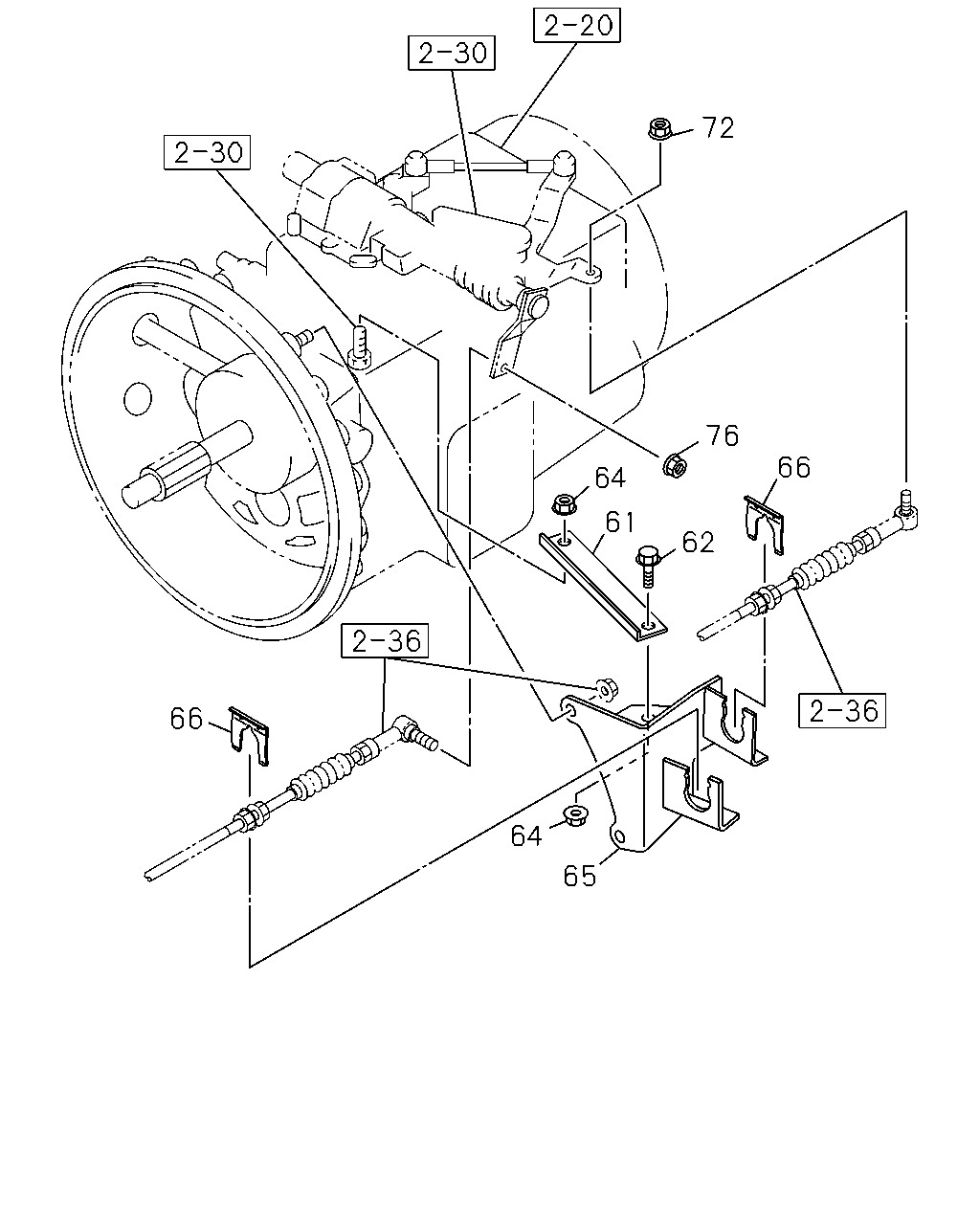

çizim 151279
72 76 66 64 61 62 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B C
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0601- ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 9510-9806 ● ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 9807-0004 ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9807-0004 ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0005-0512 ● ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0601- ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0601- ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9807-0004 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9510-9605 ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-9806 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9807-0004 ● ●
62 BOLT; STAY
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9807-0004 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0005-0512 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601-0601 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ●
62 BOLT; STAY
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 02 1 9807-0004 ●
64 NUT; STAY
M10 FLANGE 		0-91150-110-0 02 1 9510-9605 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9606-9806 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9807-0004 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0005-0512 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0601-0602 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
STD CAB(FR**M*) 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-691-1 01 1 0602- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-691-1 01 1 0602- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 0601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		8-97377-974-1 01 1 0601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-619-0 01 1 9510- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-691-1 01 1 9807-0004 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9807-0004 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9510-9806 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9807-0004 ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0005-0512 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0601- ● ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9510-9609 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9806 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9807-0004 ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0005-0512 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0601- ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9510-9802 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9803-9806 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9807-0004 ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0005-0512 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0601- ● ● ●

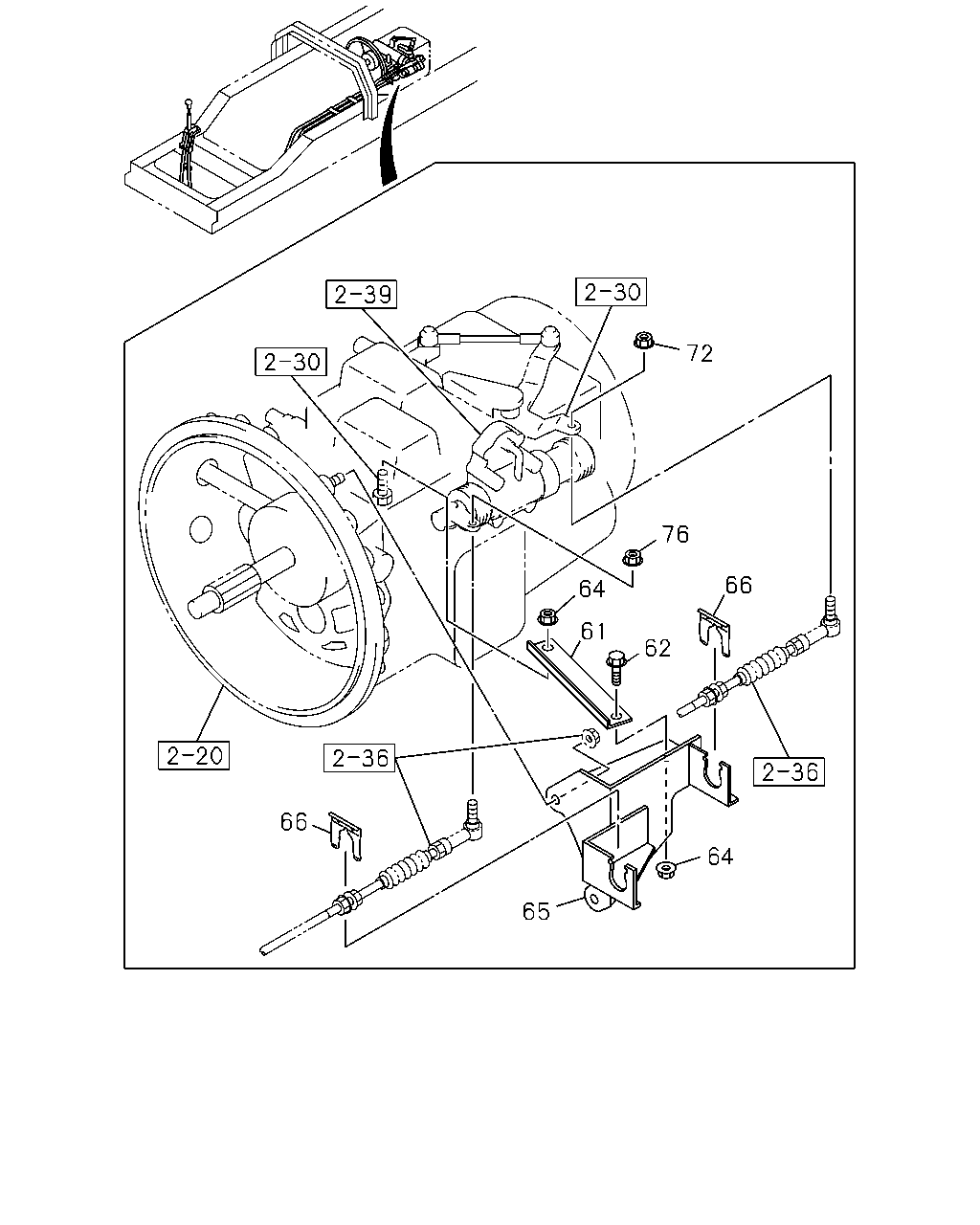

çizim 151284
72 76 66 64 61 62 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B C
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0601- ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 9510-9806 ● ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 9807-0004 ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 9807-0004 ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0005-0512 ● ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0601- ● ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0601- ●
61 STAY; BRKT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 9807-0004 ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
62 BOLT; STAY
M10X20 FLANGE 		0-28681-020-0 01 1 9510-9605 ● ●
62 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 01 1 9606-9804 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9805-9806 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 9807-0004 ● ●
62 BOLT; STAY
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 01 1 9807-0004 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0005-0512 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601-0601 ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ●
62 BOLT; STAY
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28681-030-0 02 1 9807-0004 ●
64 NUT; STAY
M10 FLANGE 		0-91150-110-0 02 1 9510-9605 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9606-9806 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 9807-0004 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0005-0512 ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0601-0602 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
STD CAB(FR**M*) 6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-691-1 01 1 0602- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L) ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33657-691-1 01 1 0602- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 0601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		8-97377-974-1 01 1 0601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-619-0 01 1 9510- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-691-1 01 1 9807-0004 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-534-2 01 1 9807-0004 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9510-9806 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 9807-0004 ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0005-0512 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0601- ● ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9510-9609 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9610-9806 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 9807-0004 ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0005-0512 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0601- ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 		9-09110-510-0 01 1 9510-9802 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9803-9806 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 9807-0004 ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0005-0512 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0601- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
