2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#37302) — 87 parça

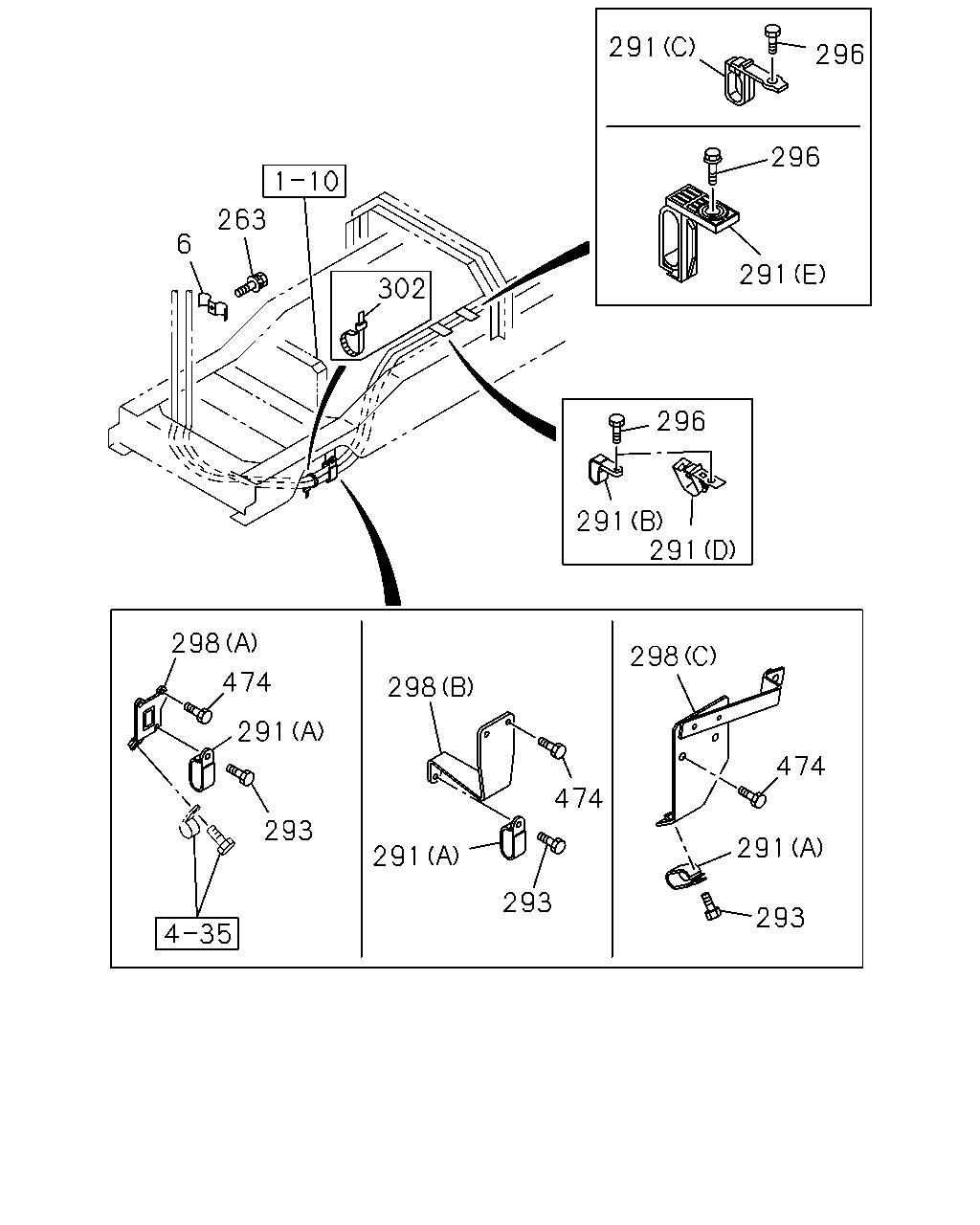

291 296 296 263 6 291 302 296 291 291 298 298 474 298 291 474 474 293 291 291 293 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9510-9806	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9807-0004	●	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0512	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0601-	●	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-9806	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9807-9812	●	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0004	●	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0512	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0601-	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B)	1-09700-621-2	01	1	9510-9602	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9510-9806	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	9807-0004	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0005-0406	●	●
291	CLIP; SHIFT TO SELECT,FRAME (E)	1-09701-307-2	01	1	0407-0512	●	●
291	CLIP; SHIFT TO SELECT,FRAME (E)	1-09701-307-2	01	1	0601-	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	9510-9806	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	9807-0004	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0005-0512	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0601-0606	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (D)	1-09701-258-0	01	1	9702-9702	●	●
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13X2 L=32	1-09701-245-0	01	1	9703-9806	●	●
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13X2 L=32	1-09701-245-0	01	1	9807-0004	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13X2 L=32	1-09701-245-0	01	1	0005-0506	●	●
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13X2 L=32	1-09701-312-0	01	1	0507-0512	●	●
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=13X2 L=32	1-09701-312-0	01	1	0601-	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	9510-9806	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	9807-0004	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X25 FLANGE	0-28680-825-0	02	1	9510-9610	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	9611-9806	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	9807-0004	●	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0005-0512	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
298	BRACKET (C)	1-36183-238-0	01	1	0601-			●
298	BRACKET 6HH1 STD 4VALVE ENG(1A6) NEW ZEALAND EQUIPMENT(PK5) (B)	1-36183-206-0	01	1	0207-	●	●
298	BRACKET (A)	1-82659-149-0	01	1	9510-0206	●	●
298	BRACKET EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-82659-149-0	01	1	0207-	●	●
302	CLIP; BAND L=300	1-09707-001-0	01	1	9510-9806	●	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	9807-0004	●	●	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0005-0512	●	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0601-	●	●	●
474	BOLT; BRKT M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9510-0512	●	●
474	BOLT; BRKT M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0601-	●	●	●

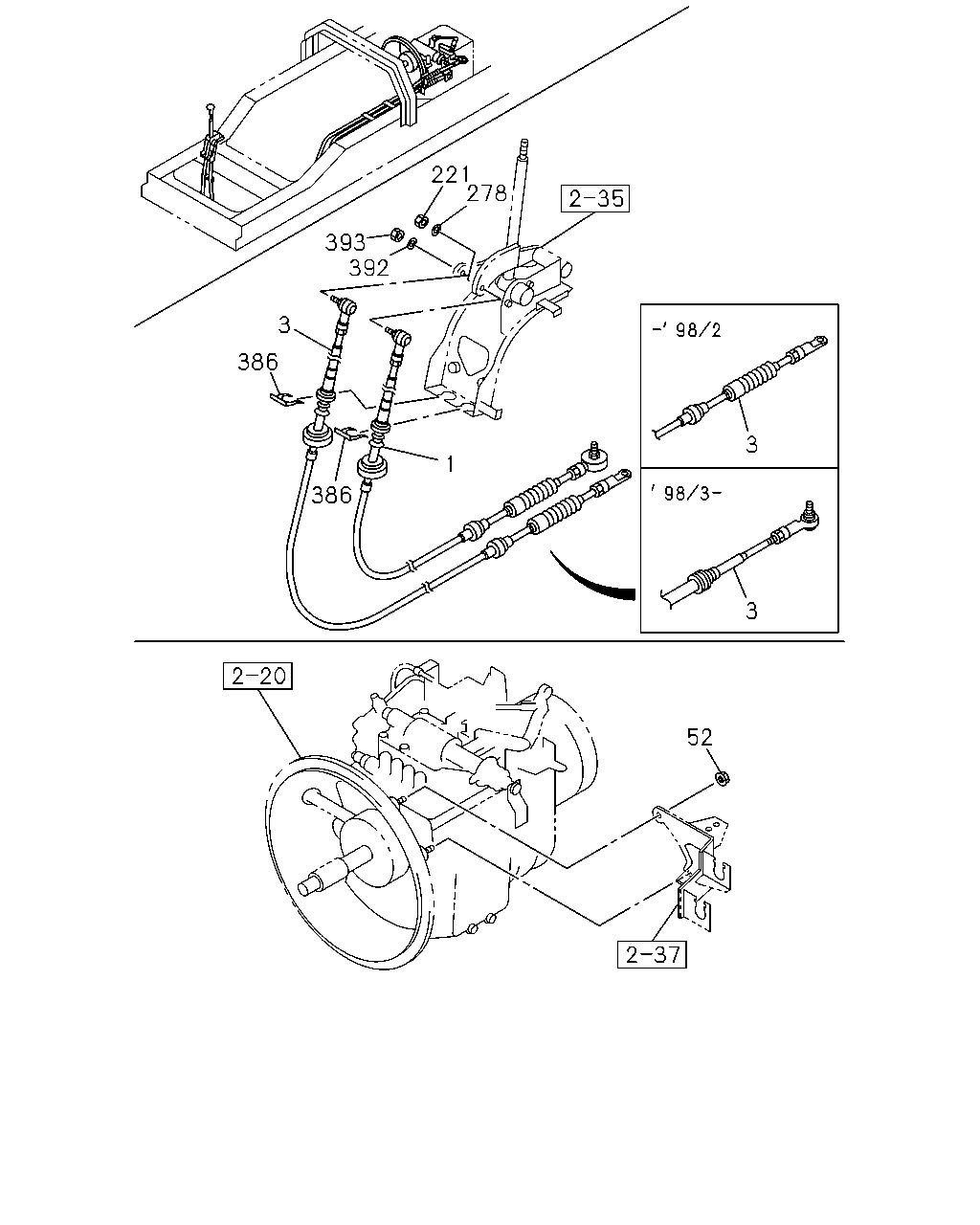

221 278 393 392 3 386 3 1 386 3 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3400	1-33671-971-0	01	1	0601-			●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) L=3458	1-33670-786-0	01	1	9510-9802	●	●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) L=3460	1-33671-125-0	01	1	9803-0004	●	●
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO(SV1) L=3401	1-33670-785-0	01	1	9510-9802	●	●
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO(SV1) L=3400	1-33671-124-0	01	1	9803-0004	●	●
1	CABLE; SHIFT,TRANS CONT L=3400	1-33671-124-0	01	1	0005-	●	●
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3465	1-33671-053-0	01	1	9807-0004			●
1	CABLE; SHIFT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8> L=3505	1-33671-128-0	01	1	9807-0004			●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3540	1-33671-973-0	01	1	0601-			●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) L=3581	1-33670-656-1	01	1	9510-9708	●	●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) L=3581	1-33670-659-1	01	1	9709-9802	●	●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) L=3580	1-33671-131-0	01	1	9803-0004	●	●
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO(SV1) L=3524	1-33670-655-1	01	1	9510-9708	●	●
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO(SV1) L=3524	1-33670-658-1	01	1	9709-9802	●	●
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO(SV1) L=3525	1-33671-129-0	01	1	9803-0004	●	●
3	CABLE; SELECT,TRANS CONT L=3525	1-33671-129-0	01	1	0005-	●	●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3580	1-33670-933-0	01	1	9807-0004			●
3	CABLE; SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600	1-33671-134-0	01	1	9807-0004			●
52	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9510-9605	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9606-9806	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9807-0004	●	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0512	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0601-0602	●	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9510-9802	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9803-9806	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9807-0004	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0005-0512	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0601-1011	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-	●	●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9510-9802	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	9510-9806	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	9807-0004	●	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0005-0512	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0601-	●	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9510-9802	●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9510-9802	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9803-9806	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9807-0004	●	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0005-0512	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0601-1011	●	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-	●	●
