◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#37300) — 885 parça

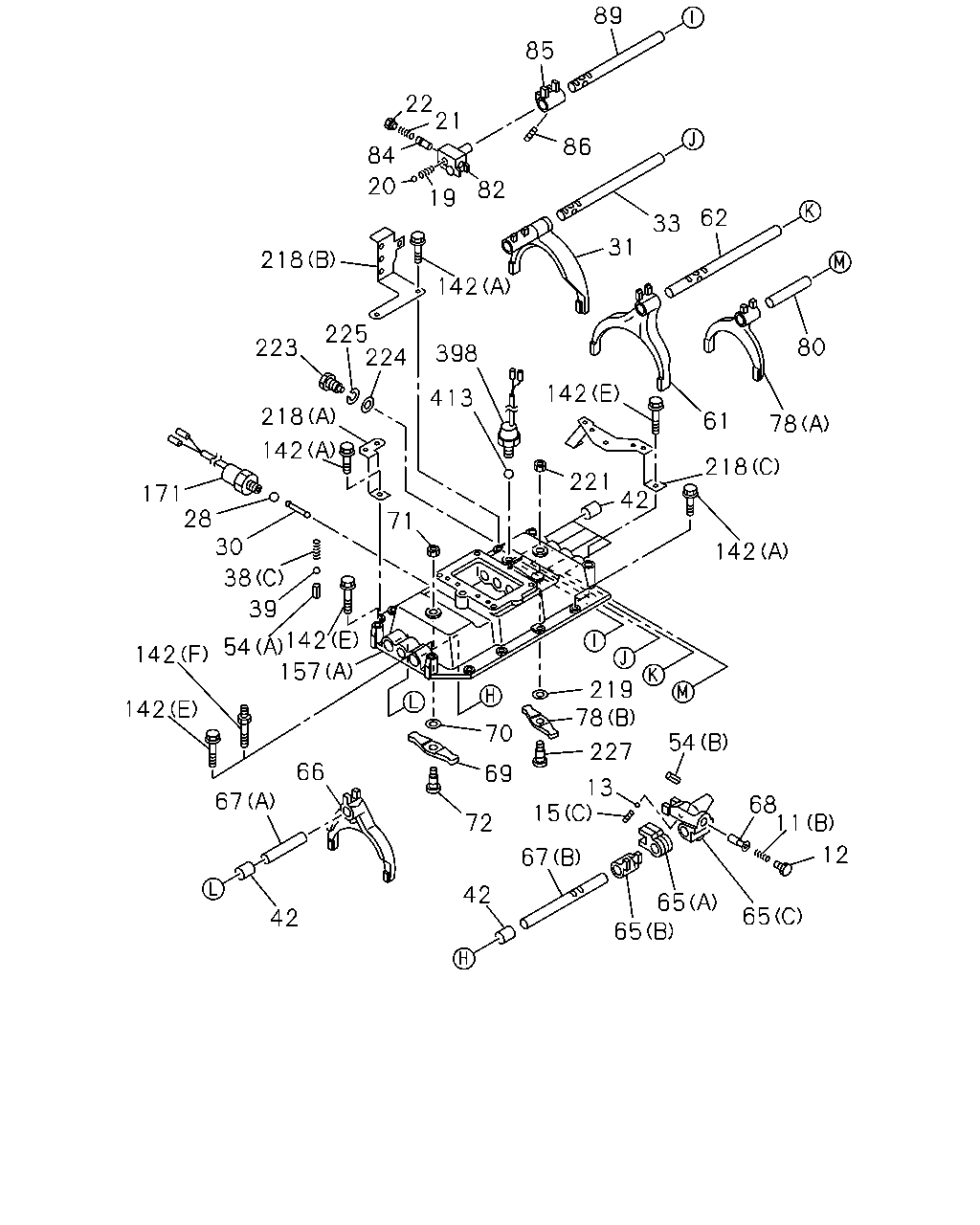

çizim 151267
89 85 22 21 84 86 19 20 82 62 33 31 218 142 225 224 80 223 398 142 413 218 61 78 142 218 221 4 171 28 30 71 142 38 39 142 157 54 142 219 78 142 70 54 227 66 69 13 15 67 68 11 72 12 67 42 65 65 65 42
BalonParca AdiParca NoAdetTipApplied Date A B C
4 ROD; SHIFT,6TH
(B) 		1-33531-340-1 01 1 9510-9606 ●
4 ROD; SHIFT,6TH
(B) 		1-33531-387-0 01 1 9607- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-341-1 01 1 9510- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		1-09580-444-0 01 1 9510- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 9510-9806 ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 9807-0004 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 0005-0512 ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 0601- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9510-9806 ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9807-0004 ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0005-0512 ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0601- ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0601- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-009-0 01 1 9510- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9807-0004 ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 0601- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-445-0 01 1 9510- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-526-0 01 1 9510- ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9807-0004 ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 0601- ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9807-0004 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0601- ●
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 9510- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9807-0004 ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 0601- ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9807-0004 ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9510-9806 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9807-0004 ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0005-0512 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0601- ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0601- ●
28 BALL; INTER LK 9-00097-010-0 05 1 9510- ●
28 BALL; INTER LK 9-00097-010-0 07 1 9510- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9807-0004 ●
30 PIN; INTER LK 9-33534-003-0 03 1 0601- ●
30 PIN; INTER LK 1-33534-002-0 02 1 9510- ●
30 PIN; INTER LK 1-33534-002-0 03 1 9510- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9807-0004 ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 0601- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9807-0004 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 0601-1202 ●
33 ROD; SHIFT,LOW & 2ND 8-98207-578-0 01 1 1203- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9807-0004 ●
38 SPRING; DETENT
(C) 		1-09580-379-0 04 1 0601- ●
38 SPRING; DETENT
(D) 		1-09580-374-0 03 1 9510-9606 ●
38 SPRING; DETENT
(D) 		1-09580-548-0 03 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 02 1 9707- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 9707- ● ●
38 SPRING; DETENT
(D) 		1-09580-374-0 04 1 9510-9606 ●
38 SPRING; DETENT
(D) 		1-09580-548-0 04 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 03 1 9707- ●
38 SPRING; DETENT
(C) 		1-09580-419-0 04 1 9807-9904 ●
38 SPRING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-09580-419-0 04 1 9905-0004 ●
38 SPRING; DETENT
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-09580-379-0 04 1 9905-0004 ●
39 BALL; DETENT 1-09843-012-0 04 1 0601- ●
39 BALL; DETENT 9-00097-013-0 03 1 9510- ●
39 BALL; DETENT 9-00097-013-0 04 1 9510- ●
39 BALL; DETENT 1-09843-012-0 04 1 9807-0004 ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 0601- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 07 1 9510- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 08 1 9510- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9807-0004 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 0601- ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9807-0004 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9807-0004 ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 0601- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9807-0004 ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 0601-1202 ●
62 ROD; SHIFT,3RD & 4TH 8-98207-586-0 01 1 1203- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9807-0004 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 0601- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 0601- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 0601- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9807-0004 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9807-0004 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9807-0004 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0601- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9807-0004 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 0601-1202 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		8-98207-587-0 01 1 1203- ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 0601-1202 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		8-98207-589-0 01 1 1203- ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 9807-0004 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 9807-0004 ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 0601- ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9807-0004 ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 0601- ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 9807-0004 ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0601- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 9807-0004 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 0601-0602 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9807-0004 ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 0601- ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 9807-0004 ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0601- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 0601- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9807-0004 ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9807-0004 ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 0601-1202 ●
80 ROD; SHIFT,REV ARM 8-98207-584-0 01 1 1203- ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9807-0004 ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0601- ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9807-0004 ●
84 SLEEVE; REV 1-33516-025-0 01 1 0601- ●
84 SLEEVE; REV 1-33516-025-0 01 1 9807-0004 ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 0601- ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9807-0004 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 0601- ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9807-0004 ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0601-1202 ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9807-0004 ●
142 BOLT; QUAD BOX
(E) M10X60 FLANGE 		0-28151-060-0 04 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 10 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 10 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X32 FLANGE 		0-28181-032-0 02 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 03 1 0806- ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9510-9806 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9807-0004 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005-0512 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0601-0805 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9510-9806 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9807-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005-0512 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0601-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 04 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 03 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-458-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-505-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9510- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-456-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-503-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9807-0004 ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0601-0702 ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801 ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
171 SWITCH; NEUTRAL 1-82340-534-0 01 1 9510- ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9807-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 0601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 0601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 02 1 9510- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-792-2 01 1 9510- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9807-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9807-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9807-0004 ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0601- ●
219 WASHER; PL,SPINDLE
ID=14 		9-09851-275-0 01 1 9510- ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9807-0004 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0601-0602 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
221 NUT; SPINDLE
M10 FLANGE 		0-91150-110-0 01 1 9510-0602 ● ●
221 NUT; SPINDLE
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9807-0004 ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0601- ●
223 SCREW; SET,QUAD BOX
M8X12.5 		9-09814-533-0 01 1 9510- ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9807-0004 ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0601-0605 ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0606- ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9807-0004 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0601-0603 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9807-0004 ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0601- ●
227 SPINDLE; 1ST & REV 1-33519-043-0 01 1 9510-9810 ● ●
227 SPINDLE; 1ST & REV 1-33519-130-0 01 1 9811- ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9807-0004 ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9510-9806 ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9807-0004 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0005-0512 ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0601-0602 ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209 ● ● ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0601- ●
413 BALL; BACK SW 9-00097-013-0 01 1 9807-0004 ●
çizim 151275
382 383 382 383
BalonParca AdiParca NoAdetTipApplied Date A B C
382 BRACKET; PARKING BRK CONT CABLE
(A) 		1-46147-209-3 01 1 9510- ●
382 BRACKET; PARKING BRK CONT CABLE
PARKING BRAKE DRUM 8.5"(B1S) (B) 		1-46147-187-2 01 1 9510-9806 ●
382 BRACKET; PARKING BRK CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-46147-187-2 01 1 9807- ●
382 BRACKET; PARKING BRK CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-46147-109-0 01 1 9807-0004 ●
383 BOLT; BRKT,PARK BRAKE
PARKING BRAKE DRUM 8.5"(B1S) M10X16 FLANGE 		0-28181-016-0 01 1 9510-9806 ●
383 BOLT; BRKT,PARK BRAKE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE 		0-28181-016-0 01 1 9807-0512 ●
383 BOLT; BRKT,PARK BRAKE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
383 BOLT; BRKT,PARK BRAKE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE 		0-28181-022-0 03 1 9807-0004 ●

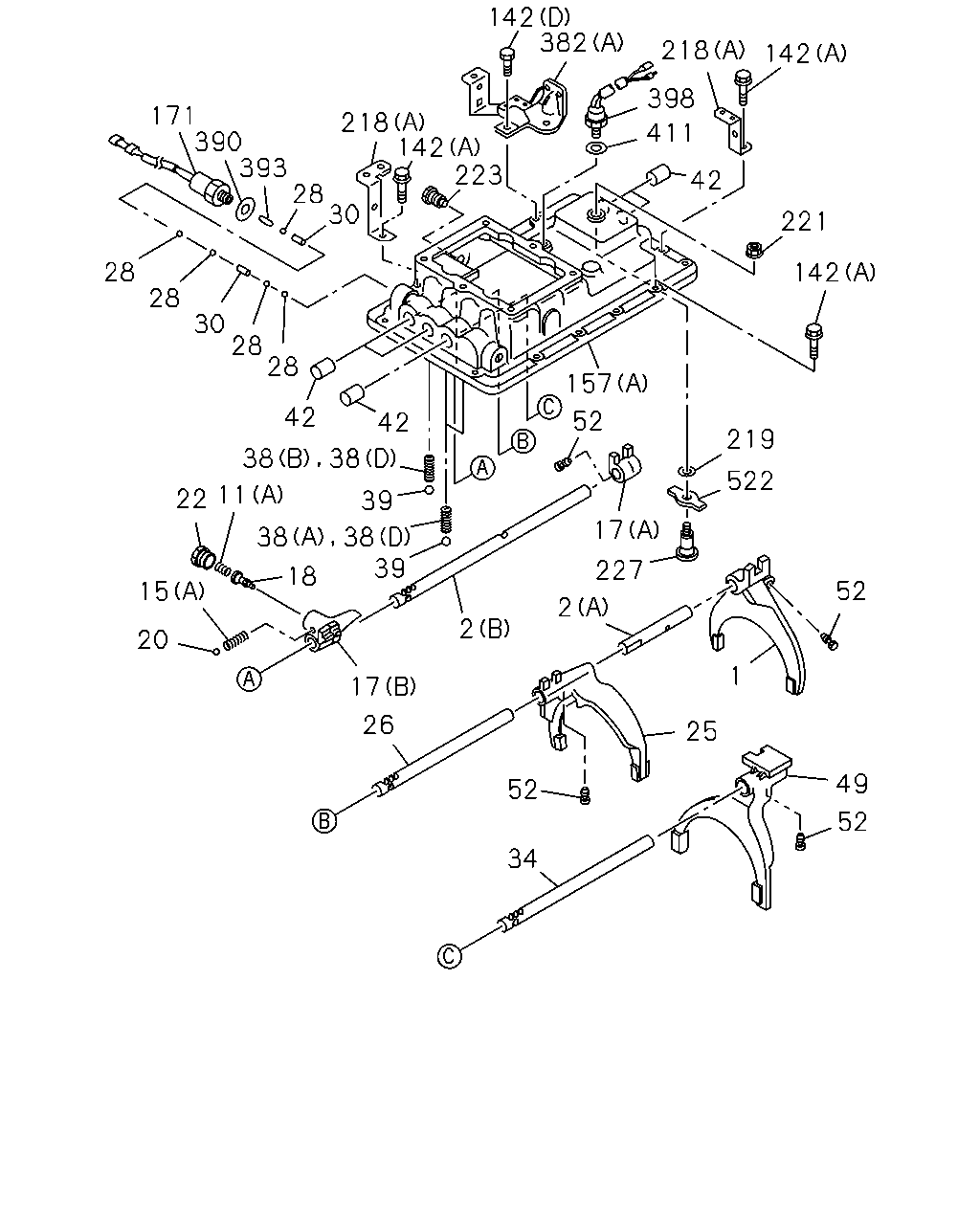

çizim 151276
142 382 218 142 398 171 390 393 28 30 218 142 223 411 42 221 28 142 28 30 28 28 157 42 52 42 219 522 11 22 39 17 38 38 39 227 18 52 15 2 2 20 1 17 26 25 49 52 52 34 38 38
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV 1-33511-502-1 01 1 9510- ● ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-360-1 01 1 9510- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-361-1 01 1 9510- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		1-09580-444-0 01 1 9510- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 9510-9806 ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 9807-0004 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 0005-0512 ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 0601- ● ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 0601- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-445-0 01 1 9510- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-526-0 01 1 9510- ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9807-0004 ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-387-2 01 1 9510- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-432-1 01 1 9510- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-029-0 01 1 9510- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0601- ●
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 9510- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9807-0004 ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9510-9806 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9807-0004 ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0005-0512 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0601- ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-430-0 01 1 9510-9807 ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-580-1 01 1 9808- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-362-1 01 1 9510-9606 ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-384-0 01 1 9607- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0601- ●
28 BALL; INTER LK 9-00097-010-0 05 1 9510- ●
28 BALL; INTER LK 9-00097-010-0 07 1 9510- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9807-0004 ●
30 PIN; INTER LK 9-33534-003-0 03 1 0601- ●
30 PIN; INTER LK 1-33534-002-0 02 1 9510- ●
30 PIN; INTER LK 1-33534-002-0 03 1 9510- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9807-0004 ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-363-1 01 1 9510-9606 ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-385-0 01 1 9607- ● ●
38 SPRING; DETENT
(C) 		1-09580-379-0 04 1 0601- ●
38 SPRING; DETENT
(D) 		1-09580-374-0 03 1 9510-9606 ●
38 SPRING; DETENT
(D) 		1-09580-548-0 03 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 02 1 9707- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 9707- ● ●
38 SPRING; DETENT
(D) 		1-09580-374-0 04 1 9510-9606 ●
38 SPRING; DETENT
(D) 		1-09580-548-0 04 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 03 1 9707- ●
38 SPRING; DETENT
(C) 		1-09580-419-0 04 1 9807-9904 ●
38 SPRING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-09580-419-0 04 1 9905-0004 ●
38 SPRING; DETENT
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-09580-379-0 04 1 9905-0004 ●
39 BALL; DETENT 1-09843-012-0 04 1 0601- ●
39 BALL; DETENT 9-00097-013-0 03 1 9510- ●
39 BALL; DETENT 9-00097-013-0 04 1 9510- ●
39 BALL; DETENT 1-09843-012-0 04 1 9807-0004 ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 0601- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 07 1 9510- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 08 1 9510- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9807-0004 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-460-0 01 1 9510-9807 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-582-0 01 1 9808- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-463-0 01 1 9510-9807 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-581-1 01 1 9808- ●
52 BOLT; SHIFT ARM 1-09052-034-2 05 1 9510- ●
52 BOLT; SHIFT ARM 1-09052-034-2 07 1 9510- ●
142 BOLT; QUAD BOX
(E) M10X60 FLANGE 		0-28151-060-0 04 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 10 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 10 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X32 FLANGE 		0-28181-032-0 02 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 03 1 0806- ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9510-9806 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9807-0004 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005-0512 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0601-0805 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9510-9806 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9807-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005-0512 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0601-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 04 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 03 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-458-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-505-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9510- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-456-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-503-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9807-0004 ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0601-0702 ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801 ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
171 SWITCH; NEUTRAL 1-82340-534-0 01 1 9510- ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9807-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 0601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 0601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 02 1 9510- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-792-2 01 1 9510- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9807-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9807-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9807-0004 ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0601- ●
219 WASHER; PL,SPINDLE
ID=14 		9-09851-275-0 01 1 9510- ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9807-0004 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0601-0602 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
221 NUT; SPINDLE
M10 FLANGE 		0-91150-110-0 01 1 9510-0602 ● ●
221 NUT; SPINDLE
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9807-0004 ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0601- ●
223 SCREW; SET,QUAD BOX
M8X12.5 		9-09814-533-0 01 1 9510- ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9807-0004 ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0601- ●
227 SPINDLE; 1ST & REV 1-33519-043-0 01 1 9510-9810 ● ●
227 SPINDLE; 1ST & REV 1-33519-130-0 01 1 9811- ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9807-0004 ●
382 BRACKET; PARKING BRK CONT CABLE
(A) 		1-46147-209-3 01 1 9510- ●
382 BRACKET; PARKING BRK CONT CABLE
PARKING BRAKE DRUM 8.5"(B1S) (B) 		1-46147-187-2 01 1 9510-9806 ●
382 BRACKET; PARKING BRK CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-46147-187-2 01 1 9807- ●
382 BRACKET; PARKING BRK CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-46147-109-0 01 1 9807-0004 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9510- ● ●
393 PIN; SW 1-33534-003-0 01 1 9510- ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9510-9806 ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9807-0004 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0005-0512 ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0601-0602 ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209 ● ● ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9510- ● ●
522 LEVER; SHIFT,1-REV 1-33521-135-0 01 1 9510- ● ●

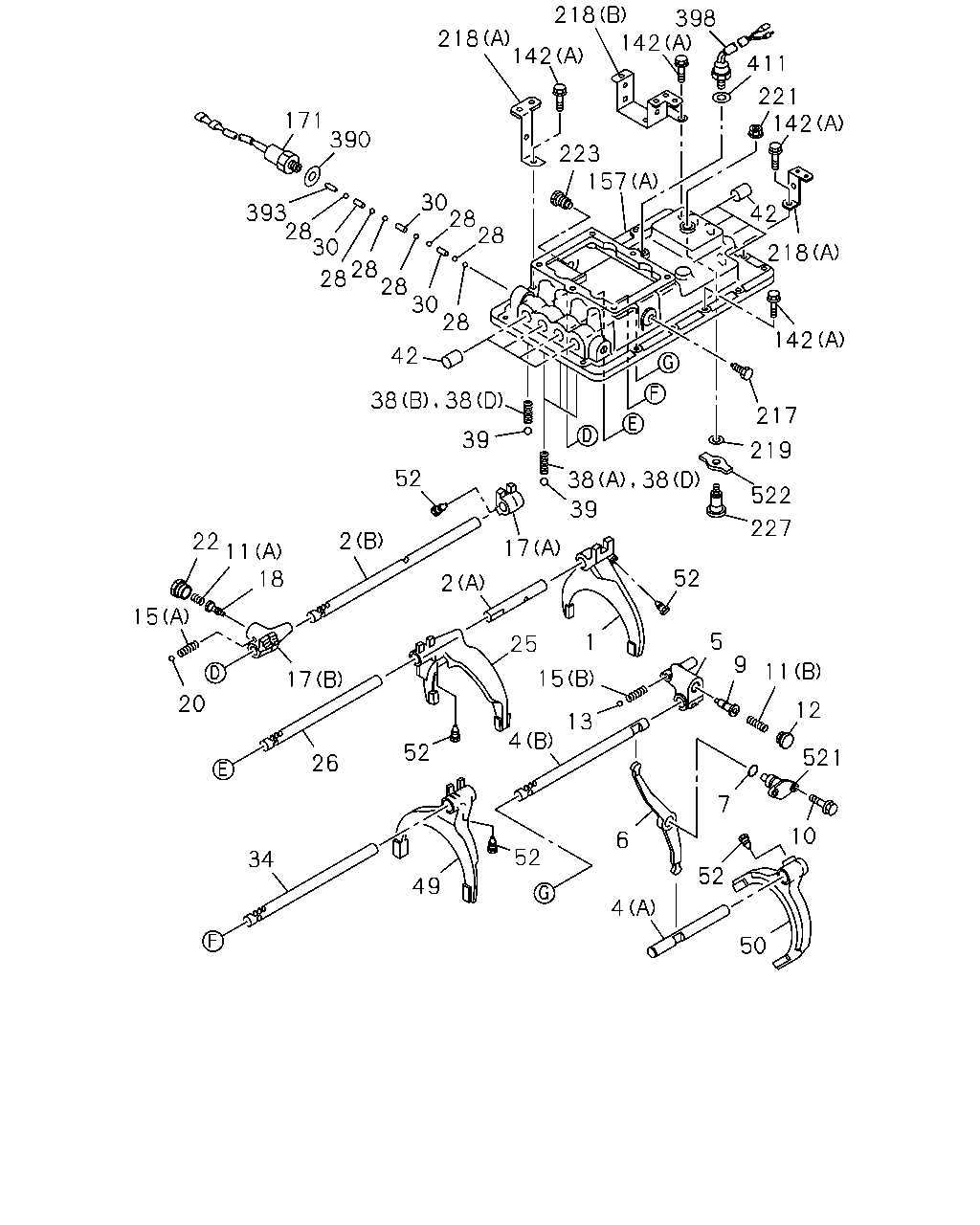

çizim 151277
218 398 142 218 142 411 221 142 171 390 223 157 30 28 28 42 393 28 30 218 28 28 28 30 28 142 42 217 39 219 52 38 38 522 39 227 2 22 11 18 17 52 2 15 5 1 25 9 11 15 17 20 12 13 4 52 521 26 7 10 6 52 34 52 49 4 50 38 38
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV 1-33511-502-1 01 1 9510- ● ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-360-1 01 1 9510- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-361-1 01 1 9510- ● ●
4 ROD; SHIFT,6TH
(B) 		1-33531-340-1 01 1 9510-9606 ●
4 ROD; SHIFT,6TH
(B) 		1-33531-387-0 01 1 9607- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-341-1 01 1 9510- ●
5 BLOCK; SHIFT,6TH 1-33511-326-1 01 1 9510- ●
6 LEVER; RELAY 1-33651-686-2 01 1 0601- ●
6 LEVER; RELAY 1-33511-462-0 01 1 9510-0005 ●
6 LEVER; RELAY 1-33511-574-1 01 1 0006- ●
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-686-2 01 1 9807-0004 ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-183-0 01 1 9510-0004 ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0005- ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-029-0 01 1 9510- ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 9510- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		1-09580-444-0 01 1 9510- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 9510-9806 ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 9807-0004 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 0005-0512 ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 0601- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9510-9806 ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9807-0004 ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0005-0512 ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0601- ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0601- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-009-0 01 1 9510- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9807-0004 ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 0601- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-445-0 01 1 9510- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-526-0 01 1 9510- ●
15 SPRING; LK,SHIFT SLEEVE
(C) 		1-09580-442-0 01 1 9807-0004 ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-387-2 01 1 9510- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-432-1 01 1 9510- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-029-0 01 1 9510- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0601- ●
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 9510- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9807-0004 ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9510-9806 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9807-0004 ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0005-0512 ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0601- ● ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-430-0 01 1 9510-9807 ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-580-1 01 1 9808- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-362-1 01 1 9510-9606 ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-384-0 01 1 9607- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0601- ●
28 BALL; INTER LK 9-00097-010-0 05 1 9510- ●
28 BALL; INTER LK 9-00097-010-0 07 1 9510- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9807-0004 ●
30 PIN; INTER LK 9-33534-003-0 03 1 0601- ●
30 PIN; INTER LK 1-33534-002-0 02 1 9510- ●
30 PIN; INTER LK 1-33534-002-0 03 1 9510- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9807-0004 ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-363-1 01 1 9510-9606 ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-385-0 01 1 9607- ● ●
38 SPRING; DETENT
(C) 		1-09580-379-0 04 1 0601- ●
38 SPRING; DETENT
(D) 		1-09580-374-0 03 1 9510-9606 ●
38 SPRING; DETENT
(D) 		1-09580-548-0 03 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 02 1 9707- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 9707- ● ●
38 SPRING; DETENT
(D) 		1-09580-374-0 04 1 9510-9606 ●
38 SPRING; DETENT
(D) 		1-09580-548-0 04 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 03 1 9707- ●
38 SPRING; DETENT
(C) 		1-09580-419-0 04 1 9807-9904 ●
38 SPRING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-09580-419-0 04 1 9905-0004 ●
38 SPRING; DETENT
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-09580-379-0 04 1 9905-0004 ●
39 BALL; DETENT 1-09843-012-0 04 1 0601- ●
39 BALL; DETENT 9-00097-013-0 03 1 9510- ●
39 BALL; DETENT 9-00097-013-0 04 1 9510- ●
39 BALL; DETENT 1-09843-012-0 04 1 9807-0004 ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 0601- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 07 1 9510- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 08 1 9510- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9807-0004 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-460-0 01 1 9510-9807 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-582-0 01 1 9808- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-463-0 01 1 9510-9807 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-581-1 01 1 9808- ●
50 ARM; SHIFT,6TH 1-33511-477-0 01 1 9510- ●
52 BOLT; SHIFT ARM 1-09052-034-2 05 1 9510- ●
52 BOLT; SHIFT ARM 1-09052-034-2 07 1 9510- ●
142 BOLT; QUAD BOX
(E) M10X60 FLANGE 		0-28151-060-0 04 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 10 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 10 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X32 FLANGE 		0-28181-032-0 02 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 03 1 0806- ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9510-9806 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9807-0004 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005-0512 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0601-0805 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9510-9806 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9807-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005-0512 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0601-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 04 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 03 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-458-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-505-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9510- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-456-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-503-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9807-0004 ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0601-0702 ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801 ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
171 SWITCH; NEUTRAL 1-82340-534-0 01 1 9510- ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9807-0004 ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 9510- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 0601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 0601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 02 1 9510- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-792-2 01 1 9510- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9807-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9807-0004 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9807-0004 ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0601- ●
219 WASHER; PL,SPINDLE
ID=14 		9-09851-275-0 01 1 9510- ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9807-0004 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0601-0602 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
221 NUT; SPINDLE
M10 FLANGE 		0-91150-110-0 01 1 9510-0602 ● ●
221 NUT; SPINDLE
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9807-0004 ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0601- ●
223 SCREW; SET,QUAD BOX
M8X12.5 		9-09814-533-0 01 1 9510- ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9807-0004 ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0601- ●
227 SPINDLE; 1ST & REV 1-33519-043-0 01 1 9510-9810 ● ●
227 SPINDLE; 1ST & REV 1-33519-130-0 01 1 9811- ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9807-0004 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9510- ● ●
393 PIN; SW 1-33534-003-0 01 1 9510- ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9510-9806 ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9807-0004 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0005-0512 ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0601-0602 ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209 ● ● ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9510- ● ●
521 SPINDLE; 6TH 1-33519-008-1 01 1 9510- ●
522 LEVER; SHIFT,1-REV 1-33521-135-0 01 1 9510- ● ●

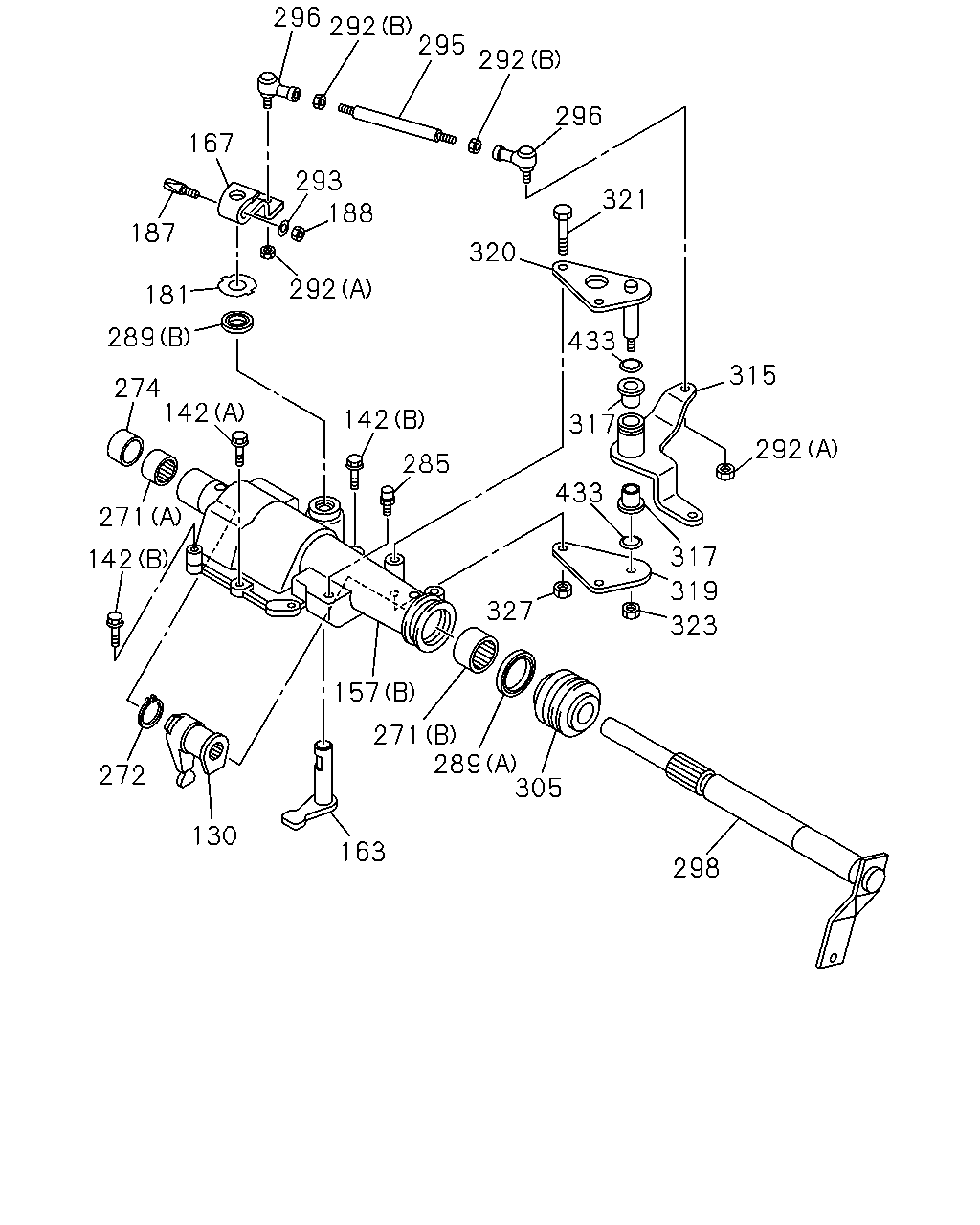

çizim 151278
296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 142 319 327 323 157 271 289 305 272 130 163 298
BalonParca AdiParca NoAdetTipApplied Date A B C
130 LEVER; SHIFT,INTERNAL 1-33521-165-0 01 1 0601- ●
130 LEVER; SHIFT,INTERNAL 1-33521-131-1 01 1 9510- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-165-0 01 1 9807-0004 ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-111-1 01 1 9807-0004 ●
142 BOLT; QUAD BOX
(E) M10X60 FLANGE 		0-28151-060-0 04 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 10 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 10 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X32 FLANGE 		0-28181-032-0 02 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 03 1 0806- ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9510-9806 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9807-0004 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005-0512 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0601-0805 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9510-9806 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9807-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005-0512 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0601-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 04 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 03 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-458-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-505-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9510- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-456-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-503-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9807-0004 ●
163 LEVER; SELECT,INTERNAL 1-33522-153-0 01 1 0601- ●
163 LEVER; SELECT,INTERNAL 1-33522-130-0 01 1 9510- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-153-0 01 1 9807-0004 ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-3 01 1 9807-0004 ●
167 LEVER; SELECT,EXTERNAL 1-33521-159-0 01 1 0601- ●
167 LEVER; SELECT,EXTERNAL 1-33521-139-0 01 1 9510- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 9807-0004 ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-0 01 1 9807-0004 ●
181 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0601- ●
181 WASHER; PL,SELECT LEVER
OD=37 		1-09532-007-0 01 1 9510- ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 9807-0004 ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 9807-0004 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9510-9806 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9807-0004 ● ●
187 BOLT; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42 		1-33659-045-0 01 1 9807-0004 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0005- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9510-9804 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-0 01 1 9805-9806 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9807-0004 ● ●
188 NUT; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-062-1 01 1 9807-0004 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0005- ● ●
271 BUSHING; QUAD BOX
(B) ID=25 OD=28 		1-33549-107-0 01 1 9510- ● ●
271 BUSHING; QUAD BOX
(A) ID=17 OD=19 		1-33549-108-0 01 1 9510- ● ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23 		1-33549-016-0 01 1 9807-0004 ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32 		1-33549-104-0 01 1 9807-0004 ●
272 RING; SNAP,QUAD BOX 1-09588-174-0 01 1 9510- ● ●
272 RING; SNAP,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 9807-0004 ●
274 COVER; SHAFT,QUAD BOX
OD=24 L=31 		9-33545-011-1 01 1 9510- ● ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		9-33545-017-1 01 1 9807-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9510-9806 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9807-0004 ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0005-0512 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0601- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0601- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-600-0 01 1 0601- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-269-0 01 1 9510- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-369-0 01 1 9510- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A) 		1-09625-599-0 01 1 9807-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09625-600-0 01 1 9807-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41 		1-09625-334-0 01 1 9807-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30 		1-09625-386-0 01 1 9807-0004 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9510-9804 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-0 02 1 9805-9806 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9807-0004 ● ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		1-09440-062-1 02 1 9807-0004 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0005- ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9510-9806 ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9807-0004 ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 0005-0512 ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-0601 ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-0705 ● ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0706- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9510-9806 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9807-0004 ● ●
293 WASHER; PL,TAPER BOLT
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22 		9-09160-708-0 01 1 9807-0004 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0005-0605 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-808-0 01 1 0601-0705 ●
295 ROD; LINK,RELAY LEVER 8-98023-095-0 01 1 0706- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9510-9806 ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9807-0004 ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 9807-0004 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0005- ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-808-0 01 1 9807-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9510-9806 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9807-0004 ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0309 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-0512 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0601-0705 ● ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0706- ● ●
298 SHAFT; SHIFT LEVER 1-33522-163-0 01 1 0601- ●
298 SHAFT; SHIFT LEVER 1-33522-147-0 01 1 9510-9802 ● ●
298 SHAFT; SHIFT LEVER 1-33522-167-0 01 1 9803- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 9807-0004 ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-166-0 01 1 9807-0004 ●
305 BOOT; LEVER SHAFT 1-33529-051-0 01 1 9510- ● ●
305 BOOT; LEVER SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-028-0 01 1 9807-0004 ●
315 LEVER; SELECT 1-33651-652-0 01 1 9510-9802 ● ●
315 LEVER; SELECT 1-33651-703-0 01 1 9803- ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-702-0 01 1 9807-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9510-9806 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9807-0004 ● ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0512 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0601- ● ● ●
319 BRACKET; SELECT LEVER 1-33657-603-0 01 1 9510- ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-515-0 01 1 9807-0004 ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-474-0 01 1 9807-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9510- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9807-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9510-9806 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9807-0004 ● ●
323 NUT; LK,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-110-0 01 1 9807-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005- ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 9807-0004 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9510-9806 ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9807-0004 ● ●
433 GASKET; BUSHING
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 9807-0004 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0005- ● ●

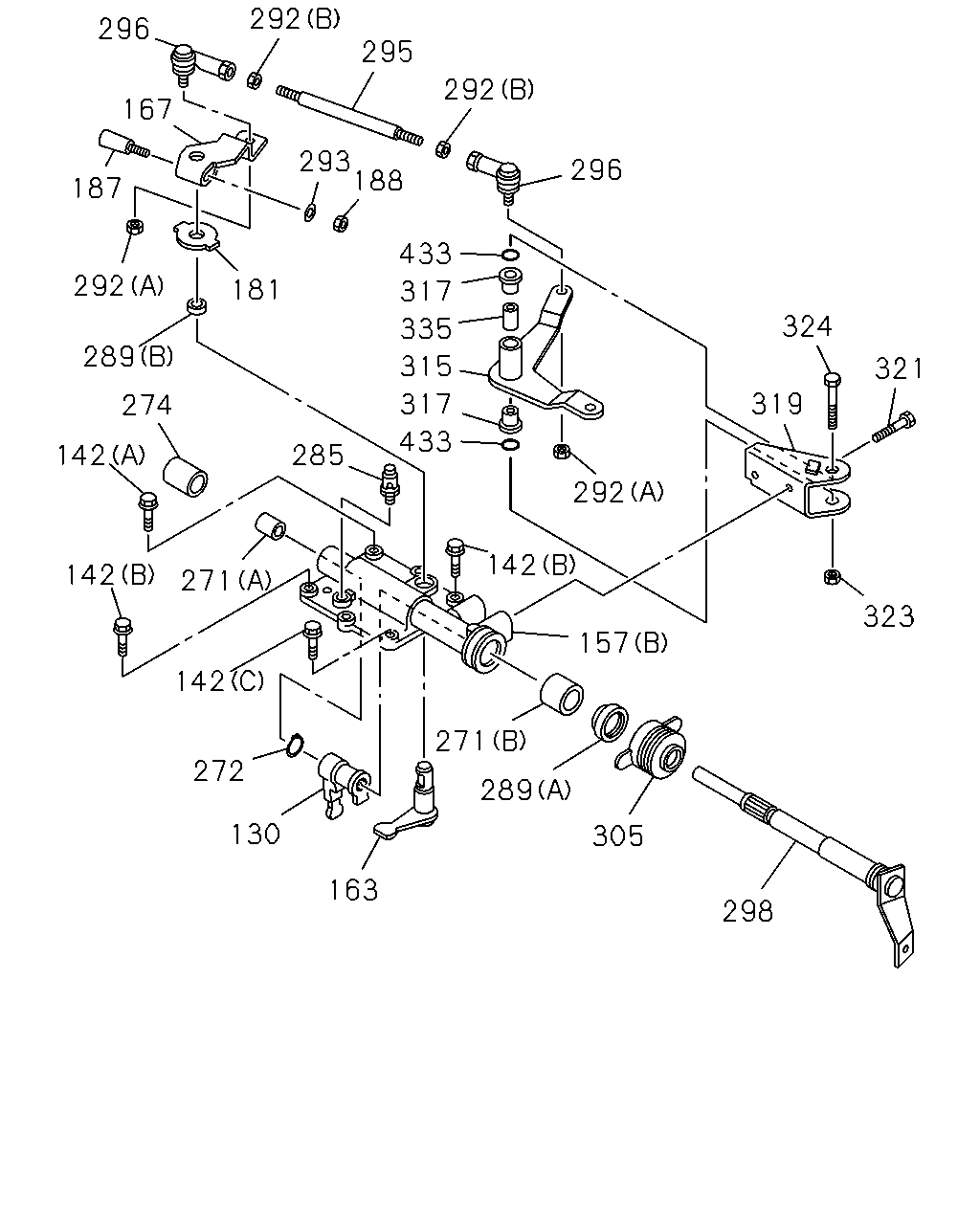

çizim 151280
292 296 295 292 167 293 188 296 187 433 292 181 317 324 335 289 315 321 319 317 274 433 285 142 292 142 142 271 323 157 142 271 272 289 130 305 163 298
BalonParca AdiParca NoAdetTipApplied Date A B C
130 LEVER; SHIFT,INTERNAL 1-33521-165-0 01 1 0601- ●
130 LEVER; SHIFT,INTERNAL 1-33521-131-1 01 1 9510- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-165-0 01 1 9807-0004 ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-111-1 01 1 9807-0004 ●
142 BOLT; QUAD BOX
(E) M10X60 FLANGE 		0-28151-060-0 04 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 10 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 10 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X32 FLANGE 		0-28181-032-0 02 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 03 1 0806- ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9510-9806 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9807-0004 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005-0512 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0601-0805 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9510-9806 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9807-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005-0512 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0601-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 04 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 03 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-458-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-505-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9510- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-456-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-503-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9807-0004 ●
163 LEVER; SELECT,INTERNAL 1-33522-153-0 01 1 0601- ●
163 LEVER; SELECT,INTERNAL 1-33522-130-0 01 1 9510- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-153-0 01 1 9807-0004 ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-3 01 1 9807-0004 ●
167 LEVER; SELECT,EXTERNAL 1-33521-159-0 01 1 0601- ●
167 LEVER; SELECT,EXTERNAL 1-33521-139-0 01 1 9510- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 9807-0004 ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-0 01 1 9807-0004 ●
181 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0601- ●
181 WASHER; PL,SELECT LEVER
OD=37 		1-09532-007-0 01 1 9510- ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 9807-0004 ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 9807-0004 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9510-9806 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9807-0004 ● ●
187 BOLT; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42 		1-33659-045-0 01 1 9807-0004 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0005- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9510-9804 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-0 01 1 9805-9806 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9807-0004 ● ●
188 NUT; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-062-1 01 1 9807-0004 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0005- ● ●
271 BUSHING; QUAD BOX
(B) ID=25 OD=28 		1-33549-107-0 01 1 9510- ● ●
271 BUSHING; QUAD BOX
(A) ID=17 OD=19 		1-33549-108-0 01 1 9510- ● ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23 		1-33549-016-0 01 1 9807-0004 ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32 		1-33549-104-0 01 1 9807-0004 ●
272 RING; SNAP,QUAD BOX 1-09588-174-0 01 1 9510- ● ●
272 RING; SNAP,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 9807-0004 ●
274 COVER; SHAFT,QUAD BOX
OD=24 L=31 		9-33545-011-1 01 1 9510- ● ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		9-33545-017-1 01 1 9807-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9510-9806 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9807-0004 ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0005-0512 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0601- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0601- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-600-0 01 1 0601- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-269-0 01 1 9510- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-369-0 01 1 9510- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A) 		1-09625-599-0 01 1 9807-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09625-600-0 01 1 9807-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41 		1-09625-334-0 01 1 9807-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30 		1-09625-386-0 01 1 9807-0004 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9510-9804 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-0 02 1 9805-9806 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9807-0004 ● ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		1-09440-062-1 02 1 9807-0004 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0005- ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9510-9806 ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9807-0004 ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 0005-0512 ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-0601 ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-0705 ● ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0706- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9510-9806 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9807-0004 ● ●
293 WASHER; PL,TAPER BOLT
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22 		9-09160-708-0 01 1 9807-0004 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0005-0605 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-808-0 01 1 0601-0705 ●
295 ROD; LINK,RELAY LEVER 8-98023-095-0 01 1 0706- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9510-9806 ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9807-0004 ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 9807-0004 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0005- ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-808-0 01 1 9807-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9510-9806 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9807-0004 ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0309 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-0512 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0601-0705 ● ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0706- ● ●
298 SHAFT; SHIFT LEVER 1-33522-163-0 01 1 0601- ●
298 SHAFT; SHIFT LEVER 1-33522-147-0 01 1 9510-9802 ● ●
298 SHAFT; SHIFT LEVER 1-33522-167-0 01 1 9803- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 9807-0004 ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-166-0 01 1 9807-0004 ●
305 BOOT; LEVER SHAFT 1-33529-051-0 01 1 9510- ● ●
305 BOOT; LEVER SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-028-0 01 1 9807-0004 ●
315 LEVER; SELECT 1-33651-652-0 01 1 9510-9802 ● ●
315 LEVER; SELECT 1-33651-703-0 01 1 9803- ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-702-0 01 1 9807-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9510-9806 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9807-0004 ● ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0512 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0601- ● ● ●
319 BRACKET; SELECT LEVER 1-33657-603-0 01 1 9510- ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-515-0 01 1 9807-0004 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9510- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9807-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9510-9806 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9807-0004 ● ●
323 NUT; LK,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-110-0 01 1 9807-0004 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005- ● ●
324 BOLT; SHAFT
M10X60 		0-10811-060-0 01 1 9510-9802 ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 9803- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-192-0 01 1 9510-9809 ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 9810- ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9510-9806 ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9807-0004 ● ●
433 GASKET; BUSHING
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 9807-0004 ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0005- ● ●
çizim 151282
296 292 295 292 296 167 166 59 181 59 289 6 285 317 142 189 157 142 306 142 273 289 298 59 322 317 189 333 58 130 163
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY 1-33651-686-2 01 1 0601- ●
6 LEVER; RELAY 1-33511-462-0 01 1 9510-0005 ●
6 LEVER; RELAY 1-33511-574-1 01 1 0006- ●
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-686-2 01 1 9807-0004 ●
58 NUT
M10 FLANGE 		0-91150-110-0 01 1 0601-0602 ●
58 NUT
M10 FLANGE 		0-91180-110-0 01 1 0603- ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-110-0 01 1 9807-0004 ●
59 NUT
(B) M12 		0-91110-512-0 01 1 0601- ●
59 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0601-0602 ●
59 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91150-108-0 02 1 9807-0004 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M12 		9-99110-412-0 01 1 9807-0004 ●
130 LEVER; SHIFT,INTERNAL 1-33521-165-0 01 1 0601- ●
130 LEVER; SHIFT,INTERNAL 1-33521-131-1 01 1 9510- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-165-0 01 1 9807-0004 ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-111-1 01 1 9807-0004 ●
142 BOLT; QUAD BOX
(E) M10X60 FLANGE 		0-28151-060-0 04 1 0601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 10 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 10 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X32 FLANGE 		0-28181-032-0 02 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 03 1 0806- ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9510-9806 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9807-0004 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005-0512 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0601-0805 ● ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9510-9806 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9807-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005-0512 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0601-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 04 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE 		0-28181-060-0 03 1 9807-0004 ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X20,M10X60 L=90 		1-09049-020-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0601- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-458-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-505-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9510- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-456-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-503-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 9807-0004 ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 9807-0004 ●
163 LEVER; SELECT,INTERNAL 1-33522-153-0 01 1 0601- ●
163 LEVER; SELECT,INTERNAL 1-33522-130-0 01 1 9510- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-153-0 01 1 9807-0004 ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-3 01 1 9807-0004 ●
166 PIN; SPR,SELECT LEVER
L=25 OD=5 		1-09748-032-0 01 1 0601- ●
166 PIN; SPR,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5 		1-09748-032-0 01 1 9807-0004 ●
167 LEVER; SELECT,EXTERNAL 1-33521-159-0 01 1 0601- ●
167 LEVER; SELECT,EXTERNAL 1-33521-139-0 01 1 9510- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 9807-0004 ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-0 01 1 9807-0004 ●
181 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0601- ●
181 WASHER; PL,SELECT LEVER
OD=37 		1-09532-007-0 01 1 9510- ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 9807-0004 ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 9807-0004 ●
189 GASKET; SELECT LEVER,CONT BOX 1-09623-594-0 02 1 0601- ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 9807-0004 ●
273 PIN; SPR,STOPPER
L=30 OD=4 		1-09748-031-0 01 1 0601- ●
273 PIN; SPR,STOPPER
ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4 		1-09748-031-0 01 1 9807-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9510-9806 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9807-0004 ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0005-0512 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0601- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0601- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-600-0 01 1 0601- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-269-0 01 1 9510- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-369-0 01 1 9510- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A) 		1-09625-599-0 01 1 9807-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09625-600-0 01 1 9807-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41 		1-09625-334-0 01 1 9807-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30 		1-09625-386-0 01 1 9807-0004 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9510-9804 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-0 02 1 9805-9806 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9807-0004 ● ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		1-09440-062-1 02 1 9807-0004 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0005- ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9510-9806 ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9807-0004 ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 0005-0512 ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-0601 ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-0705 ● ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0706- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-808-0 01 1 0601-0705 ●
295 ROD; LINK,RELAY LEVER 8-98023-095-0 01 1 0706- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9510-9806 ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9807-0004 ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 9807-0004 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0005- ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-808-0 01 1 9807-0004 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9510-9806 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9807-0004 ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0309 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-0512 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0601-0705 ● ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0706- ● ●
298 SHAFT; SHIFT LEVER 1-33522-163-0 01 1 0601- ●
298 SHAFT; SHIFT LEVER 1-33522-147-0 01 1 9510-9802 ● ●
298 SHAFT; SHIFT LEVER 1-33522-167-0 01 1 9803- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 9807-0004 ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-166-0 01 1 9807-0004 ●
306 BOLT; SHIFT ASSISTOR
M10X50 FLANGE 		0-28051-050-0 03 1 0601- ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28081-050-0 03 1 9807-0004 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9510-9806 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9807-0004 ● ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0512 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0601- ● ● ●
322 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 0601-0603 ●
322 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0604-0705 ●
322 WASHER; LK 8-98031-750-0 01 1 0706- ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		9-09150-512-0 01 1 9807-0004 ●
333 WASHER; PL,LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 0601-0705 ●
333 WASHER; PL,LEVER
ID=10.5 		0-91610-710-0 01 1 0706- ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=26 		9-09160-710-0 01 1 9807-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
