Sayfa 0-84A - Isuzu EPC

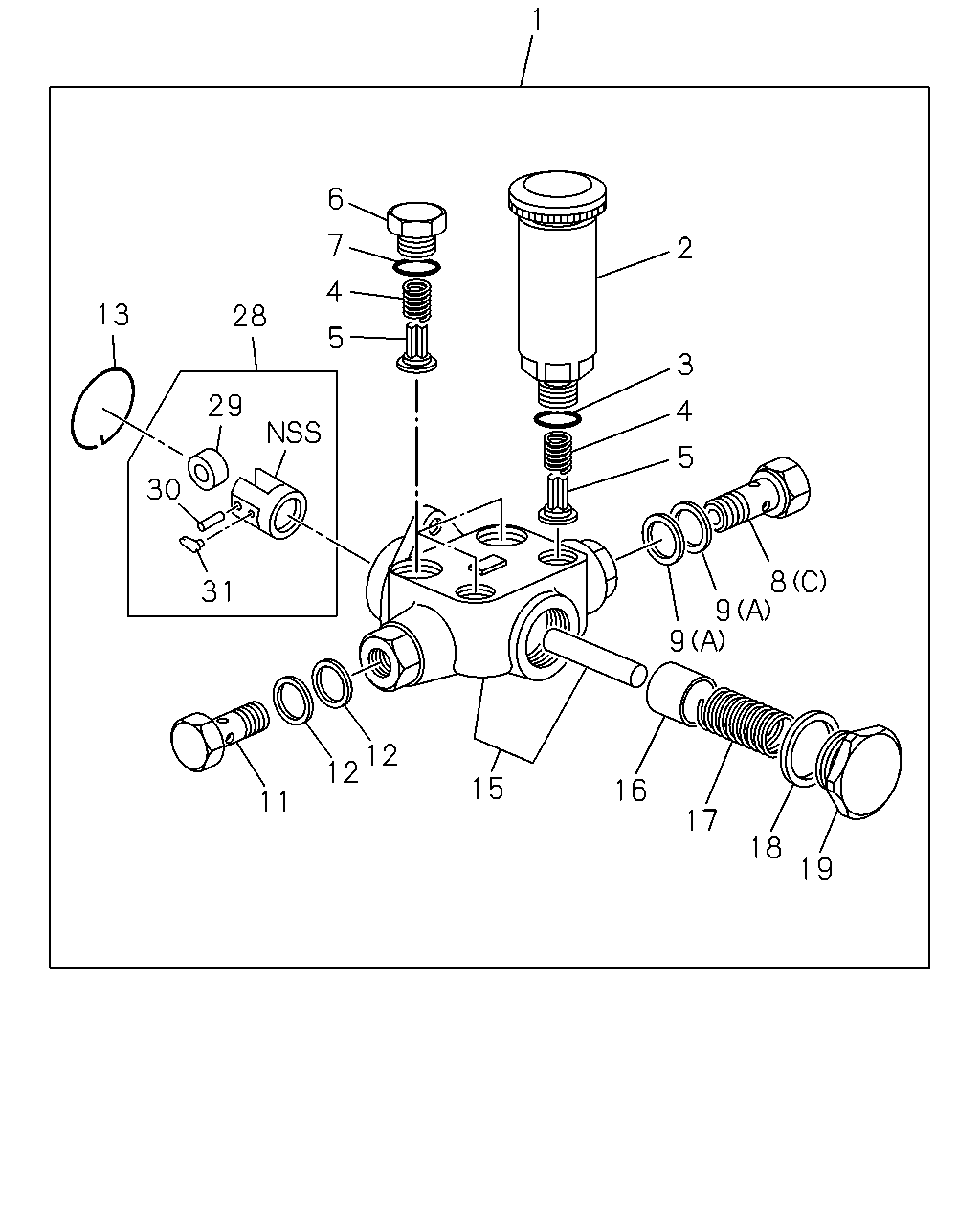

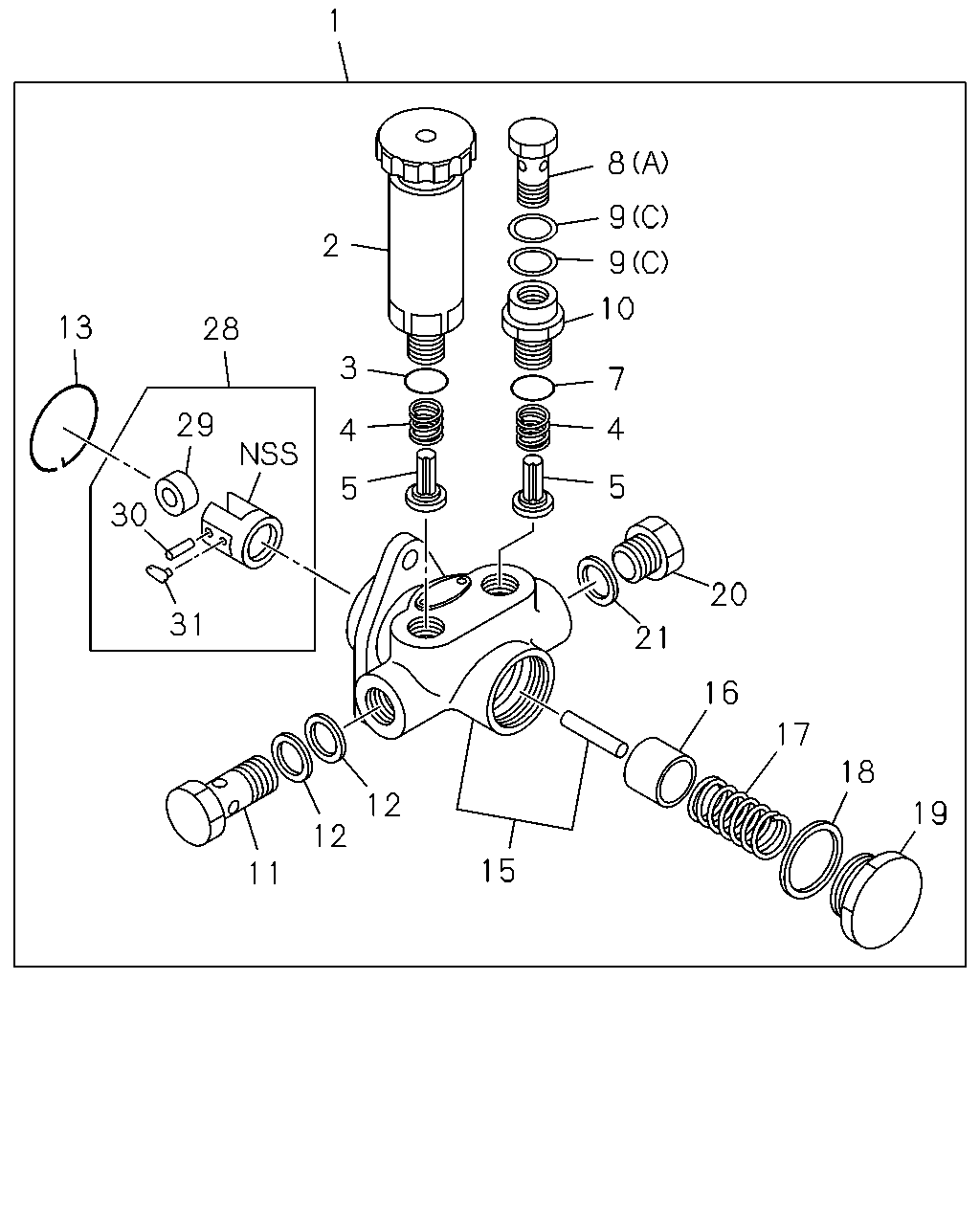

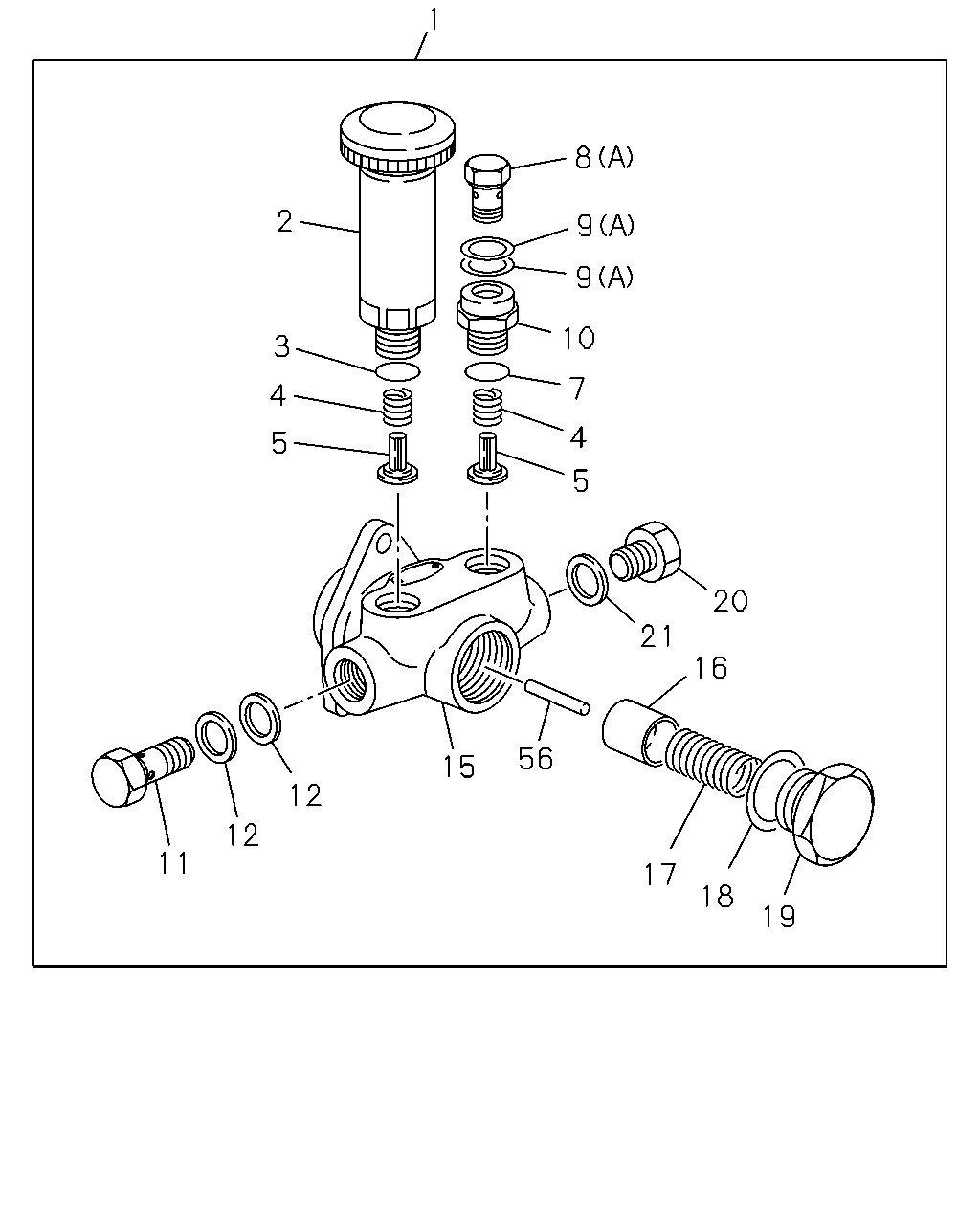

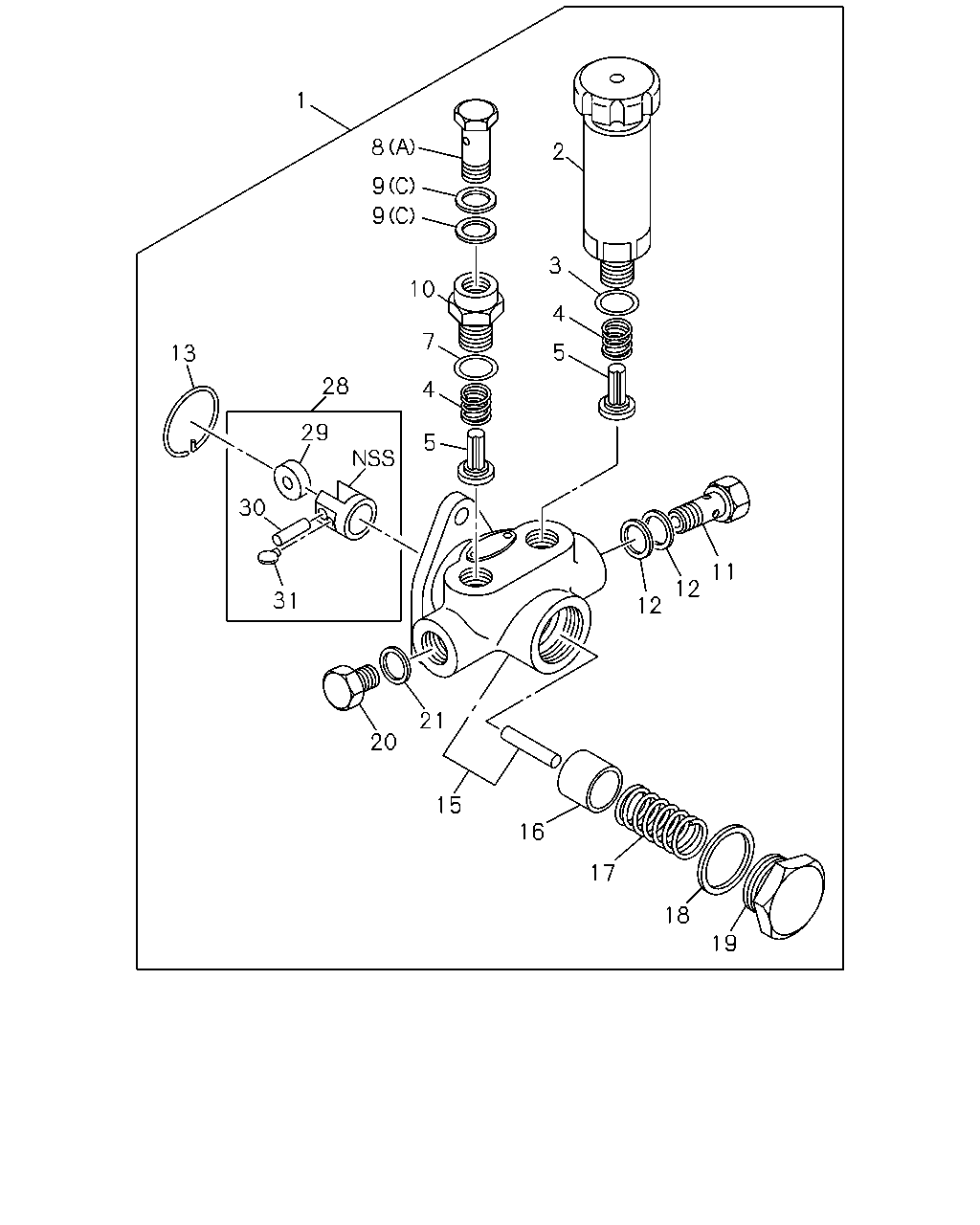

0-84A — FEED PUMP; INJECTION PUMP (#3730) — 261 parça

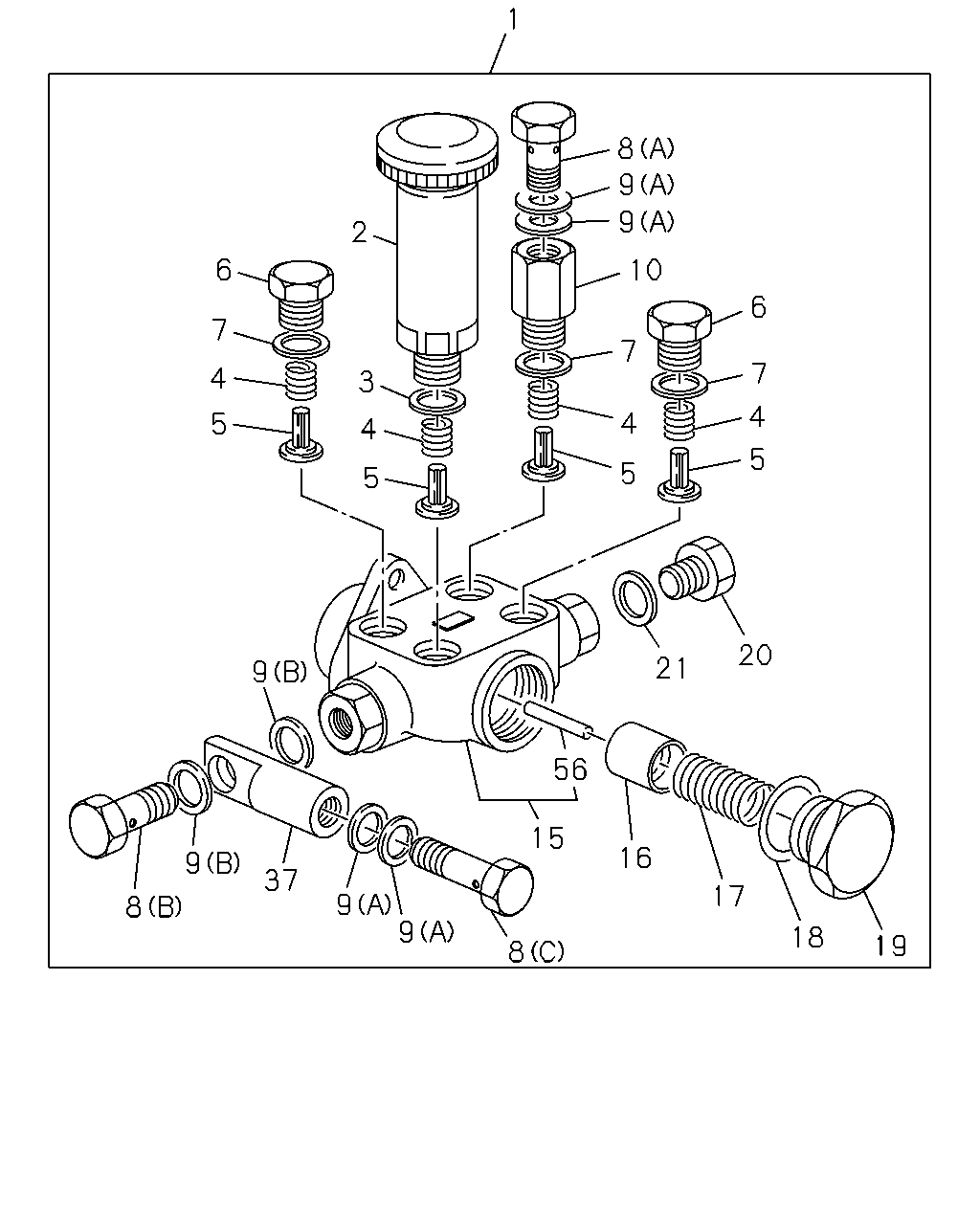

1 8 9 9 2 6 10 6 7 7 7 4 3 4 4 5 4 5 5 5 20 21 9 56 15 16 9 37 17 9 9 8 18 19 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15750-090-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: S = 8-94395-903-1	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15750-158-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-602-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-067-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15751-019-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15619-102-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	9-81215-182-1	01	1	-
37	EYE; FUEL OUTLET,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-050-0	01	1	-
56	PUSH ROD ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: S = 8-94395-903-1	8-97115-990-0	01	1	-
56	PUSH ROD ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1	8-97115-991-0	01	1	-

1 8 2 9 9 3 10 4 7 5 13 28 4 29 5 30 11 12 31 12 21 20 15 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15750-090-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: S = 8-94395-903-1	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15750-158-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15751-022-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD, =19.2 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81355-025-0	01	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15751-019-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15619-102-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	9-81215-182-1	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15754-002-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15754-005-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-043-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-059-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-406-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-060-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15759-078-0	02	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-416-0	02	1	-

1 6 7 2 4 13 28 5 3 29 4 30 5 8 31 9 9 12 12 15 16 11 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15750-090-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: S = 8-94395-903-1	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15750-158-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-602-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	9-81215-182-1	02	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15751-022-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD, =19.2 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81355-025-0	01	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15751-019-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15754-002-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15754-005-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-043-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-059-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-406-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-060-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15759-078-0	02	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-416-0	02	1	-

1 8 9 2 9 10 13 28 3 7 29 4 4 30 5 5 20 31 21 16 17 18 12 19 12 15 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15750-090-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: S = 8-94395-903-1	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15750-158-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15751-022-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD, =19.2 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81355-025-0	01	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15751-019-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15619-102-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	9-81215-182-1	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15754-002-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15754-005-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-043-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-059-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-406-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-060-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15759-078-0	02	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-416-0	02	1	-

1 8 2 9 9 10 3 7 4 4 5 5 20 21 16 56 15 12 12 11 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15750-090-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: S = 8-94395-903-1	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15750-158-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, O = 8-94392-008-1, P = 8-94392-009-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15751-022-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD, =19.2 ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, T = 8-94395-919-3	1-15759-012-0	02	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15751-019-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: N = 8-94391-170-1, T = 8-94395-919-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, T = 8-94395-919-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-051-3, F = 1-15603-076-1, G = 1-15603-077-2, H = 1-15603-147-0, I = 1-15603-148-0, J = 1-15603-149-0, K = 1-15603-214-4, L = 1-15603-215-4, M = 1-15603-216-4, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, N = 8-94391-170-1, O = 8-94392-008-1, P = 8-94392-009-0, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0	1-15619-102-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: N = 8-94391-170-1, Q = 8-94395-813-1, R = 8-94395-901-1, S = 8-94395-903-1, T = 8-94395-919-3	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	9-81215-182-1	01	1	-
56	PUSH ROD ASM PART: O = 8-94392-008-1, P = 8-94392-009-0	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: S = 8-94395-903-1	8-97115-990-0	01	1	-
56	PUSH ROD ASM PART: Q = 8-94395-813-1, R = 8-94395-901-1	8-97115-991-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
