3-70 — BRAKE PIPING; AIR,AIR MASTER (#373) — 129 parça

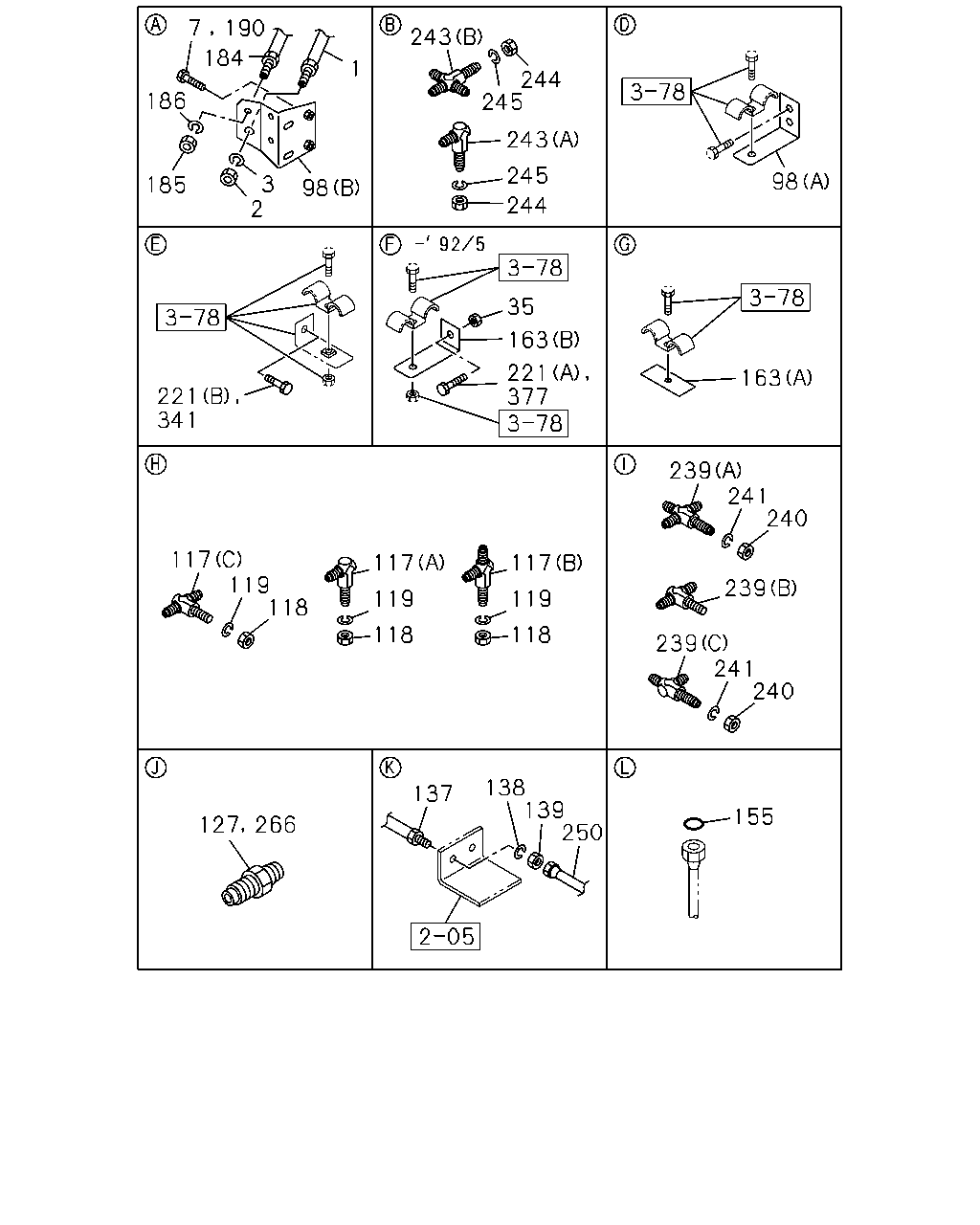

çizim 27858
7 190 243 184 1 244 245 186 243 245 98 3 2 185 98 244 35 163 221 377 163 221 341 239 241 240 117 119 118 117 117 239 119 119 118 118 239 241 240 138 139 250 137 155 127 266
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO(SV1) 		1-09363-543-0 01 1 9308- ●
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9202-9307 ● ●
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO(SV1) 		1-09363-505-0 01 1 9308- ●
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9308- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9202- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9202-9312 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28080-830-0 02 1 9205- ● ●
35 NUT; BRKT
EXC. AIR DRYER<PS7> M8 		9-09110-408-0 01 1 9202-9205 ● ●
98 BRACKET; AIR PIPE
(A) 		1-47475-746-2 01 1 9202- ● ●
98 BRACKET; AIR PIPE
(B) 		1-53497-333-2 01 1 9202- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-09654-315-1 01 1 9202- ● ●
117 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-09654-293-1 01 1 9202- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (C) 		1-09656-298-1 01 1 9202- ●
118 NUT; UNION
M16 		9-99111-416-0 01 1 9202- ● ●
119 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
127 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9202- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ● ●
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9202- ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9202- ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) L=50 		1-47475-299-2 01 1 9202- ● ●
163 BRACKET; AIR PIPE
EXC. AIR DRYER<PS7> (B) 		1-47465-745-0 01 1 9202-9205 ● ●
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9202- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9202- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
190 BOLT; FLEX HOSE
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
190 BOLT; FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9205- ●
221 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9202-9205 ●
221 BOLT; BRKT
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X25 FLANGE 		0-28080-825-0 02 1 9202-9205 ●
221 BOLT; BRKT
AUSTRALIA EQUIPMENT(RR3) (B) M8X25 FLANGE 		0-28080-825-0 01 1 9206- ●
221 BOLT; BRKT
EXC. AIR DRYER<PS7> (A) M8X20 FLANGE 		0-28010-820-0 01 1 9202-9204 ● ●
221 BOLT; BRKT
EXC. AIR DRYER<PS7> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9205-9205 ● ●
221 BOLT; BRKT
EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) M8X25 FLANGE 		0-28080-825-0 01 1 9202-9205 ● ●
221 BOLT; BRKT
AUSTRALIA EQUIPMENT(RR3) (B) M8X25 FLANGE 		0-28080-825-0 01 1 9202-9205 ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> (C) M12 2WAY 		1-09654-059-2 01 1 9202- ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9202- ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> (B) M12 3WAY 		1-09654-137-2 01 1 9202- ● ●
240 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9202- ● ●
240 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9202- ● ●
241 WASHER; LK,UNION,AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
241 WASHER; LK,UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
243 UNION; AIR PIPE
ASSISTER SHIFT CONTROL<WX8> (B) M12 		9-09228-306-1 01 1 9202- ● ●
243 UNION; AIR PIPE
EXC. ASSISTER SHIFT CONTROL<WX8> (A) M12 2WAY 		1-09654-059-2 01 1 9202- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 9202- ● ●
245 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1461 SERVICED BY L=1500 		1-47434-391-0 01 1 9202- ● ●
266 UNION; AIR PIPE
EXC. AIR DRYER<PS7> M12 L=40 		9-09223-006-1 01 1 9202- ● ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9202- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
377 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9212- ● ●
çizim 92832
337 337 230 230 307 307 337 325 137 250 434 434 434
BalonParca AdiParca NoAdetTipApplied Date A B
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=669 SERVICED BY L=780 		9-47416-730-0 01 1 9202- ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=938 SERVICED BY L=1055 		9-47416-731-0 01 1 9202- ● ●
230 PIPE; AIR,UNION TO UNION
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> L=1031 		1-49112-326-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> L=753 		1-49112-327-0 01 1 9308- ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1461 SERVICED BY L=1500 		1-47434-391-0 01 1 9202- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47446-700-0 01 1 9202-9212 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9301- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=320 		1-47497-108-0 01 1 9301- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=374 		1-47497-149-0 01 1 9308- ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=958 		1-47447-893-1 01 1 9202- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9202- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 01 1 9202- ● ●
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 9202- ● ●
434 CLIP
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9202- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (C) ID=14 		8-94157-443-0 01 1 9202- ● ●
çizim 94436
319 320 124 165 329 328 232 334 330 231 332 366
BalonParca AdiParca NoAdetTipApplied Date A B
124 BOLT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
165 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28010-816-0 01 1 9202-9204 ● ●
165 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-09654-180-3 01 1 9202- ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9202- ● ●
319 NUT; FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9202- ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9202- ● ●
328 UNION; AIR PIPE
M10 ELBOW 		1-09654-186-2 01 1 9202- ● ●
329 NUT; UNION,AIR PIPE
M10 		9-09110-410-0 01 1 9202- ● ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9202- ● ●
332 SEAL; PIPE UNION
DUAL AIR GAUGE<UG2> 25X25 		8-94272-533-0 01 1 9202- ● ●
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9202- ● ●
366 SEAL; AIR GAUGE HOLE
EXC. DUAL AIR GAUGE<UG2> OD=36 WHITE 		1-76778-007-0 01 1 9202- ● ●
çizim 94524
242 358 238 359 238 238 217 222 250 126 358 359 45 238 251 272
BalonParca AdiParca NoAdetTipApplied Date A B
45 PIPE; AIR,UNION TO AIR TANK
NEW ZEALAND EQUIPMENT(PK5) 		1-47492-410-0 01 1 9202-9212 ●
45 PIPE; AIR,UNION TO AIR TANK
NEW ZEALAND EQUIPMENT(PK5) 		1-47499-689-0 01 1 9301- ●
126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=848 		1-47492-859-0 01 1 9202-9207 ● ●
126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=850 SERVICED BY L=900 		1-47434-385-0 01 1 9208- ● ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> 		1-47492-863-0 01 1 9202-9207 ● ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> 		1-47495-923-0 01 1 9208- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> CAB SUSPENSION SEMI FLORTING<SDK> L=1089 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> EXC. CAB SUSPENSION SEMI FLORTING<SDK> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ● ●
238 PIPE; AIR,UNION TO UNION
(A) L=1306 SERVICED BY L=1370 		1-47434-390-0 01 1 9202- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) (A) L=1306 SERVICED BY L=1370 		1-47434-390-0 01 1 9202- ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (B) L=1346 SERVICED BY L=1500 		1-47434-391-0 01 1 9202- ● ●
238 PIPE; AIR,UNION TO UNION
AUSTRALIA EQUIPMENT(RR3) (A) L=1197 SERVICED BY L=1200 		1-47434-388-0 01 1 9202- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1076 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=1091 SERVICED BY L=1250 		1-47437-968-0 01 1 9202-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=1091 SERVICED BY L=1250 		1-47426-416-0 01 1 9301-9305 ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9306- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1461 SERVICED BY L=1500 		1-47434-391-0 01 1 9202- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> L=965 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXHAUST BRAKE<NF8> PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> 		1-47492-858-0 01 1 9202- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> 		1-47492-858-0 01 1 9202- ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=579 SERVICED BY L=600 		1-47434-473-0 01 1 9202-9212 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=579 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=534 		1-47494-899-0 01 1 9202-9212 ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=534 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ●
çizim 94631
425 154 172 262 184 14 171 1 425 154 34 184 176 14 1 113 113
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO(SV1) 		1-09363-543-0 01 1 9308- ●
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9202-9307 ● ●
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO(SV1) 		1-09363-505-0 01 1 9308- ●
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9308- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47494-304-0 01 1 9202-9205 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47495-516-0 01 1 9206- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) 		1-47494-303-0 01 1 9202-9205 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) 		1-47495-513-0 01 1 9206- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) 		1-47494-350-0 01 1 9202- ●
34 PIPE; AIR
AIR DRYER<PS7> L=533 SERVICED BY L=550 		1-49111-436-0 01 1 9202- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47437-953-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=692 SERVICED BY L=730 		1-47437-955-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 SERVICED BY L=730 		1-47426-382-0 01 1 9301- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
L=450 		1-47486-409-0 01 1 9202- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1321 		1-47492-357-0 01 1 9202- ● ●
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER<PS7> 		1-47494-305-1 01 1 9202-9205 ● ●
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER<PS7> 		1-47495-514-0 01 1 9206- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> EXC. AUSTRALIA EQUIPMENT(RR3) L=2045 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9205 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> EXC. AUSTRALIA EQUIPMENT(RR3) L=2038 SERVICED BY L=2200 		1-47434-396-0 01 1 9206- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) L=2144 		1-47494-898-0 01 1 9202- ●
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9202- ● ●
262 PIPE; AIR,UNION TO FLEX
EXC. AIR DRYER<PS7> L=1482 SERVICED BY L=1620 		1-47434-392-0 01 1 9202- ● ●
425 SLEEVE; RUBBER,PIPE 1-09368-625-0 01 1 9206-9312 ●
425 SLEEVE; RUBBER,PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-09368-625-0 01 1 9206-9312 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
