◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#37294) — 29 parça

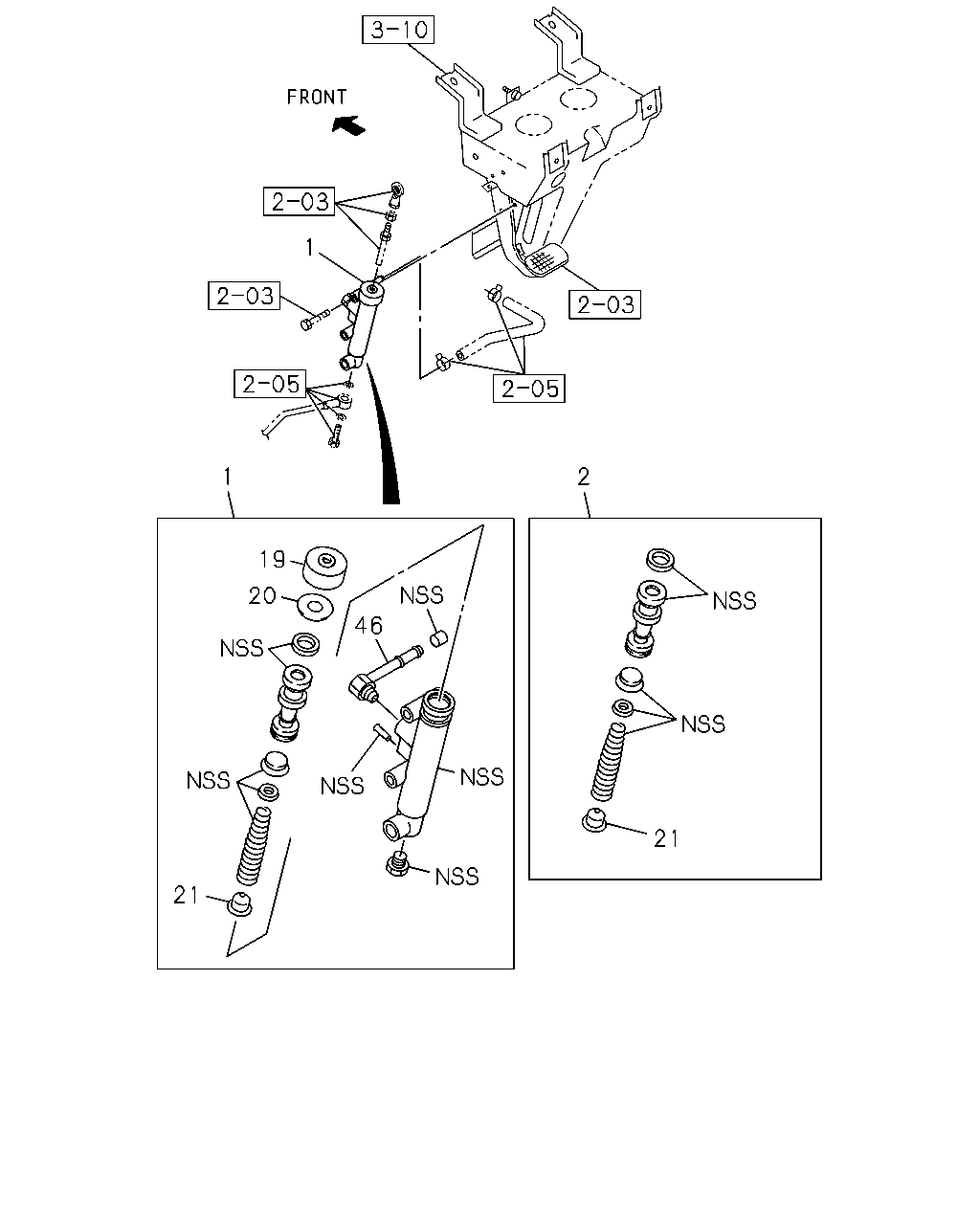

çizim 151242
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; CLUTCH MASTER
AIR ASSIST CLUTCH<PK1> 		1-47500-232-2 01 1 0601- ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-1 01 1 9510-9806 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 9807-0004 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0005-0512 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-255-0 01 1 0601-0601 ● ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. AIR ASSIST CLUTCH<PK1> 		1-47500-255-0 01 1 0601- ● ● ●
2 REPAIR KIT; CLU M/CYL
AIR ASSIST CLUTCH<PK1> 		1-85576-114-0 01 1 0601- ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 9510-9806 ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 9807-0004 ● ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0005-0512 ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-418-0 01 1 0601-0601 ● ●
2 REPAIR KIT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-85576-418-0 01 1 0601- ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9510-9806 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9807-0004 ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0005-0512 ● ●
19 BOOT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> 		9-47545-032-0 01 1 0601- ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9510-9806 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9807-0004 ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0005-0512 ● ●
20 RING; SNAP,BODY
EXC. AIR ASSIST CLUTCH<PK1> OD=26.9 		9-09180-125-0 01 1 0601- ● ● ●
21 VALVE; CHECK
AIR ASSIST CLUTCH<PK1> 		1-47565-004-0 01 1 0601- ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9510-9806 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9807-0004 ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 0005-0512 ● ●
21 VALVE; CHECK
EXC. AIR ASSIST CLUTCH<PK1> 		1-47565-004-0 01 1 0601-0601 ● ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9510-9806 ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9807-0004 ● ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0005-0512 ● ●
46 CONNECTOR; PIPE
EXC. AIR ASSIST CLUTCH<PK1> 		1-47517-004-0 01 1 0601- ● ● ●
