Sayfa 2-07 - Isuzu EPC

2-07 — CLUTCH BOOSTER; MINIPACK (#37293) — 325 parça

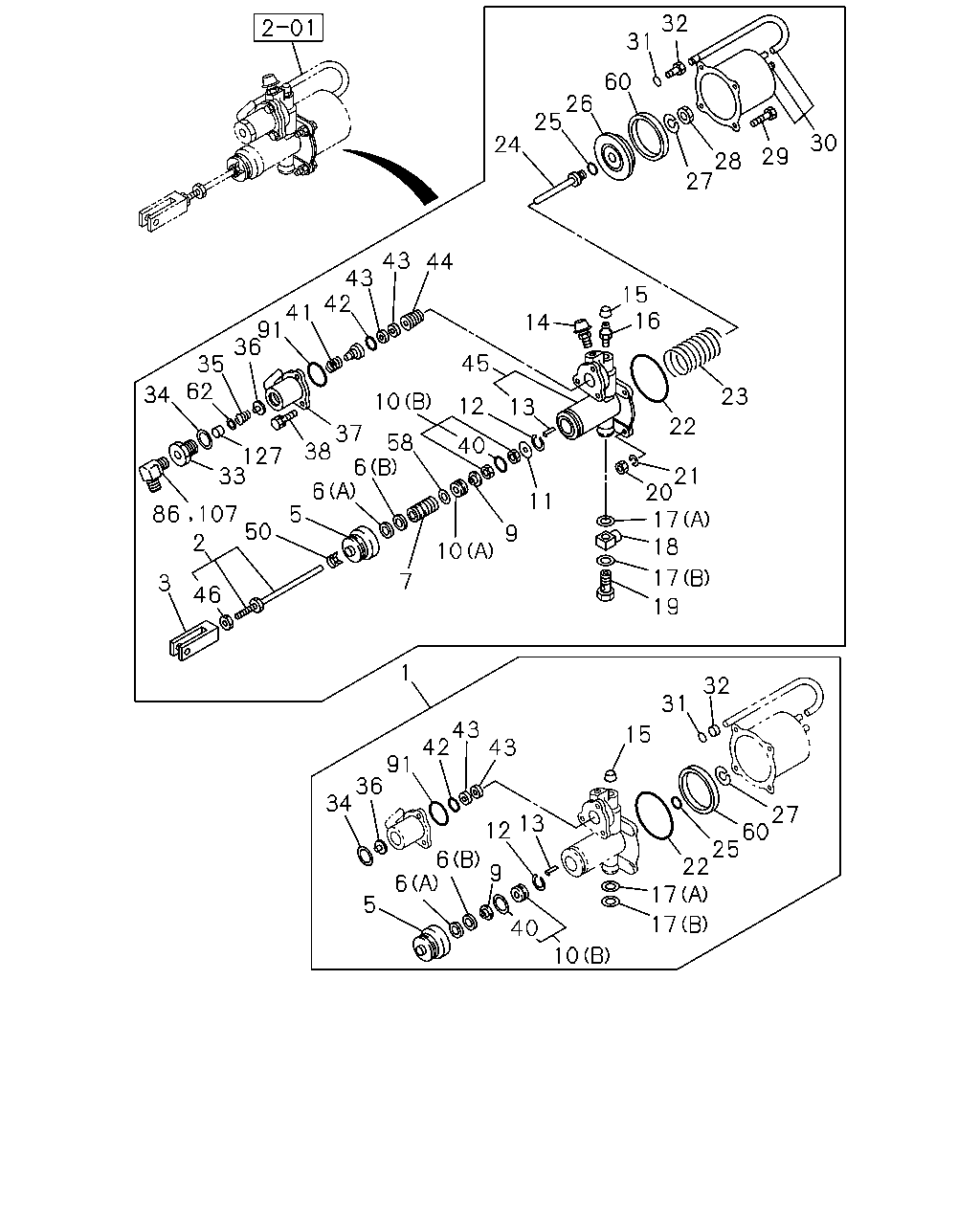

32 31 60 26 25 30 24 29 28 27 43 43 42 44 15 16 41 91 36 14 45 35 62 34 23 10 12 13 22 37 38 58 6 40 127 33 21 20 17 18 6 11 50 5 9 2 10 17 7 3 46 19 1 32 31 43 15 91 36 34 13 12 27 60 25 22 17 6 9 6 40 5 17 10 42 43 86 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-539-0	01	1	0601-	●
1	REPAIR KIT; CLU BOOSTER	1-31829-539-0	01	1	0601-		●
1	REPAIR KIT; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-359-0	01	1	9807-0004	●
1	REPAIR KIT; CLU BOOSTER	1-31829-352-0	01	1	9807-0004		●
2	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31824-156-0	01	1	0601-	●
2	ROD; PUSH,CLU BOOSTER	1-31824-156-0	01	1	0601-		●
2	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31824-156-0	01	1	9807-0004	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-186-1	01	1	0601-	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-1	01	1	0601-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-186-0	01	1	9807-0004	●	●
5	GUARD; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-174-0	01	1	0601-	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	0601-		●
5	GUARD; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-174-0	01	1	9807-0004	●	●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-055-0	01	1	0601-	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0601-		●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-056-0	01	1	0601-	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0601-		●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-055-0	01	1	9807-0004	●	●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-056-0	01	1	9807-0004	●	●
7	PISTON; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-048-0	01	1	0601-	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0601-		●
7	PISTON; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-013-0	01	1	9807-0004	●	●
9	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-003-0	01	1	0601-	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	0601-		●
9	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-003-0	01	1	9807-0004	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	9807-0004		●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-107-0	01	1	0601-	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-107-0	01	1	0601-		●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-108-0	01	1	0601-	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-108-0	01	1	0601-		●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-107-0	01	1	9807-0004	●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-108-0	01	1	9807-0004	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-285-0	01	1	9807-0004		●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-293-0	01	1	9807-0004		●
11	WASHER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-105-0	01	1	0601-	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0601-		●
11	WASHER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-105-0	01	1	9807-0004	●	●
12	RING; RET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-315-0	01	1	0601-	●
12	RING; RET,CLU BOOSTER	9-83315-315-0	01	1	0601-		●
12	RING; RET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-315-0	01	1	9807-0004	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9807-0004		●
13	PIN; SPR AIR ASSIST CLUTCH<PK1>	1-31829-109-0	01	1	0601-	●
13	PIN; SPR	1-31829-109-0	01	1	0601-		●
13	PIN; SPR AIR ASSIST CLUTCH<PK1>	1-31829-109-0	01	1	9807-0004	●	●
14	COVER; EXH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-564-0	01	1	0601-	●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	0601-		●
14	COVER; EXH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-102-0	01	1	9807-0004	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83335-044-0	01	1	0601-	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0601-		●
15	PROTECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83335-044-0	01	1	9807-0004	●	●
16	PLUG; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83331-704-0	01	1	0601-	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0601-		●
16	PLUG; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83331-704-0	01	1	9807-0004	●	●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	9-09920-267-0	01	1	0601-	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0601-		●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	9-09920-268-0	01	1	0601-	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0601-		●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	9-09920-267-0	01	1	9807-0004	●	●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	9-09920-268-0	01	1	9807-0004	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-248-0	01	1	0601-	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0601-		●
18	CONNECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-248-0	01	1	9807-0004	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-047-0	01	1	0601-	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0601-		●
19	BOLT; EYE,END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-047-0	01	1	9807-0004	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-085-0	04	1	0601-	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	0601-		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-085-0	04	1	9807-0004	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1> ID=8.2	9-09150-508-0	04	1	0601-	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	0601-		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1> ID=8.2	9-09150-508-0	04	1	9807-0004	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-327-0	01	1	0601-	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	0601-		●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-327-0	01	1	9807-0004	●	●
23	SPRING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-358-0	01	1	0601-	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0601-		●
23	SPRING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-110-0	01	1	9807-0004	●	●
24	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-112-0	01	1	0601-	●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	0601-		●
24	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-112-0	01	1	9807-0004	●
24	ROD; PUSH,CLU BOOSTER	1-31829-340-0	01	1	9807-0004		●
25	GASKET; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-321-0	01	1	0601-	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0601-		●
25	GASKET; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-321-0	01	1	9807-0004	●	●
26	PISTON; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-083-0	01	1	0601-	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-083-0	01	1	0601-		●
26	PISTON; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-057-0	01	1	9807-0004	●	●
27	SPRING; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-111-0	01	1	0601-	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0601-		●
27	SPRING; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-111-0	01	1	9807-0004	●	●
28	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-88510-365-0	01	1	0601-	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0601-		●
28	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-88510-365-0	01	1	9807-0004	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-015-0	04	1	0601-	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	0601-		●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-015-0	04	1	9807-0004	●	●
30	SHELL; CYL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-123-0	01	1	0601-	●
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	0601-		●
30	SHELL; CYL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-026-0	01	1	9807-0004	●	●
31	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-113-0	01	1	0601-	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	0601-		●
31	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-113-0	01	1	9807-0004	●	●
32	BUSHING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-114-0	01	1	0601-	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	0601-		●
32	BUSHING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-114-0	01	1	9807-0004	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-212-0	01	1	0601-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-212-0	01	1	0601-		●
33	CONNECTOR; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-212-0	01	1	9807-0004	●	●
34	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-053-0	01	1	0601-	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0601-		●
34	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-053-0	01	1	9807-0004	●	●
35	SPRING; POPPET VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-537-0	01	1	0601-	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	0601-		●
35	SPRING; POPPET VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-077-0	01	1	9807-0004	●	●
36	VALVE; POPPET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-536-0	01	1	0601-	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	0601-		●
36	VALVE; POPPET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-016-0	01	1	9807-0004	●	●
37	BODY; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-138-0	01	1	0601-	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-138-0	01	1	0601-		●
37	BODY; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-018-0	01	1	9807-0004	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE AIR ASSIST CLUTCH<PK1>	9-83315-113-0	03	1	0601-	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0601-		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE AIR ASSIST CLUTCH<PK1>	9-83315-113-0	03	1	9807-0004	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	03	1	9807-0004		●
40	GASKET; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-037-0	01	1	0601-1412	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0601-1412		●
40	GASKET; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-037-0	01	1	9807-0004	●	●
41	SPRING; DIAPH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-420-0	01	1	0601-	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	0601-		●
41	SPRING; DIAPH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-420-0	01	1	9807-0004	●	●
42	GASKET; FITTING,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-143-0	01	1	0601-	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	0601-		●
42	GASKET; FITTING,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-143-0	01	1	9807-0004	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	9807-0004		●
43	GASKET; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-060-0	02	1	0601-	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0601-		●
43	GASKET; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-060-0	02	1	9807-0004	●	●
44	PISTON; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-087-0	01	1	0601-	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	0601-		●
44	PISTON; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-029-0	01	1	9807-0004	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-019-0	01	1	9807-0004		●
45	PLATE; END,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-081-0	01	1	0601-	●
45	PLATE; END,CLU BOOSTER	1-31811-081-0	01	1	0601-		●
45	PLATE; END,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-081-0	01	1	9807-0004	●
45	PLATE; END,CLU BOOSTER	1-31811-062-0	01	1	9807-0004		●
46	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1> M10	9-09111-410-0	02	1	0601-	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0601-		●
46	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1> M10	9-09111-410-0	01	1	9807-0004	●
46	NUT; PUSH ROD,CLU BOOSTER	1-31824-126-0	01	1	9807-0004		●
50	CLAMP; PISTON GUARD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-168-0	01	1	0601-	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-168-0	01	1	0601-		●
50	CLAMP; PISTON GUARD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-168-0	01	1	9807-0004	●	●
58	WASHER; PISTON,CLU BOOSTER	1-31829-294-0	01	1	9807-0004		●
60	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-535-0	01	1	0601-	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0601-		●
60	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-066-0	01	1	9807-0004	●	●
62	RETAINER; POPPET AIR ASSIST CLUTCH<PK1>	1-31829-489-0	01	1	0601-	●
62	RETAINER; POPPET	1-31829-489-0	01	1	0601-		●
86	ELBOW ASM; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09650-358-1	01	1	9807-0004	●	●
91	GASKET; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-103-0	01	1	0601-	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0601-		●
91	GASKET; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-103-0	01	1	9807-0004	●	●
107	CONNECTOR; ELBOW AIR ASSIST CLUTCH<PK1>	1-09650-358-1	01	1	0601-	●
107	CONNECTOR; ELBOW	1-09650-358-1	01	1	0601-		●
127	FILTER; POPPET AIR ASSIST CLUTCH<PK1>	1-31829-495-0	01	1	0601-	●
127	FILTER; POPPET	1-31829-495-0	01	1	0601-		●

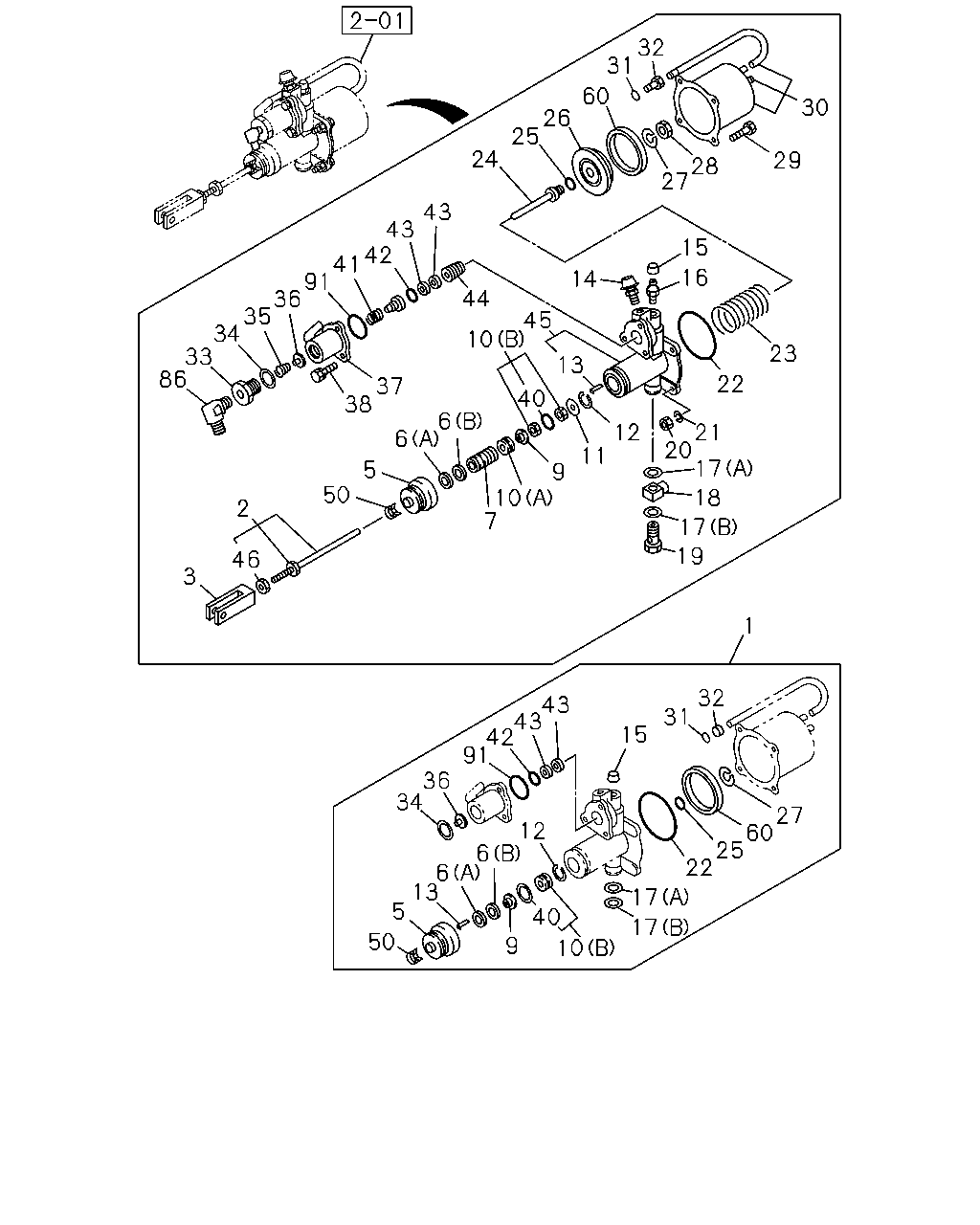

32 31 60 30 26 25 24 29 28 27 43 43 42 41 91 36 35 34 33 86 15 16 14 44 45 10 23 13 22 37 38 40 6 12 21 20 6 11 5 9 50 10 7 18 2 17 19 46 3 1 32 43 43 42 91 31 15 36 34 27 60 25 22 12 6 6 13 5 40 17 17 50 9 10 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-539-0	01	1	0601-	●
1	REPAIR KIT; CLU BOOSTER	1-31829-539-0	01	1	0601-		●
1	REPAIR KIT; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-359-0	01	1	9807-0004	●
1	REPAIR KIT; CLU BOOSTER	1-31829-352-0	01	1	9807-0004		●
2	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31824-156-0	01	1	0601-	●
2	ROD; PUSH,CLU BOOSTER	1-31824-156-0	01	1	0601-		●
2	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31824-156-0	01	1	9807-0004	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-186-1	01	1	0601-	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-1	01	1	0601-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-186-0	01	1	9807-0004	●	●
5	GUARD; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-174-0	01	1	0601-	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	0601-		●
5	GUARD; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-174-0	01	1	9807-0004	●	●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-055-0	01	1	0601-	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0601-		●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-056-0	01	1	0601-	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0601-		●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-055-0	01	1	9807-0004	●	●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-056-0	01	1	9807-0004	●	●
7	PISTON; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-048-0	01	1	0601-	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0601-		●
7	PISTON; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-013-0	01	1	9807-0004	●	●
9	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-003-0	01	1	0601-	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	0601-		●
9	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-003-0	01	1	9807-0004	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	9807-0004		●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-107-0	01	1	0601-	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-107-0	01	1	0601-		●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-108-0	01	1	0601-	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-108-0	01	1	0601-		●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-107-0	01	1	9807-0004	●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-108-0	01	1	9807-0004	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-285-0	01	1	9807-0004		●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-293-0	01	1	9807-0004		●
11	WASHER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-105-0	01	1	0601-	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0601-		●
11	WASHER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-105-0	01	1	9807-0004	●	●
12	RING; RET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-315-0	01	1	0601-	●
12	RING; RET,CLU BOOSTER	9-83315-315-0	01	1	0601-		●
12	RING; RET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-315-0	01	1	9807-0004	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9807-0004		●
13	PIN; SPR AIR ASSIST CLUTCH<PK1>	1-31829-109-0	01	1	0601-	●
13	PIN; SPR	1-31829-109-0	01	1	0601-		●
13	PIN; SPR AIR ASSIST CLUTCH<PK1>	1-31829-109-0	01	1	9807-0004	●	●
14	COVER; EXH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-564-0	01	1	0601-	●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	0601-		●
14	COVER; EXH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-102-0	01	1	9807-0004	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83335-044-0	01	1	0601-	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0601-		●
15	PROTECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83335-044-0	01	1	9807-0004	●	●
16	PLUG; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83331-704-0	01	1	0601-	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0601-		●
16	PLUG; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83331-704-0	01	1	9807-0004	●	●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	9-09920-267-0	01	1	0601-	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0601-		●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	9-09920-268-0	01	1	0601-	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0601-		●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	9-09920-267-0	01	1	9807-0004	●	●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	9-09920-268-0	01	1	9807-0004	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-248-0	01	1	0601-	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0601-		●
18	CONNECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-248-0	01	1	9807-0004	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-047-0	01	1	0601-	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0601-		●
19	BOLT; EYE,END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-047-0	01	1	9807-0004	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-085-0	04	1	0601-	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	0601-		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-085-0	04	1	9807-0004	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1> ID=8.2	9-09150-508-0	04	1	0601-	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	0601-		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1> ID=8.2	9-09150-508-0	04	1	9807-0004	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-327-0	01	1	0601-	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	0601-		●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-327-0	01	1	9807-0004	●	●
23	SPRING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-358-0	01	1	0601-	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0601-		●
23	SPRING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-110-0	01	1	9807-0004	●	●
24	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-112-0	01	1	0601-	●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	0601-		●
24	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-112-0	01	1	9807-0004	●
24	ROD; PUSH,CLU BOOSTER	1-31829-340-0	01	1	9807-0004		●
25	GASKET; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-321-0	01	1	0601-	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0601-		●
25	GASKET; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-321-0	01	1	9807-0004	●	●
26	PISTON; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-083-0	01	1	0601-	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-083-0	01	1	0601-		●
26	PISTON; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-057-0	01	1	9807-0004	●	●
27	SPRING; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-111-0	01	1	0601-	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0601-		●
27	SPRING; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-111-0	01	1	9807-0004	●	●
28	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-88510-365-0	01	1	0601-	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0601-		●
28	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-88510-365-0	01	1	9807-0004	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-015-0	04	1	0601-	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	0601-		●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-015-0	04	1	9807-0004	●	●
30	SHELL; CYL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-123-0	01	1	0601-	●
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	0601-		●
30	SHELL; CYL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-026-0	01	1	9807-0004	●	●
31	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-113-0	01	1	0601-	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	0601-		●
31	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-113-0	01	1	9807-0004	●	●
32	BUSHING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-114-0	01	1	0601-	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	0601-		●
32	BUSHING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-114-0	01	1	9807-0004	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-212-0	01	1	0601-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-212-0	01	1	0601-		●
33	CONNECTOR; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-212-0	01	1	9807-0004	●	●
34	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-053-0	01	1	0601-	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0601-		●
34	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-053-0	01	1	9807-0004	●	●
35	SPRING; POPPET VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-537-0	01	1	0601-	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	0601-		●
35	SPRING; POPPET VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-077-0	01	1	9807-0004	●	●
36	VALVE; POPPET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-536-0	01	1	0601-	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	0601-		●
36	VALVE; POPPET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-016-0	01	1	9807-0004	●	●
37	BODY; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-138-0	01	1	0601-	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-138-0	01	1	0601-		●
37	BODY; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-018-0	01	1	9807-0004	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE AIR ASSIST CLUTCH<PK1>	9-83315-113-0	03	1	0601-	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0601-		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE AIR ASSIST CLUTCH<PK1>	9-83315-113-0	03	1	9807-0004	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	03	1	9807-0004		●
40	GASKET; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-037-0	01	1	0601-1412	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0601-1412		●
40	GASKET; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-037-0	01	1	9807-0004	●	●
41	SPRING; DIAPH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-420-0	01	1	0601-	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	0601-		●
41	SPRING; DIAPH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-420-0	01	1	9807-0004	●	●
42	GASKET; FITTING,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-143-0	01	1	0601-	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	0601-		●
42	GASKET; FITTING,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-143-0	01	1	9807-0004	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	9807-0004		●
43	GASKET; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-060-0	02	1	0601-	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0601-		●
43	GASKET; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-060-0	02	1	9807-0004	●	●
44	PISTON; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-087-0	01	1	0601-	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	0601-		●
44	PISTON; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-029-0	01	1	9807-0004	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-019-0	01	1	9807-0004		●
45	PLATE; END,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-081-0	01	1	0601-	●
45	PLATE; END,CLU BOOSTER	1-31811-081-0	01	1	0601-		●
45	PLATE; END,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-081-0	01	1	9807-0004	●
45	PLATE; END,CLU BOOSTER	1-31811-062-0	01	1	9807-0004		●
46	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1> M10	9-09111-410-0	02	1	0601-	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0601-		●
46	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1> M10	9-09111-410-0	01	1	9807-0004	●
46	NUT; PUSH ROD,CLU BOOSTER	1-31824-126-0	01	1	9807-0004		●
50	CLAMP; PISTON GUARD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-168-0	01	1	0601-	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-168-0	01	1	0601-		●
50	CLAMP; PISTON GUARD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-168-0	01	1	9807-0004	●	●
60	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-535-0	01	1	0601-	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0601-		●
60	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-066-0	01	1	9807-0004	●	●
86	ELBOW ASM; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09650-358-1	01	1	9807-0004	●	●
91	GASKET; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-103-0	01	1	0601-	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0601-		●
91	GASKET; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-103-0	01	1	9807-0004	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
