Sayfa 2-05A - Isuzu EPC

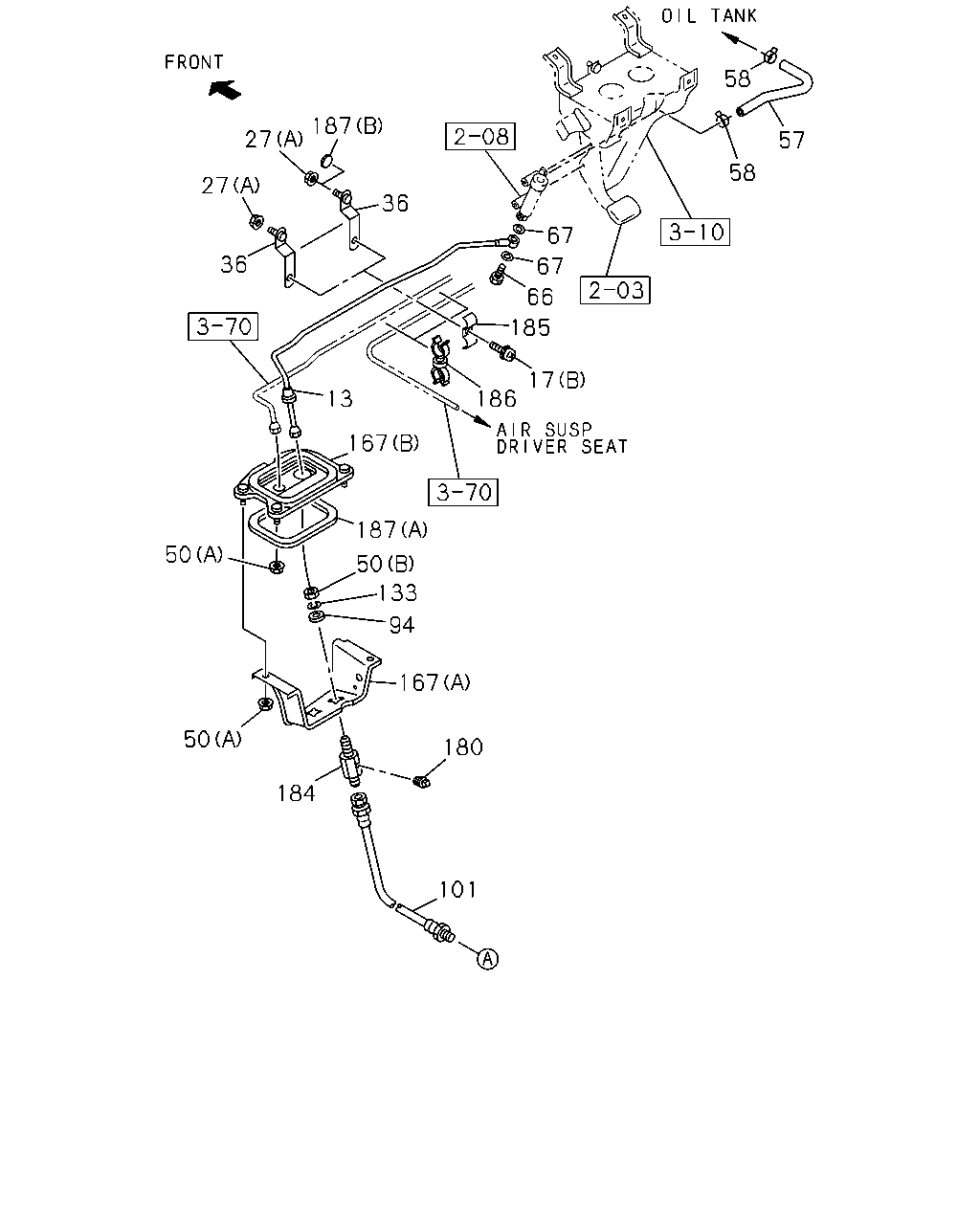

2-05A — CLUTCH PIPING (#37290) — 606 parça

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9510-9806	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9807-0004	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0005-0512	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0601-	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9806	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9807-0004	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FR*W) DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004	●	●
17	BOLT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004			●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004			●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT DOUBLE CAB(FR*W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9807-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FR*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9807-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9807-0004			●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0512	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0601-	●	●	●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9806	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9807-0004	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0512	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0601-0602	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004	●	●
27	NUT; BRKT DOUBLE CAB(FR*W) DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004	●	●
27	NUT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004			●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004			●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT DOUBLE CAB(FR*W) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9807-0004	●	●
27	NUT; BRKT DOUBLE CAB(FR*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9807-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9807-0004			●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0512	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0601-	●	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9510-9802	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9510-9802	●	●
36	BRACKET; CLIP STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9803-9810	●	●
36	BRACKET; CLIP STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9803-9810	●	●
36	BRACKET; CLIP STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9807-0004	●	●
36	BRACKET; CLIP DOUBLE CAB(FR*W) DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	9807-0004	●	●
36	BRACKET; CLIP STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9807-0004	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9807-0004			●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	9807-0004			●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0005-0010	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0005-0010	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0011-	●	●
36	BRACKET; CLIP EXC. DUAL AIR GAUGE<UG2>	1-79738-186-1	02	1	0011-	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9510-9802	●	●
36	BRACKET; CLIP STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>	1-79738-186-1	01	1	9803-9810	●	●
36	BRACKET; CLIP DOUBLE CAB(FR*W)	1-79738-186-1	01	1	9803-9810	●	●
36	BRACKET; CLIP STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	9807-0004	●	●
36	BRACKET; CLIP DOUBLE CAB(FR*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	9807-0004	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	9807-0004			●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	0005-0010	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0011-0512	●	●
36	BRACKET; CLIP DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0601-	●	●	●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> (C) M12	9-09840-280-0	01	1	0601-		●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0601-			●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9510-0512	●	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●	●	●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0004	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0512	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0601-	●	●	●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> (C) M12	9-09840-280-0	01	1	9807-0004		●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9807-0004			●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9510-9806	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9807-0004	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0512	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0601-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9510-9806	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9807-0004	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0512	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0601-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9510-9806	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9807-0004	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0512	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0601-0805	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9806	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9807-0004	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0512	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0601-1312	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9510-9806	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9807-0004	●	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0512	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0601-0605	●	●	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0601-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9510-9806	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9807-0004	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9510-9806	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9807-0004	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0512	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0601-0603	●	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●
167	BRACKET; UNION (A)	1-79738-847-2	01	1	0601-			●
167	BRACKET; UNION (A)	1-79738-193-4	01	1	9510-9806	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9807-0004	●	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-	●	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9510-9911	●	●	●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	9912-0004	●	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0005-0512	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0601-	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9510-9806	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9807-0004	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0512	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0601-0804	●	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	9510-9806	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	9807-0004	●	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0005-0512	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0601-0804	●	●	●
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	0805-	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9510-9806	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9510-9806	●	●
185	CLIP; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9807-9810	●	●
185	CLIP; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9807-9810	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9807-9810			●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9807-9810			●
185	CLIP; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT DOUBLE CAB(FR*W) DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004			●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	9811-0004			●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0011-	●	●
185	CLIP; BRKT EXC. DUAL AIR GAUGE<UG2> ID=5 & 8	5-09700-165-0	02	1	0011-	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9510-9806	●	●
185	CLIP; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=5 & 8	5-09700-165-0	01	1	9807-9810	●	●
185	CLIP; BRKT DOUBLE CAB(FR*W) ID=5 & 8	5-09700-165-0	01	1	9807-9810	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=5 & 8	5-09700-165-0	01	1	9807-9810			●
185	CLIP; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9811-0004	●	●
185	CLIP; BRKT DOUBLE CAB(FR*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9811-0004	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9811-0004			●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	0005-0010	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0011-0512	●	●
185	CLIP; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0601-	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9510-9706	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9806	●	●
186	HOLDER; CLIP STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=6 & 4.8	8-94313-325-0	02	1	9807-9810	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=6 & 4.8	8-94313-325-0	02	1	9807-9810			●
186	HOLDER; CLIP STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004	●	●
186	HOLDER; CLIP DOUBLE CAB(FR*W) DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004			●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	0005-0010	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0011-	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9510-9806	●	●
187	SEAL; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) OD=25 BLACK	1-76798-019-0	01	1	9807-9810	●	●
187	SEAL; BRKT DOUBLE CAB(FR*W) (B) OD=25 BLACK	1-76798-019-0	01	1	9807-9810	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) OD=25 BLACK	1-76798-019-0	01	1	9807-9810			●
187	SEAL; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9811-0004	●	●
187	SEAL; BRKT DOUBLE CAB(FR*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9811-0004	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9811-0004			●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0010	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0011-0512	●	●
187	SEAL; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0601-	●	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9510-0004	●	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-0512	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0601-	●	●	●

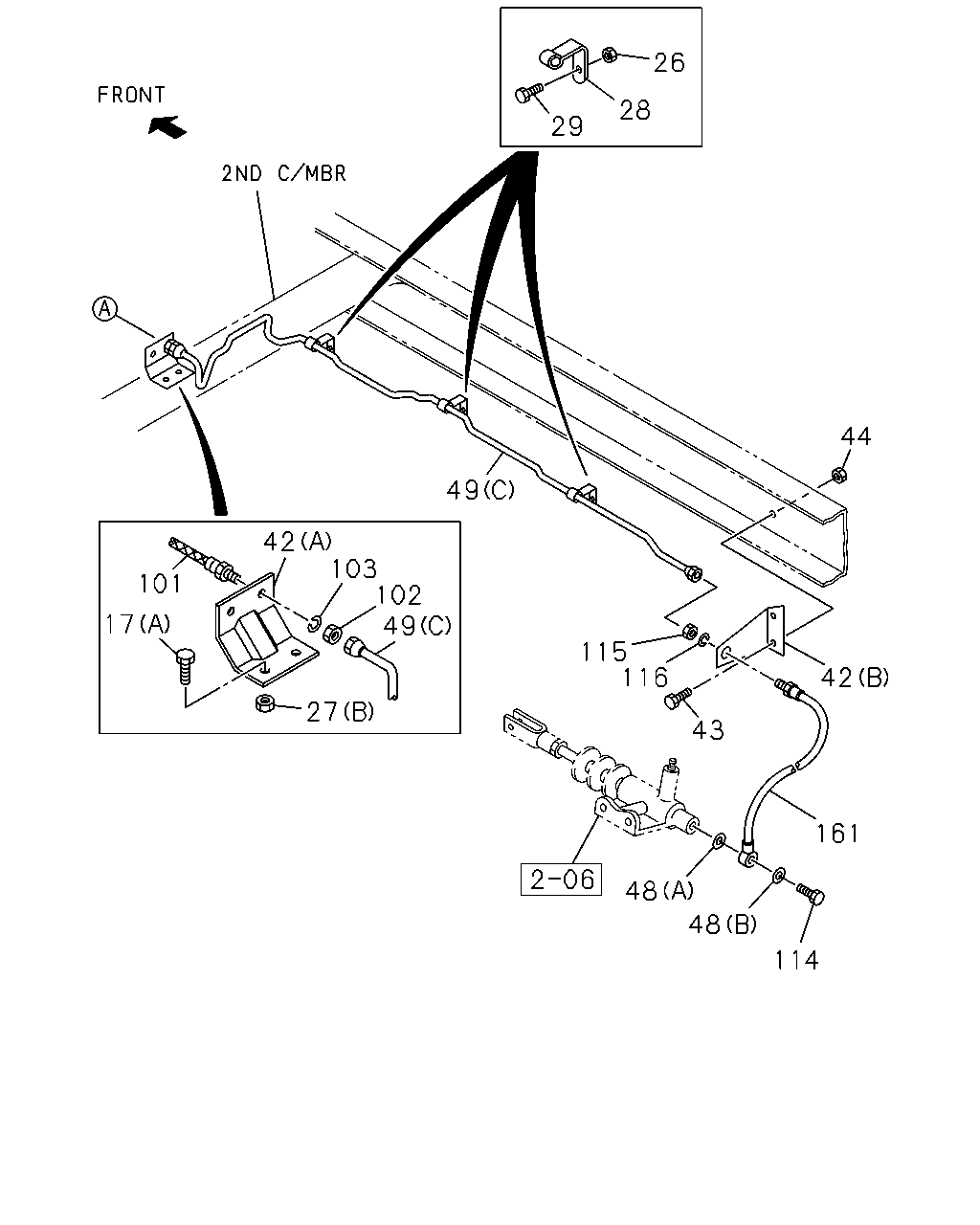

26 28 29 44 49 42 103 102 49 101 17 115 116 42 27 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9806	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9807-0004	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FR*W) DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004	●	●
17	BOLT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004			●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004			●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT DOUBLE CAB(FR*W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9807-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FR*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9807-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9807-0004			●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0512	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0601-	●	●	●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0601-0602		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0601-0602			●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	03	1	0603-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-			●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9510-9606	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9809	●	●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	05	1	9807-0004		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	05	1	9807-0004			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0512	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0601-0602	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0601-0602		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9807-0004	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	9807-0004		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9806	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9807-0004	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0512	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0601-0602	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004	●	●
27	NUT; BRKT DOUBLE CAB(FR*W) DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004	●	●
27	NUT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004			●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004			●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT DOUBLE CAB(FR*W) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9807-0004	●	●
27	NUT; BRKT DOUBLE CAB(FR*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9807-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9807-0004			●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0512	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0601-	●	●	●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0601-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0601-			●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9809	●	●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	05	1	9807-0004		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	9807-0004			●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0005-0512	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0601-	●
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0601-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9807-0004	●
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	9807-0004		●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-			●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9806	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9807-0004	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9809	●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	9807-0004		●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0005-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-0601	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	03	1	0601-			●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	9807-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C)	1-47477-944-0	01	1	0601-		●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47477-944-0	01	1	0601-			●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9510-9809	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	9807-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0005-0512	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0601-	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	0601-			●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-9806	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9807-0004	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0512	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0601-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C)	1-47477-944-0	01	1	9807-0004		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9806	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9807-0004	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9806	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9807-0004	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0512	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0601-0602	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0601-		●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0601-			●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	9510-9809	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) ID=10.5	1-09630-074-1	01	1	9807-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0005-0512	●	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0601-	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) ID=10.5	1-09630-074-1	01	1	0601-			●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-9809	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9807-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0005-0512	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0601-	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0601-			●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9807-0004		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=3110 SERVICED BY L=3300	1-47426-398-0	01	1	0601-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=3110 SERVICED BY L=3300	1-47426-398-0	01	1	0601-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	0601-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0601-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9806	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	9807-0004	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0512	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	0601-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	0601-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=3111 SERVICED BY L=3300	1-47426-398-0	01	1	9807-0004		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9807-0004		●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0601-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9510-9806	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9807-0004	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-9806	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9807-0004	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-9806	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9807-0004	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0512	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0601-0603	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9510-9809	●	●
114	BOLT; EYE,FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1>	1-09675-158-0	01	1	9807-0004	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	0005-0512	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	0601-	●	●
114	BOLT; EYE,FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1>	1-09675-158-0	01	1	0601-			●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-9806	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9807-0004	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> M14	0-91111-514-0	01	1	0601-			●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-9806	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9807-0004	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0512	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0601-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> ID=14.2	9-09150-514-0	01	1	0601-0603			●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
161	HOSE; FLEX,SLAVE CYL ENGINE REAR PTO(SV1) L=400	1-09364-597-0	01	1	9510-9809	●	●
161	HOSE; FLEX,SLAVE CYL ENGINE REAR PTO(SV1) EXC. AIR ASSIST CLUTCH<PK1> L=400	1-09364-597-0	01	1	9807-0004	●	●	●
161	HOSE; FLEX,SLAVE CYL EXC. ENGINE REAR PTO(SV1) L=310	0-05567-310-0	01	1	9510-9809	●	●
161	HOSE; FLEX,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>,ENGINE REAR PTO(SV1) L=310	0-05567-310-0	01	1	9807-0004	●	●	●
161	HOSE; FLEX,SLAVE CYL L=310	0-05567-310-0	01	1	0005-0512	●	●
161	HOSE; FLEX,SLAVE CYL L=310	0-05567-310-0	01	1	0601-	●	●
161	HOSE; FLEX,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1> L=310	0-05567-310-0	01	1	0601-			●

26 28 29 131 42 103 102 49 101 17 49 27 49 131 45 46 44 131 45 46 44 49 115 115 116 116 42 42 48 45 22 48 43 46 49 43 50 164 164 49 51 47 47 134 47 47 134 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9806	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9807-0004	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FR*W) DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004	●	●
17	BOLT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004			●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9807-0004			●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-9802	●	●
17	BOLT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT DOUBLE CAB(FR*W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-9810	●	●
17	BOLT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9807-0004	●	●
17	BOLT; BRKT DOUBLE CAB(FR*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9807-0004	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9807-0004			●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0512	●	●
17	BOLT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0601-	●	●	●
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> M12 3WAY	9-09228-706-1	01	1	0601-0607		●
22	UNION; CLU PIPE M12 3WAY	9-09228-706-1	01	1	0601-0607			●
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> M12 3WAY	0-92138-706-0	01	1	0608-		●
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	0608-			●
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> M12 3WAY	9-09228-706-1	01	1	9807-0004		●
22	UNION; CLU PIPE M12 3WAY	9-09228-706-1	01	1	9807-0004			●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0601-0602		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0601-0602			●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	03	1	0603-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-			●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9510-9606	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9809	●	●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	05	1	9807-0004		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	05	1	9807-0004			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0512	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0601-0602	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0601-0602		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9807-0004	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	9807-0004		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9806	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9807-0004	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0512	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0601-0602	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FR*M) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004	●	●
27	NUT; BRKT DOUBLE CAB(FR*W) DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004	●	●
27	NUT; BRKT STD CAB(FR*M) EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004			●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9807-0004			●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT EXC. DUAL AIR GAUGE<UG2> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9510-9802	●	●
27	NUT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT DOUBLE CAB(FR*W) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9803-9810	●	●
27	NUT; BRKT STD CAB(FR*M) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9807-0004	●	●
27	NUT; BRKT DOUBLE CAB(FR*W) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9807-0004	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9807-0004			●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0512	●	●
27	NUT; BRKT DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0601-	●	●	●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0601-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0601-			●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9809	●	●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	05	1	9807-0004		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	9807-0004			●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0005-0512	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0601-	●
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0601-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	9807-0004	●
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	9807-0004		●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-			●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9806	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9807-0004	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9809	●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	9807-0004		●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0005-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-0601	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	03	1	0601-			●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	9807-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C)	1-47477-944-0	01	1	0601-		●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47477-944-0	01	1	0601-			●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9510-9809	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	9807-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0005-0512	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0601-	●	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	0601-			●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-9806	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9807-0004	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0512	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0601-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C)	1-47477-944-0	01	1	9807-0004		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9806	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9807-0004	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9806	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9807-0004	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0512	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0601-0602	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> M12	9-09840-280-0	01	1	0601-		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0601-			●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> M12	9-09840-280-0	01	1	9807-0004		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9807-0004			●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	0601-0603		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0601-0603			●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ID=12.2	0-91510-512-0	01	1	0604-		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-			●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	9807-0004		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9807-0004			●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (B) L=470	1-09364-692-0	01	1	0601-		●
47	HOSE; FLEX,CLU CONT (B) L=470	1-09364-692-0	01	1	0601-			●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (C) OD=12.7 L=450	1-09363-631-0	01	1	0601-		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (C) OD=12.7 L=450	1-09363-631-0	01	1	0601-			●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	1-09363-689-0	01	1	0601-		●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	1-09363-689-0	01	1	0601-			●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (B) L=470	1-09364-692-0	01	1	9807-0004		●
47	HOSE; FLEX,CLU CONT (B) L=470	1-09364-692-0	01	1	9807-0004			●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-682-0	01	1	9807-0004		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-682-0	01	1	9807-0004			●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	1-09363-689-0	01	1	9807-0004		●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	1-09363-689-0	01	1	9807-0004			●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0601-		●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0601-			●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	9510-9809	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) ID=10.5	1-09630-074-1	01	1	9807-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0005-0512	●	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0601-	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) ID=10.5	1-09630-074-1	01	1	0601-			●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-9809	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9807-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0005-0512	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0601-	●	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0601-			●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9807-0004		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=3110 SERVICED BY L=3300	1-47426-398-0	01	1	0601-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=3110 SERVICED BY L=3300	1-47426-398-0	01	1	0601-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	0601-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0601-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9806	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	9807-0004	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0512	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	0601-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	0601-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=3111 SERVICED BY L=3300	1-47426-398-0	01	1	9807-0004		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9807-0004		●	●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> (C) M12	9-09840-280-0	01	1	0601-		●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0601-			●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9510-0512	●	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●	●	●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0004	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0512	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0601-	●	●	●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> (C) M12	9-09840-280-0	01	1	9807-0004		●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9807-0004			●
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	0601-0603		●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	0601-0603			●
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ID=12.2	0-91510-512-0	01	1	0604-		●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-			●
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	9807-0004		●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9807-0004			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0601-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9510-9806	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9807-0004	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-9806	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9807-0004	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-9806	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9807-0004	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0512	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0601-0603	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-9806	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9807-0004	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> M14	0-91111-514-0	01	1	0601-			●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-9806	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9807-0004	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0512	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0601-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> ID=14.2	9-09150-514-0	01	1	0601-0603			●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE AIR ASSIST CLUTCH<PK1>	1-49119-152-0	01	1	0601-		●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49119-152-0	01	1	0601-			●
131	PIPE; AIR,UNION TO FLEX HOSE AIR ASSIST CLUTCH<PK1>	1-49119-152-0	01	1	9807-0004		●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49119-152-0	01	1	9807-0004			●
134	GASKET AIR ASSIST CLUTCH<PK1> ID=11 OD=18	9-09572-510-0	01	1	9810-9912		●
134	GASKET ID=11 OD=18	9-09572-510-0	01	1	9810-9912			●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=17 OD=21 L=40	1-09337-012-0	01	1	0601-		●
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0601-			●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0601-		●
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0601-			●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=17 OD=21 L=40	1-09337-012-0	01	1	9807-0004		●
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	9807-0004			●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9807-0004		●
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9807-0004			●
164	CLIP; BAND,FLEX HOSE AIR ASSIST CLUTCH<PK1> L=140	5-09707-031-1	01	1	0601-		●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0601-			●
164	CLIP; BAND,FLEX HOSE AIR ASSIST CLUTCH<PK1> L=140	5-09707-031-1	01	1	9707-0004		●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	9707-0004			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
